2.5" bore x 18" stroke swivel eye hydraulic cylinder
$259.00
Pay in 4 interest-free payments of $64.75SKU: WSE 2.5x18

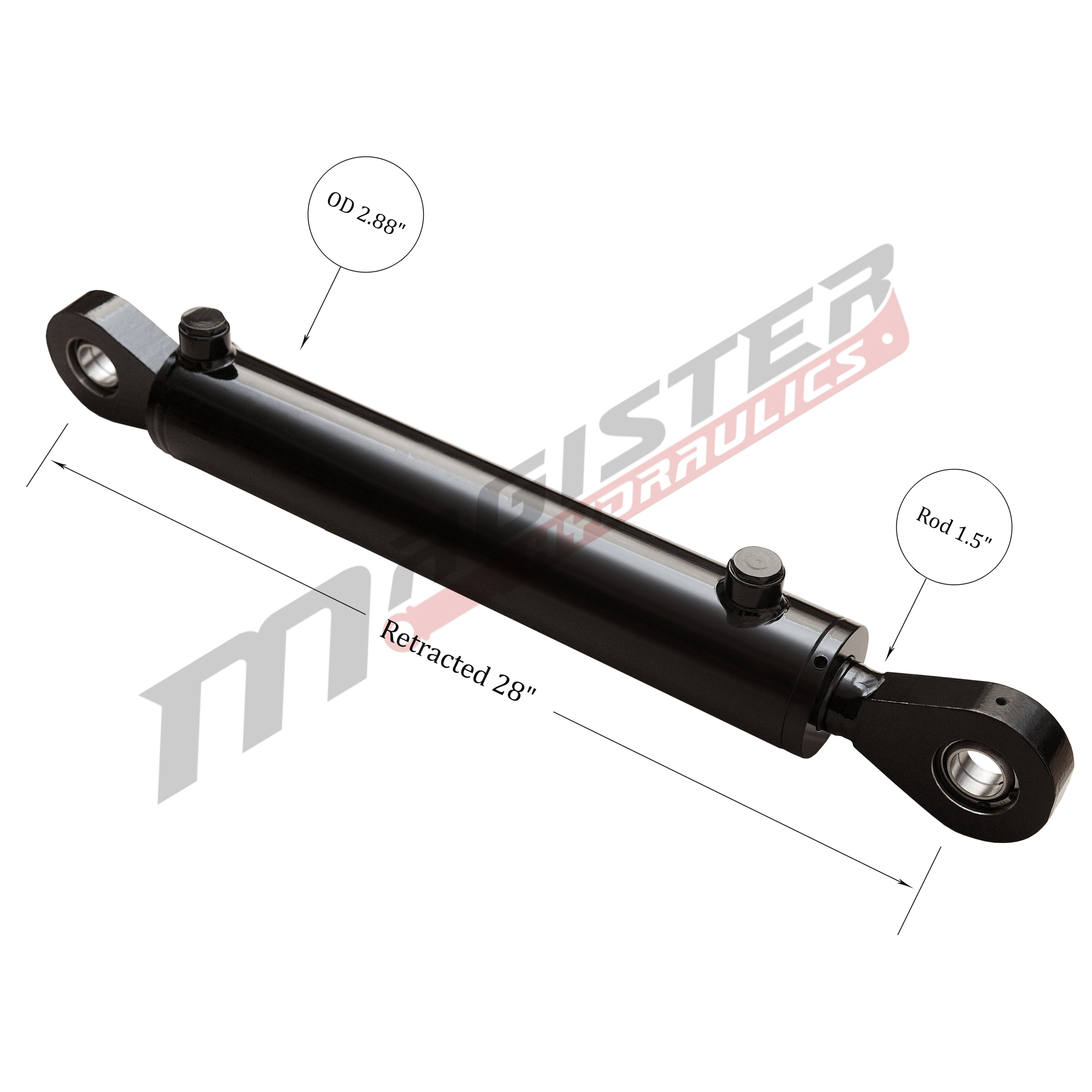

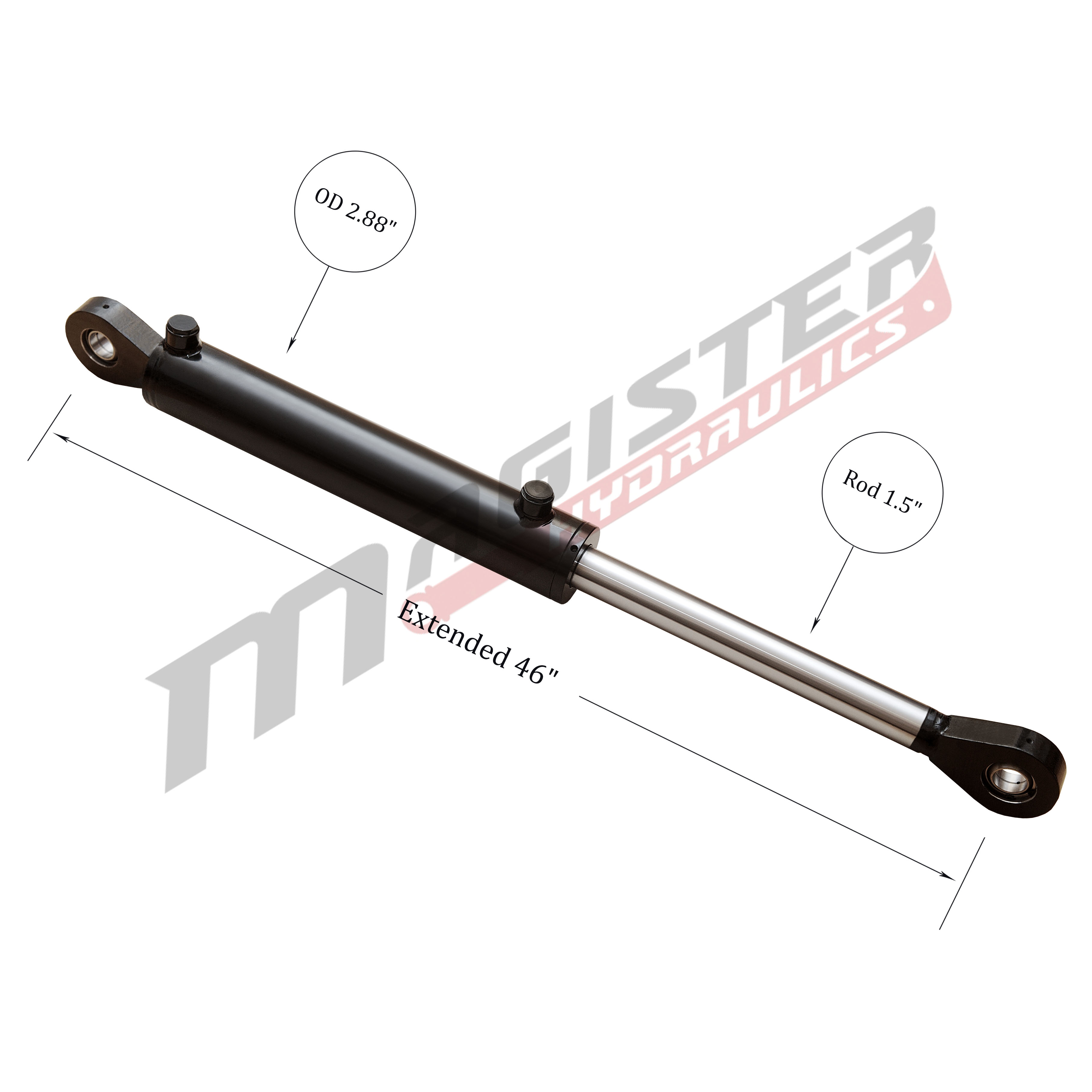

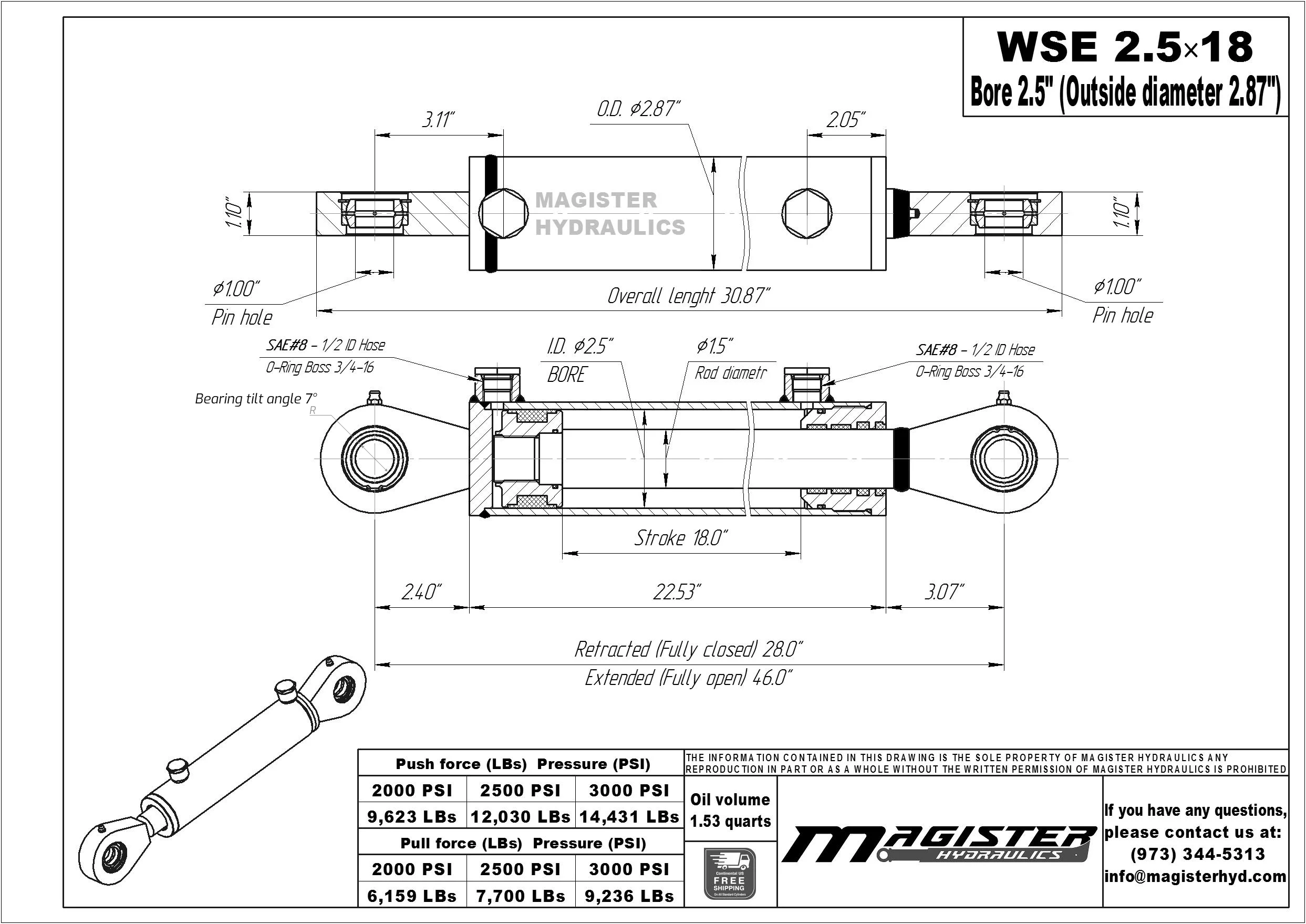

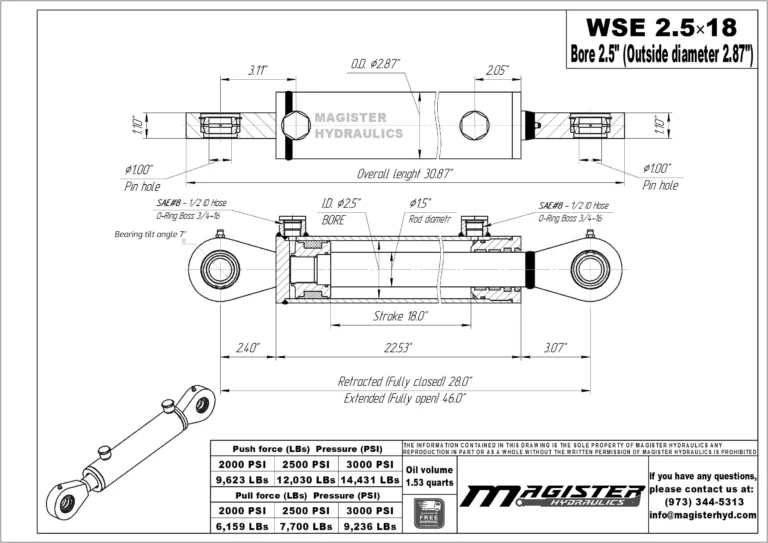

| Bore : | 2.5 in | Outer Dia. (⌀) : | 2.87 in | Stroke : | 18 in | Rod Dia. (⌀) : | 1.5 in | Port Size : | SAE 8 | Pin Dia. (⌀) : | 1 in | Extended : | 46 in | Retracted : | 28 in | Overall length : | 28.87 in | Pressure : | 3500 PSI | Column Load : | 14,700 LBs | Oil Volume : | 1.53 QTs | Brand : | Magister Hydraulics | Design : | Welded | Rod Type : | Chrome Plated | Rod End : | Spherical Bearings | Action : | Double Acting | Weight : | 31 LBs |
|---|---|
| GTIN : | 854335007896 |
Volume discounts
1+ PRICE EA
$259.00
4+ PRICE EA -5%
$246.05
8+ PRICE EA -10%
$233.10
In stock
41 in stock
Description
- 2.5″ bore x 18″ stroke swivel eye hydraulic cylinder 3500 PSI double-acting. Heavy-duty hydraulics, 2-year warranty, free ground Continental US shipping. Magister swivel eye cylinders manufactured using steel piston and steel threaded gland with wear rings for long life. Welded ends with spherical bearings on each side, honed cold-drawn tubing, hard chrome plated rod and top quality five component piston seals allow Magister Hydraulics cylinders to work in harsh conditions. Due to its narrow ends and ability to revolve, this cylinder is a great fit for most of the mobile applications. Rotating feature of bearings helps with alingment.
- Applications: Welded Double Acting Hydraulic Cylinder.
- Color: Black.
NOTE! Chrome-plated rod is NOT induction hardened (Temperature treated). Possible bent rod is a result of a misuse(wrong measurements or type of application), such cases not covered under warranty!
Tariff-FREE cylinders.
Made in Europe.
If you need assistance to choose a proper hydraulic cylinder replacement, do not hesitate to contact us:
