6" bore x 15.75" stroke Dump Trailer Hydraulic Cylinder | Magister Hydraulics
On sale!
Zoom

6" bore x 15.75" stroke Dump Hoist Hydraulic Cylinder

$539.00

Pay in 4 interest-free payments of $134.75
* Wholesale Discount is available for this product if you purchase 4 or more products.
SKU: HTC 6x15.75
Bore : 6 in
Outer Dia. (⌀) : 6.61 in
Stroke : 15.75 in
Rod Dia. (⌀) : 2 in
Port Size : SAE 6
Pin Dia. (⌀) : 0.63 in

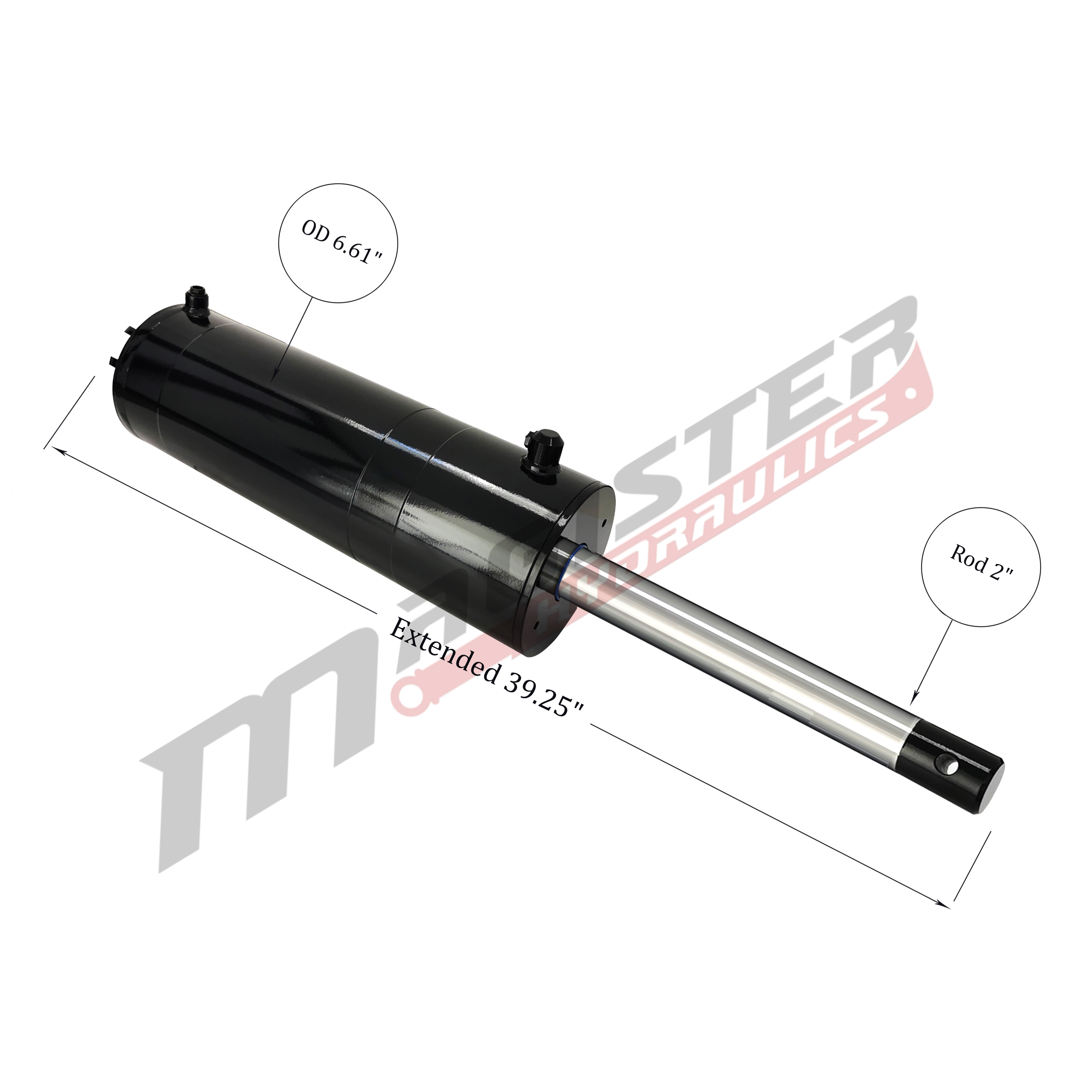

Extended : 39.25 in

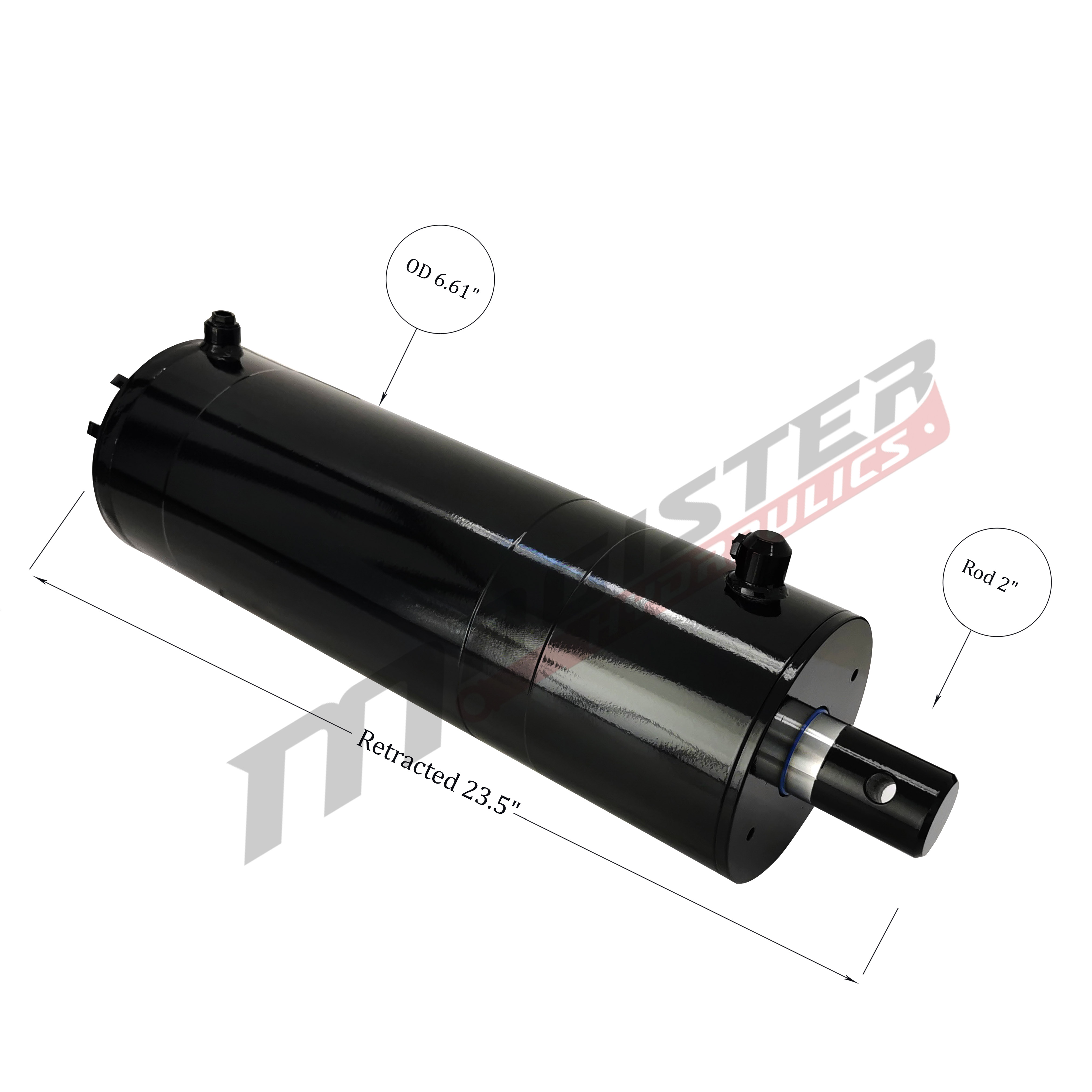

Retracted : 23.5 in
Overall length : 25.47 in
Pressure : 3500 PSI
Column Load : 83,200 LBs
Oil Volume : 7.73 QTs
Brand : Magister Hydraulics
Design : Welded
Rod Type : Chrome Plated
Rod End : Pin Hole
Action :
  • Double Acting
  • Weight : 102 LBs
    GTIN : 850054386137

    Volume discounts

    4+ PRICE EA -5%
    $512.05
    8+ PRICE EA -10%
    $485.10
    In stock

    40 in stock

    Description

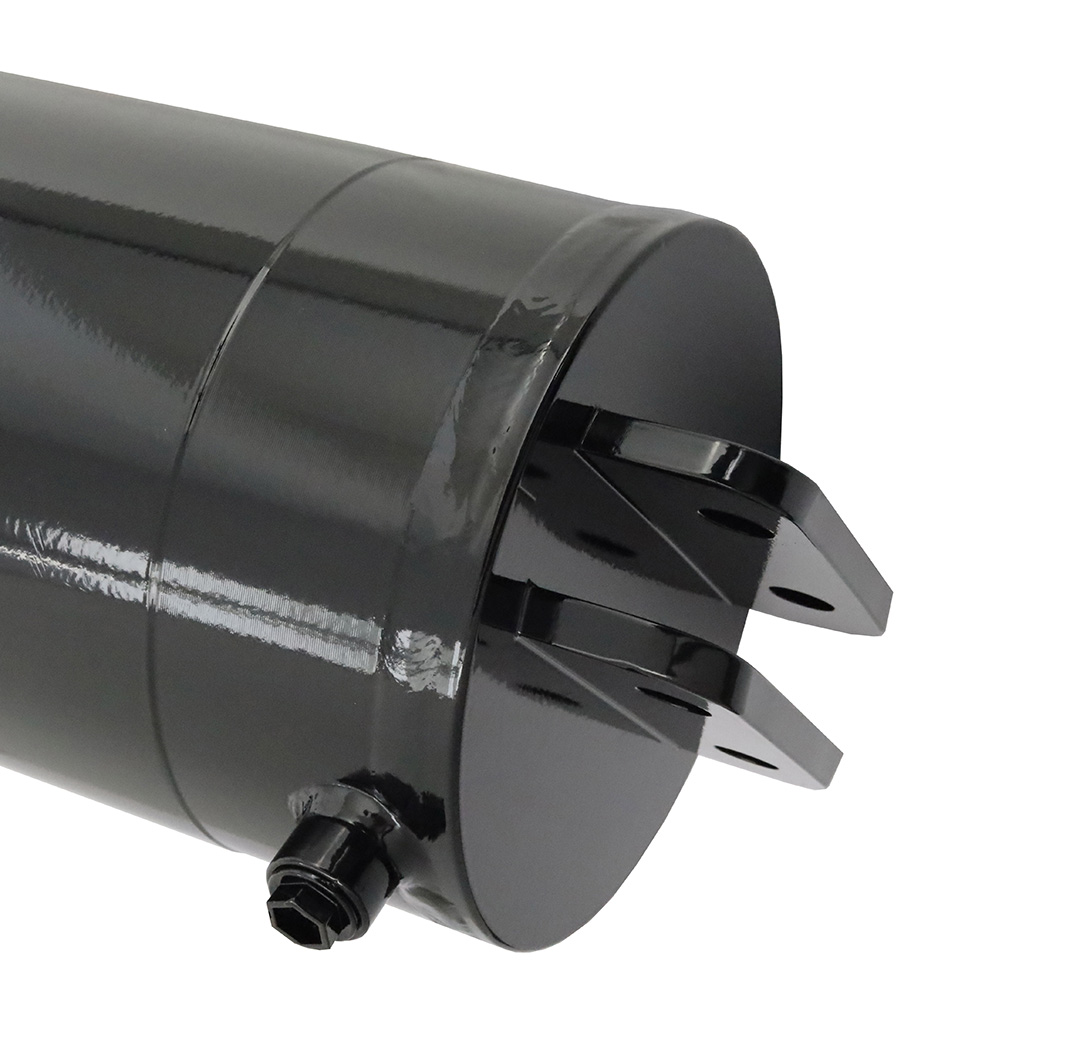

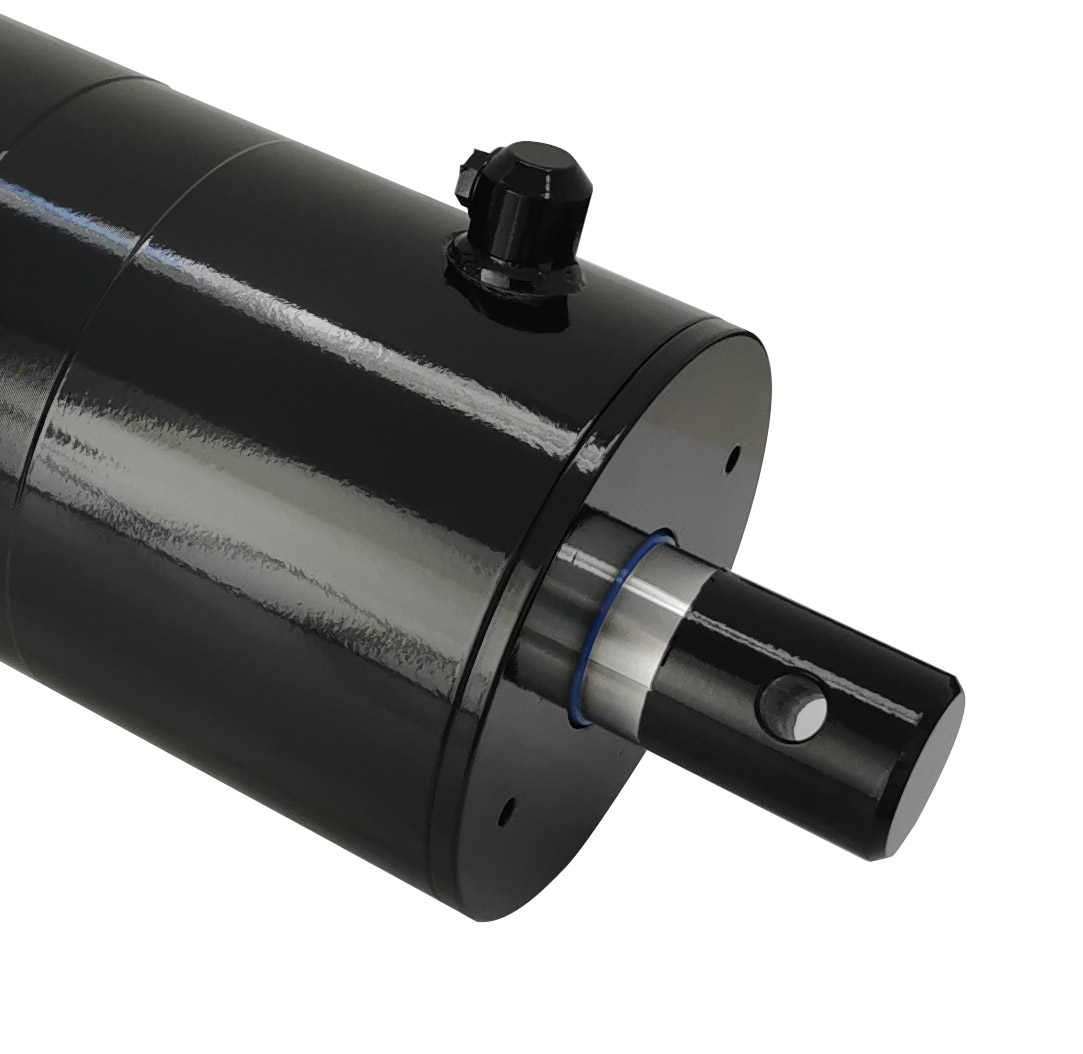

    • 6″ bore x 15.75″ stroke hoist hydraulic cylinder. Max Pressure 3500 PSI. Heavy-duty hydraulics, 2-year warranty, free ground Continental US shipping. Magister cylinders manufactured using steel piston and steel threaded gland with wear rings for long life. Mounting flange is a one solid machined piece, made without welding for extra durability. Rod end port is angled 90 degrees, looking towards other port for easy hose connection. Honed cold-drawn tubing, hard chrome plated rod and top quality five component piston seals allow Magister Hydraulics cylinders to work in extreme conditions. Excellent fit for lifting systems in a variety of dump trailers.
    • Color: Black.

    NOTE! Chrome-plated rod is NOT induction hardened (Temperature treated). Possible bent rod is a result of a misuse(wrong measurements or type of application), such cases not covered under warranty!

    Same-Day Shipping: all orders, made until 3 pm, will be shipped the same day (except weekends and holidays).

    Free Ground Continental US Shipping

    Tariff-FREE cylinders.

    Made in Europe.

    If you need assistance to choose a proper hydraulic cylinder replacement, do not hesitate to contact us:

    973-344-5313
