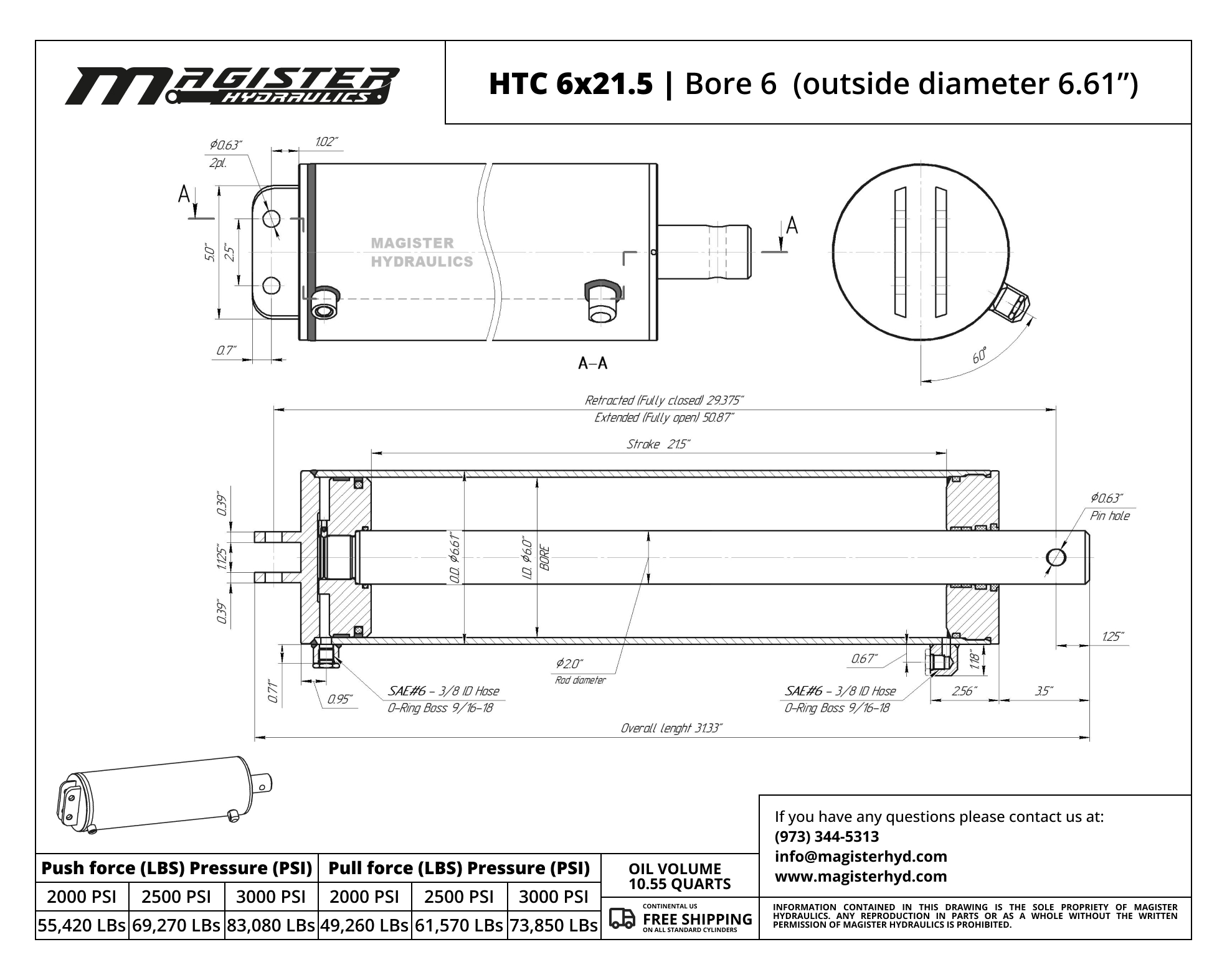

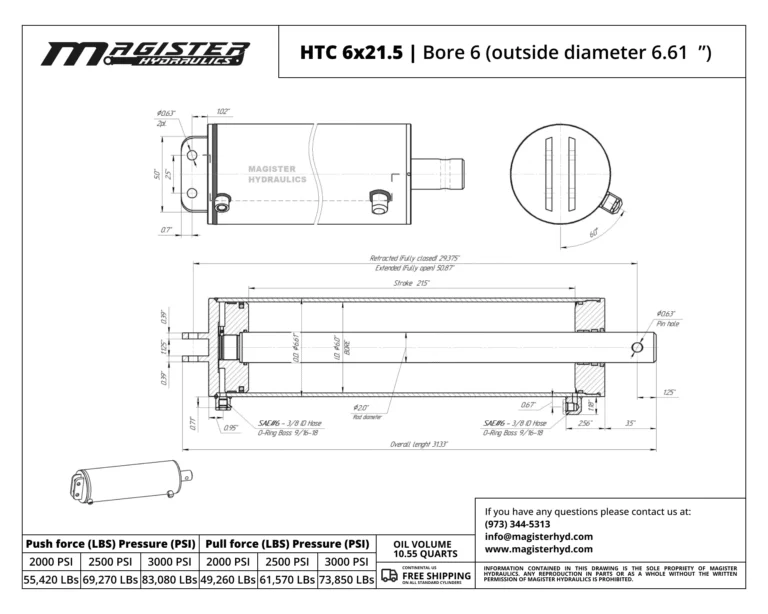

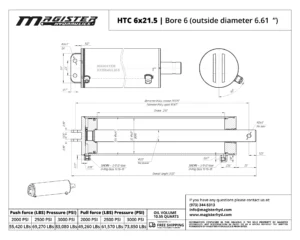

6" bore x 21.5" stroke Dump Hoist Hydraulic Cylinder

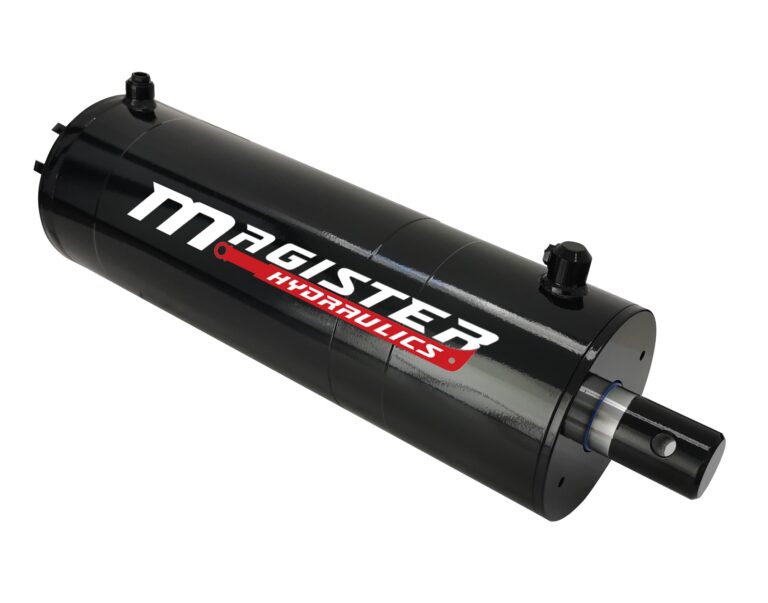

Built for strength and performance, the Magister Hydraulics Double Acting Welded Dump Hoist Cylinder features a 6-inch bore, 21.5-inch stroke, and is rated up to 3500 PSI. Welded dump hoist hydraulic rams are essential for lifting, tilting, and dumping operations in dump trailers and tilt trailers. Their robust design ensures reliable performance in harsh environments where strength, stability, and safety are paramount.

Key Features:

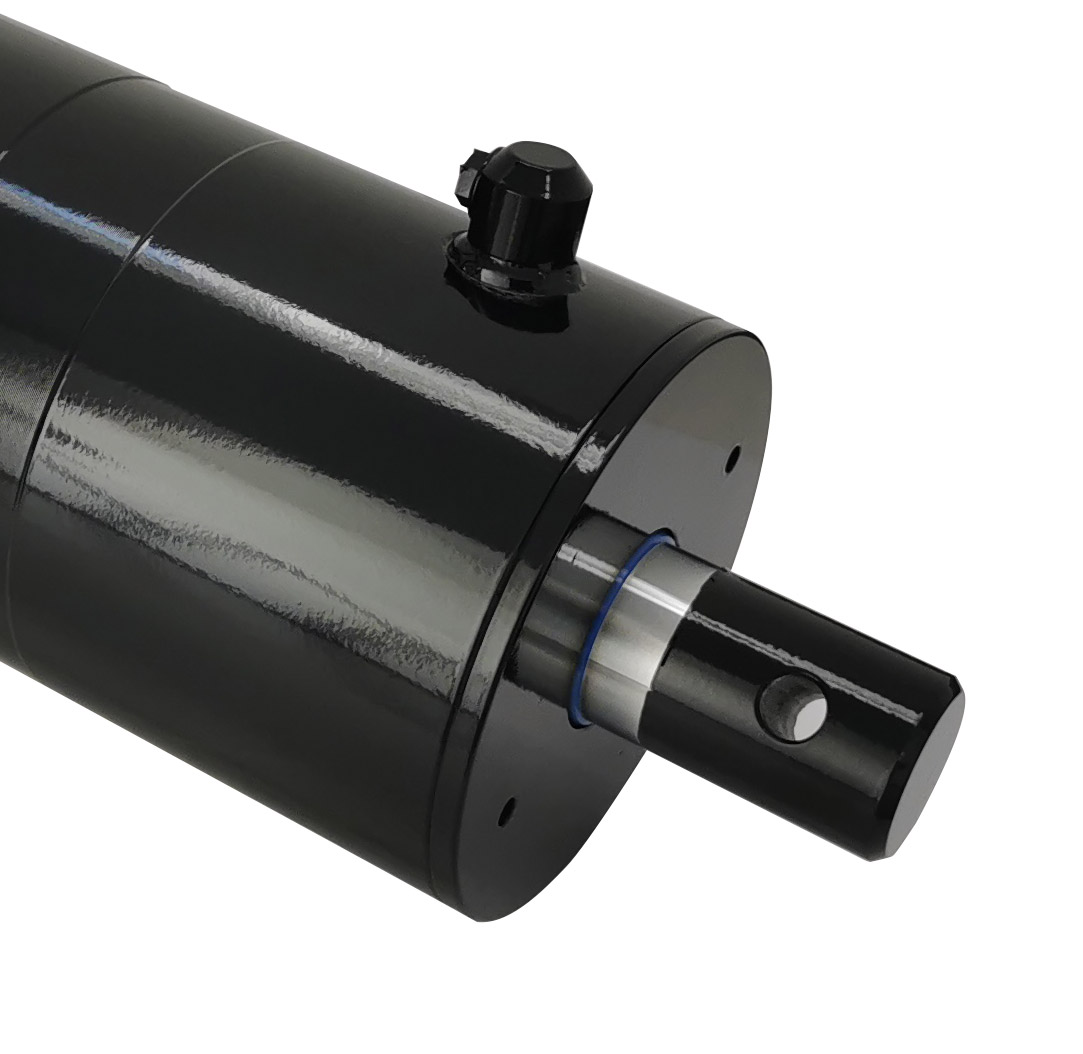

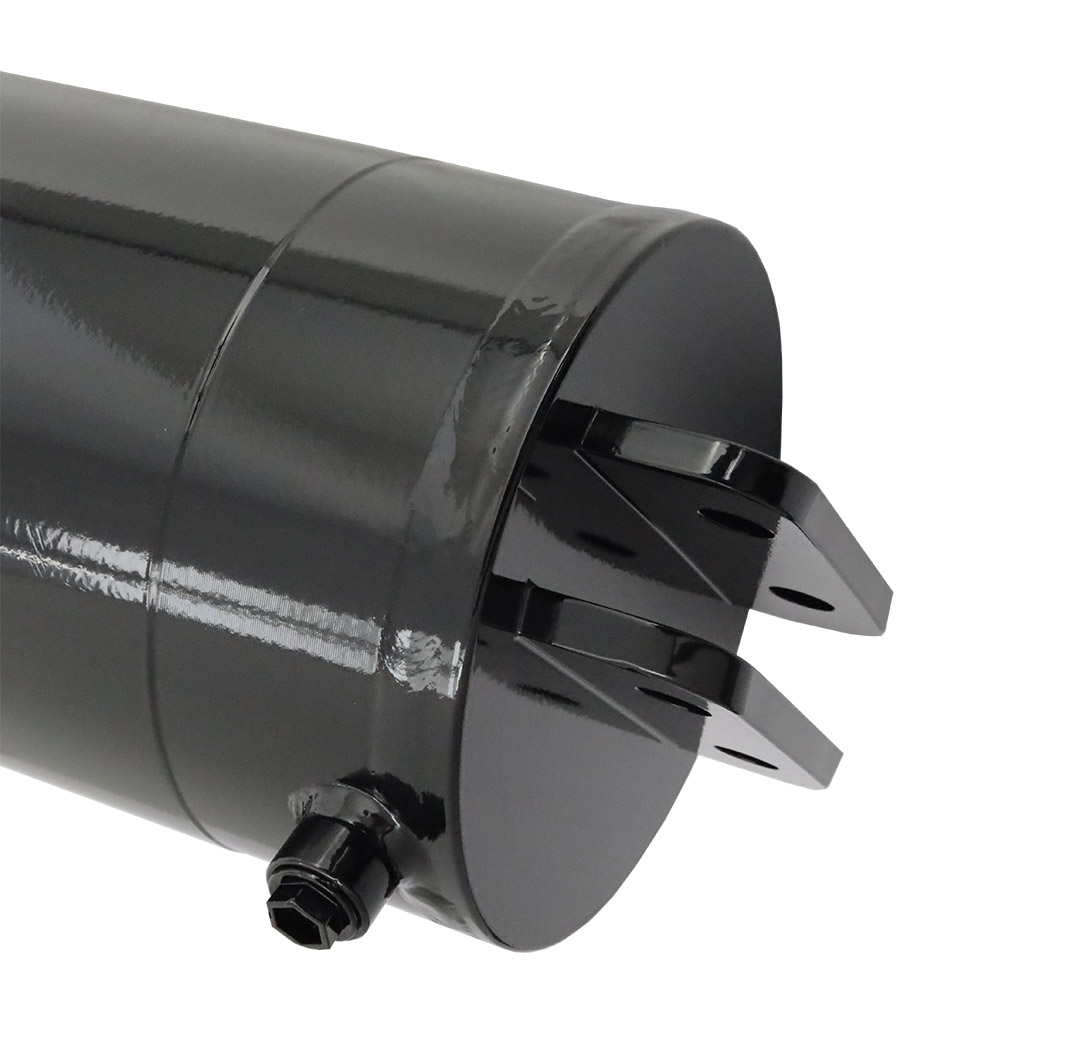

• Extreme Load Capacity: Mounting flange is one solid machined piece as base end, ⌀ 6.61″ honed cold-drawn tubing, ⌀ 2.0″ heavy-duty chrome-plated rod (steel 1045) with through-hole end for pin attachment and top-quality piston seals make it capable of handling heavy loads with a 21.5″ stroke.
• Wide Range Hydraulic Applications: Engineered for high-force lifting, this dump hoist cylinder is ideal for use in dump trailers, tilt trailers.
• Double-Acting Functionality: Provides controlled power in both directions, ensuring efficient and versatile performance for a variety of applications.
• High-Quality Construction: Steel piston and steel gland with wear rings, crafted from premium-grade materials, offering exceptional durability, corrosion resistance, and long-lasting service life.
• Precision Engineering: Designed with tight tolerances and advanced sealing technology to minimize leakage and maintain optimal performance.
• Smooth Operation: Features finely honed cylinder barrels and high-quality seals for smooth and consistent operation.
• Easy Maintenance: Simple to service and maintain, reducing downtime and ensuring continuous operation.
• 2-year warranty
• Same Day Shipping: all orders, made until 3 pm, will be shipped the same day (except weekends and holidays).
• Made in Europe.

Before purchase, please take the proper measurements:

• The diameter of the bore (please specify inside or outside measurement).
• The diameter of the rod and pin holes.

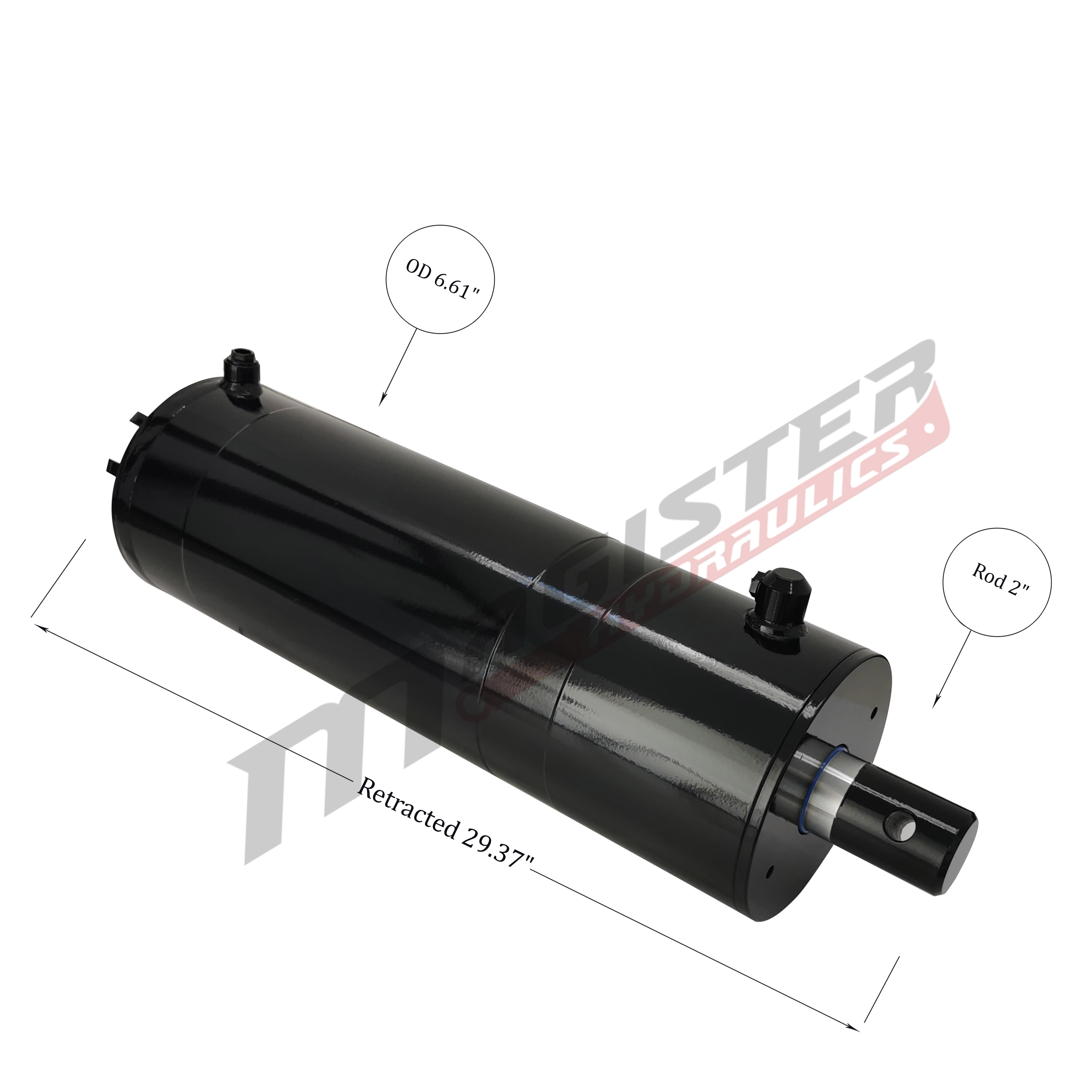

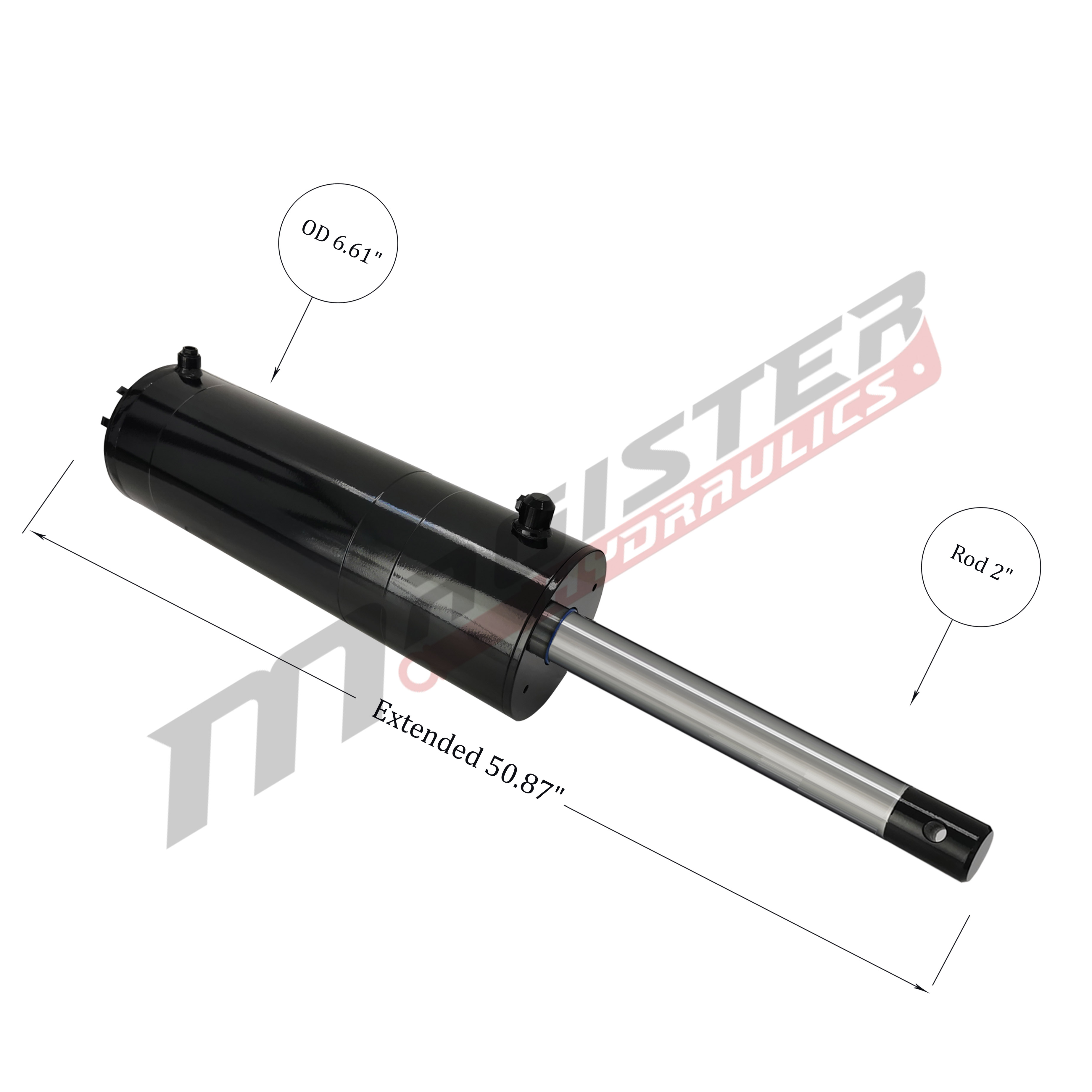

• The fully extended and retracted lengths, measured from the center pinhole to the center pinhole.
• The width on each mounting end of the cylinder where the pins slide through.
