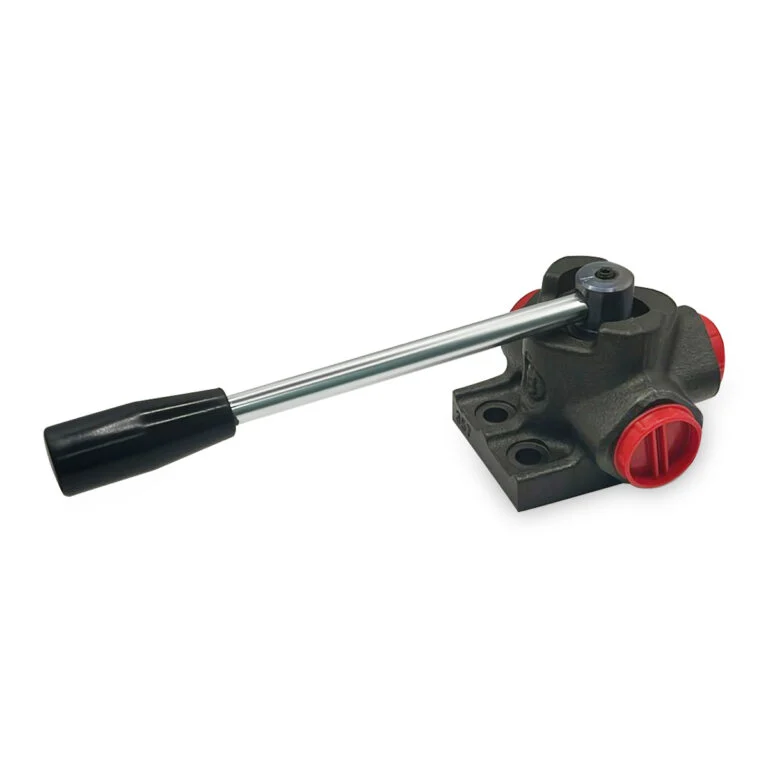

3 Way Hydraulic Rotary Diverter Valve, SAE 12
$65.00
* Wholesale Discount is available for this product if you purchase 5 or more products.| Flow : | 32 GPM | Max Pressure : | 3200 PSI | Working Ports : | SAE 12 | Brand : | Hydro-Pack | Weight : | 3 LBs |
|---|---|
| GTIN : | 850054386625 |
Volume discounts
8 in stock
Description
3 Way Hydraulic Rotary Diverter Valve, SAE 12. It is used to divert the flow towards two different outlets.
- Body: cast iron.
- Internal parts: hardened and ground steel.
- Seals: BUNA N standard.
- Leakage: Minimal leakage.
CONNECTIONS:

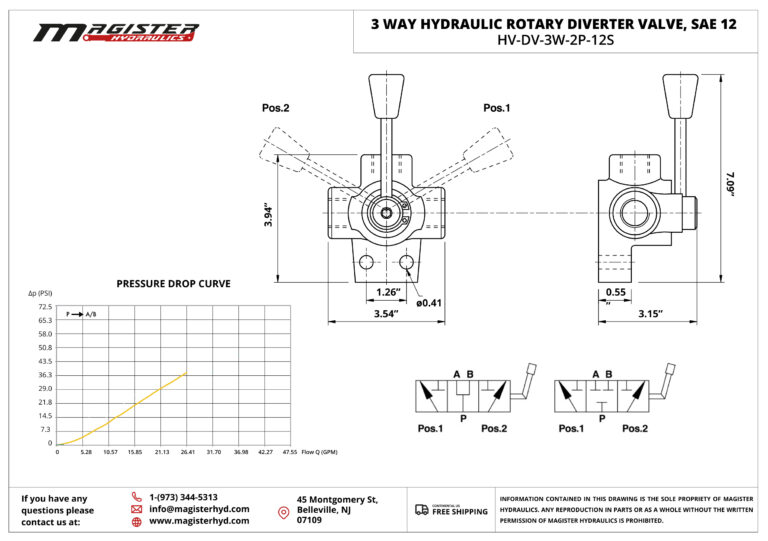

Connect P to the supply, A and B to the ports of
the hydraulic circuit where flow has to be diverted to. With lever in position 1 the flow is connected towards port A; with lever in position 2, the flow is connected towards port B. With lever in central position ports P, A and B are all connected (open centre).
- Oil temperature: 122° F
- Oil viscosity: 30 cSt
Made in Europe utilizing American standards, can operate under temperature anywhere from – 40F and up to 140F.
Same-Day Shipping: all orders, made until 3 pm, will be shipped the same day (except weekends and holidays).
Made in Europe. 1 Year Warranty.
