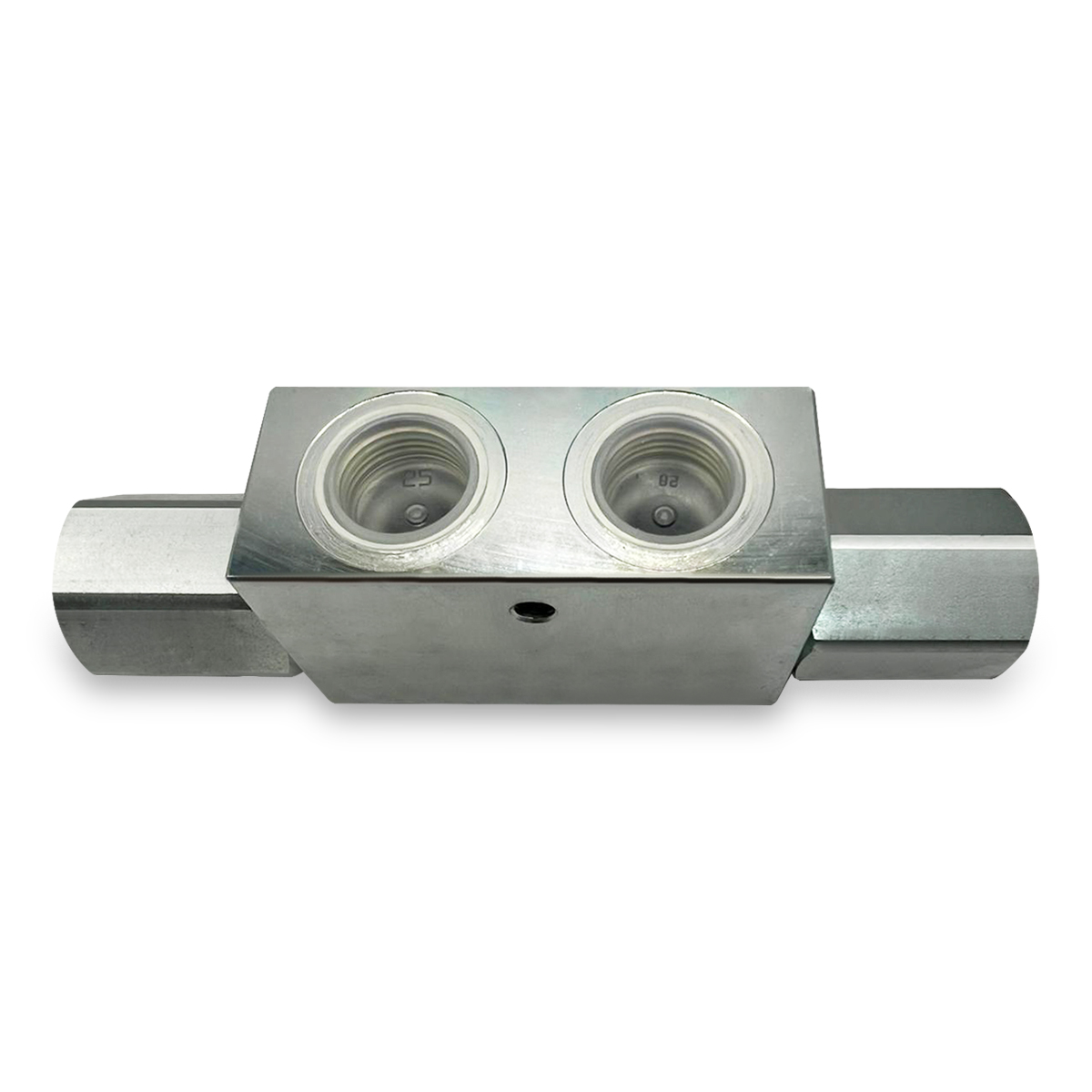

Double Pilot Operated Check Valve, 3/4" NPT, 26 GPM
$99.00
* Wholesale Discount is available for this product if you purchase 5 or more products.SKU: HV-DPCV-26-12N
| Flow : | 26 GPM | Pressure : | 4350 PSI | Working Ports : | 3/4" NPT | Brand : | Hydro-Pack | Weight : | 4.2 LBs |
|---|
Volume discounts
5+ PRICE EA -5%
$94.05
10+ PRICE EA -10%
$89.10
In stock
39 in stock
Description
Double Pilot Operated Check Valve, 3/4″ NPT, 26 GPM. Double Pilot check valves are used to block the cylinder in both directions. Flow is free in one direction and blocked in the reverse direction until pilot pressure is applied.
MATERIALS AND FEATURES:
Body: zinc-plated steel.
Internal parts: hardened and ground steel. Seals: BUNA N standard.
Leakage: Guided poppet – negligible leakage.
CONNECTIONS:

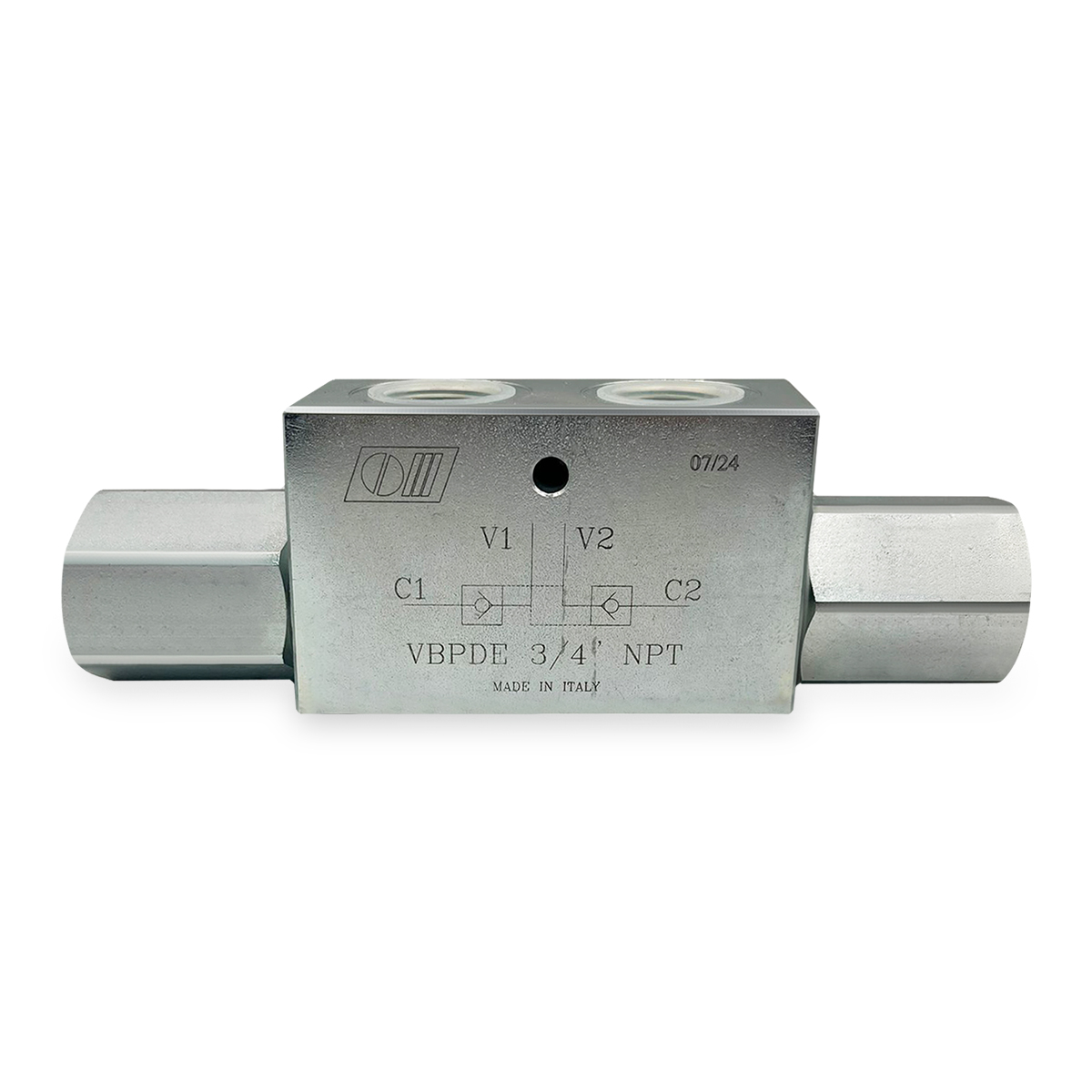

Connect V1 and V2 to the supply and C1 and C2 to the actuator.
Oil temperature: 122° F
Oil viscosity: 30 cSt
Made in Europe utilizing American standards, can operate under temperature anywhere from – 40F and up to 140F.
Same-Day Shipping: all orders, made until 3 pm, will be shipped the same day (except weekends and holidays).
Made in Europe.
If you need assistance to choose a proper hydraulic valve, do not hesitate to contact us:
973-344-5313
