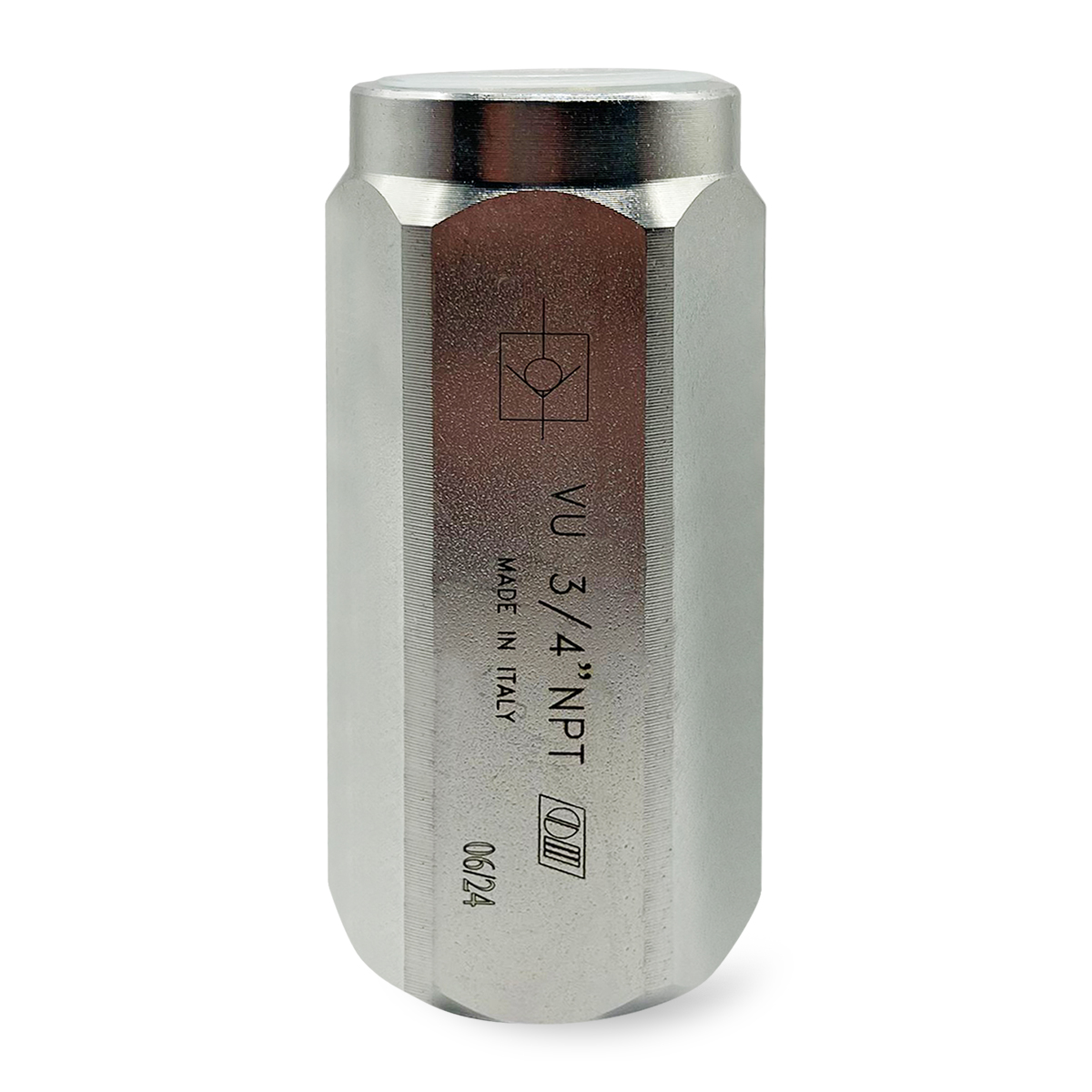

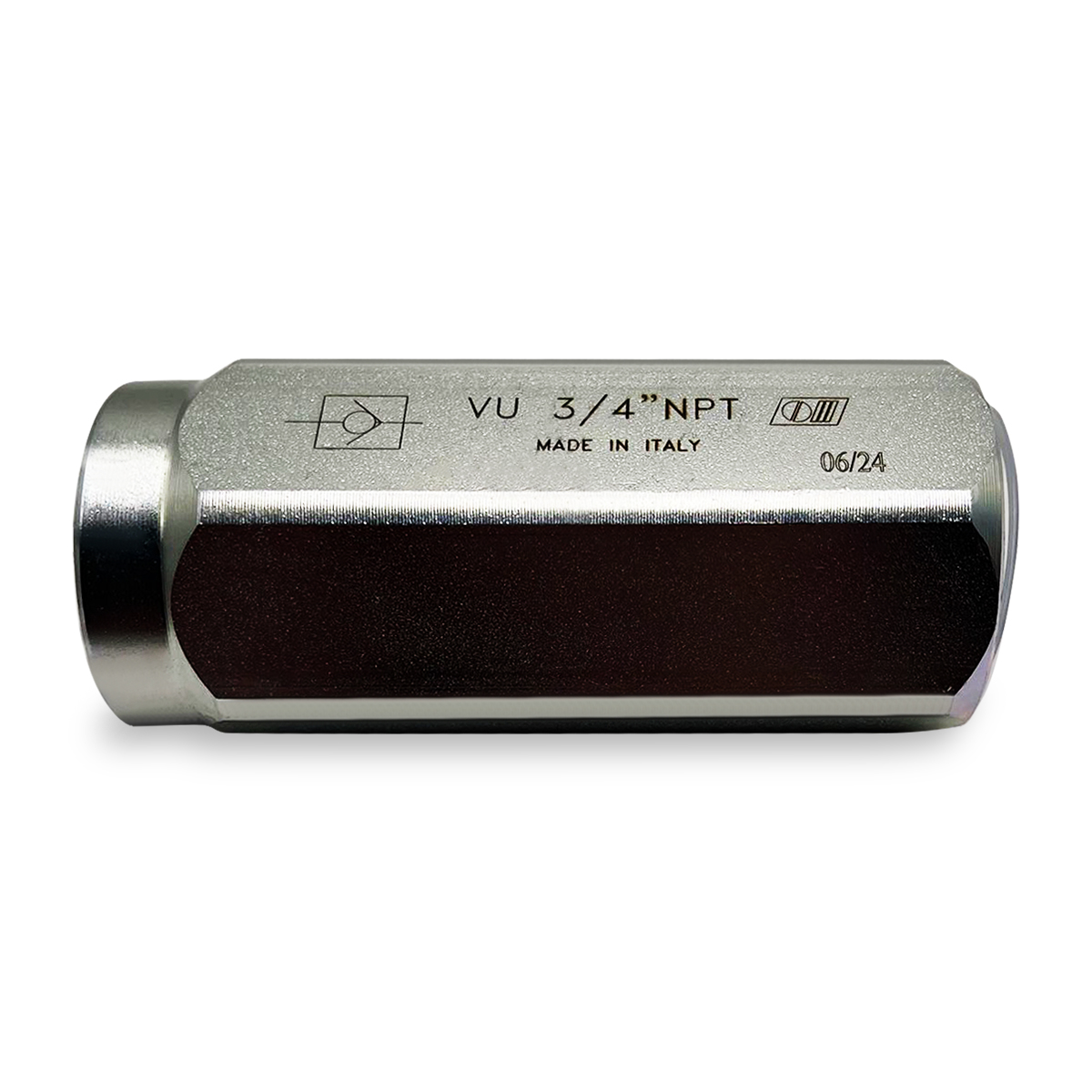

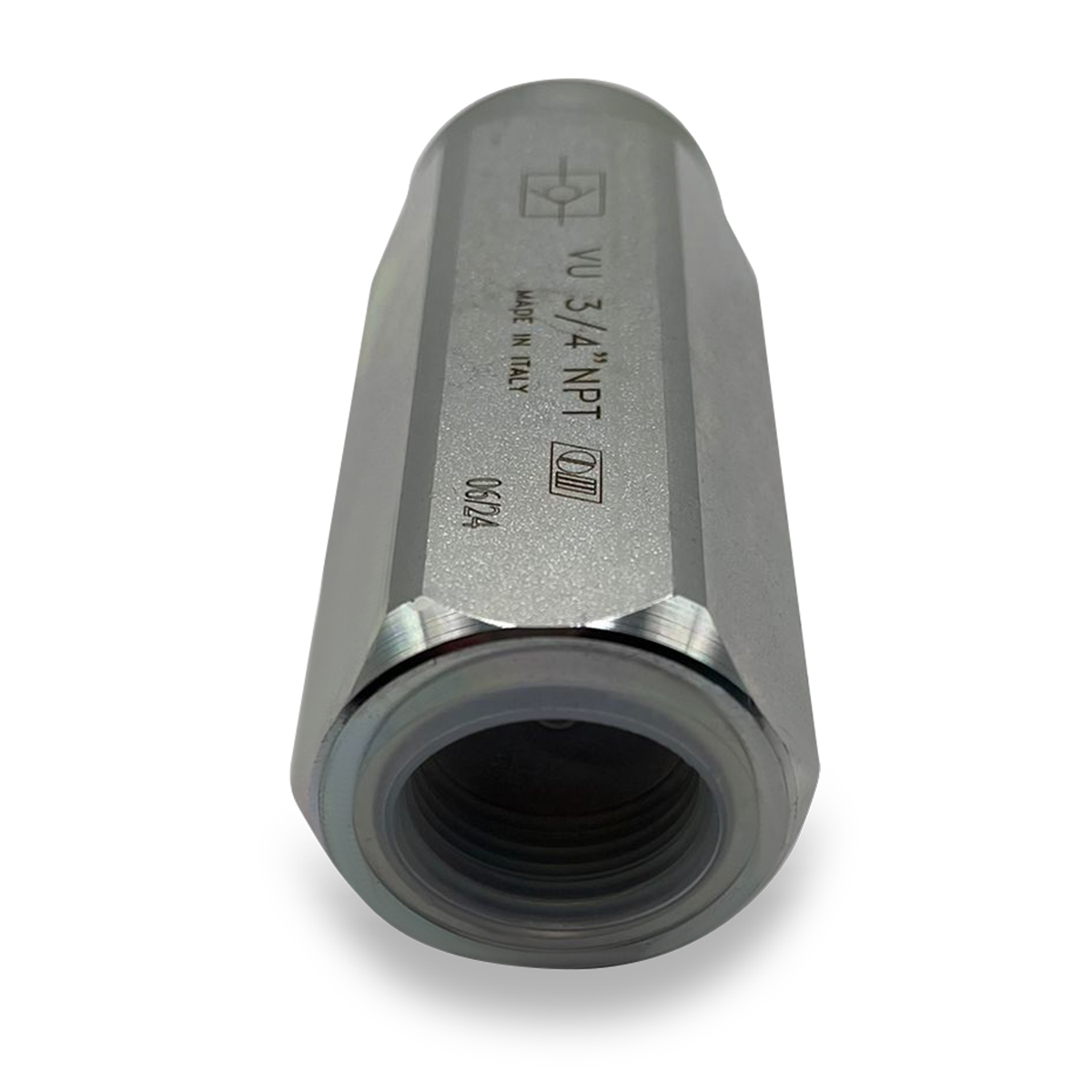

Hydraulic Inline Check Valve, 3/4" NPT
$27.00
* Wholesale Discount is available for this product if you purchase 5 or more products.SKU: HV-CV-IL-30-12N
| Flow : | 30 GPM | Pressure : | 5075 PSI | Working Ports : | 3/4" NPT | Brand : | Hydro-Pack | Weight : | 1 LBs |
|---|
Volume discounts
5+ PRICE EA -5%
$25.65
10+ PRICE EA -10%
$24.30
In stock
50 in stock
Description
Hydraulic Inline Check Valve, 3/4″ NPT. Check valves allow free flow in one direction and is blocks the flow in the reverse direction, used to keep a hydraulic system pressurised.
MATERIALS AND FEATURES:
Body: zinc-plated steel.
Internal parts: hardened and ground steel. Leakage: guided poppet – no leakage.
CONNECTIONS:

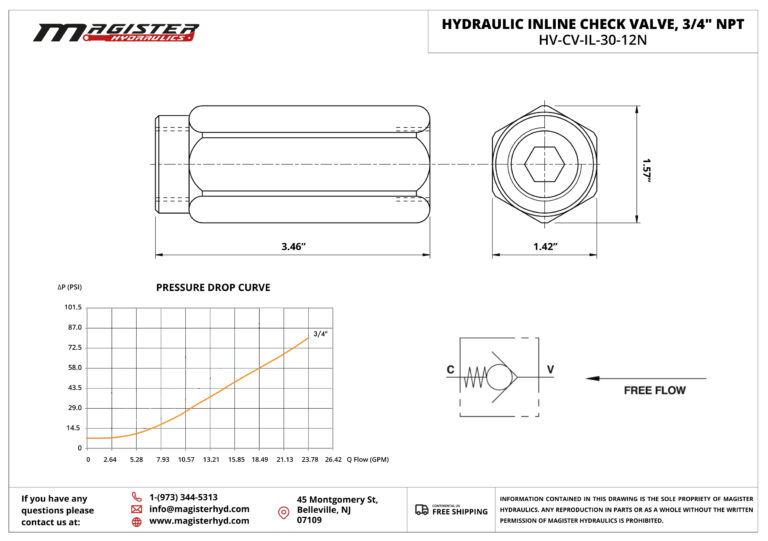

Connect V to the supply and C to the function.
Flow is free from V to C and blocked in the reverse direction.
Oil temperature: 122° F
Oil viscosity: 30 cSt
Made in Europe utilizing American standards, can operate under temperature anywhere from – 40F and up to 140F.
