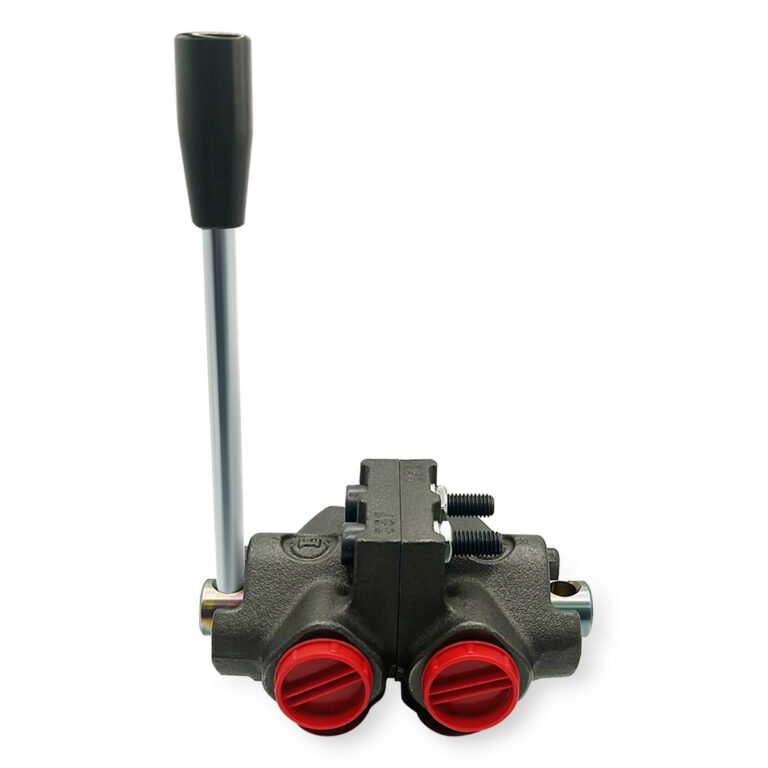

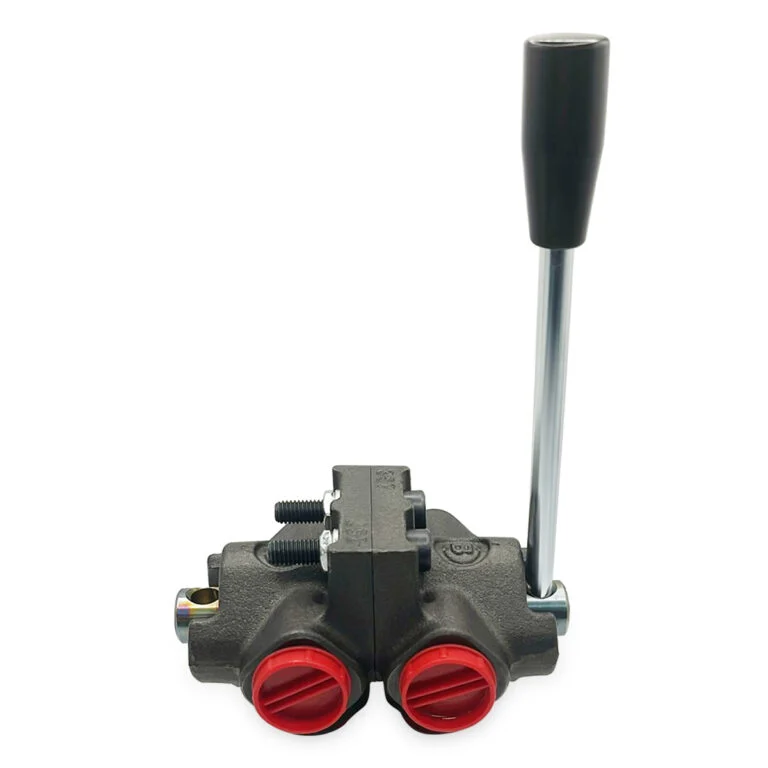

6 Way Hydraulic Rotary Diverter Valve, SAE 8
$105.00
Pay in 4 interest-free payments of $26.25| Flow : | 16 GPM | Max Pressure : | 4300 PSI | Working Ports : | SAE 8 | Brand : | Hydro-Pack | Weight : | 4 LBs |
|---|---|
| GTIN : | 850054386632 |
Volume discounts
38 in stock
Description
6 Way Hydraulic Rotary Diverter Valve, SAE 8.
This valve is made up by two 3-way diverter valves coupled together: each of the two valves is used to divert the inlet flow towards two ports. A single lever controls both sections at the same time. Ideal to control two actuators.
- Body: cast iron.
- Internal parts: hardened and ground steel.
- Seals: BUNA N standard.
- Leakage: Minimal leakage.
CONNECTIONS:
Connect P and P’ to the 2 pressure flows, ports A and
B to the first actuator and ports A’ and B’ to the second actuator. With lever in position 1, P is connected to A and P’ to A’; with lever in position 2, P is connected to B and P’ to B’. With lever in the central position all ports are connected to each other (open centre).
Made in Europe utilizing American standards, can operate under temperature anywhere from – 40F and up to 140F.
-
Same-Day Shipping: all orders, made until 3 pm, will be shipped the same day (except weekends and holidays).
Made in Europe. 1 Year Warranty.
