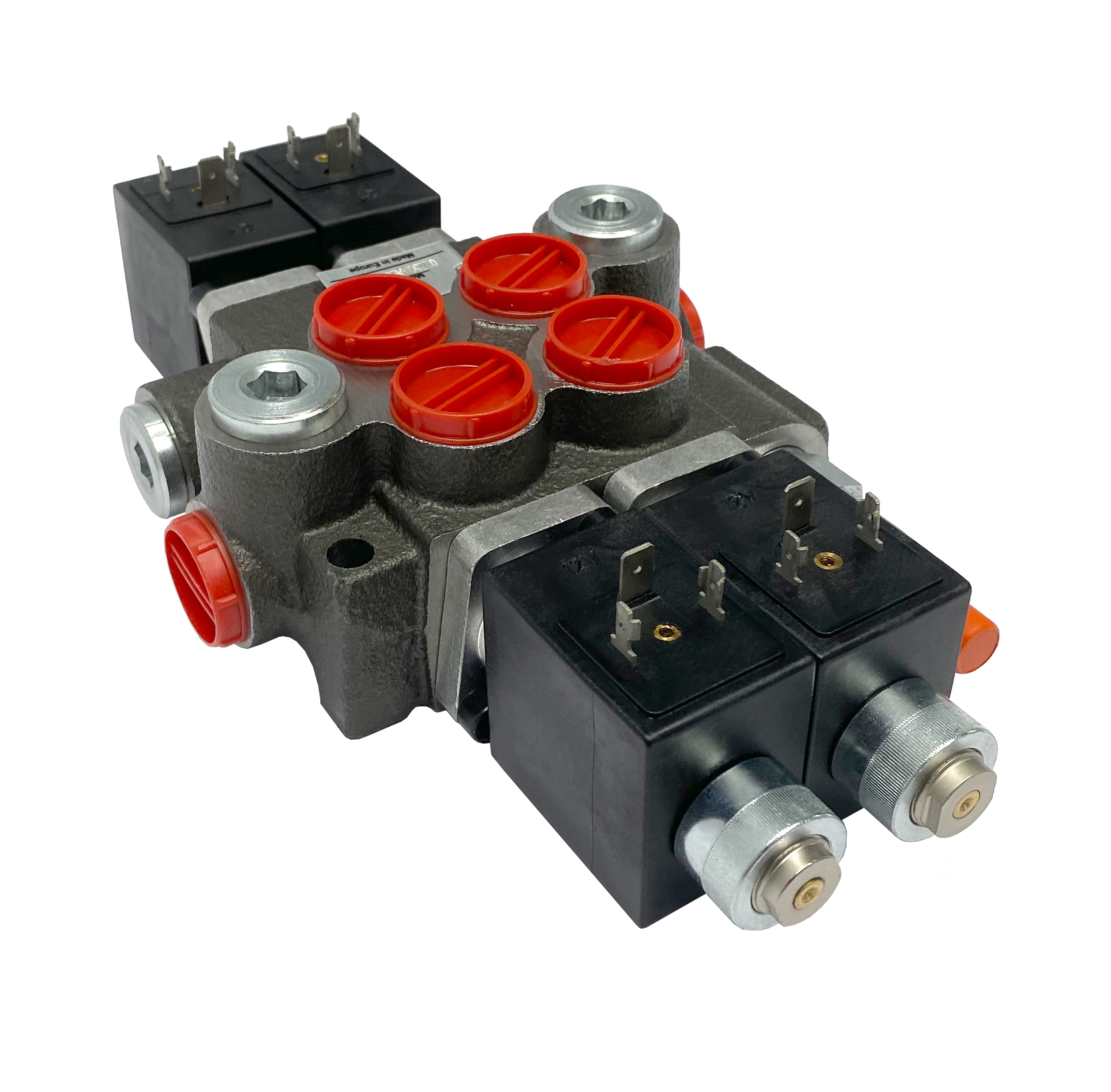

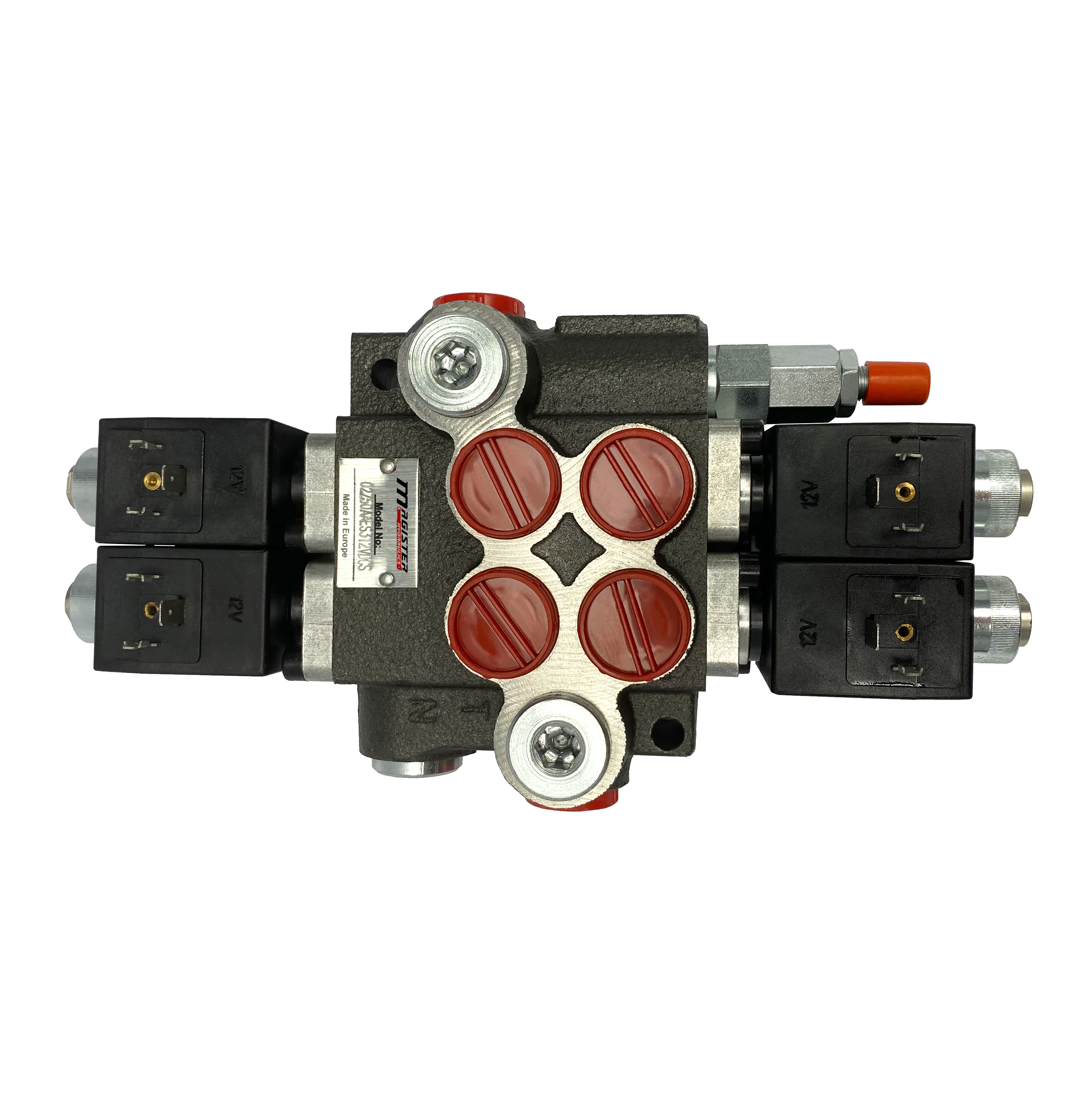

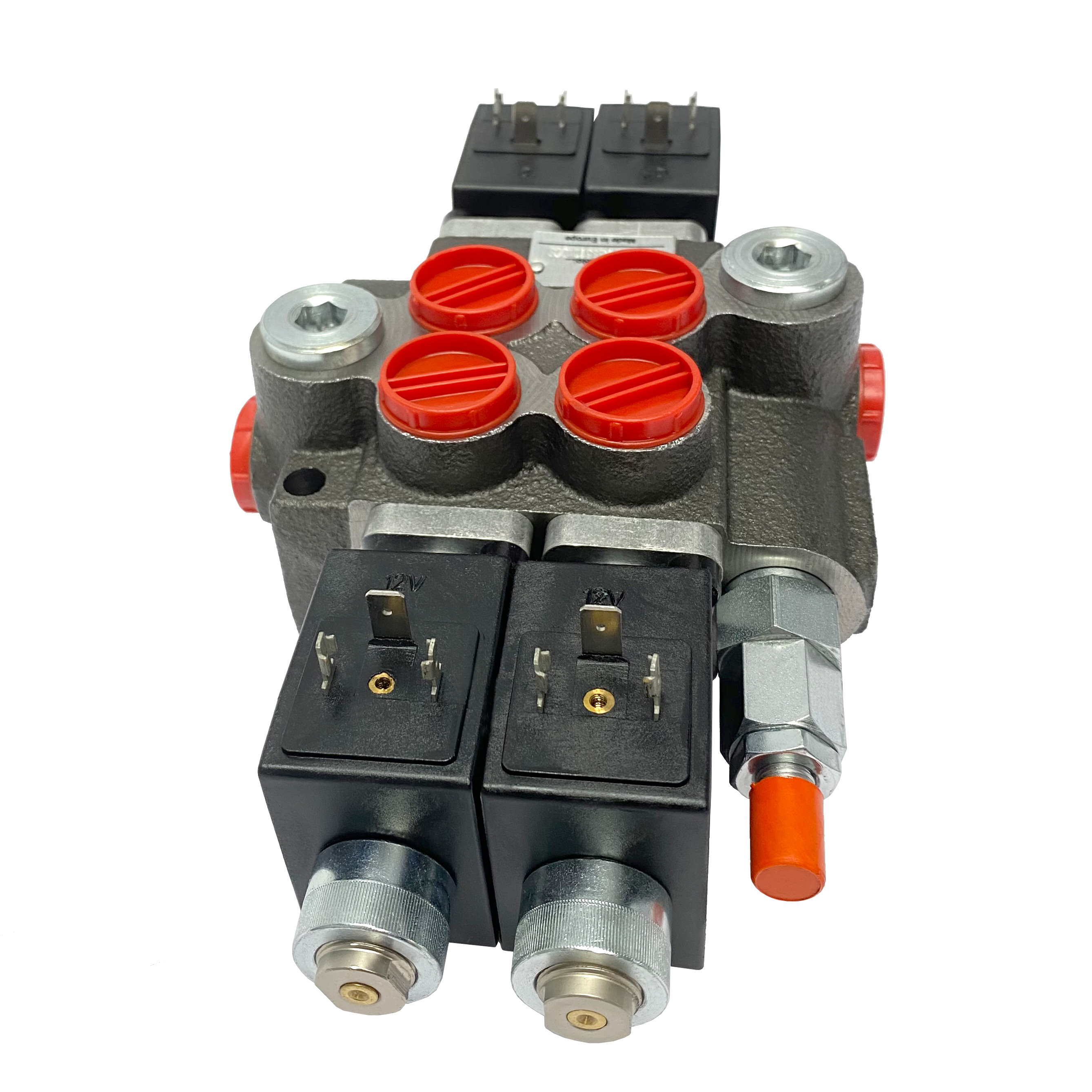

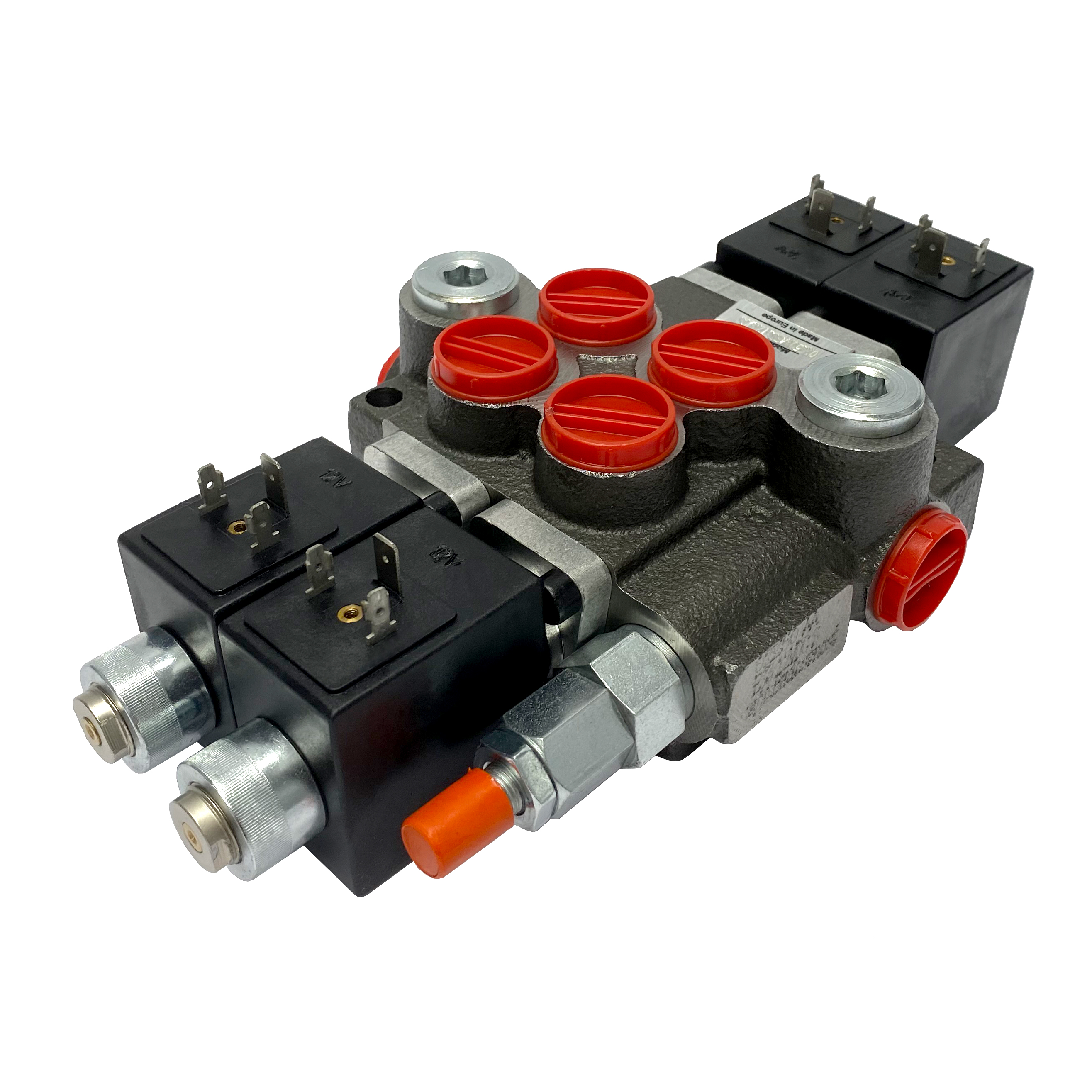

2 spool x 13 GPM solenoid hydraulic control valve

$285.00

* Wholesale Discount is available for this product if you purchase 4 or more products.
HCV-S 2x13
Number of Spools :
2
Flow :
13 GPM
Pressure :
3625 PSI
Inlet Port :
SAE 10
Spool Type :
Double acting 3-pos, with closed in neutral position
Outlet Port :
SAE 10
Spool Action :
Double action with spring return in neutral position. Connector ISO 4400. Emergency manual override.
Working Ports :
SAE 8
Brand :
Badestnost
GTIN :
854763008465
1+ PRICE EA
$285.00
4+ PRICE EA -5%
$270.75
10+ PRICE EA -10%
$256.50
In stock

2 in stock

DESCRIPTION

2 spool x 13 GPM solenoid 12V DC hydraulic control valve with max pressure of 3625 PSI. Heavy-duty hydraulic control valve solenoid operated, durable cast iron monoblock body, free ground shipping & 1-year warranty. This control valve is designed to manage and direct hydraulic oil flow between hydraulic pumps, hydraulic cylinders, motors, tanks, etc. Made in Europe utilizing American standards, can operate under temperature anywhere from – 40F and up to 140F. Tariff free control valve. This is a perfect choice whether for a new design or replacement for small tractors, tractor loaders, log splitters, forklifts and tow trucks.
Mounting with 2 bolts M8 size.

  • FREE SHIPPING

We provide volume discounts for all our standard Hydraulic control valves. When purchasing 4-9 ea, 5% discount. When purchasing 10+ ea, 10% discount.

Tariff-FREE Hydraulic control valves.
Made in Europe.
If you need assistance to choose a proper hydraulic cylinder replacement, do not hesitate to contact us:
973-344-5313
