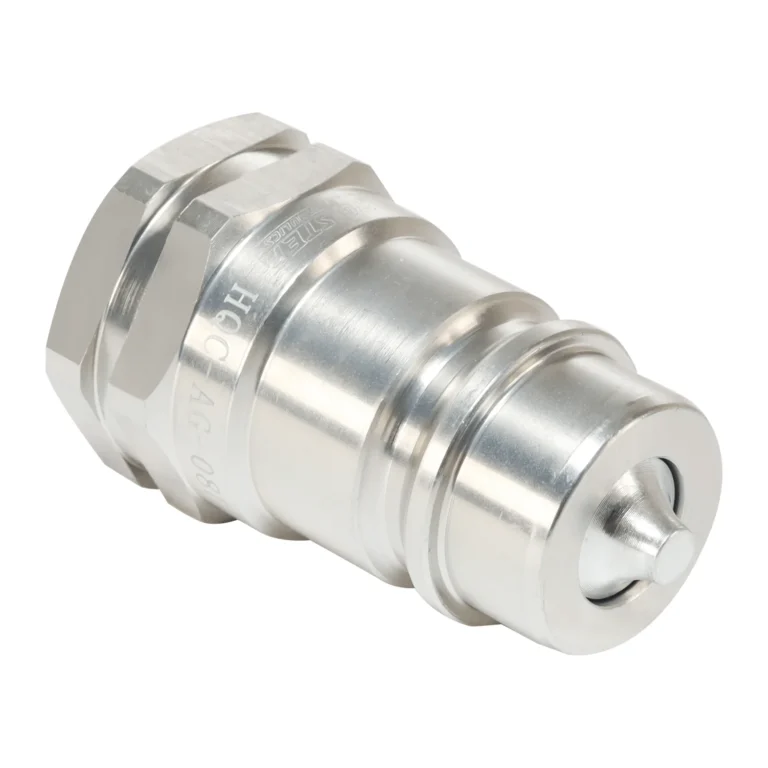

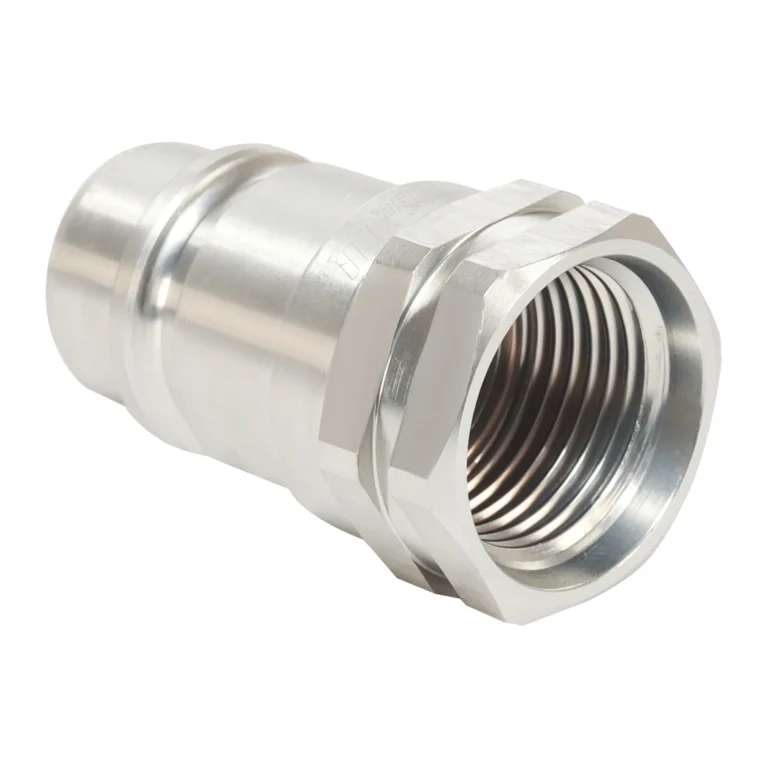

1/2″ AG Hydraulic Quick Couplers Male - 5/8″ SAE Port
$9.00
* Wholesale Discount is available for this product if you purchase 2 or more products.| Type : | Male | ISO Body Size : | 1/2" | Design : | Agricultural | Port Size : | 5/8″ SAE | ISO Standard : | 5675 | Locking Type : | Sleeve | Max Pressure : | 4500 PSI | Working Pressure : | 3620 PSI | Max Flow : | 23.8 GPM | Rated Flow : | 12 GPM | Dash Size : | 8 | Weight : | 0.25 LBs | Plating : | Zinc | Brand : | Magister Hydraulics |
|---|
Volume discounts
124 in stock
Description
Elevate your hydraulic systems with Magister Hydraulics’ 1/2″ AG Hydraulic Quick Disconnect Male Fitting with 5/8″ SAE #10 ORB Port (7/8″-14 UNF Thread), engineered for seamless, leak-proof connections in demanding applications. This couplers ensures secure, high-pressure performance while minimizing fluid loss and air inclusion. Ideal for agricultural, industrial, and mobile hydraulic equipment, this set delivers reliability and efficiency in every connection.
Key Features:
- Leak-Proof Performance: The tapered NPT thread design creates a tight seal, preventing fluid leaks and ensuring system integrity.
- High-Pressure Resilience: Rated up to 3,620 PSI with a maximum flow rate of 12GPM, making it suitable for heavy-duty hydraulic systems.
- Durable Construction: Crafted from zinc-plated carbon steel for exceptional corrosion resistance and longevity.
- Easy Operation: Quick-connect design allows for single-handed coupling and uncoupling, reducing downtime and enhancing productivity.
- Universal Compatibility: Designed to meet AG standards, ensuring interoperability with other AG-series couplings and hydraulic systems.
- Temperature Resistance: Operates efficiently in temperatures ranging from -4°F to +212°F (-20°C to +100°C), suitable for diverse environments
Highly competitive pricing. Covers Included
Compatible with many hydraulic tools and equipment
1 Year Warranty
Same-Day FedEx Shipping.
