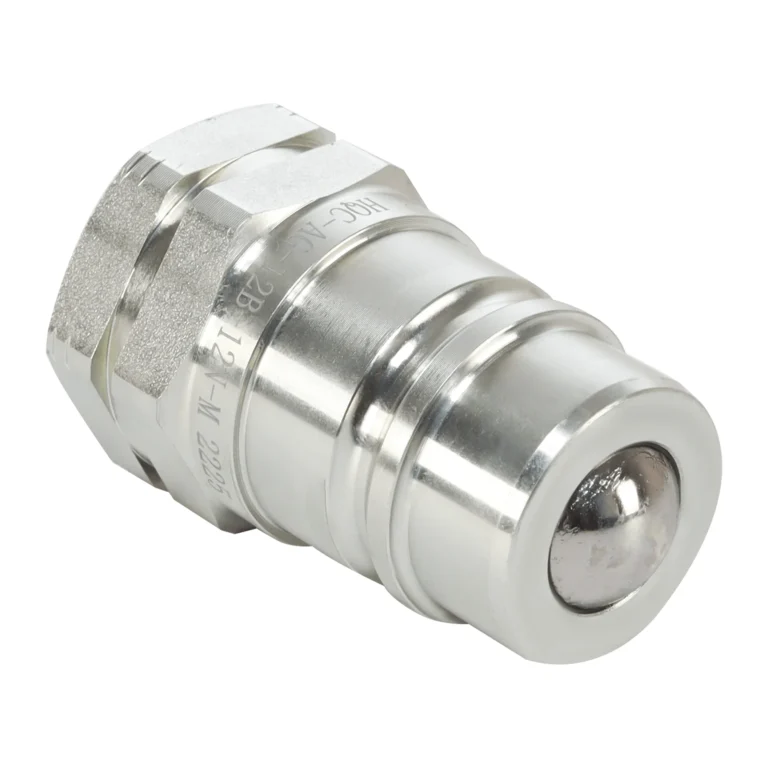

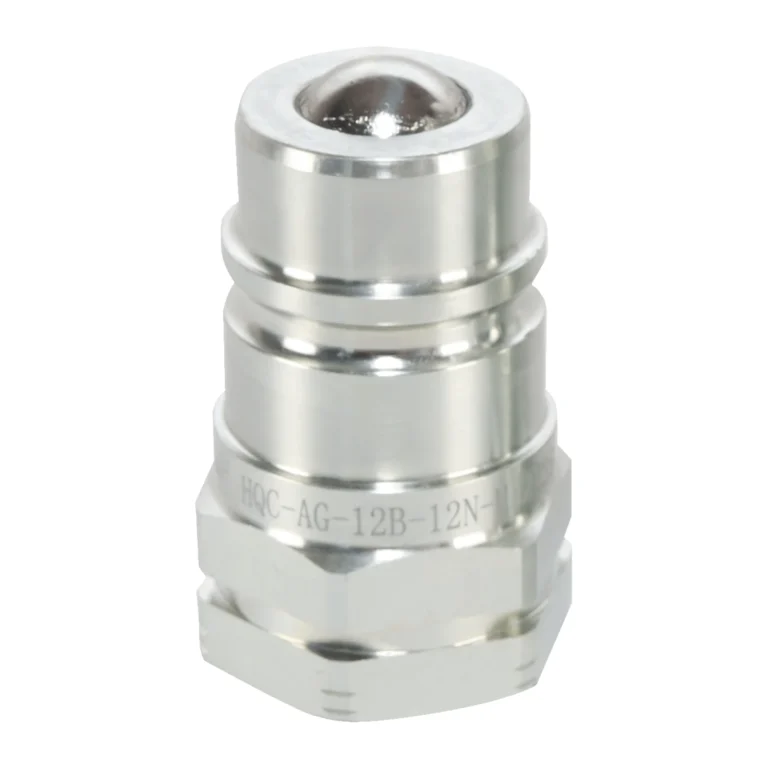

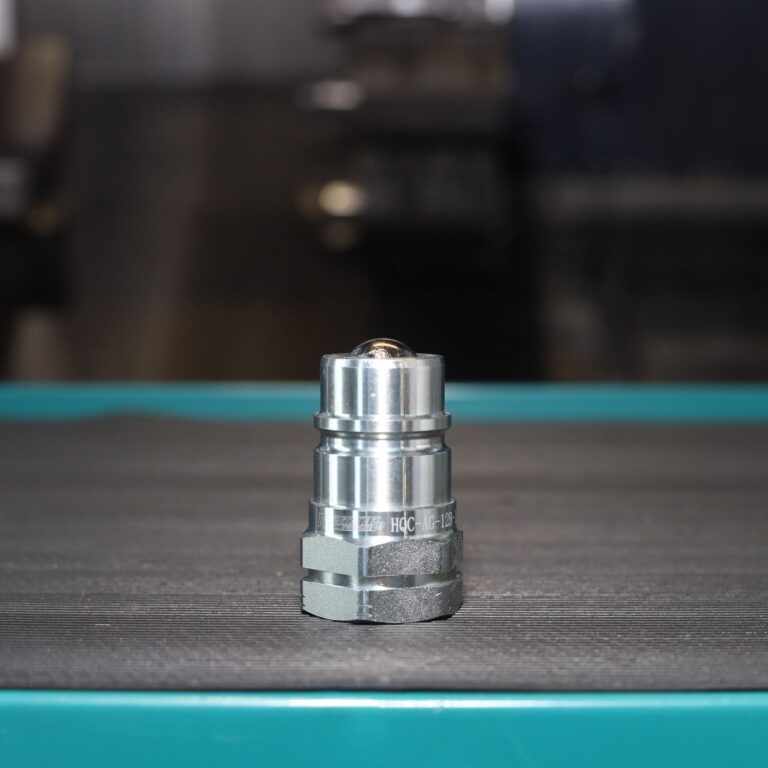

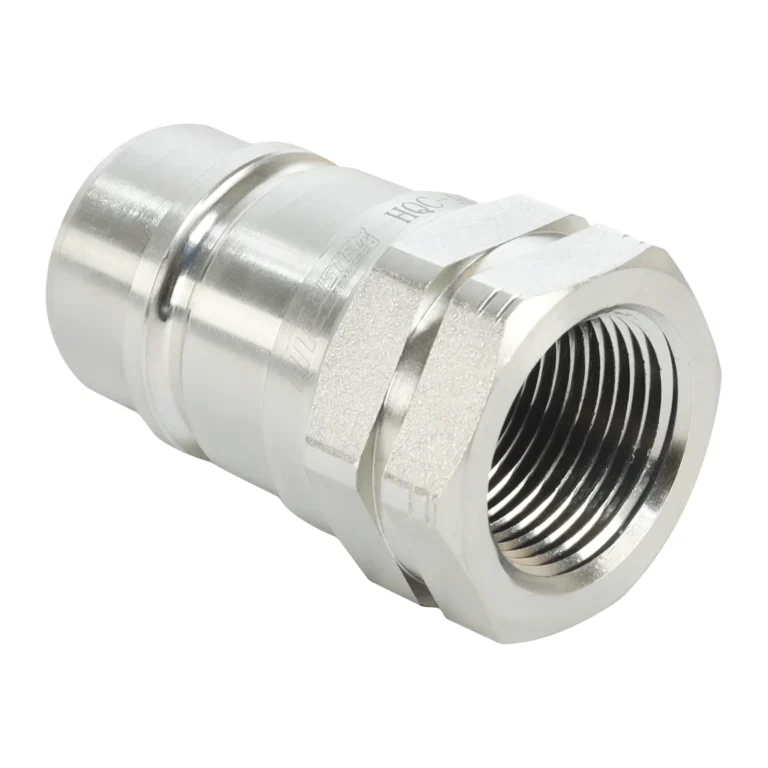

3/4″ AG Hydraulic Quick Couplers Male - 3/4″ NPT Port
$15.00
Volume Discounts
16 in stock
Elevate your hydraulic systems with Magister Hydraulics’ 3/4″ AG Hydraulic Quick Disconnect Male Fitting with 3/4″ NPT Thread, engineered for seamless, leak-proof connections in demanding applications. This couplers ensures secure, high-pressure performance while minimizing fluid loss and air inclusion. Ideal for agricultural, industrial, and mobile hydraulic equipment, this set delivers reliability and efficiency in every connection.
Key Features:
- Leak-Proof Performance: The tapered NPT thread design creates a tight seal, preventing fluid leaks and ensuring system integrity.
- High-Pressure Resilience: Rated up to 2,900 PSI with a rated flow of 16 GPM, making it suitable for heavy-duty hydraulic systems.
- Durable Construction: Crafted from zinc-plated carbon steel for exceptional corrosion resistance and longevity.
- Easy Operation: Quick-connect design allows for single-handed coupling and uncoupling, reducing downtime and enhancing productivity.
- Universal Compatibility: Designed to meet AG standards, ensuring interoperability with other AG-series couplings and hydraulic systems.
- Temperature Resistance: Operates efficiently in temperatures ranging from -4°F to +212°F (-20°C to +100°C), suitable for diverse environments
Highly competitive pricing. Covers NOT Included
Compatible with many hydraulic tools and equipment
1 Year Warranty
Same-Day FedEx Shipping.
If you need assistance, do not hesitate to contact us:
973-344-5313
Specifications
| Configuration | Male | ISO Body Size | 3/4" |
|---|---|---|---|
| Design | Agricultural | Port Size | 3/4" NPT |
| ISO Standard | 5675 | Locking Type | Sleeve |
| Max Pressure | 3620 PSI | Working Pressure | 2900 PSI |
| Max Flow | 32 GPM | Rated Flow | 16 GPM |
| Dash Size | 12 | Weight | 0.5 LBs |
| Plating | Zinc | Brand | Magister Hydraulics |
Alternative part numbers
| Manufacturer | SKU |
|---|---|
| Summit | AG34M-12N |
| Parker | 4110-5 |
| Safeway | S21F-6 |
| Faster | NV 34 NPT M |
| Stucchi | 800101005 M IR 34V NPT |
| Dixon | AG6F6-PV |
