1/2″ AG Hydraulic Quick Couplers Male - 1/2″ SAE Port

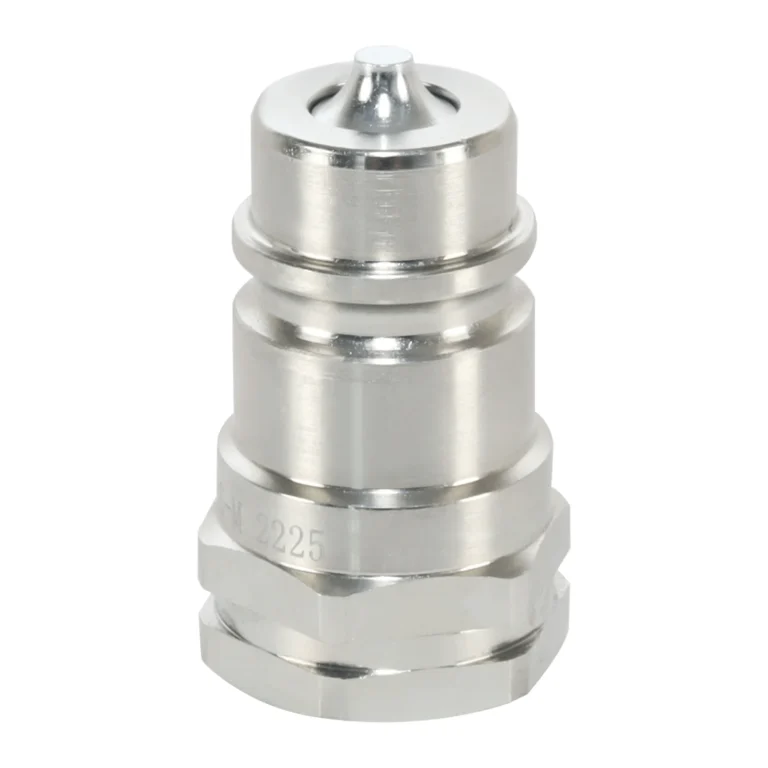

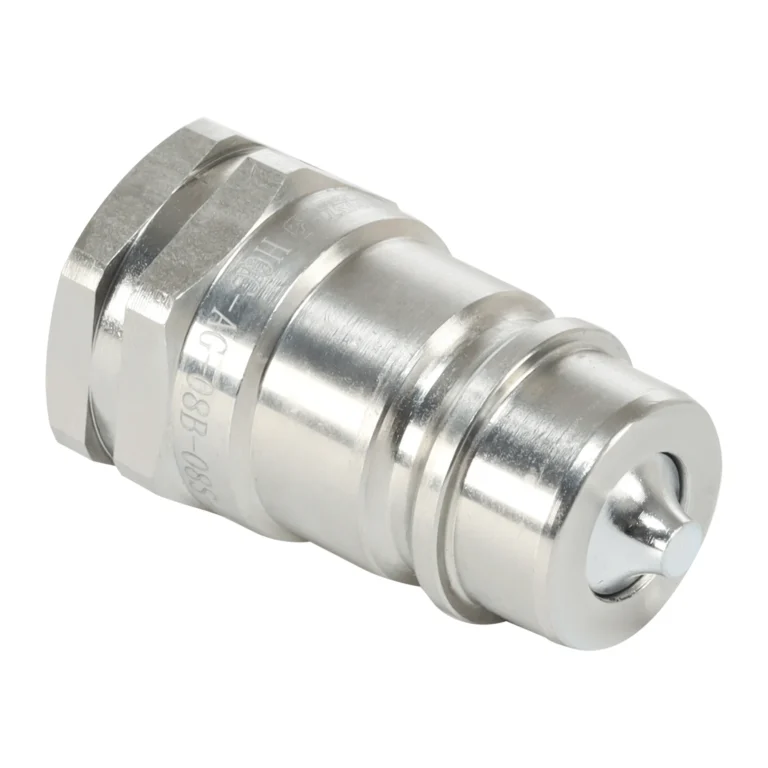

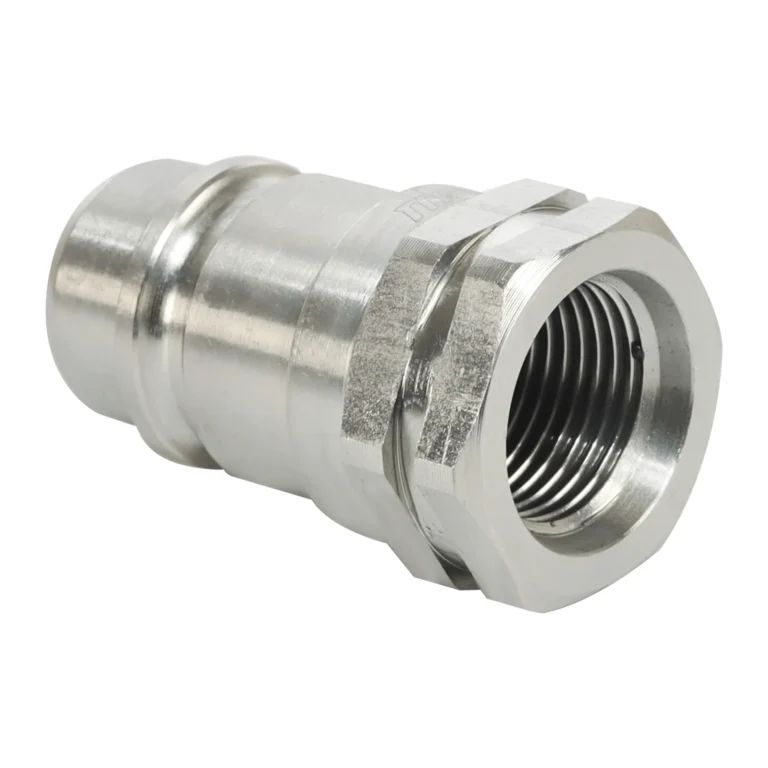

Magister Hydraulics’ 1/2″ AG hydraulic quick disconnect male coupler with a 1/2″ body and 1/2″ SAE #8 ORB port (3/4″-16 UNF straight thread) provides a secure quick connection for agricultural, industrial, and mobile hydraulic equipment while helping minimize fluid loss and air entry.

Key Features:

• Connection Size: 1/2″ agricultural body with a 1/2″ SAE #8 ORB port (3/4″-16 UNF straight thread).
• Leak-Resistant SAE ORB Connection: The port seals with a compatible O-ring boss fitting, helping prevent fluid leaks.
• Working Pressure and Rated Flow: Supports 3,620 PSI working pressure and a rated flow of 12 GPM.
• Durable Construction: Crafted from zinc-plated carbon steel for exceptional corrosion resistance and longevity.
• Easy Operation: Quick-connect design allows for single-handed coupling and uncoupling, reducing downtime and enhancing productivity.
• ISO 5675 Compatibility: Designed to mate with compatible 1/2″ agricultural female couplers meeting ISO 5675.
• Temperature Resistance: Operates efficiently in temperatures ranging from -4°F to +212°F (-20°C to +100°C), suitable for diverse environments.

Highly competitive pricing. Covers Included

Compatible with many hydraulic tools and equipment

1 Year Warranty

QUICK COUPLERS SIZE CHART

Same-Day FedEx Shipping.
