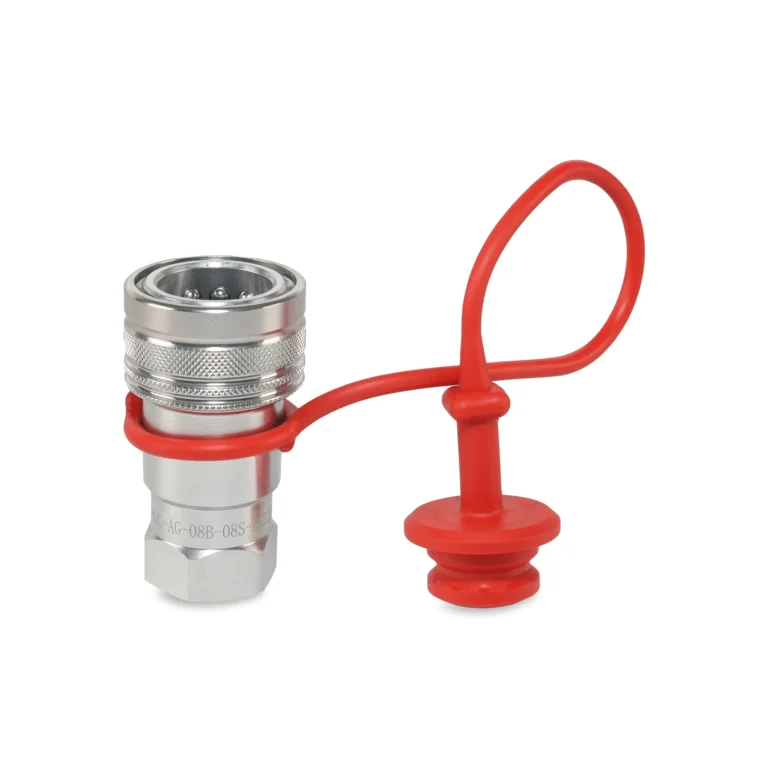

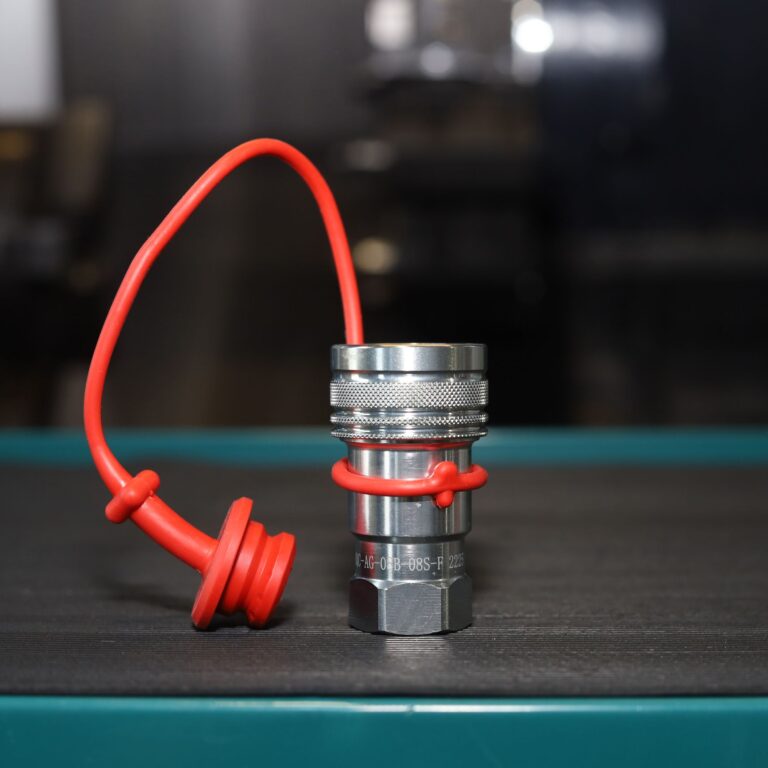

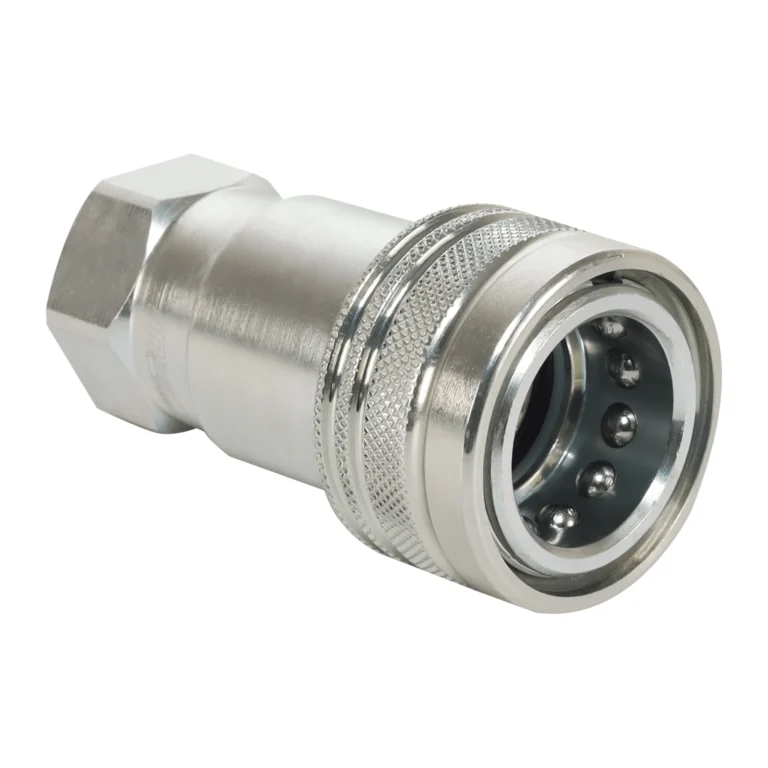

1/2″ AG Hydraulic Quick Couplers Female - 1/2″ SAE Port

Elevate your hydraulic systems with Magister Hydraulics’ 1/2″ AG Hydraulic Quick Disconnect Female Fitting with 1/2″ SAE #8 ORB Port (3/4″-16 UNF Thread), engineered for seamless, leak-proof connections in demanding applications. This couplers ensures secure, high-pressure performance while minimizing fluid loss and air inclusion. Ideal for agricultural, industrial, and mobile hydraulic equipment, this set delivers reliability and efficiency in every connection.

Key Features:

• Leak-Resistant SAE ORB Connection: The port seals with a compatible O-ring boss fitting, helping prevent fluid leaks.
• High-Pressure Resilience: Rated up to 3,620 PSI with a rated flow of 12 GPM, making it suitable for heavy-duty hydraulic systems.
• Durable Construction: Crafted from zinc-plated carbon steel for exceptional corrosion resistance and longevity.
• Easy Operation: Quick-connect design allows for single-handed coupling and uncoupling, reducing downtime and enhancing productivity.
• Universal Compatibility: Designed to meet AG standards, ensuring interoperability with other AG-series couplings and hydraulic systems.
• Temperature Resistance: Operates efficiently in temperatures ranging from -4°F to +212°F (-20°C to +100°C), suitable for diverse environments

Highly competitive pricing. Covers Included

Compatible with many hydraulic tools and equipment

1 Year Warranty

QUICK COUPLERS SIZE CHART

Same-Day FedEx Shipping.
