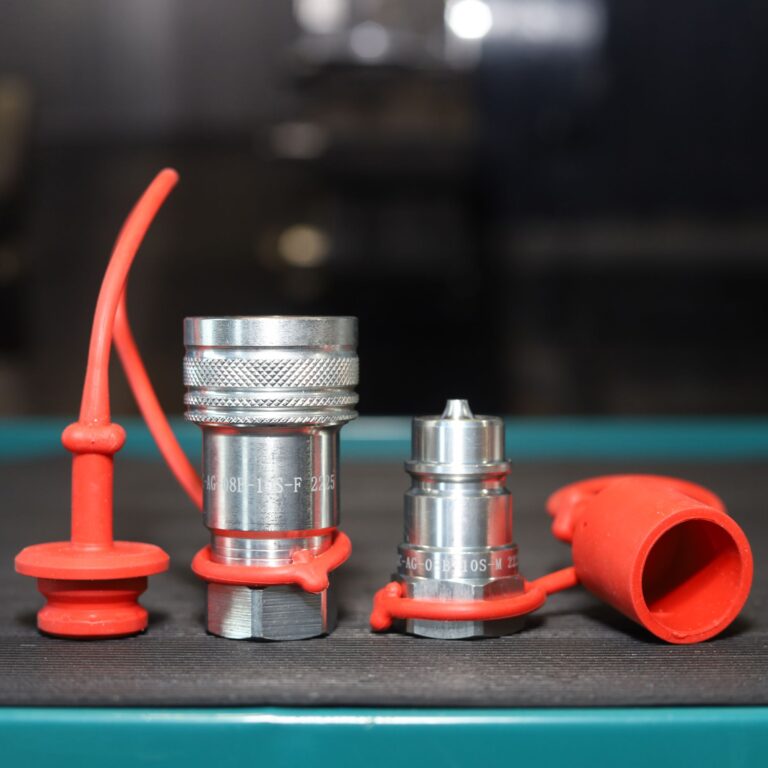

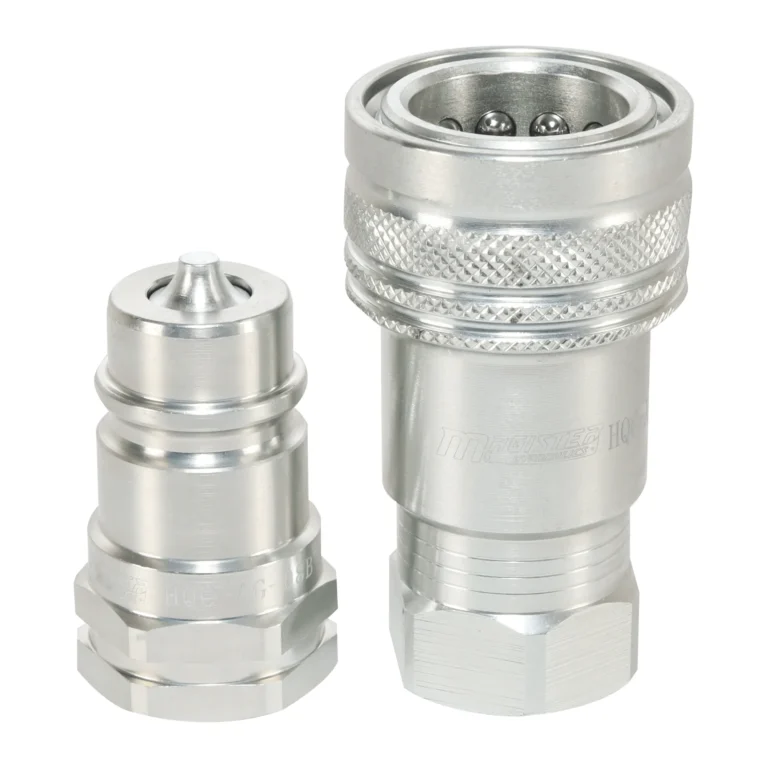

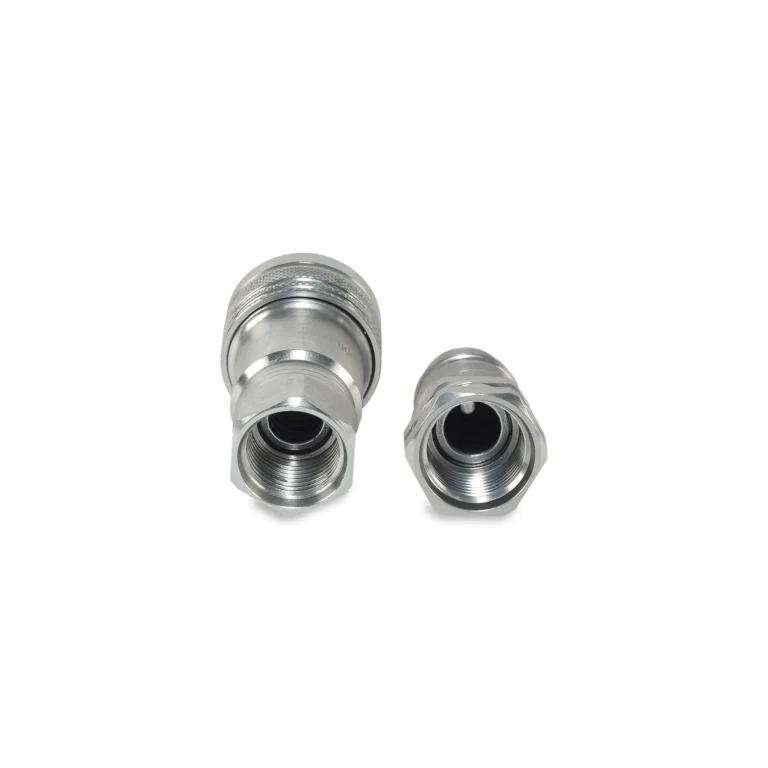

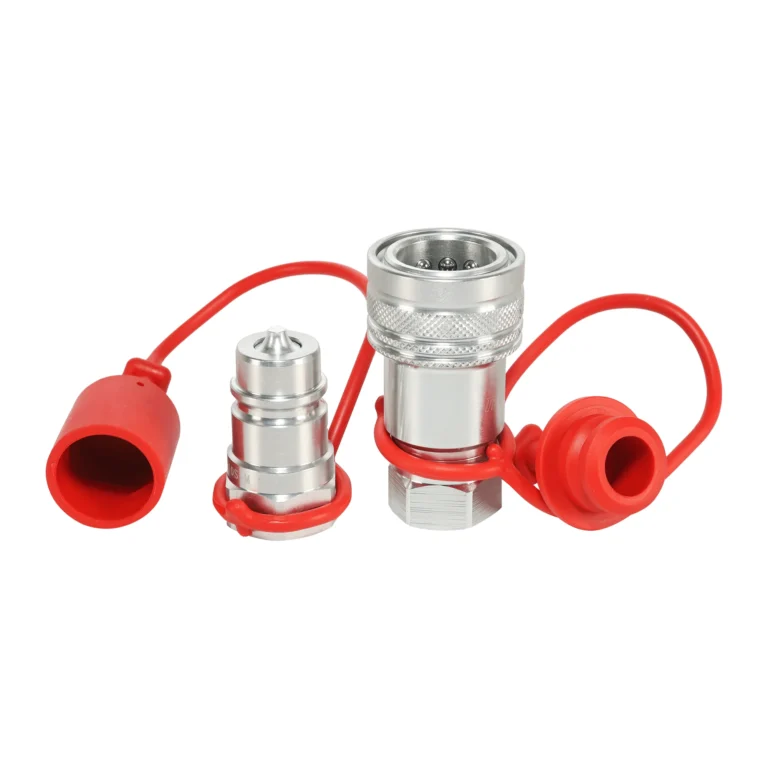

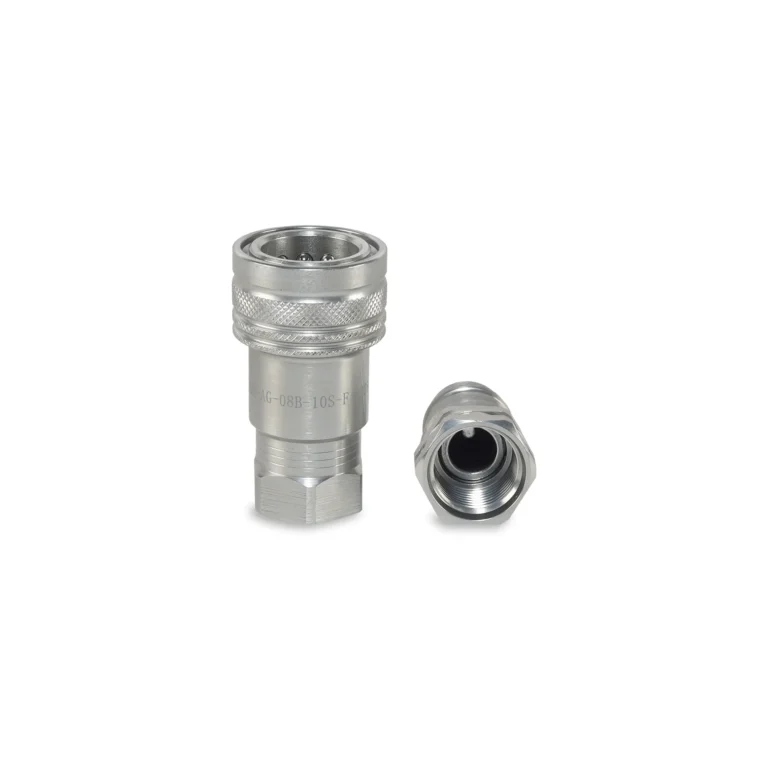

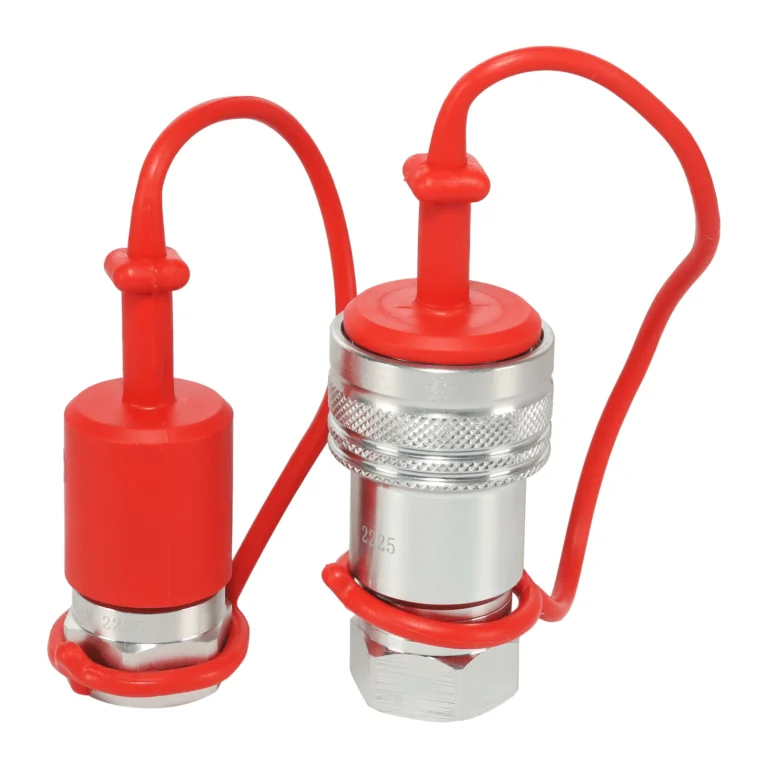

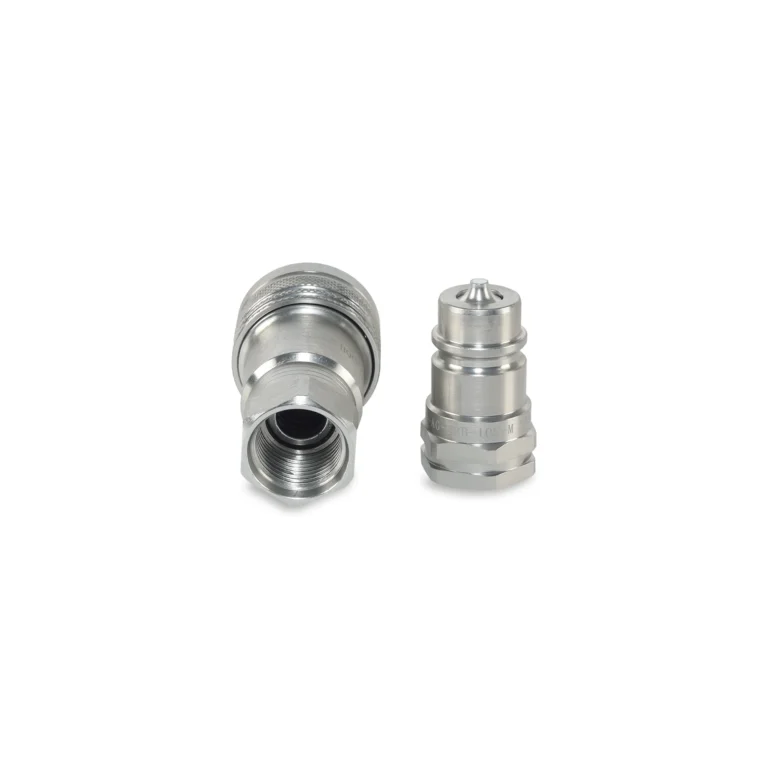

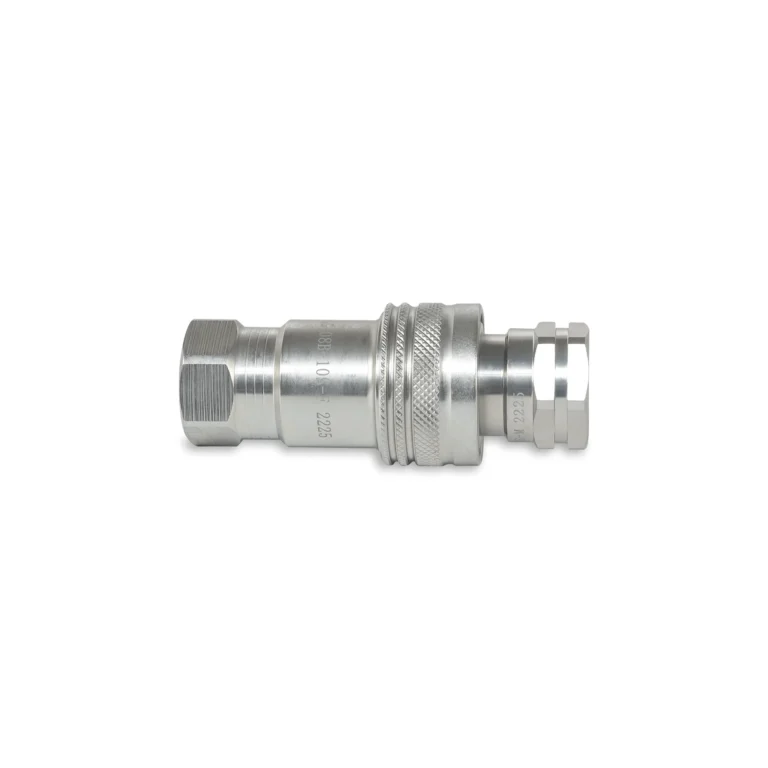

1/2″ AG Hydraulic Quick Couplers Set - 5/8″ SAE Port

SKU: HQC-AG-08B-10S-SET

$19.00

In Stock

Volume Discounts

2+ PRICE EA -5%
$18.05
4+ PRICE EA -10%
$17.10

119 in stock

View cart
US Customer Support
* Wholesale Discount is available for this product if you purchase 2 or more products.

Elevate your hydraulic systems with Magister Hydraulics’ 1/2″ AG Hydraulic Quick Disconnect Set Fitting with 5/8″ SAE Thread, engineered for seamless, leak-proof connections in demanding applications. This couplers ensures secure, high-pressure performance while minimizing fluid loss and air inclusion. Ideal for agricultural, industrial, and mobile hydraulic equipment, this set delivers reliability and efficiency in every connection.

Key Features:

  • Leak-Resistant SAE ORB Connection: The port seals with a compatible O-ring boss fitting, helping prevent fluid leaks.
  • High-Pressure Resilience: Rated up to 3,620 PSI with a rated flow of 12 GPM, making it suitable for heavy-duty hydraulic systems.
  • Durable Construction: Crafted from zinc-plated carbon steel for exceptional corrosion resistance and longevity.
  • Easy Operation: Quick-connect design allows for single-handed coupling and uncoupling, reducing downtime and enhancing productivity.
  • Universal Compatibility: Designed to meet AG standards, ensuring interoperability with other AG-series couplings and hydraulic systems.
  • Temperature Resistance: Operates efficiently in temperatures ranging from -4°F to +212°F (-20°C to +100°C), suitable for diverse environments

Highly competitive pricing. Covers Included

Compatible with many hydraulic tools and equipment

1 Year Warranty

QUICK COUPLERS SIZE CHART

Same-Day FedEx Shipping.

If you need assistance, do not hesitate to contact us:

973-344-5313

View Full Specifications

Specifications

1/2″ AG Hydraulic Quick Couplers Set - 5/8″ SAE Port
SKU: HQC-AG-08B-10S-SET
ConfigurationSETISO Body Size1/2"
DesignAgriculturalPort Size5/8″ SAE
ISO Standard5675Locking TypeSleeve
Max Pressure4500 PSIWorking Pressure3620 PSI
Max Flow23.8 GPMRated Flow12 GPM
Dash Size8Weight0.9 LBs
PlatingZincBrandMagister Hydraulics
GTIN850081310334

Alternative part numbers

ManufacturerMale SKUFemale SKU
SummitAG12M-10SAG12F-10S
Parker8010-16P4050-16P
SafewayS71-16PS25-16P
FasterNV 12-58SAE MNV 12-58SAE F
DixonAG4OF5-PV4AGOF5-PV
The dimensions may be different. Please review the drawings prior to ordering. Magister Hydraulics does not guarantee the identical product match.
