6 bore x 30 stroke hydraulic cylinder, welded cross tube double acting cylinder | Magister Hydraulics

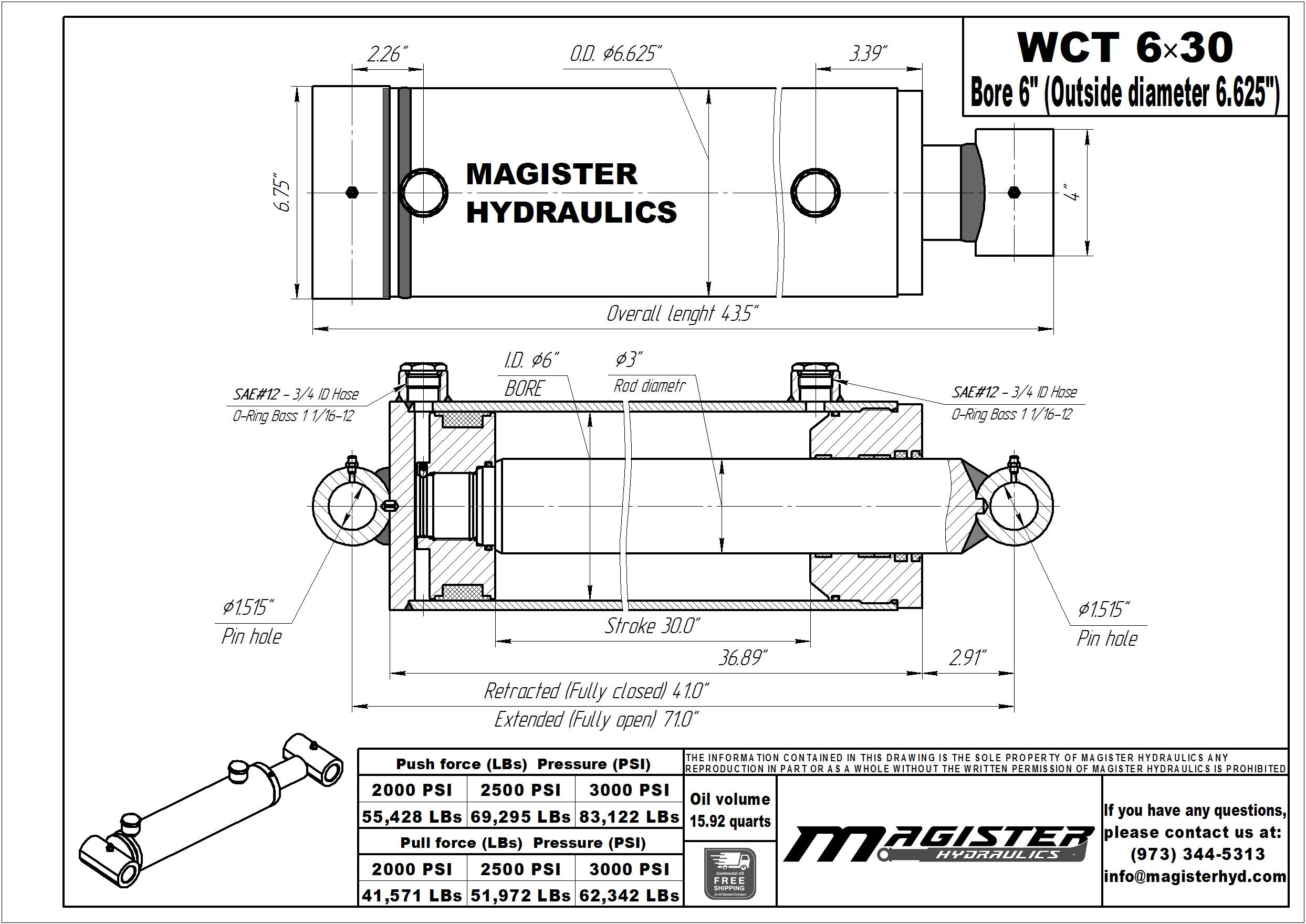

6" bore x 30" stroke cross tube hydraulic cylinder


Pay in 4 interest-free payments of $335.50
* Wholesale Discount is available for this product if you purchase 4 or more products.
SKU: WCT 6x30
Bore :6"
Stroke :30” Stroke Hydraulic Cylinders
Rod :3"
Port Size :SAE 12
Pin :1.5"

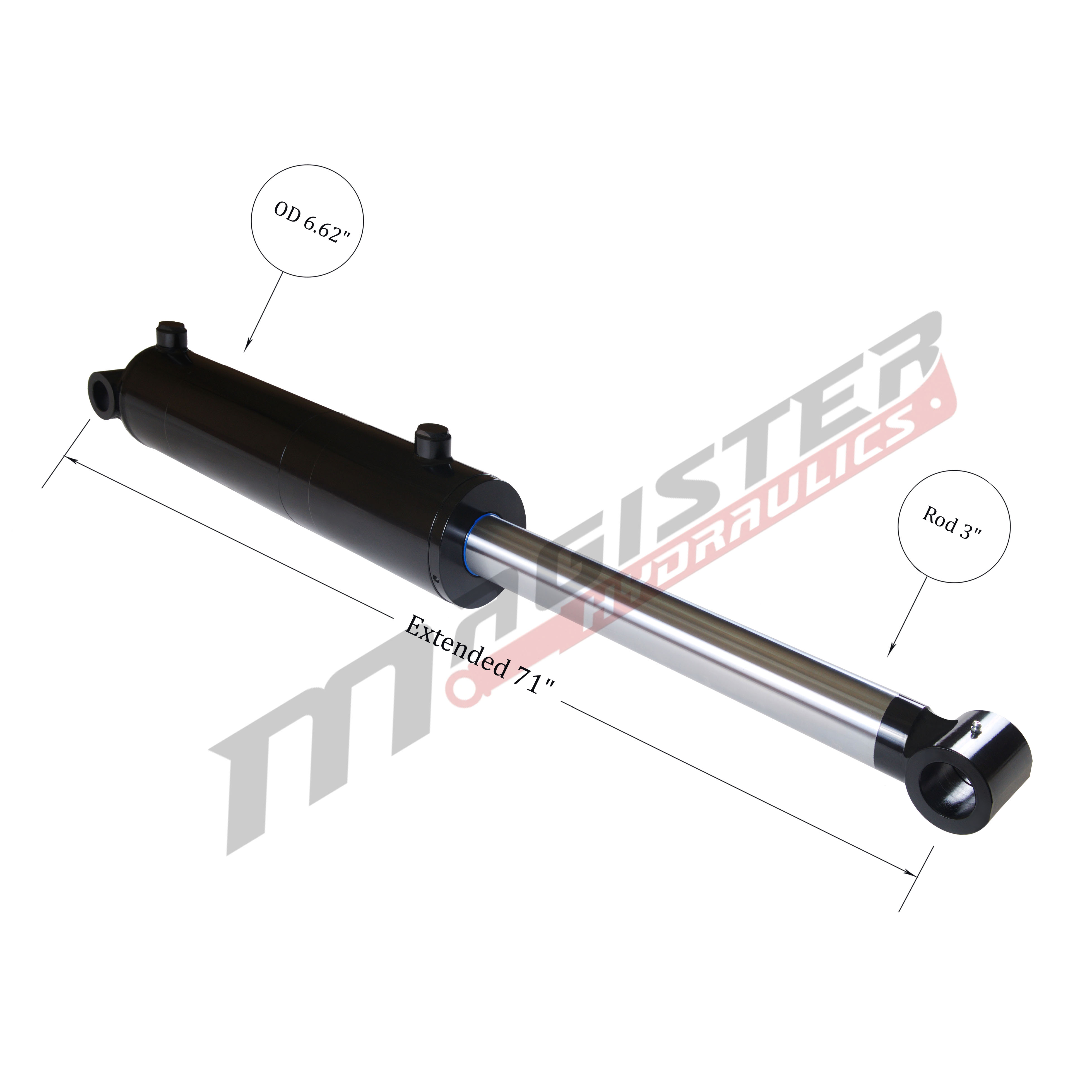

Extended :71"

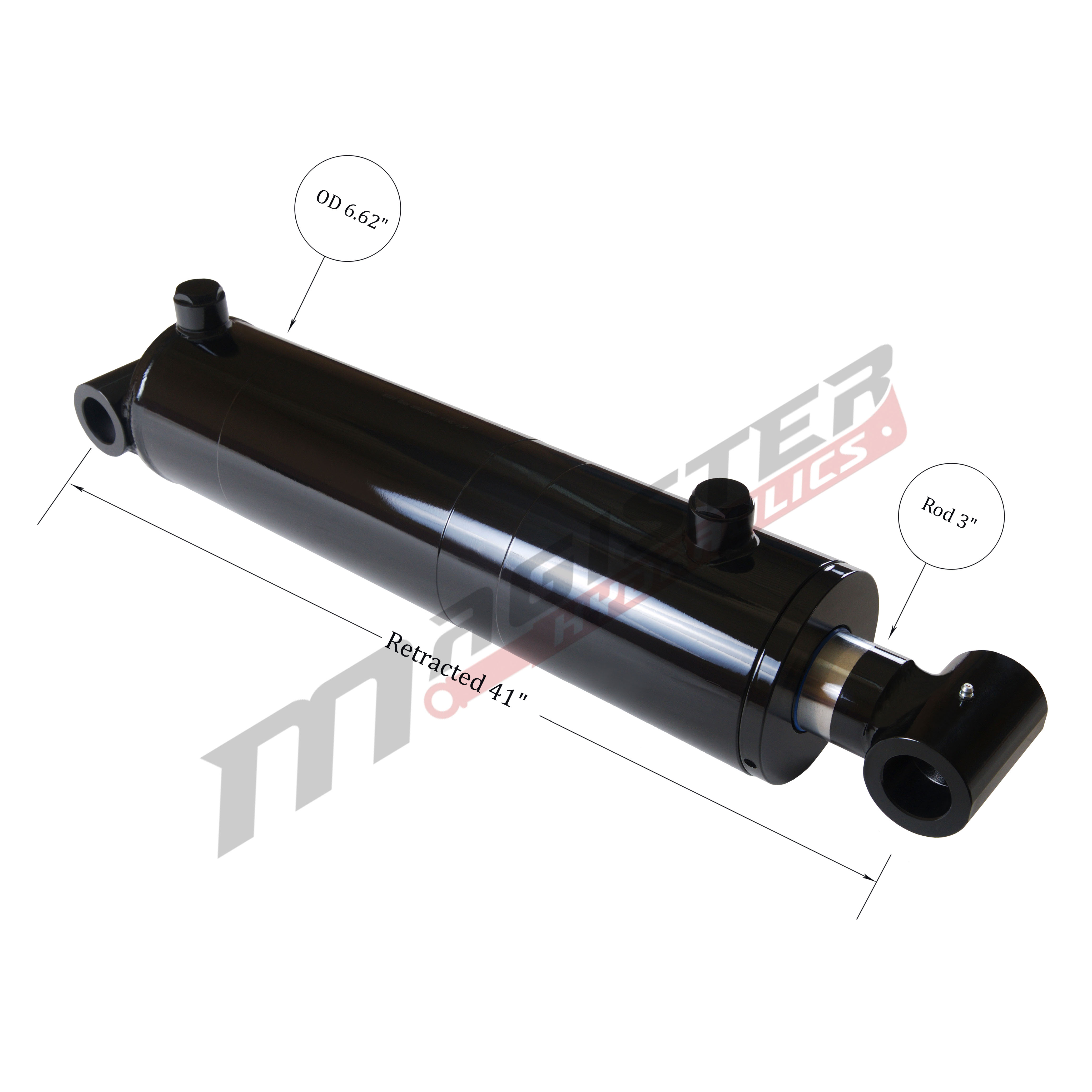

Retracted :41"
Overall length :43.5"
Pressure :Hydraulic Cylinders 3500 PSI
Column Load (LBs) :83,100
Oil Volume (quarts) :15.92
Brand :Magister Hydraulics
GTIN :850016509000
4+ PRICE EA -5%
8+ PRICE EA -10%
In stock

7 in stock

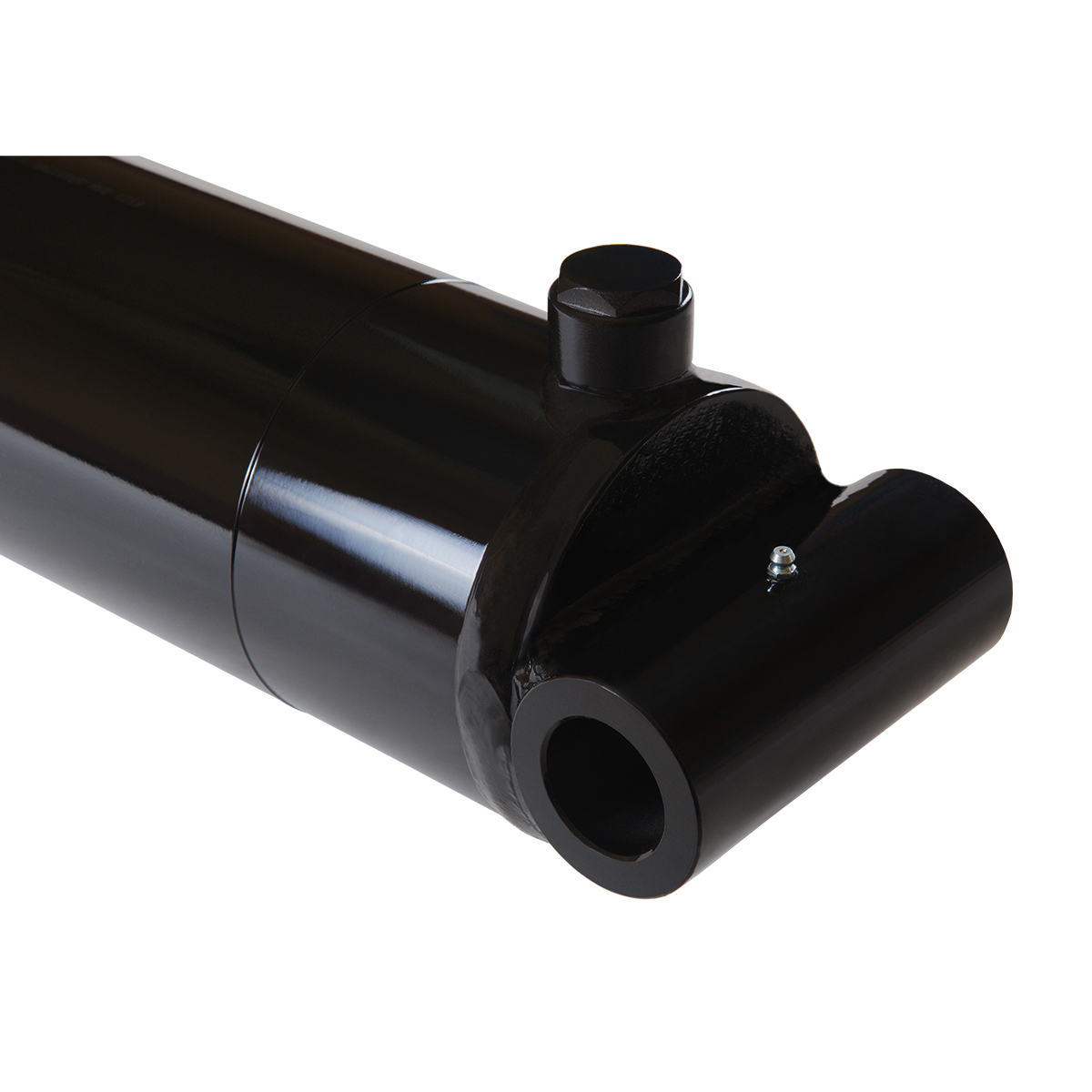

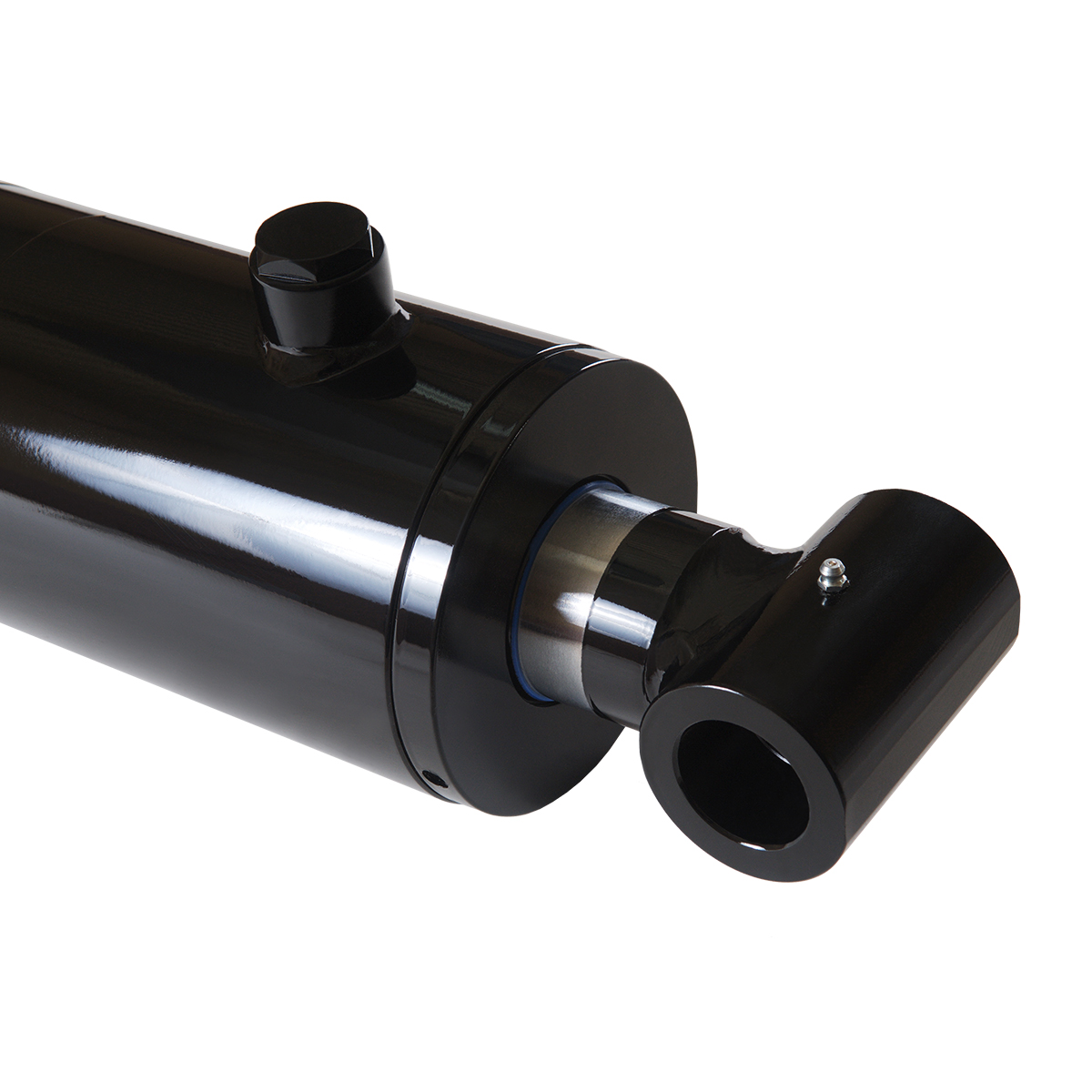

  • 6″ bore x 30″ stroke cross tube hydraulic cylinder 3500 PSI. Heavy-duty hydraulics, 2-year warranty, free ground Continental US shipping. Magister cylinders manufactured using steel piston and steel threaded gland with wear rings for long life. Welded cross tube ends, honed cold-drawn tubing, hard chrome plated rod and top quality five component piston seals allow Magister Hydraulics cylinders to work in extreme conditions. Excellent replacement for front end loader.
  • Applications: Welded Double Acting Hydraulic Cylinder.
  • Color: Black.

We provide volume discounts for all our standard cylinders. When purchasing 4-9 ea, 5% discount. When purchasing 10+ ea, 10% discount.

Tariff-FREE cylinders.
Made in Europe.
