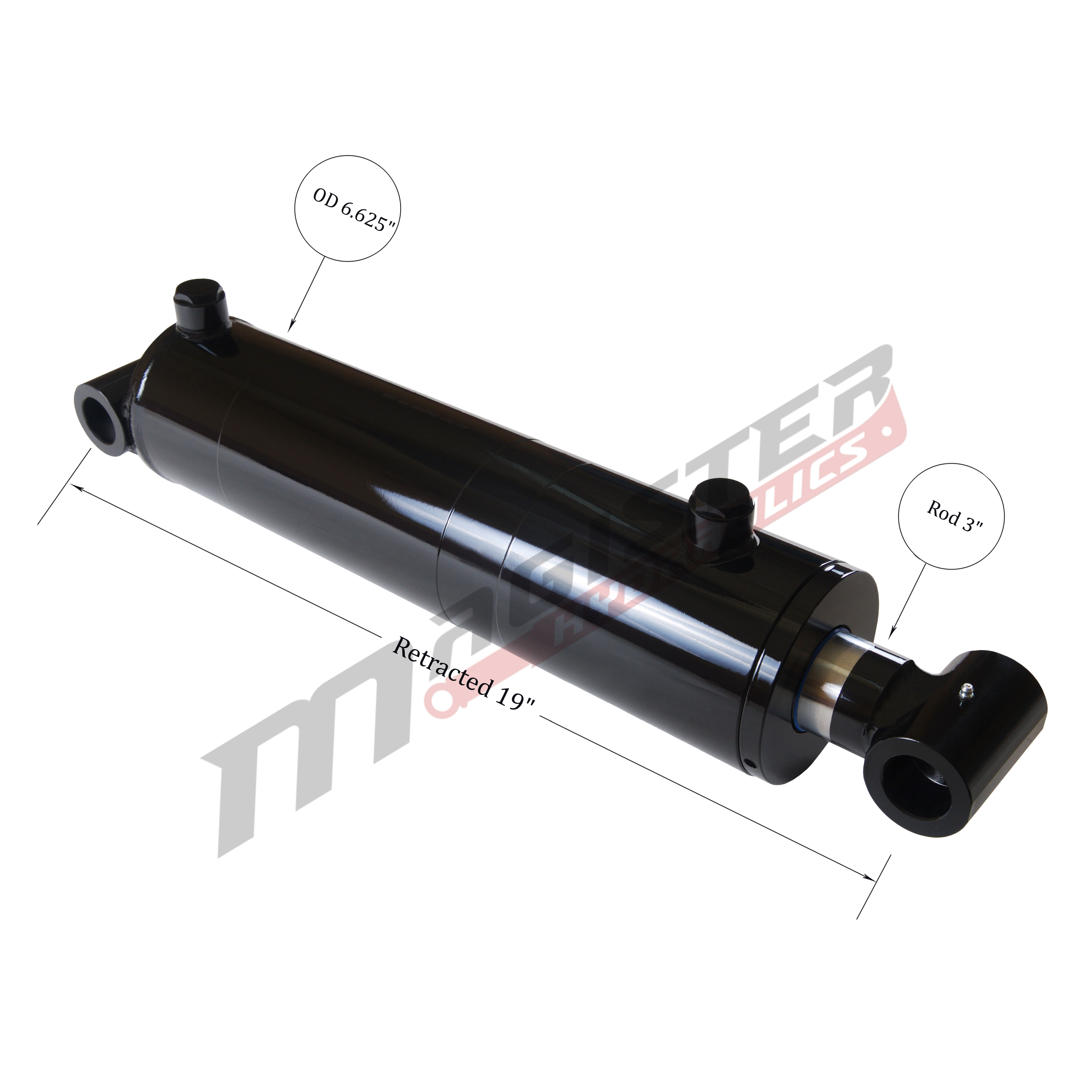

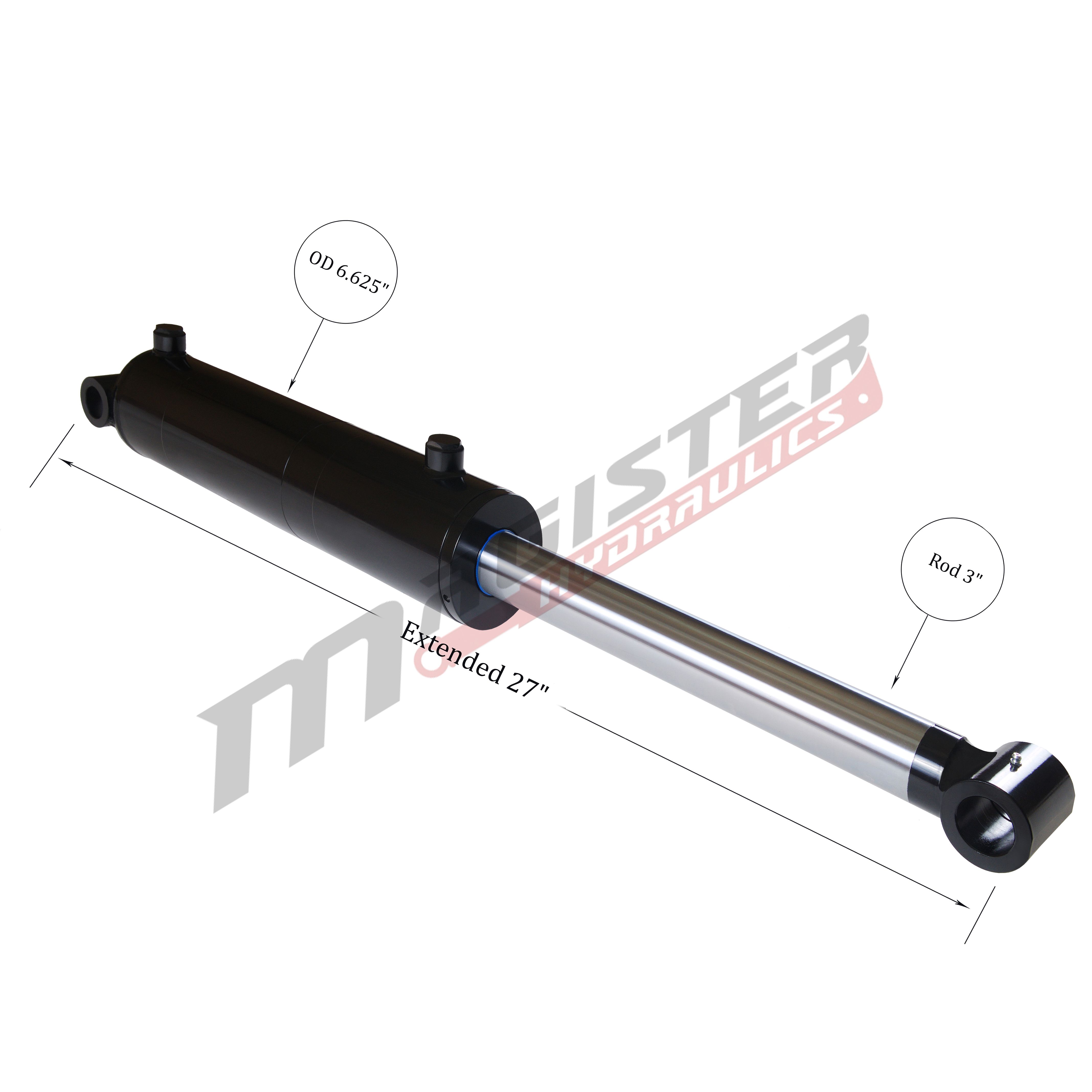

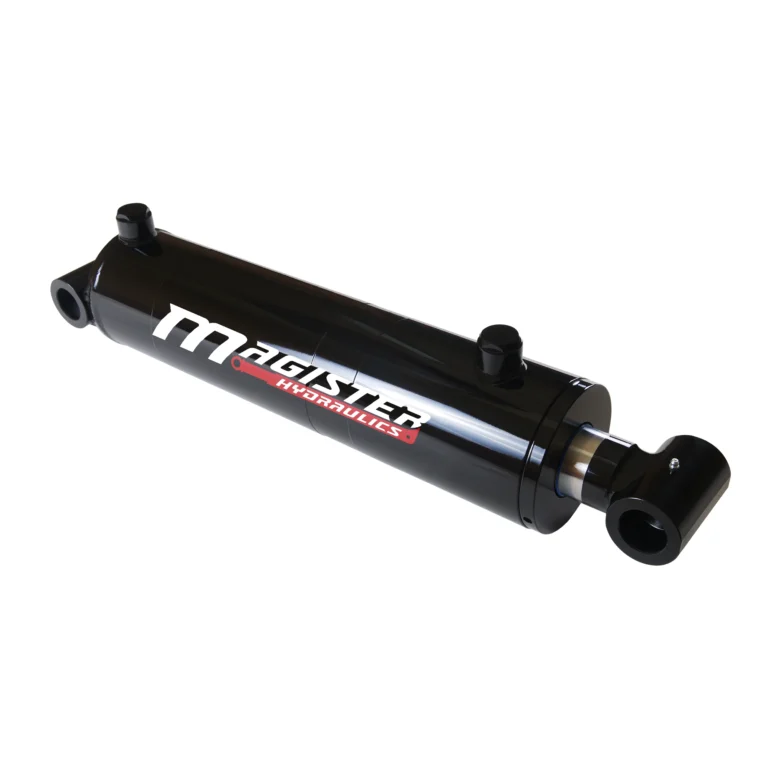

6" bore x 8" stroke cross tube hydraulic cylinder
$736.00
Pay in 4 interest-free payments of $184.00SKU: WCT 6x8

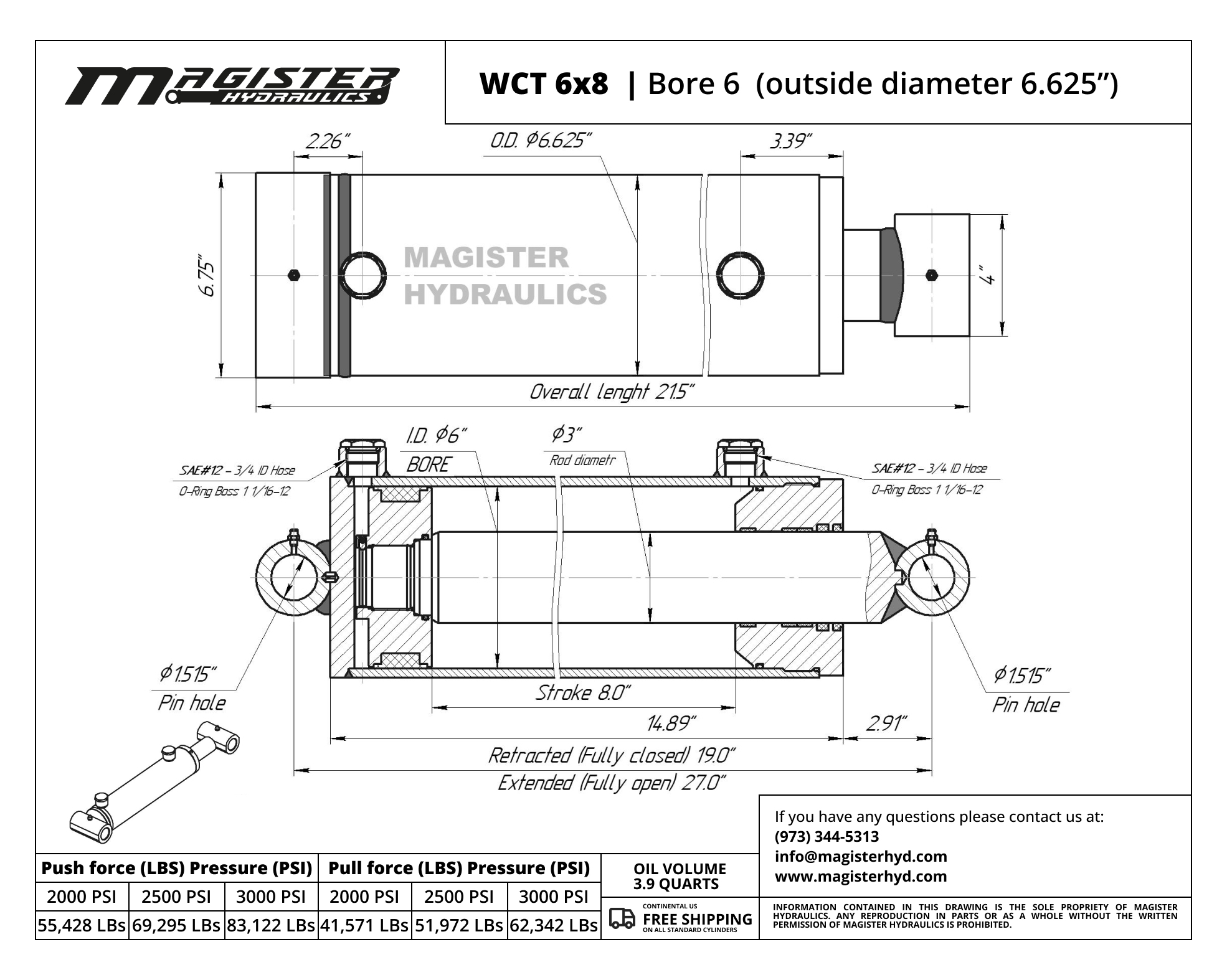

| Bore : | 6 in | Outer Dia. (⌀) : | 6.625 in | Stroke : | 8 in | Rod Dia. (⌀) : | 3 in | Port Size : | SAE 12 | Pin Dia. (⌀) : | 1.5 in | Extended : | 27 in | Retracted : | 19 in | Overall length : | 21.5 in | Pressure : | 3500 PSI | Column Load : | 83,100 LBs | Oil Volume : | 3.9 QTs | Brand : | Magister Hydraulics | Design : | Welded | Rod Type : | Chrome Plated | Rod End : | Cross Tube | Action : | Weight : | 115 LBs |
|---|---|
| GTIN : | 850054386212 |
Volume discounts
4+ PRICE EA -5%
$699.20
8+ PRICE EA -10%
$662.40
In stock
2 in stock
Description
Designed for maximum performance and durability, the heavy-duty welded Cross Tube Hydraulic Cylinder is engineered to handle the toughest jobs in agricultural, industrial, and construction applications. Magister Hydraulics Welded Double Acting Hydraulic Cylinder with a 6-inch bore and 8-inch stroke with cross tube ends with 3500 PSI. Due to their construction, these hydraulic rams can efficiently work in all conditions, offering a more affordable and perfect alternative to genuine hydraulic cylinders. The cross-tube cylinders serve as an excellent replacement part for front-end loaders, mainly for John Deere, Kubota, Massey Ferguson, Mahindra, and others.
Key Features:
-
-
-
- – Extreme load capacity: Welded cross tube ends, ⌀ 6.625″ honed cold-drawn tubing, ⌀ 3″ chrome-plated rod (steel 1045), and top-quality piston seals make it capable of handling heavy loads with a 8″ stroke.
-
- – Wide Range Hydraulic Applications: forklifts, backhoes, front end loaders, tractors, excavators, ensuring reliable operation in harsh environments thanks to the usage of this cross tube cylinder.
-
- – Double-Acting Functionality: Provides controlled power in both directions, ensuring efficient and versatile performance for a variety of applications.
-
- – High-Quality Construction: Steel piston and steel gland with wear rings, crafted from premium-grade materials, offering exceptional durability, corrosion resistance, and long-lasting service life.
-
- – Precision Engineering: Designed with tight tolerances and advanced sealing technology to minimize leakage and maintain optimal performance.
-
- – Smooth Operation: Features finely honed cylinder barrels and high-quality seals for smooth and consistent operation.
-
- – Easy Maintenance: Simple to service and maintain, reducing downtime and ensuring continuous operation.
-
- – 2-year warranty
-
- – Same Day Free Shipping: all orders, made until 3 pm, will be shipped the same day (except weekends and holidays). Free Ground Continental US Shipping.
-
- – Made in Europe.
-
-
Before purchase, please take the proper measurements:
-
- – The diameter of the bore (please specify inside or outside measurement).
-
- – The diameter of the rod and pin holes.
-
- – The fully extended and retracted lengths, measured from the center pinhole to the center pinhole.
-
- – The width on each mounting end of the cylinder where the pins slide through.
