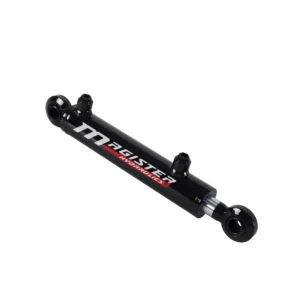

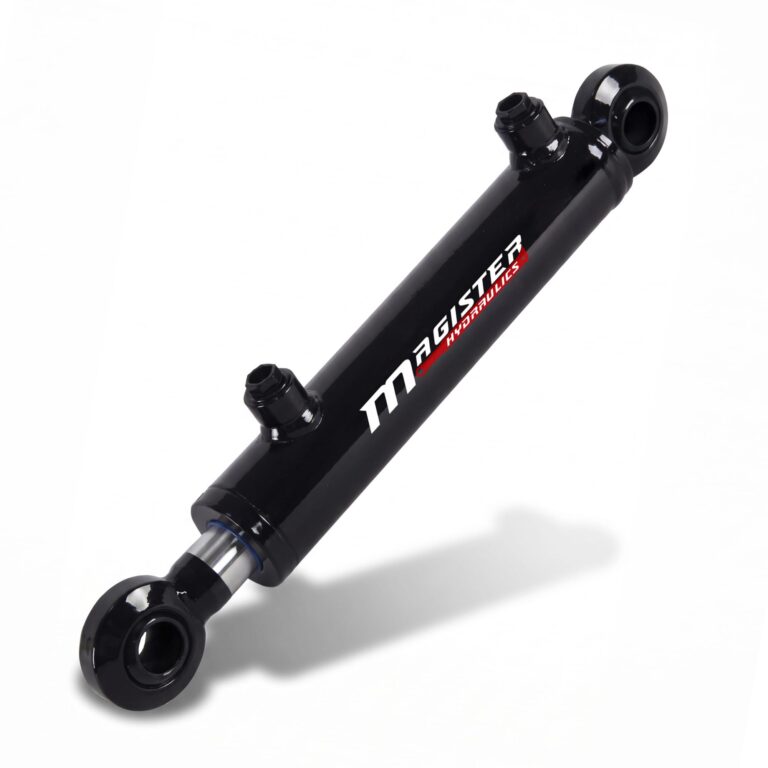

1.5" bore x 6" stroke swivel ball hydraulic cylinder

Engineered for maximum performance and durability, the heavy-duty Welded Swivel Ball Hydraulic Cylinder is designed to handle demanding jobs in agriculture, construction, and industrial equipment. The Magister Hydraulics Welded Double Acting Hydraulic Cylinder, with a 1.5-inch bore and 6-inch stroke, features swivel ball mounts on both ends for optimal flexibility and endurance, allowing angular movement and improved load alignment. Built to operate in the harshest environments, this ram offers a cost-effective and reliable alternative to OEM hydraulic components.

Key Features:

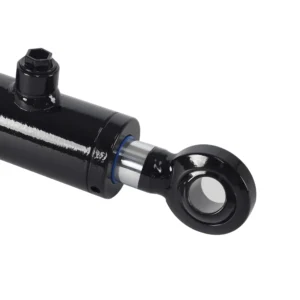

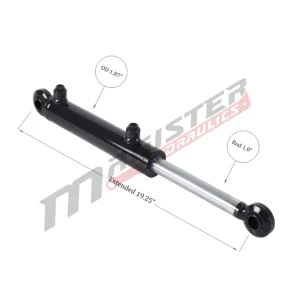

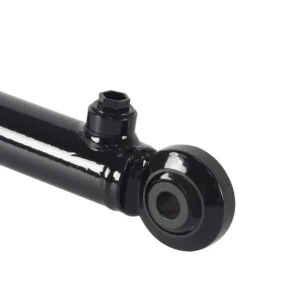

• Extreme load capacity: Welded steel mounts with bearings base end, ⌀ 1.875″ honed cold-drawn tubing, ⌀ 1.0″ chrome-plated rod (steel 1045). Equipped with swivel ball mounts on both base and rod ends for enhanced flexibility, wide angle and alignment under the load.
• Swivel Mount Mobility: Integrated swivel ball mounts allow for up to ±26° horizontal and ±11° vertical movement, ensuring optimal alignment under misaligned or dynamic load conditions. Ideal for applications with structural movement or where installation tolerances require angular flexibility.
• Wide Range Hydraulic Applications: Perfect for installations that require angular compensation — commonly used in agriculture, recycling, trailers, loaders, compact machinery such as skid steers and mini-loaders, and utility vehicles.
• Double-Acting Functionality: Provides controlled power in both directions, ensuring efficient and versatile performance for a variety of applications.
• High-Quality Construction: Steel piston and steel gland with wear rings, crafted from premium-grade materials, offering exceptional durability, corrosion resistance, and long-lasting service life.
• Precision Engineering: Designed with tight tolerances and advanced sealing technology to minimize leakage and maintain optimal performance.
• Smooth Operation: Features finely honed cylinder barrels and high-quality seals for smooth and consistent operation.
• Easy Maintenance: Simple to service and maintain, reducing downtime and ensuring continuous operation.
• 2-year warranty
• Same Day Shipping: all orders, made until 1 pm EST, will be shipped the same day (except weekends and holidays). Free Ground Continental US Shipping.
• Made in Europe.

Before purchase, please take the proper measurements:

• The diameter of the bore (please specify inside or outside measurement).
• The diameter of the rod and pin holes.

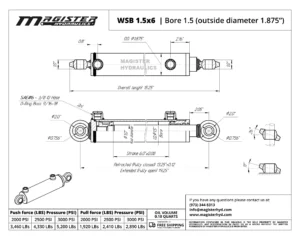

• The fully extended and retracted lengths, measured from the center pinhole to the center pinhole.
• The width on each mounting end of the cylinder where the pins slide through.

How to Measure a Hydraulic Cylinder
