1.40 CID hydraulic gear pump 13 tooth spline shaft CW
SKU: HGP CI13S-B02-140R
$220.00
In Stock
Pay in 4 interest-free payments of $55.00Volume Discounts
5+ PRICE EA -5%
$209.00
10+ PRICE EA -10%
$198.00
11 in stock
Same Day
Free Shipping
Free Shipping
Made in Europe
US Customer Support
* Wholesale Discount is available for this product if you purchase 5 or more products.
The Magister 1.40 CID cast iron pump is engineered for reliable performance in demanding agricultural and material handling applications. Featuring a robust 13-tooth spline shaft, CW rotation, a high-pressure rating of 3300 PSI, and a standard SAE-B mounting flange, this pump delivers the power and durability needed to keep your equipment running.
Key Features & Benefits
- Built to Last: Precision-machined cast iron construction ensures longevity and resistance to wear in tough environments.
- High-Pressure Performance: Handles up to 3300 PSI for powerful, consistent hydraulic operation.

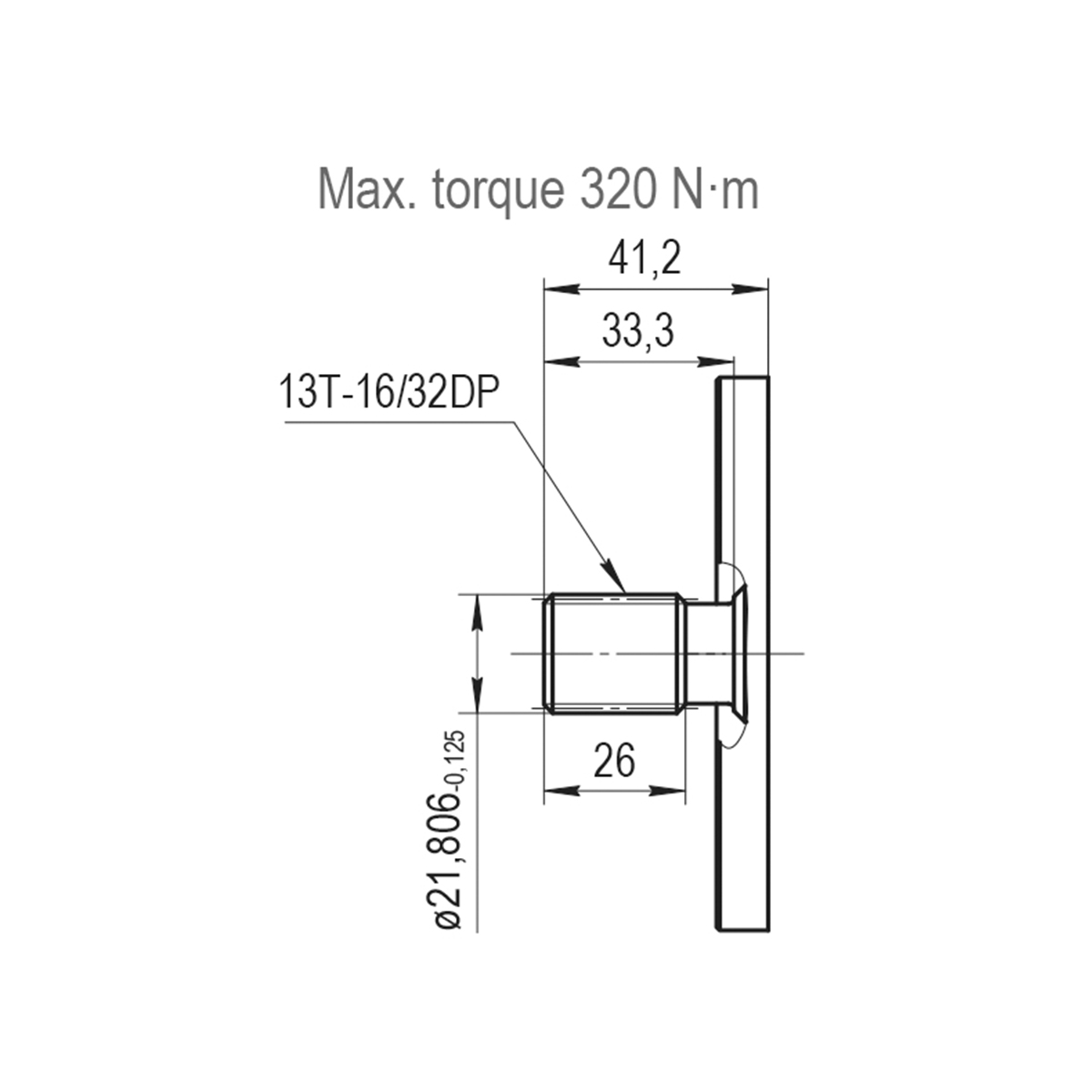

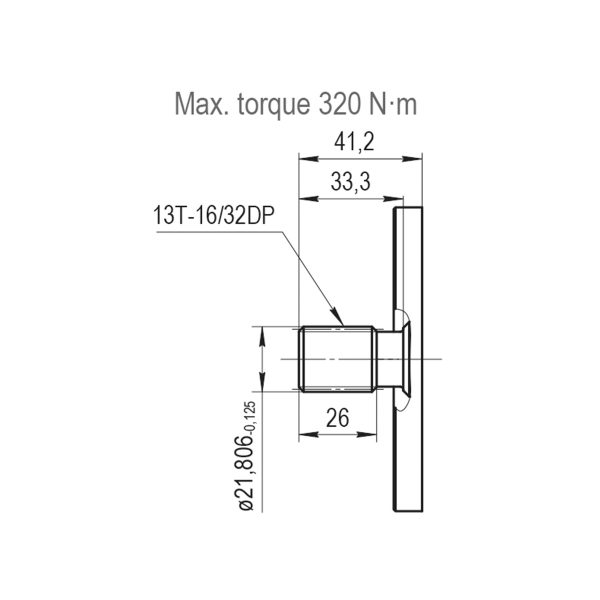

- Easy Direct Replacement: Features a standard 13-tooth spline shaft and an SAE-B 2-bolt mounting flange for a straightforward swap with no modifications needed.
- Precise Rotation: Designed for systems requiring Clockwise (CW / Right-Hand) rotation.
- Optimal Flow: 1.40 cubic inch displacement (12.12 GPM @ 2000 RPM) provides the right flow for a variety of mid-duty applications.
Same Day Free Shipping.
Made in Europe.
If you need assistance to choose a proper hydraulic gear pump replacement, do not hesitate to contact us:
973-344-5313
Frequently bought together

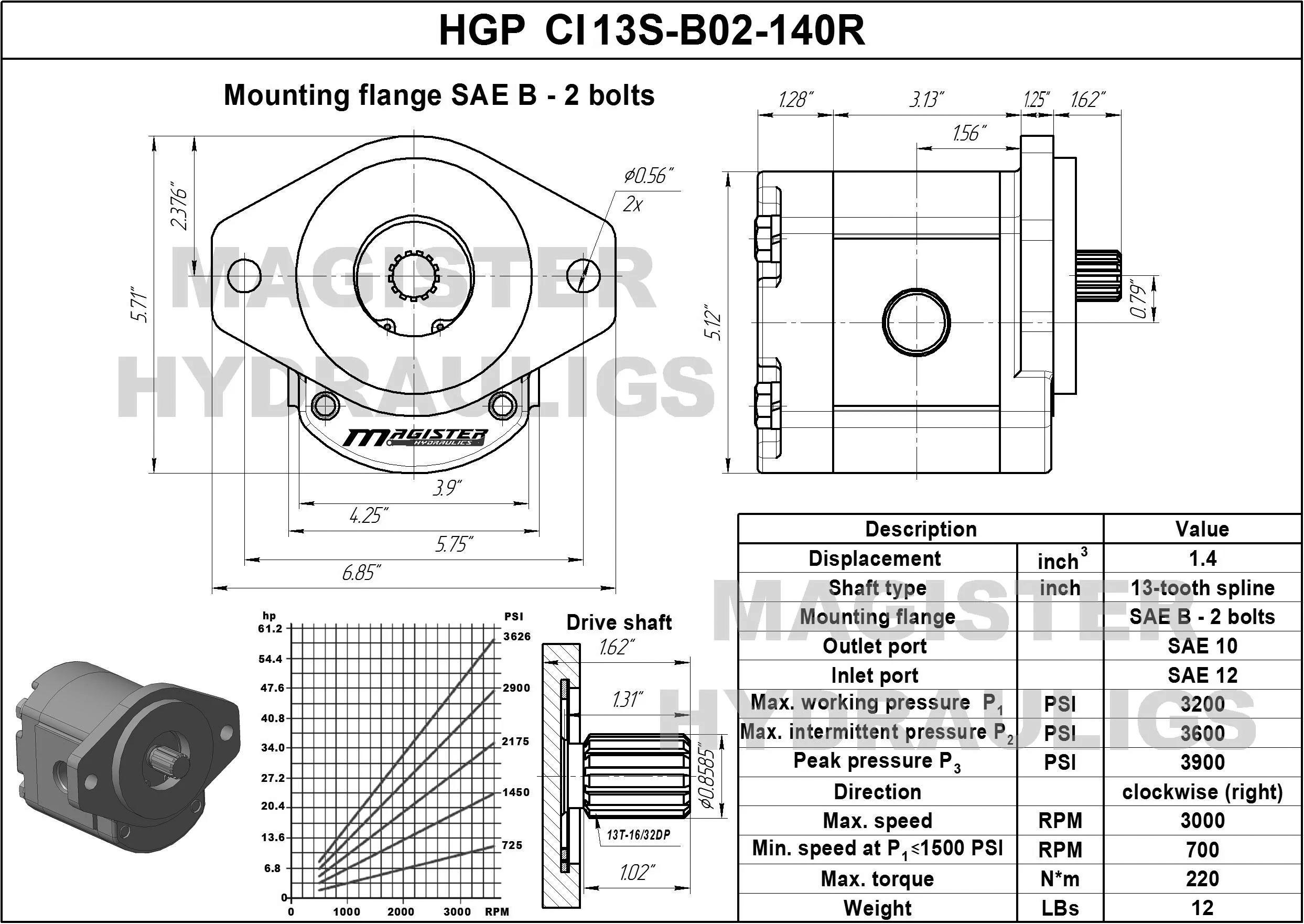

Specifications
1.40 CID hydraulic gear pump 13 tooth spline shaft CW
SKU: HGP CI13S-B02-140R
| CID | 1.4 | Rotation | CW |
|---|---|---|---|
| Flow | 12.12 GPM @ 2000 RPM | MAX RPM | 3000 |
| Inlet Port | SAE 12 | Pressure | 3300 PSI |
| Outlet Port | SAE 10 | Shaft Type | 13-tooth spline |
| Flange | SAE B - 2 bolts | Brand | Magister Hydraulics |
| Weight | 12 LBs | GTIN | 850028143551 |
