1.83 CID hydraulic gear pump, 13 tooth spline shaft counter-clockwise gear pump | Magister Hydraulics

1.83 CID hydraulic gear pump 13 tooth spline shaft CCW


Pay in 4 interest-free payments of $40.31

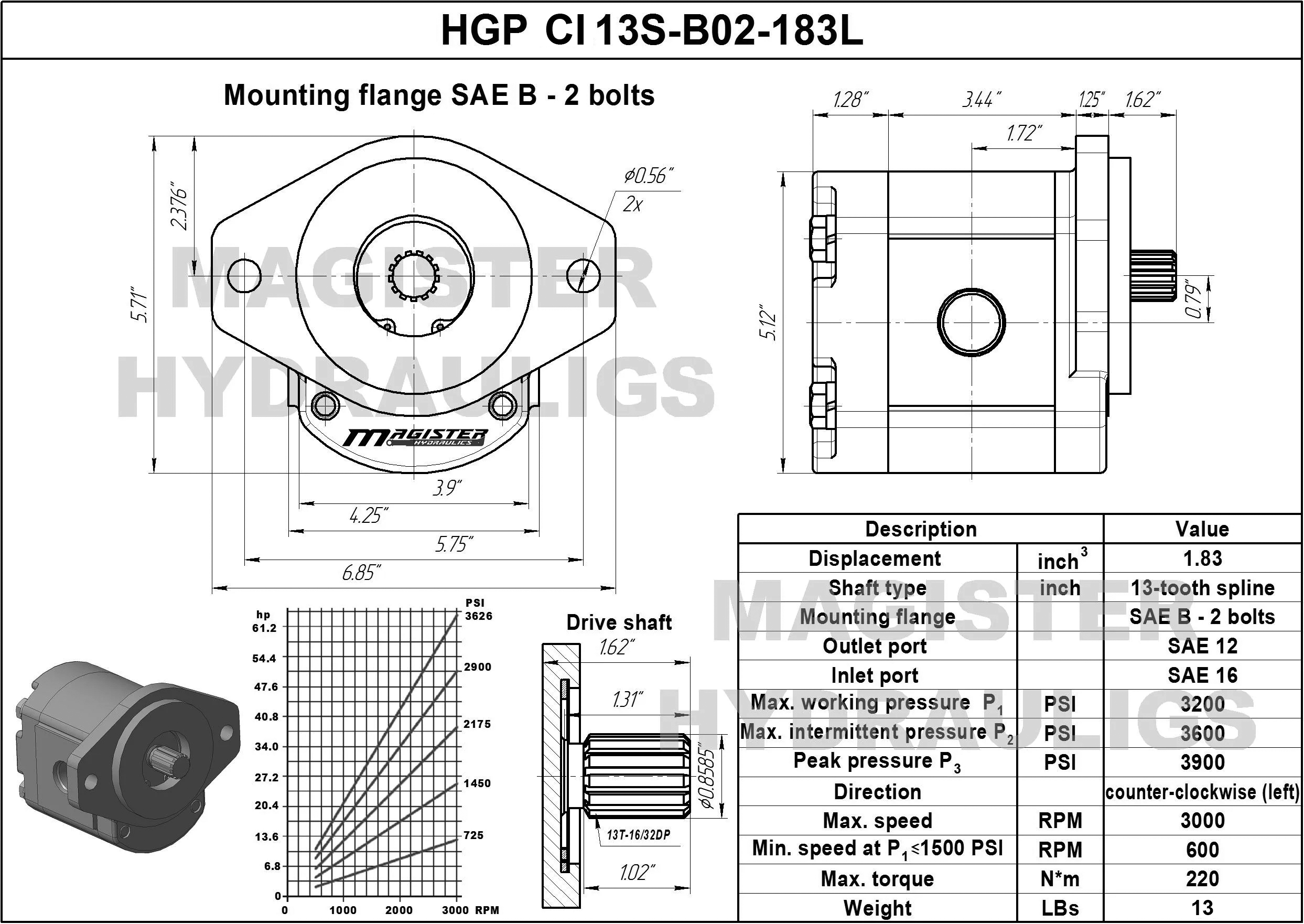

SKU: HGP CI13S-B02-183L
CID : 1.83
Rotation : CCW
Flow : 15.84 GPM @ 2000 RPM
MAX RPM : 3000
Inlet Port : SAE 16
Pressure : 3300 PSI
Outlet Port : SAE 12

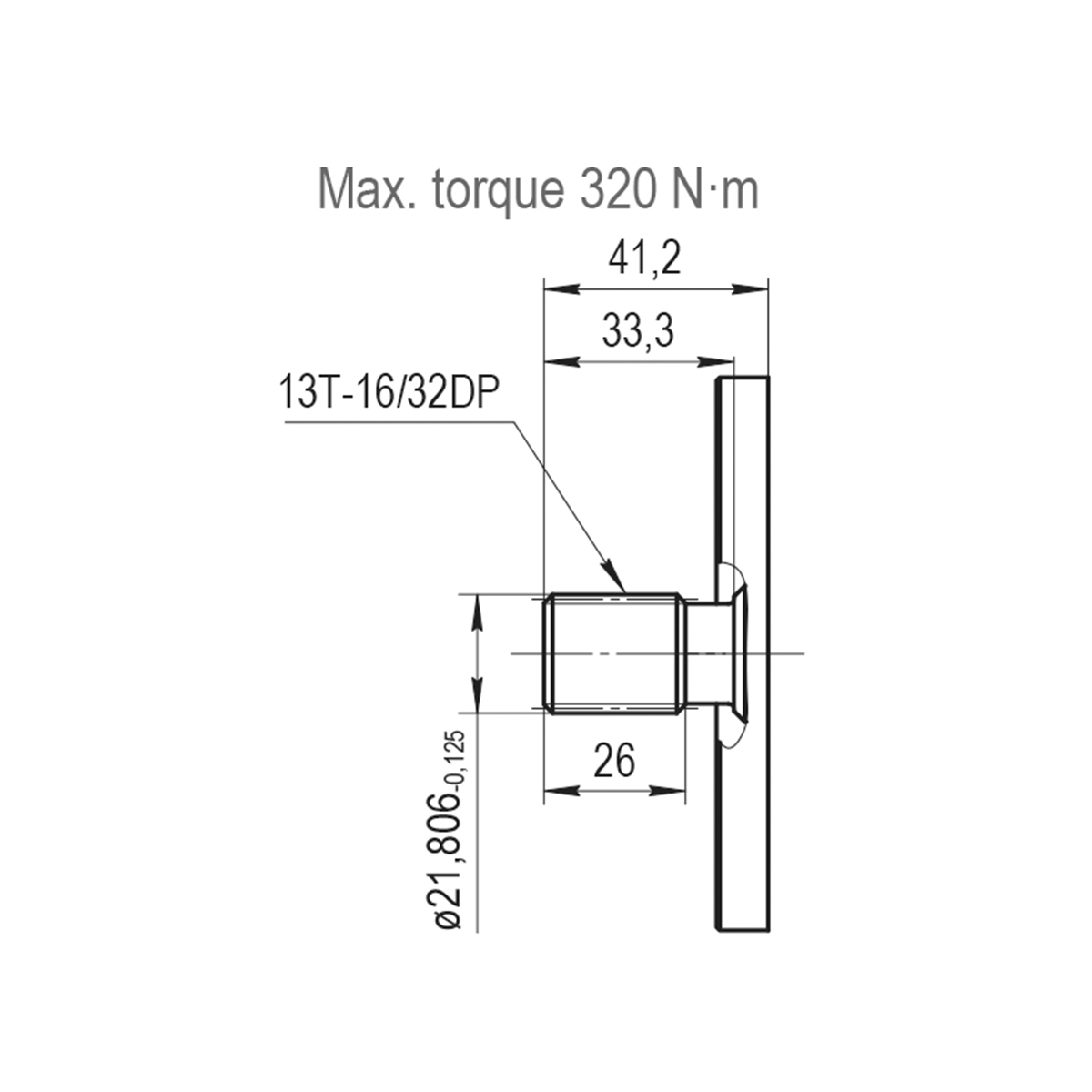

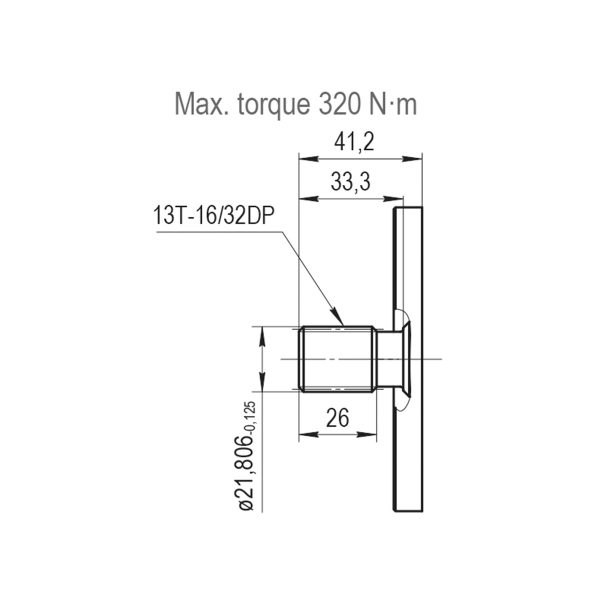

Shaft Type : 13-tooth spline
Flange : SAE B - 2 bolts
Brand : Magister Hydraulics
Weight : 13 LBs
GTIN : 850028143629

Volume discounts

Out of stock
Free Shipping

Out of stock


  • 1.83 CID cast iron hydraulic gear pump 3300 PSI max presure. Durable 13 tooth spline shaft with counter-clockwise (left) rotation. SAE B – 2 bolts mounting flange and 3000 max RPM. 1-year warranty and free same day ground Continental US shipping. Magister gear pumps are great replacements for a variety of farming and material handling equipment.

Same-Day Shipping: all orders, made until 3 pm, will be shipped the same day (except weekends and holidays).

Free Ground Continental US Shipping

Tariff-FREE Gear pumps.

Made in Europe.

If you need assistance to choose a proper hydraulic Gear pumps replacement, do not hesitate to contact us:
