1.16 CID hydraulic gear pump 13 tooth spline shaft CCW
$210.00

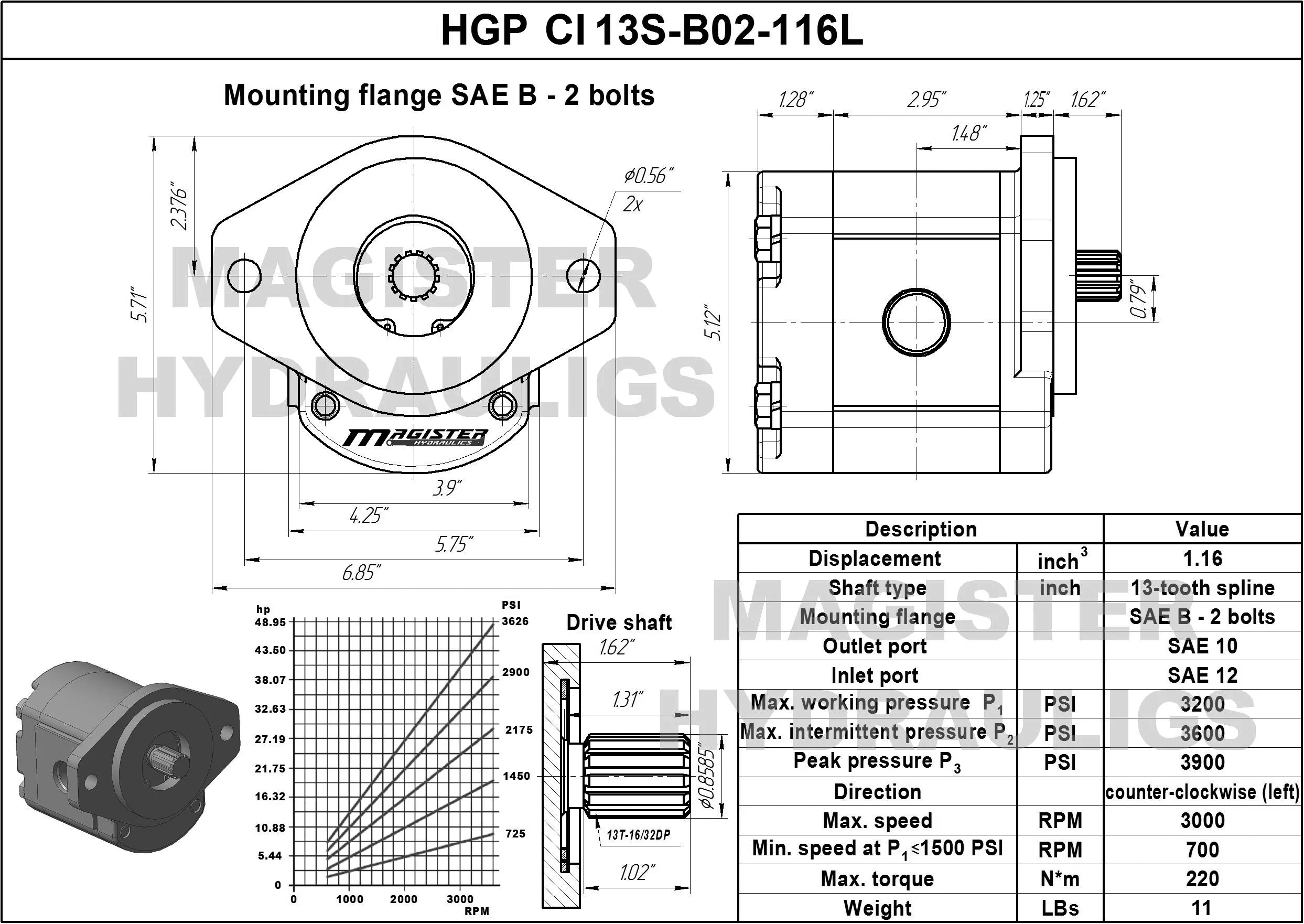

Pay in 4 interest-free payments of $52.50| CID : | 1.16 | Rotation : | CCW | Flow : | 10 GPM @ 2000 RPM | MAX RPM : | 3000 | Inlet Port : | SAE 12 | Pressure : | 3300 PSI | Outlet Port : | SAE 10 | Shaft Type : | 13-tooth spline | Flange : | SAE B - 2 bolts | Brand : | Magister Hydraulics | Weight : | 11 LBs |
|---|---|
| GTIN : | 850028143544 |
Volume discounts
13 in stock
Description
The Magister 1.16 CID cast iron pump is engineered for reliable performance in demanding agricultural and material handling applications. Featuring a robust 13-tooth spline shaft, CCW rotation, a high-pressure rating of 3300 PSI, and a standard SAE-B mounting flange, this pump delivers the power and durability needed to keep your equipment running.
Key Features & Benefits
- Built to Last: Precision-machined cast iron construction ensures longevity and resistance to wear in tough environments.
- High-Pressure Performance: Handles up to 3300 PSI for powerful, consistent hydraulic operation.

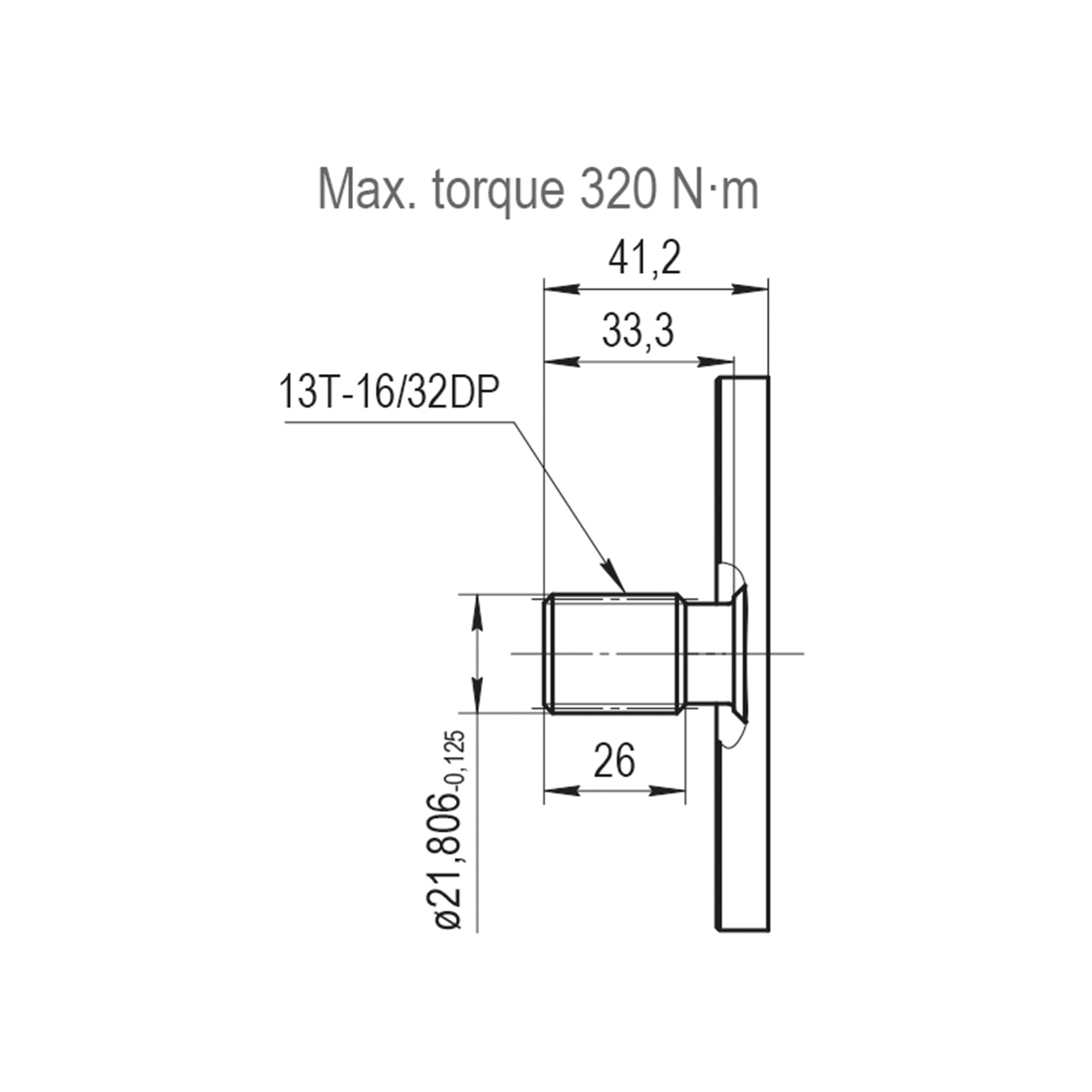

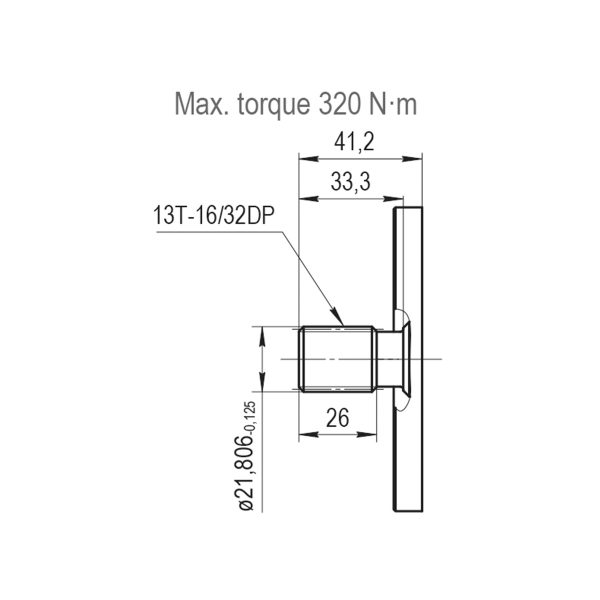

- Easy Direct Replacement: Features a standard 13-tooth spline shaft and an SAE-B 2-bolt mounting flange for a straightforward swap with no modifications needed.
- Precise Rotation: Designed for systems requiring Counter Clockwise (CCW / Left-Hand) rotation.
- Optimal Flow: 1.16 cubic inch displacement (10 GPM @ 2000 RPM) provides the right flow for a variety of mid-duty applications.
Same Day Free Shipping.
Made in Europe.
If you need assistance to choose a proper hydraulic gear pump replacement, do not hesitate to contact us:
