0.69 CID hydraulic gear pump 3/4" keyed shaft CCW
$165.00

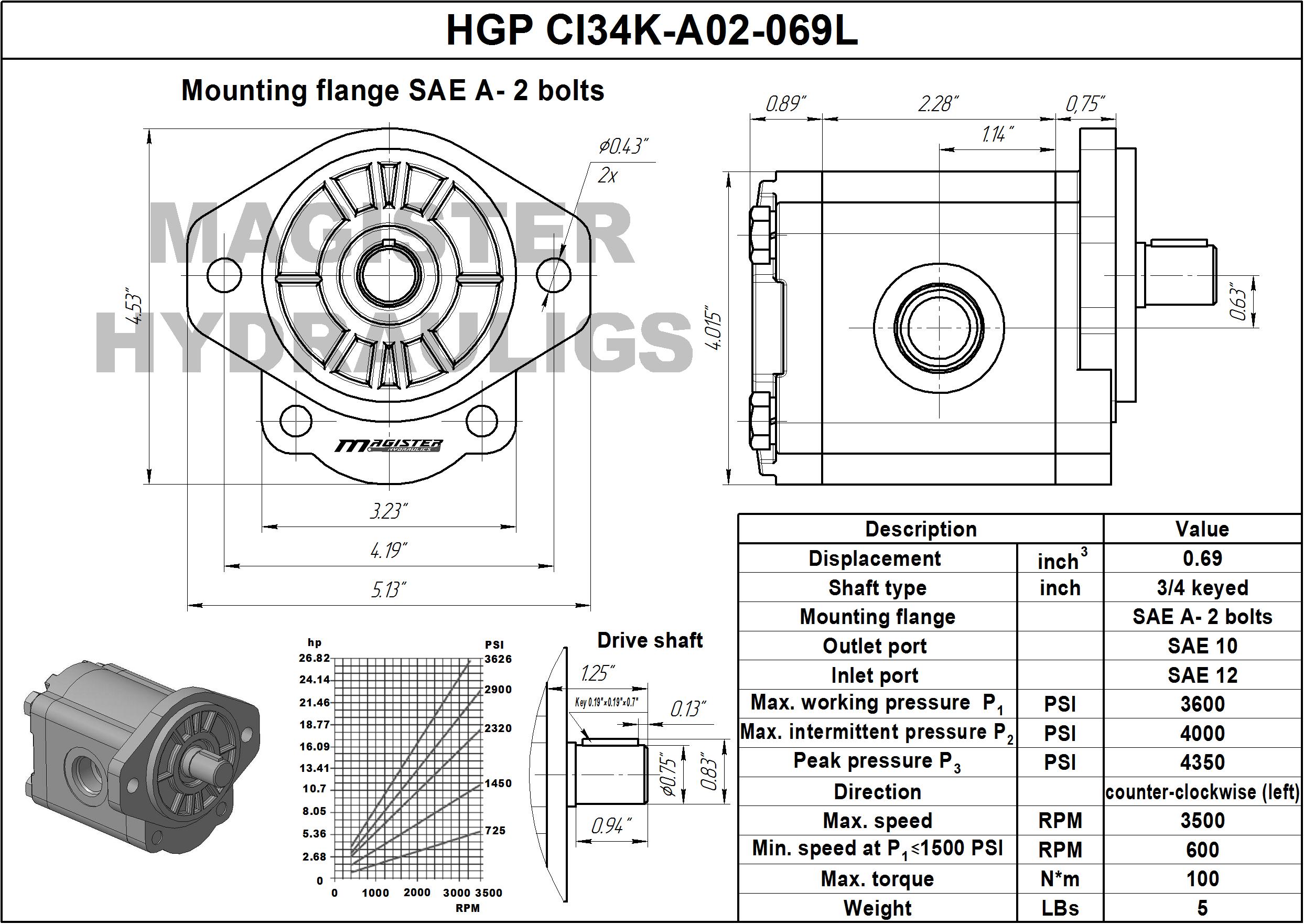

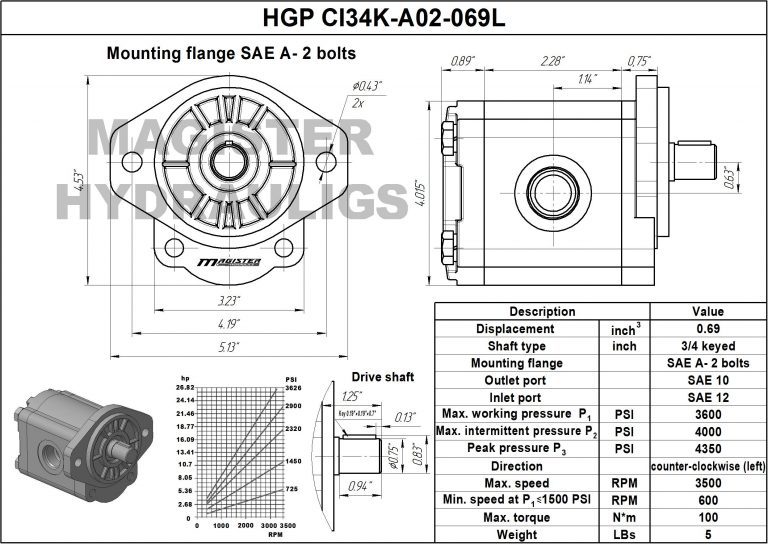

Pay in 4 interest-free payments of $41.25| CID : | 0.69 | Rotation : | CCW | Flow : | 5.97 GPM @ 2000 RPM | MAX RPM : | 3500 | Inlet Port : | SAE 12 | Pressure : | 3600 PSI | Outlet Port : | SAE 10 | Shaft Type : | 3/4" keyed | Flange : | SAE A - 2 bolt | Brand : | Magister Hydraulics | Weight : | 6 LBs |
|---|---|
| GTIN : | 854763008779 |
Volume discounts
26 in stock
Description

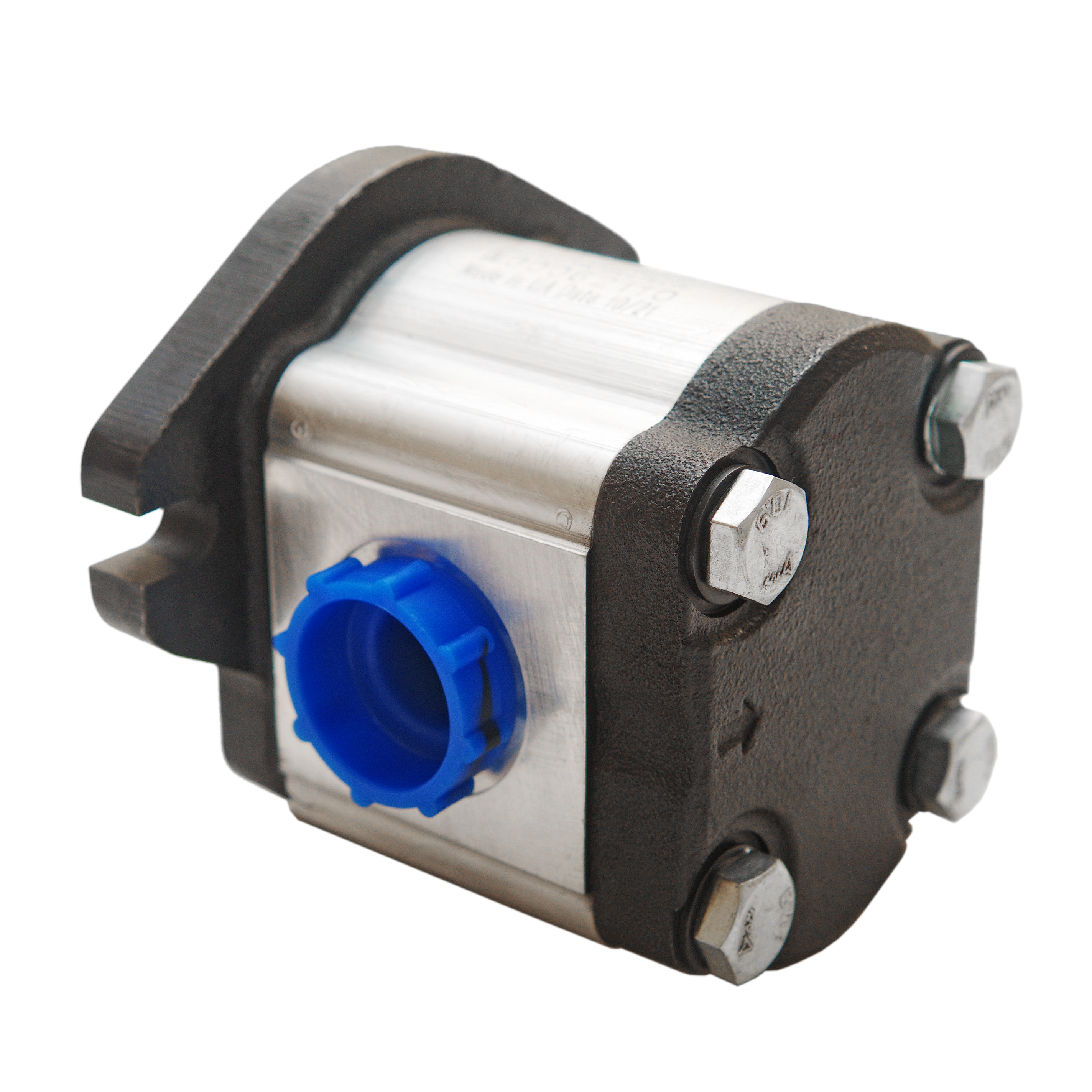

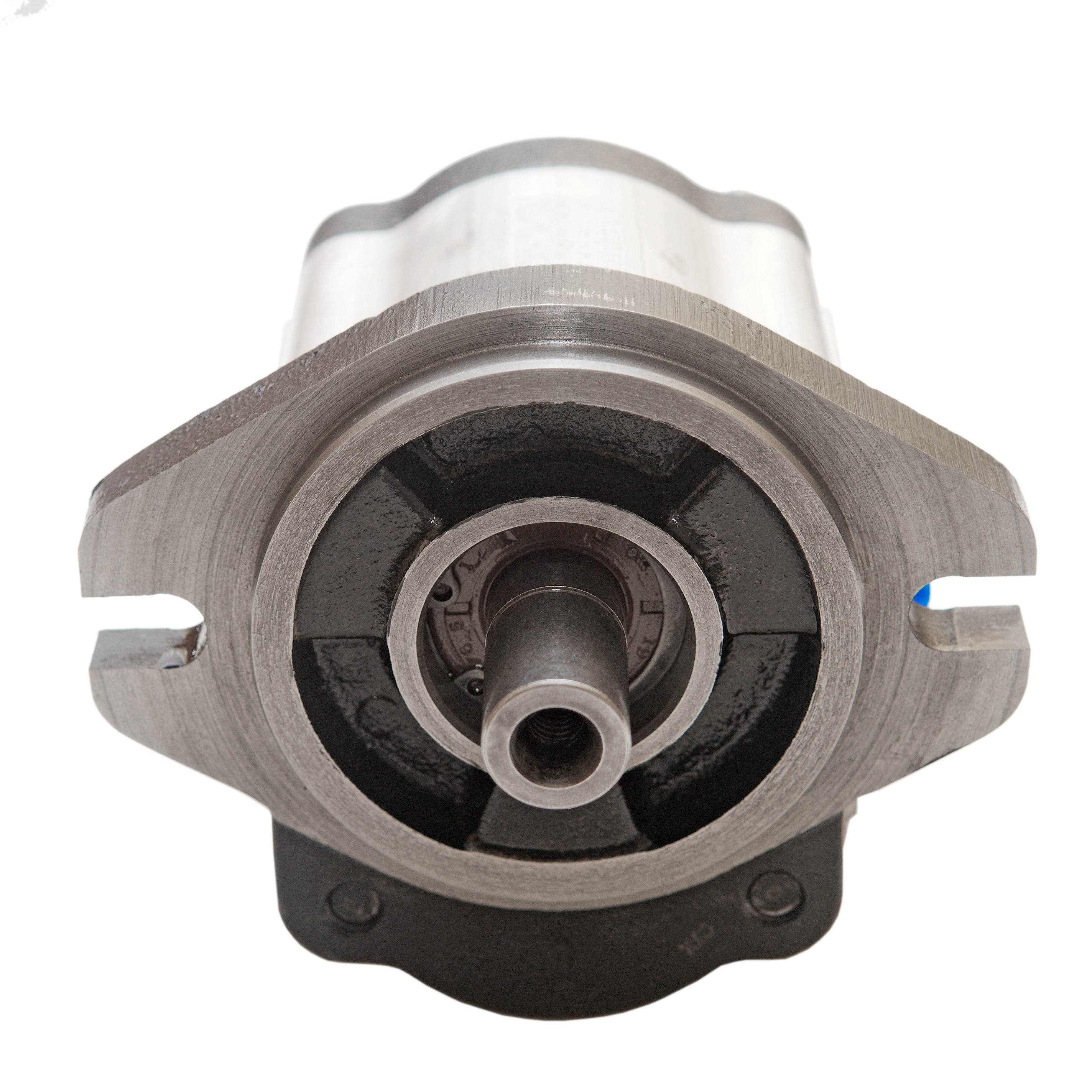

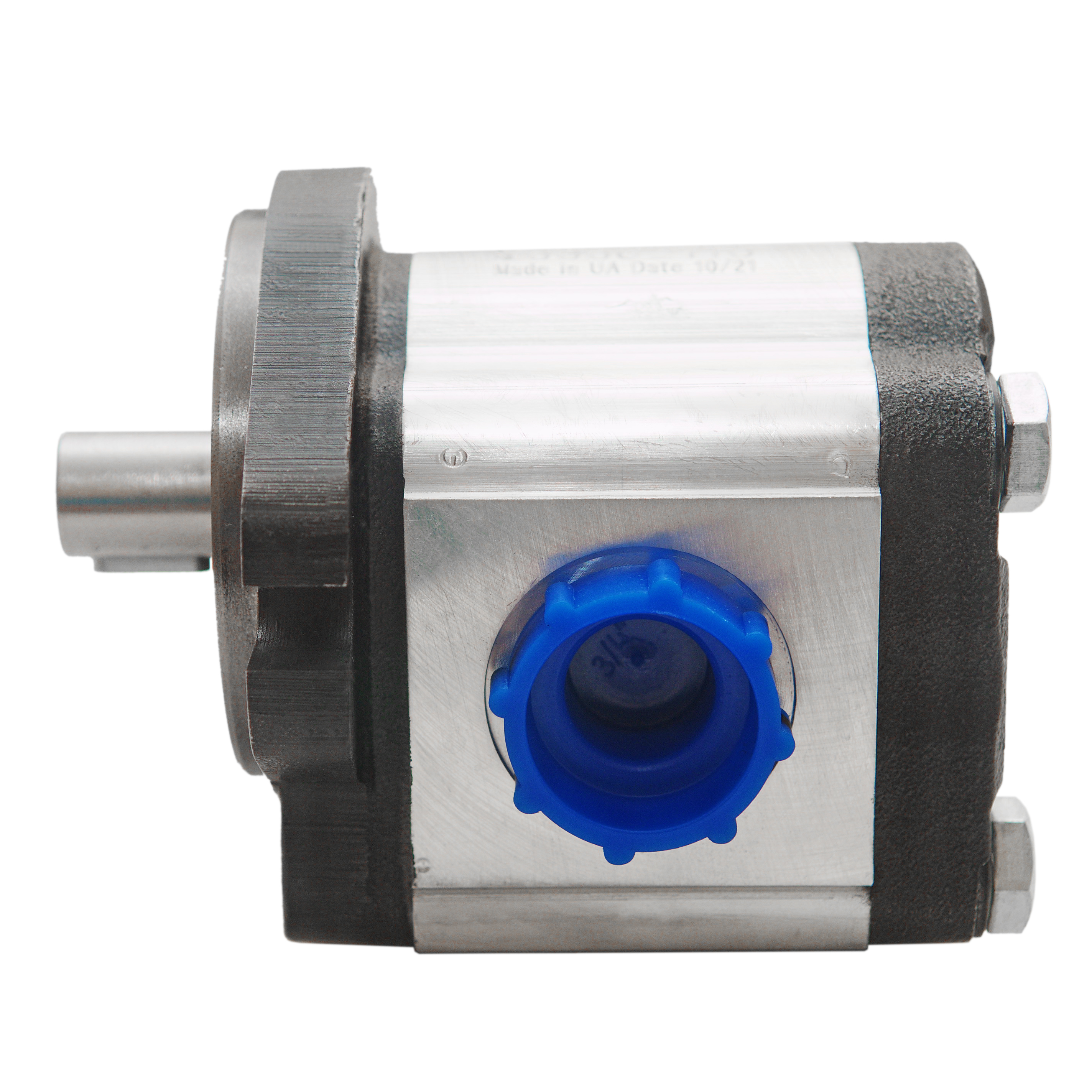

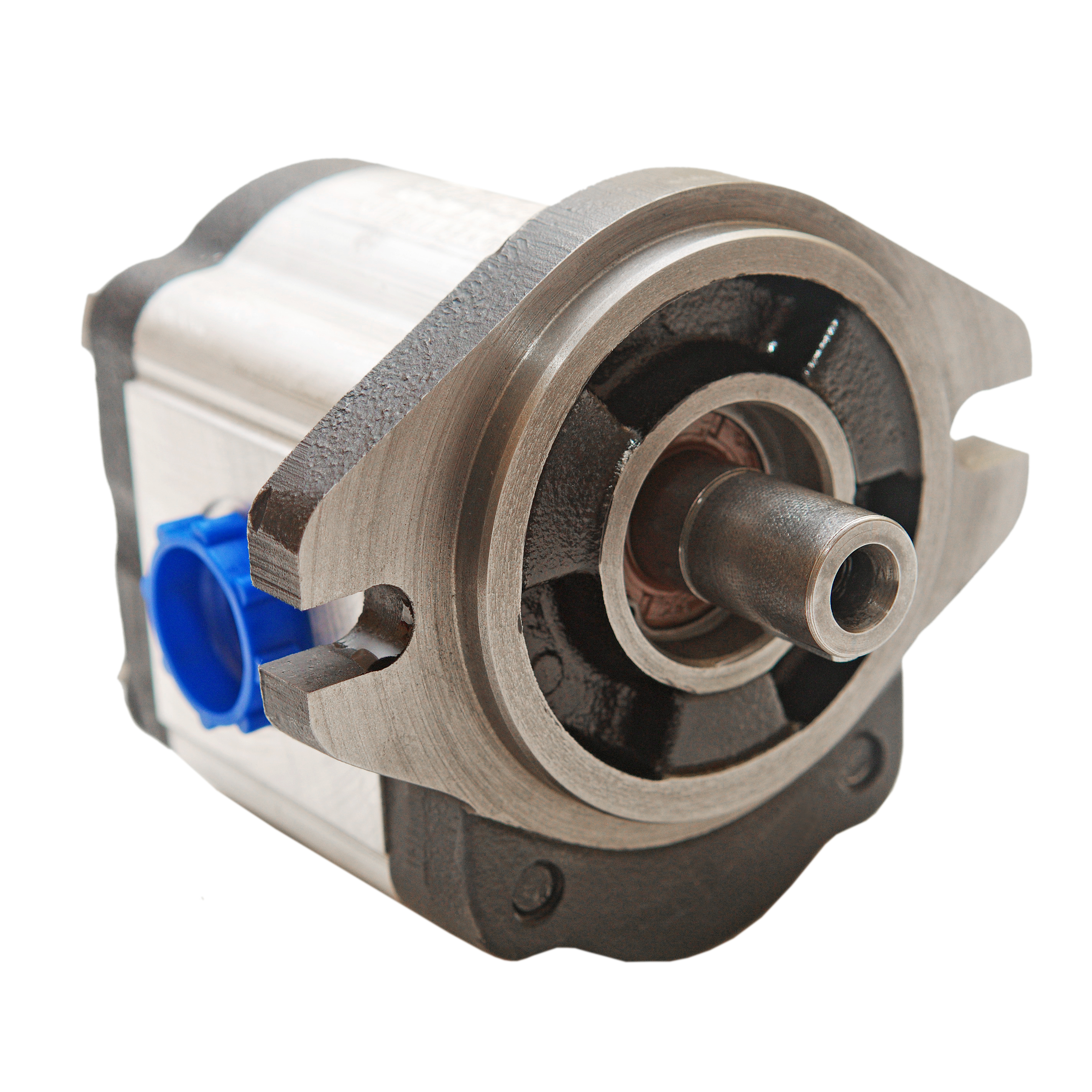

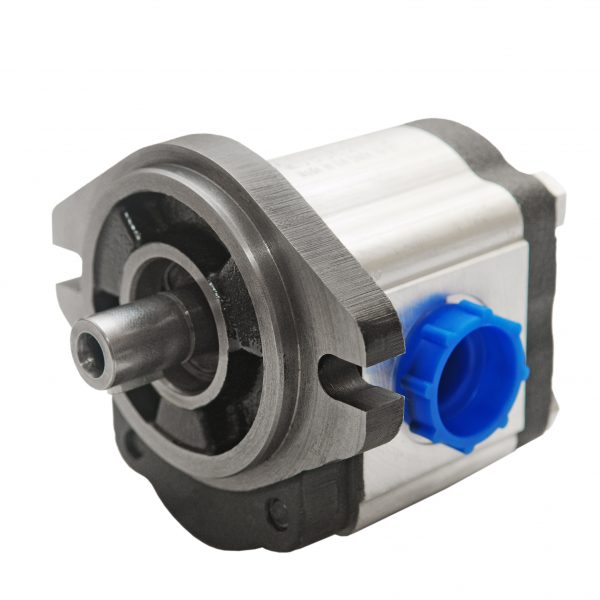

The Magister Hydraulics 0.69 CID cast iron 3/4″ keyed gear pump is engineered for reliable performance in demanding agricultural and material handling applications. Featuring a robust 3/4″ keyed shaft, CCW rotation, a high-pressure rating of 3600 PSI with 3500 max RPM, and a standard SAE-A mounting flange, this pump delivers the power and durability needed to keep your equipment running.
Key Features & Benefits:
- Built to Last: Precision-machined cast iron construction ensures longevity and resistance to wear in tough environments.
- High-Pressure Performance: Handles up to 3600 PSI for powerful, consistent hydraulic operation.
- Easy Direct Replacement: Features a standard 3/4″ keyed shaft and an SAE-A 2-bolt mounting flange for a straightforward swap with no modifications needed.
- Precise Rotation: Designed for systems requiring Counter-Clockwise (CCW / Left-Hand) rotation.
- Optimal Flow: 0.69 cubic inch displacement (5.97 GPM @ 2000 RPM) provides the right flow for a variety of mid-duty applications.
Same Day Free Shipping.
Made in Europe.
If you need assistance to choose a proper hydraulic gear pump replacement, do not hesitate to contact us:
