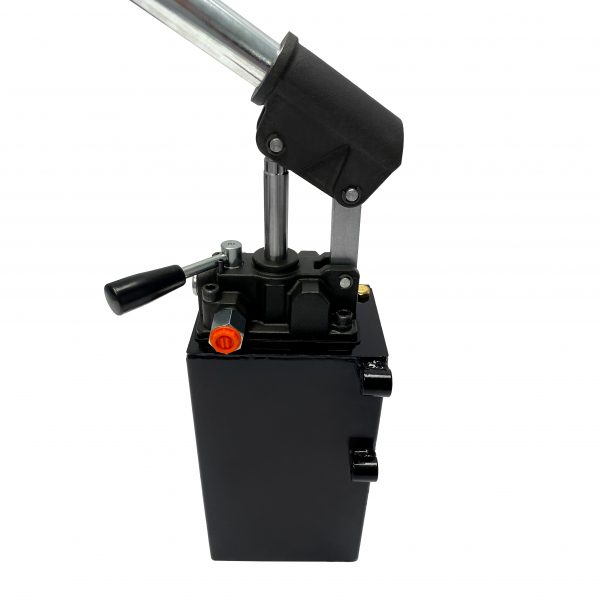

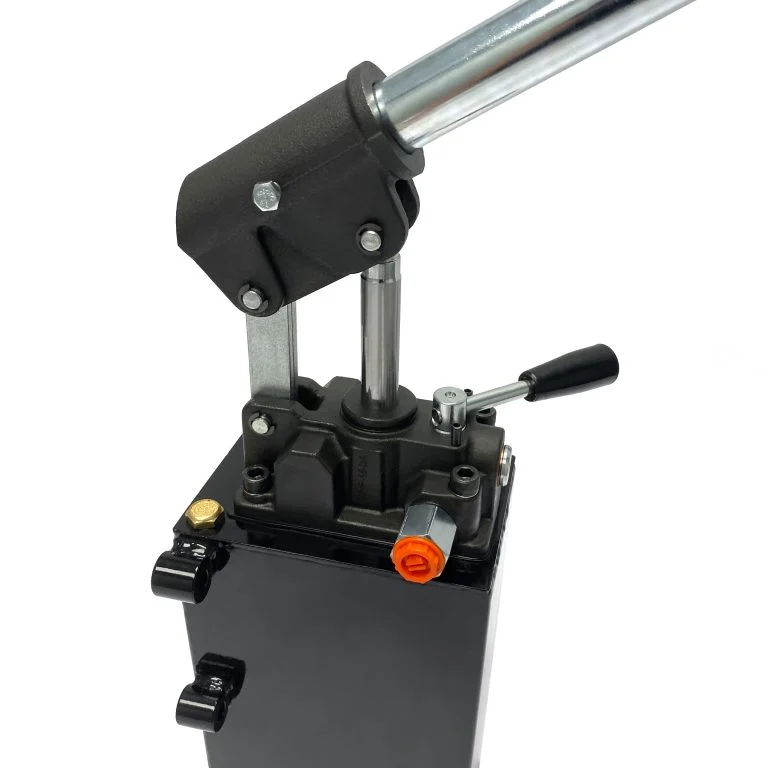

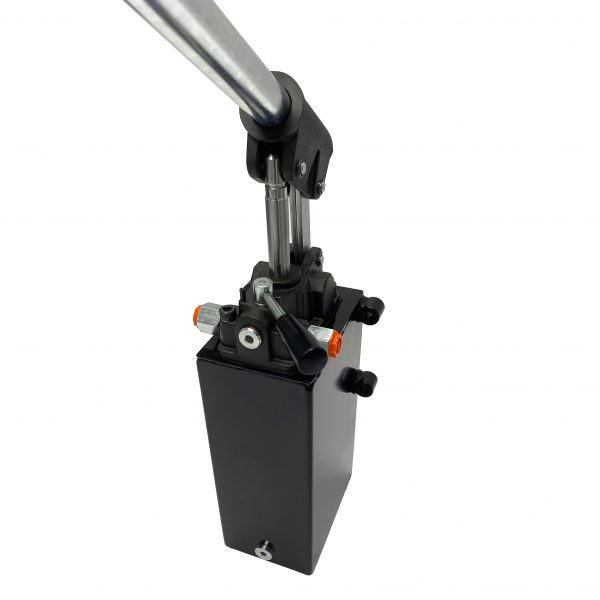

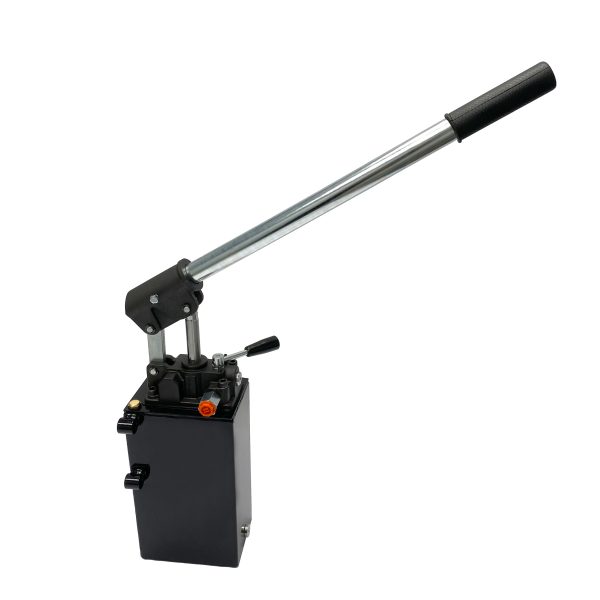

Hydraulic piston hand pump 1.5 CID with changeover valve for double acting cylinder, 3 Qt tank
$165.00
Pay in 4 interest-free payments of $41.25| CID : | 1.5 | Capacity : | 3 QTs | Action : | Double Acting | Tank Material : | Steel | Pressure : | 3600 PSI | Working Ports : | 3/8" NPTF | Piston Action : | Double function | Brand : | Hydro-Pack | Weight : | 16 LBs |
|---|---|
| GTIN : | 850016509963 |
Volume discounts
208 in stock
Description
This heavy-duty hydraulic piston hand pump is engineered for double-acting cylinders, providing controlled hydraulic power for both extension and retraction.
Double-Function Pumping (Push & Pull)
The pump delivers hydraulic flow on both push and pull strokes, improving efficiency and reducing operator fatigue.
Double-Acting Control
An integrated double-acting changeover valve allows precise control of both cylinder extension and retraction.
Key Specifications
- Type: Piston hand pump with double-acting changeover valve
- Displacement: 1.5 CID per cycle
- Max Pressure: 3600 PSI
- Reservoir: 3-quart vertical steel tank
- Ports: 3/8″-18 NPT
- Drain Plug: G 1/4″
- Construction: Cast iron monoblock body
- Handle: 21″ steel handle included
- Mounting: Four 0.3″ mounting holes
Same Day Free Shipping.
Made in Europe.
1-Year Warranty.
