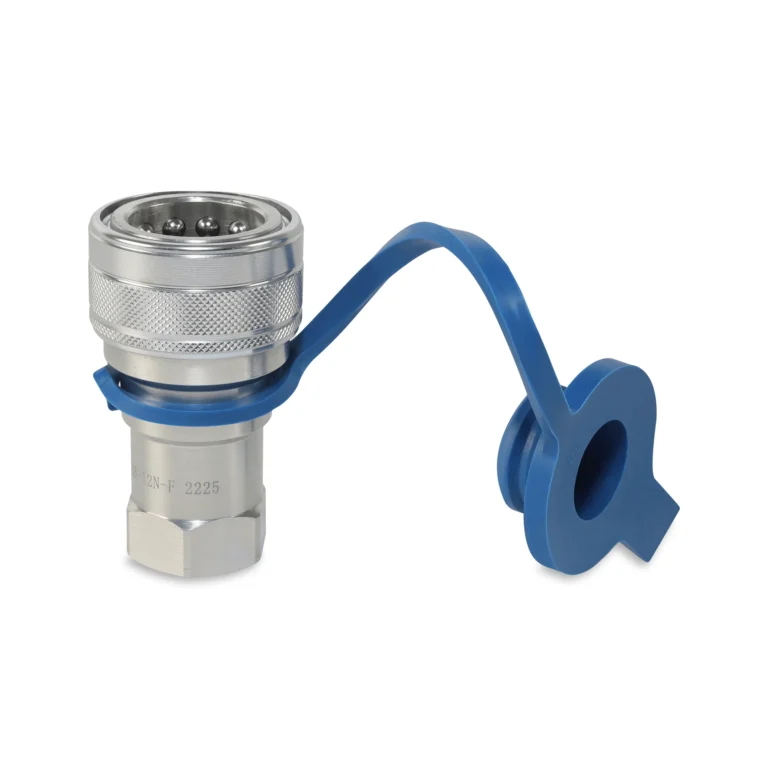

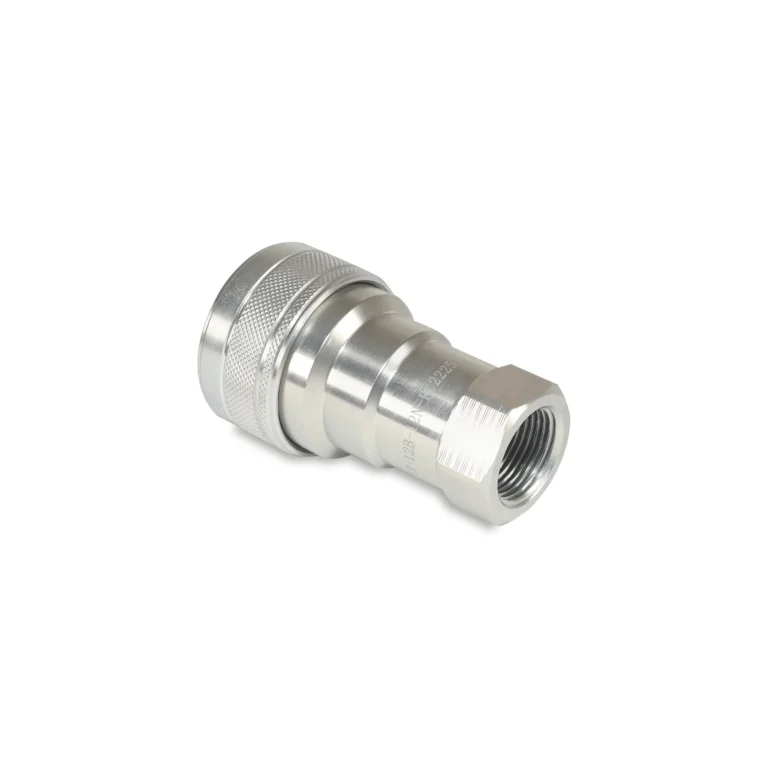

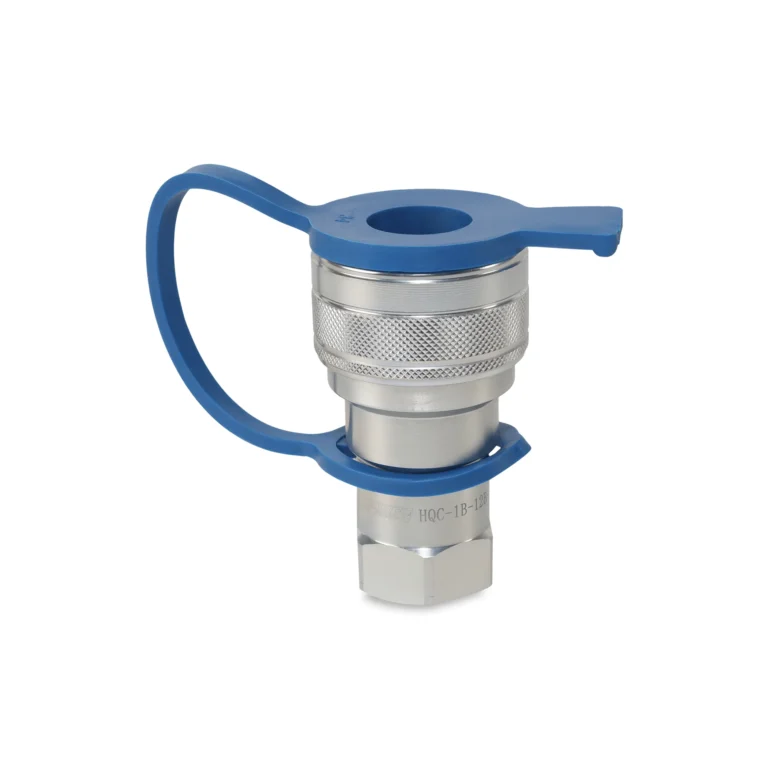

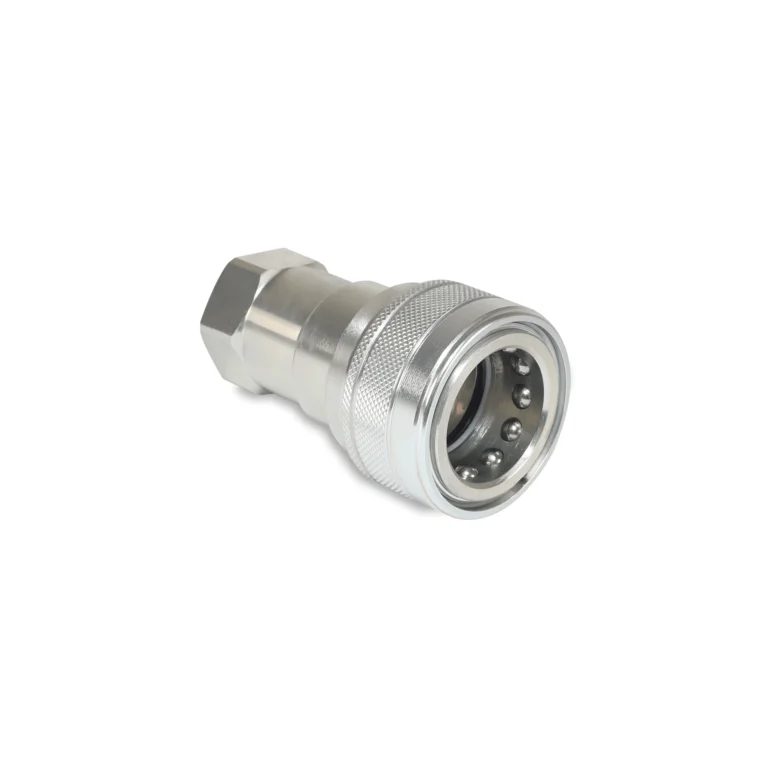

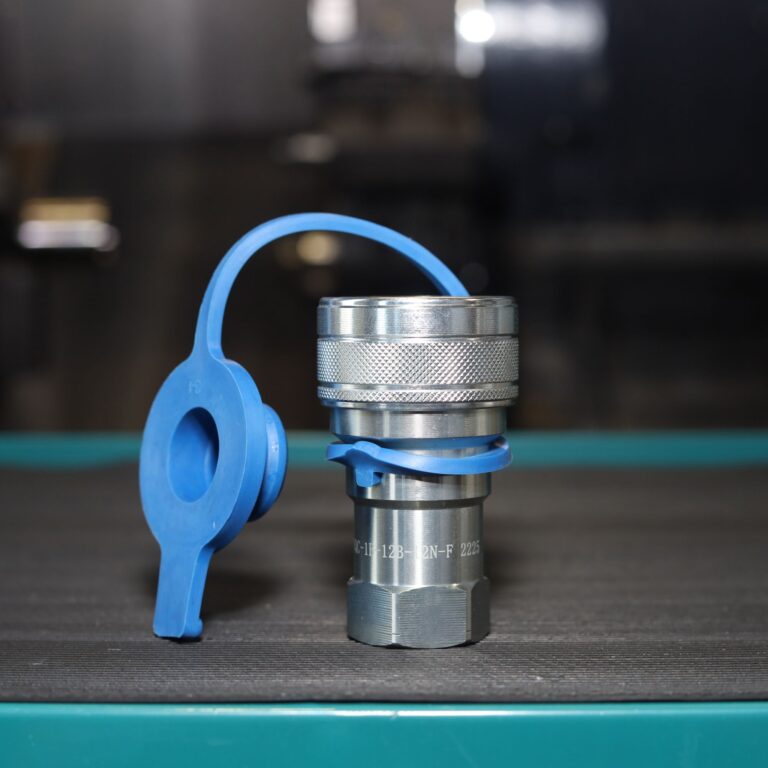

3/4″ ISO 7241-B Quick Disconnect Hydraulic Couplers Female - 3/4″ NPT Port

SKU: HQC-1B-12B-12N-F

$22.00

In Stock

Volume Discounts

2+ PRICE EA -5%
$20.90
4+ PRICE EA -10%
$19.80

160 in stock

View cart
US Customer Support
* Wholesale Discount is available for this product if you purchase 2 or more products.

Engineered for excellence, Magister Hydraulics’ 3/4″ ISO 7241-B Quick Disconnect Hydraulic Coupler Female with 3/4″ NPT Thread delivers robust performance and reliability across demanding industries. Designed to meet stringent ISO 7241-B standards, this poppet-style coupler set ensures seamless interoperability with major brands like Parker, Faster, and Eaton, making it the perfect choice for aerospace, automotive, agricultural, and industrial applications. With a hardened steel construction, leak-proof design, and high-pressure resilience, this set combines durability with precision to keep your hydraulic systems operating efficiently.

Key Features:

  • High-Pressure Performance: Rated for 3,625 PSI with a nominal flow rate of 28 GPM (max 58 GPM), ensuring reliable operation in demanding hydraulic systems.
  • Universal Interchangeability: Fully compatible with all ISO 7241-B series couplings, including Parker 6600, Faster ANV, Tomco 5600, and Aeroquip 5600 series, reducing downtime and replacement costs.
  • Durable Construction: Crafted from hardened steel with a self-sealing poppet valve and Nitrile Buna-N seals, providing excellent resistance to wear, corrosion, and fluid leaks.
  • Leak-Proof Design: Poppet valve technology minimizes fluid loss and air inclusion during connections and disconnections, maintaining system integrity.
  • Easy Operation: Simple push-to-connect and pull-to-disconnect functionality enhances workflow efficiency without requiring special tools.
  • Wide Temperature Range: Operates effectively in temperatures from -13°F to +212°F (-25°C to +100°C), suitable for diverse environments.

Highly competitive pricing. Covers Included

Compatible with many hydraulic tools and equipment

1 Year Warranty

QUICK COUPLERS SIZE CHART

Same-Day FedEx Shipping.

If you need assistance, do not hesitate to contact us:

973-344-5313

View Full Specifications

Specifications

3/4″ ISO 7241-B Quick Disconnect Hydraulic Couplers Female - 3/4″ NPT Port
SKU: HQC-1B-12B-12N-F
Configuration Female ISO Body Size 3/4"
Design B Series Port Size 3/4" NPT
ISO Standard 7241-B Locking Type Sleeve
Max Pressure 4530 PSI Working Pressure 3625 PSI
Max Flow 58 GPM Rated Flow 28 GPM
Dash Size 12 Weight 1.35 LBs
Plating Zinc Brand Magister Hydraulics

Alternative part numbers

Manufacturer SKU
Summit B34F-12N
Parker H6-62
Safeway S105-6
Faster HNV 34 NPT F
Eaton 6HP31
SnapTite 72C12-12F
Stucchi F IRB34 NPT 800601008
Dixon 6HF6
DNP HNV-12-12-C-NPT

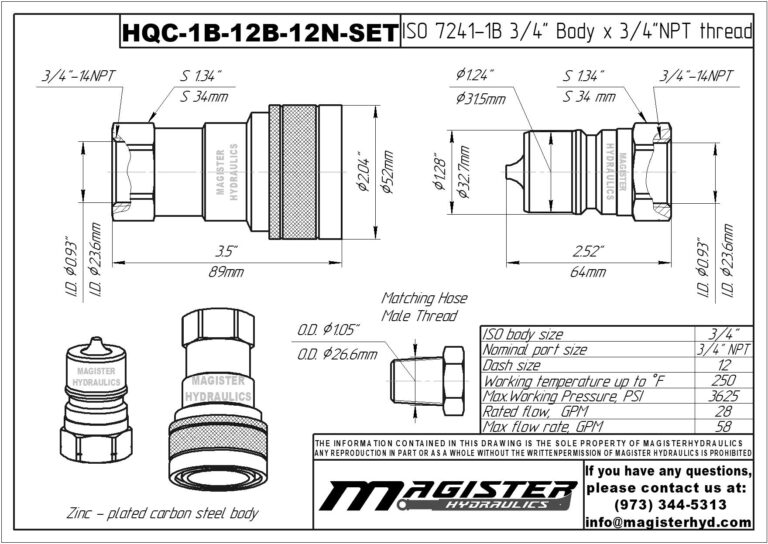

The dimensions may be different. Please review the drawings prior to ordering. Magister Hydraulics does not guarantee the identical product match.
