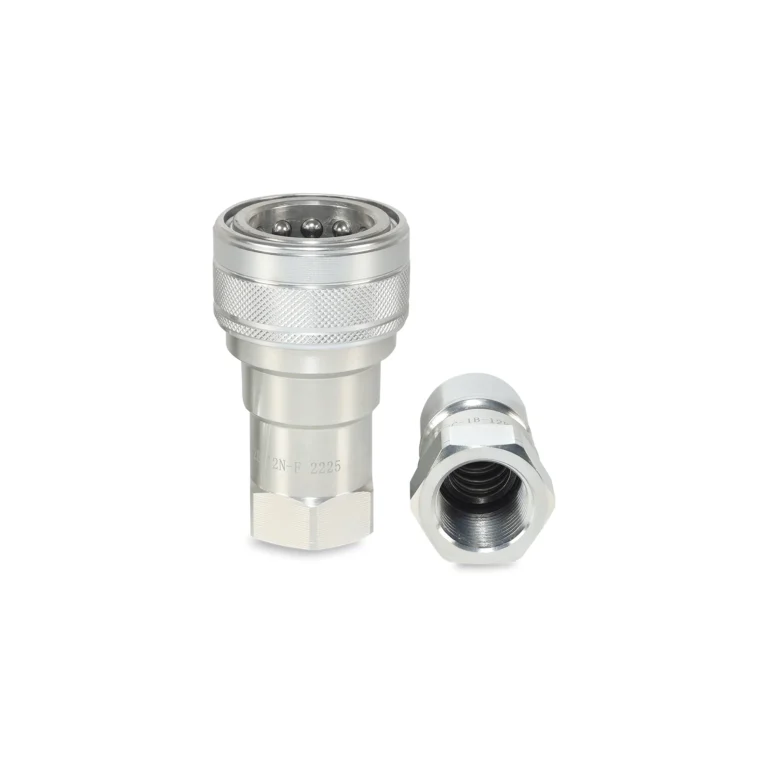

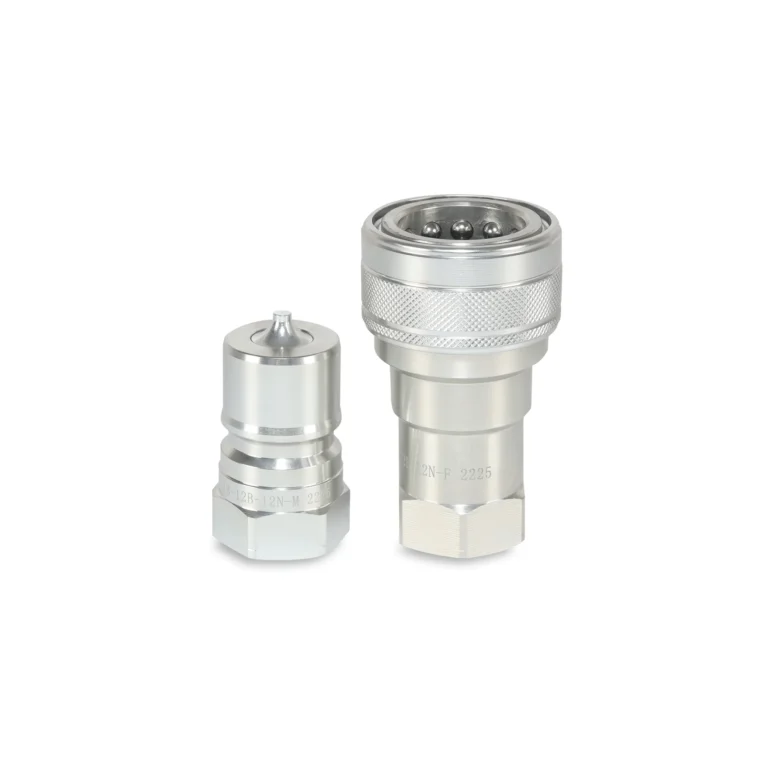

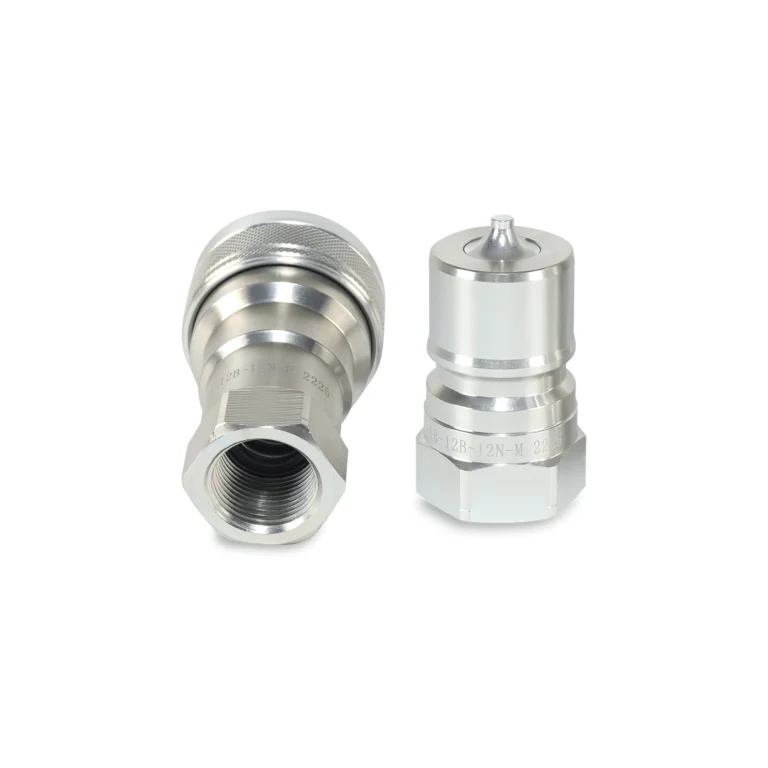

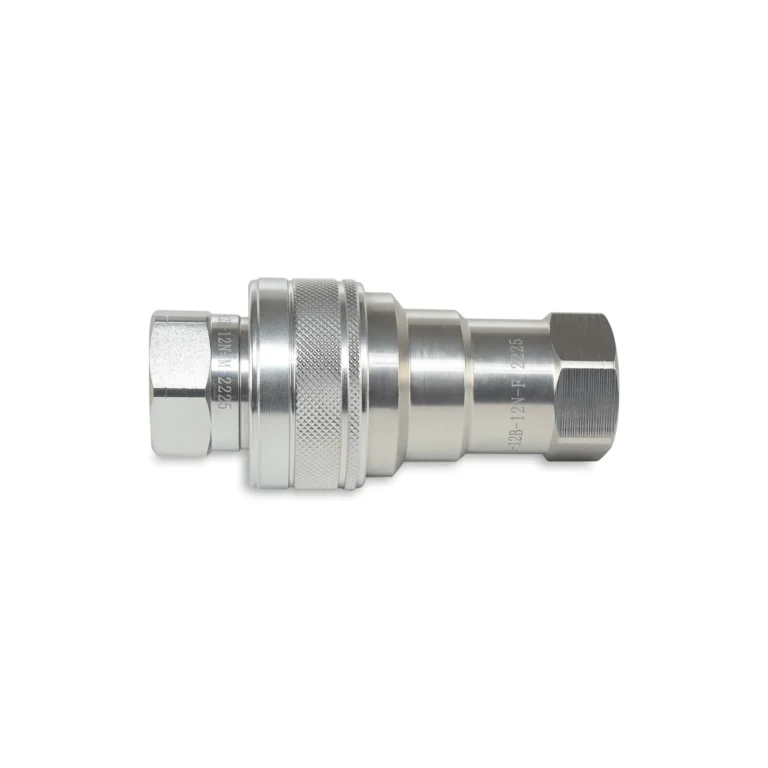

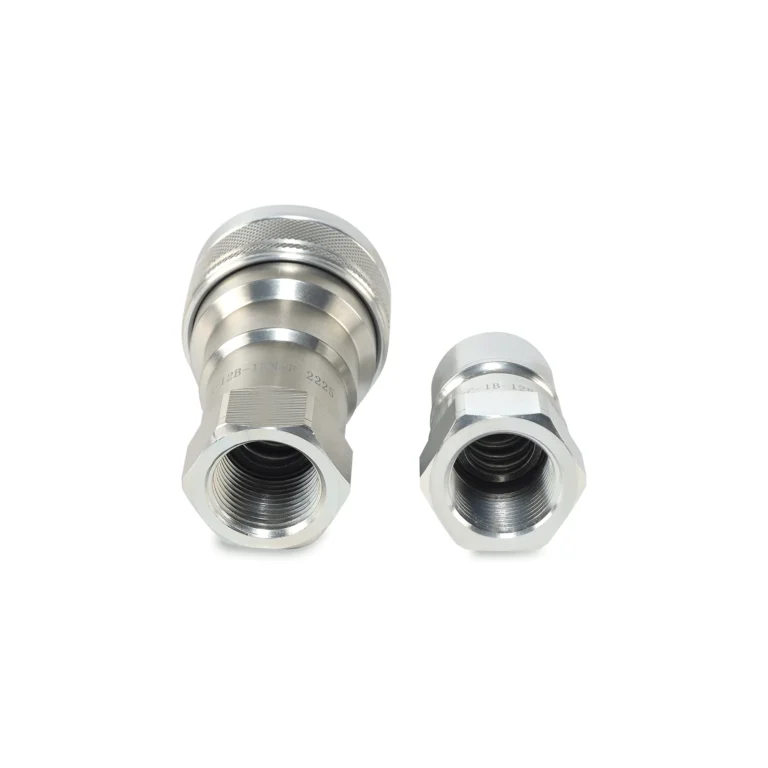

3/4″ ISO 7241-B Quick Disconnect Hydraulic Couplers Set - 3/4″ NPT Port
$29.00
Volume Discounts
148 in stock
Engineered for excellence, Magister Hydraulics’ 3/4″ ISO 7241-B Quick Disconnect Hydraulic Coupler Set with 3/4″ NPT Thread delivers robust performance and reliability across demanding industries. Designed to meet stringent ISO 7241-B standards, this poppet-style coupler set ensures seamless interoperability with major brands like Parker, Faster, and Eaton, making it the perfect choice for aerospace, automotive, agricultural, and industrial applications. With a hardened steel construction, leak-proof design, and high-pressure resilience, this set combines durability with precision to keep your hydraulic systems operating efficiently.
Key Features:
- High-Pressure Performance: Rated for 3,625 PSI with a nominal flow rate of 28 GPM (max 58 GPM), ensuring reliable operation in demanding hydraulic systems.
- Universal Interchangeability: Fully compatible with all ISO 7241-B series couplings, including Parker 6600, Faster ANV, Tomco 5600, and Aeroquip 5600 series, reducing downtime and replacement costs.
- Durable Construction: Crafted from hardened steel with a self-sealing poppet valve and Nitrile Buna-N seals, providing excellent resistance to wear, corrosion, and fluid leaks.
- Leak-Proof Design: Poppet valve technology minimizes fluid loss and air inclusion during connections and disconnections, maintaining system integrity.
- Easy Operation: Simple push-to-connect and pull-to-disconnect functionality enhances workflow efficiency without requiring special tools.
- Wide Temperature Range: Operates effectively in temperatures from -13°F to +212°F (-25°C to +100°C), suitable for diverse environments.

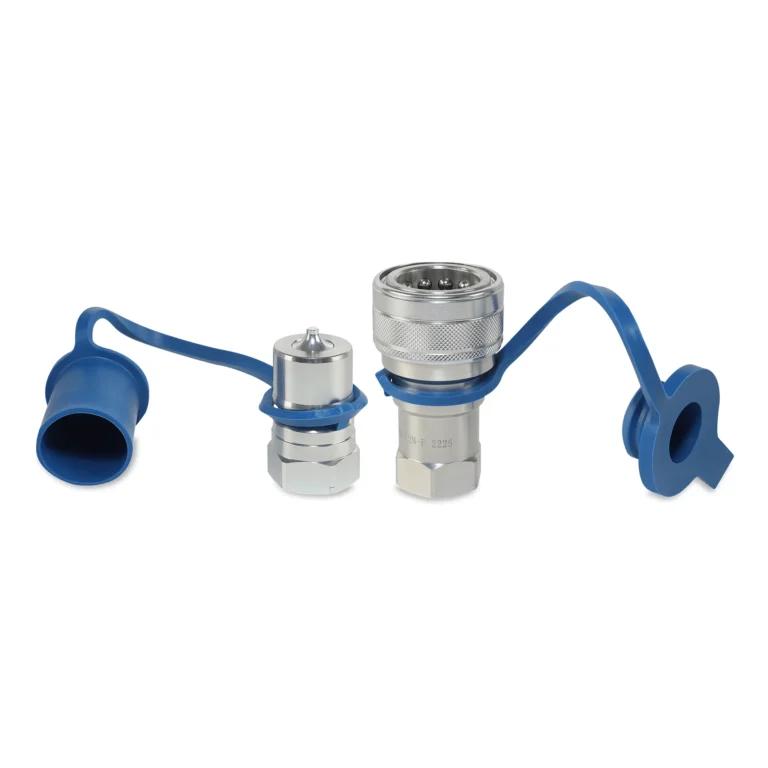

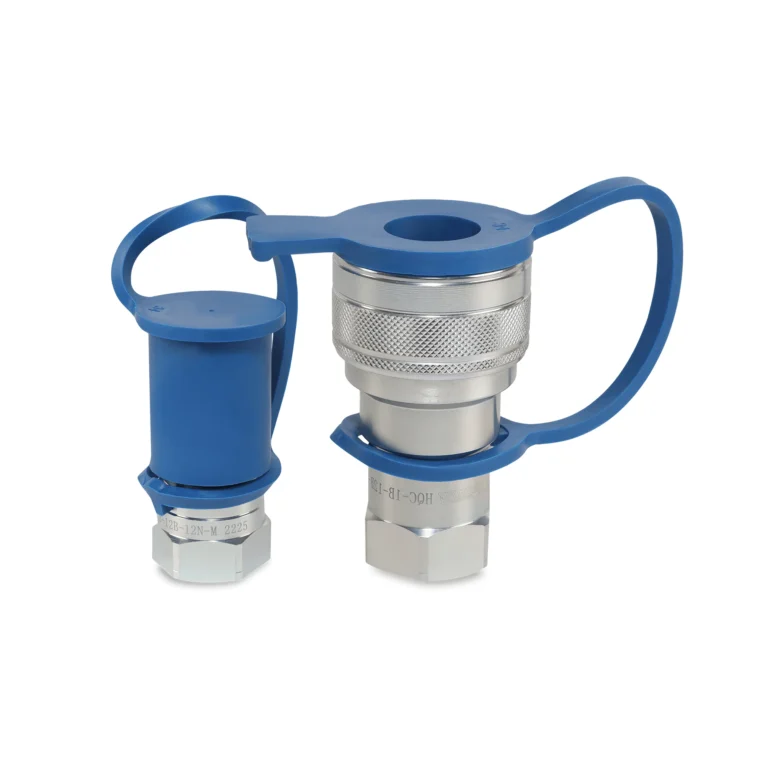

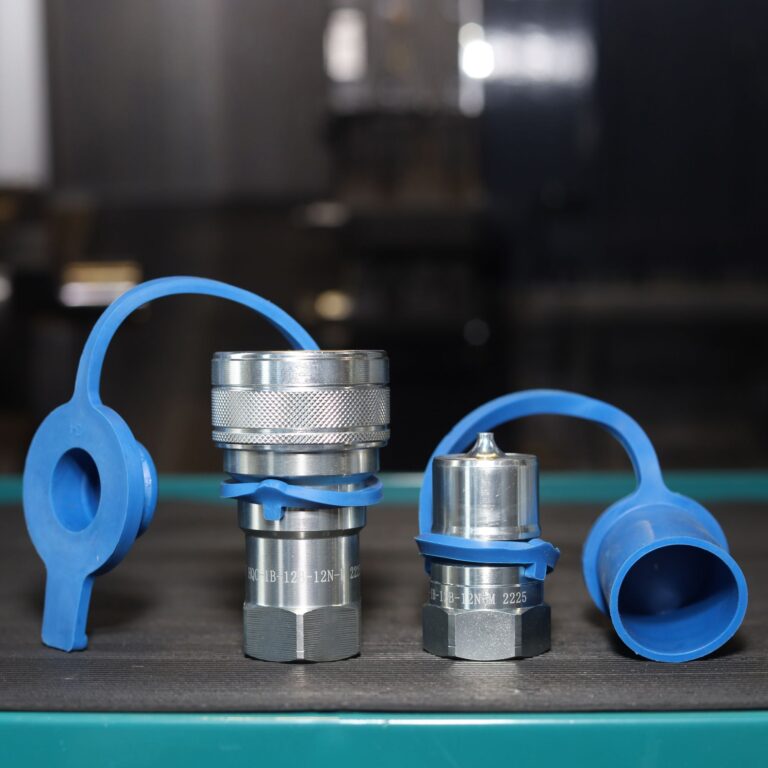

Highly competitive pricing. Covers Included
Compatible with many hydraulic tools and equipment
1 Year Warranty
Same-Day FedEx Shipping.
If you need assistance, do not hesitate to contact us:
973-344-5313
Specifications
| Configuration | SET | ISO Body Size | 3/4" |
|---|---|---|---|
| Design | B Series | Port Size | 3/4" NPT |
| ISO Standard | 7241-B | Locking Type | Sleeve |
| Max Pressure | 4530 PSI | Working Pressure | 3625 PSI |
| Max Flow | 58 GPM | Rated Flow | 28 GPM |
| Dash Size | 12 | Weight | 1.9 LBs |
| Plating | Zinc | Brand | Magister Hydraulics |
| GTIN | 850081310471 |
Alternative part numbers
| Manufacturer | Male SKU | Female SKU |
|---|---|---|
| Summit | B34M-12N | B34F-12N |
| Parker | H6-63 | H6-62 |
| Safeway | S101-6 | S105-6 |
| Faster | HNV 34 NPT M | HNV 34 NPT F |
| Eaton | 6KP31 | 6HP31 |
| SnapTite | 72N12-12F | 72C12-12F |
| Stucchi | M IRB34 NPT 800601009 | F IRB34 NPT 800601008 |
| Dixon | H6F6 | 6HF6 |
| DNP | HNV-12-12-N-NPT | HNV-12-12-C-NPT |
