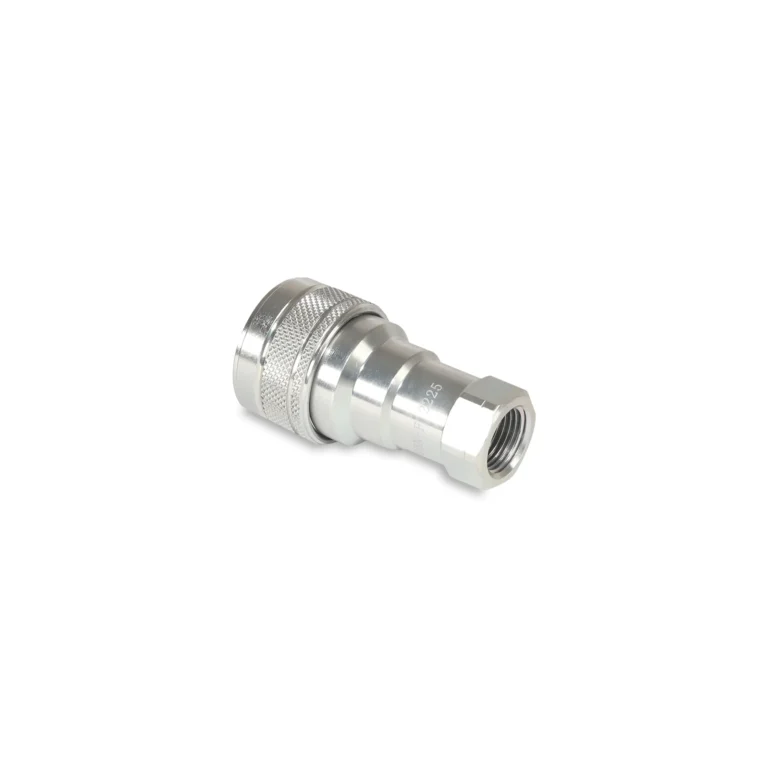

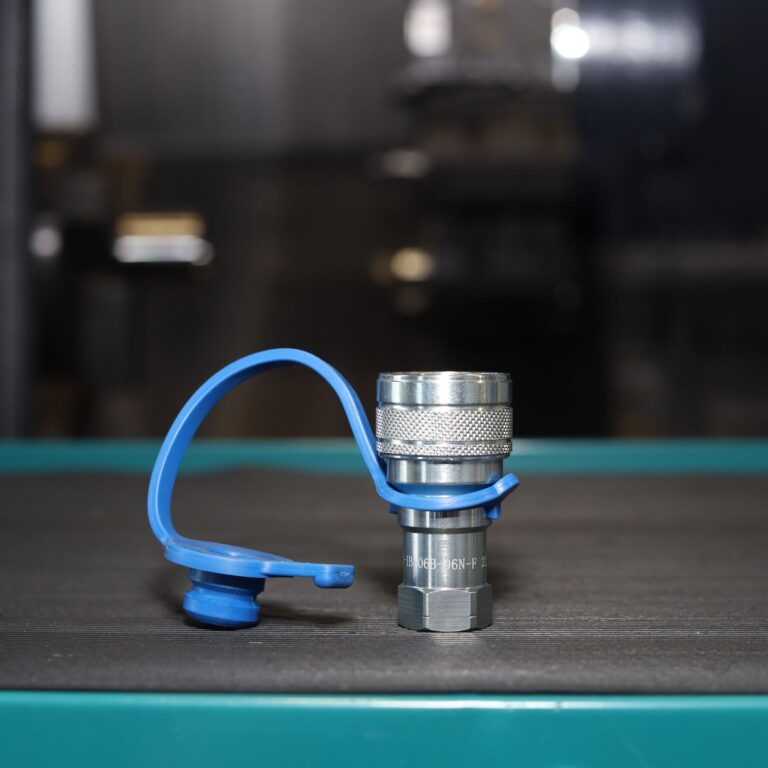

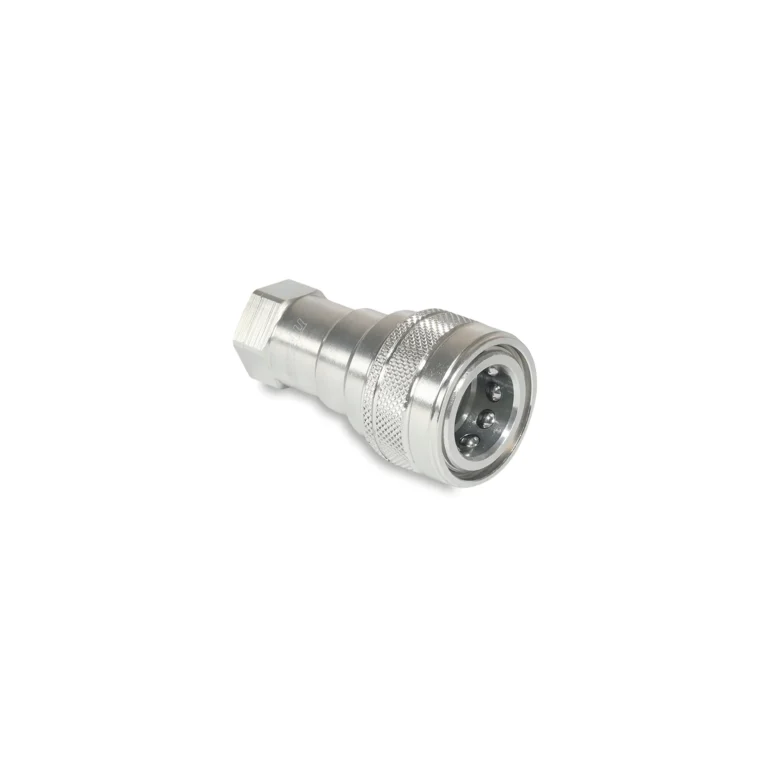

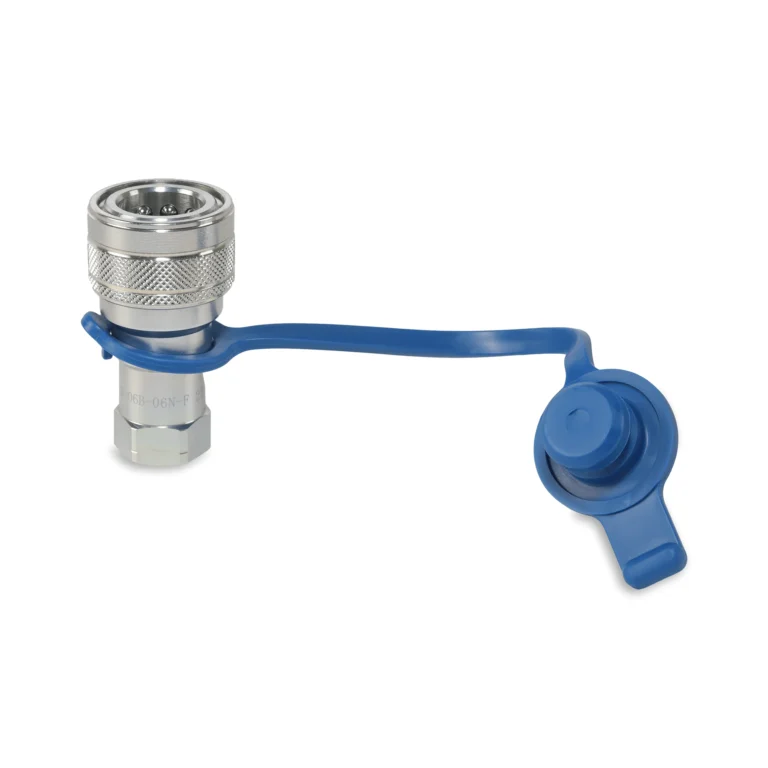

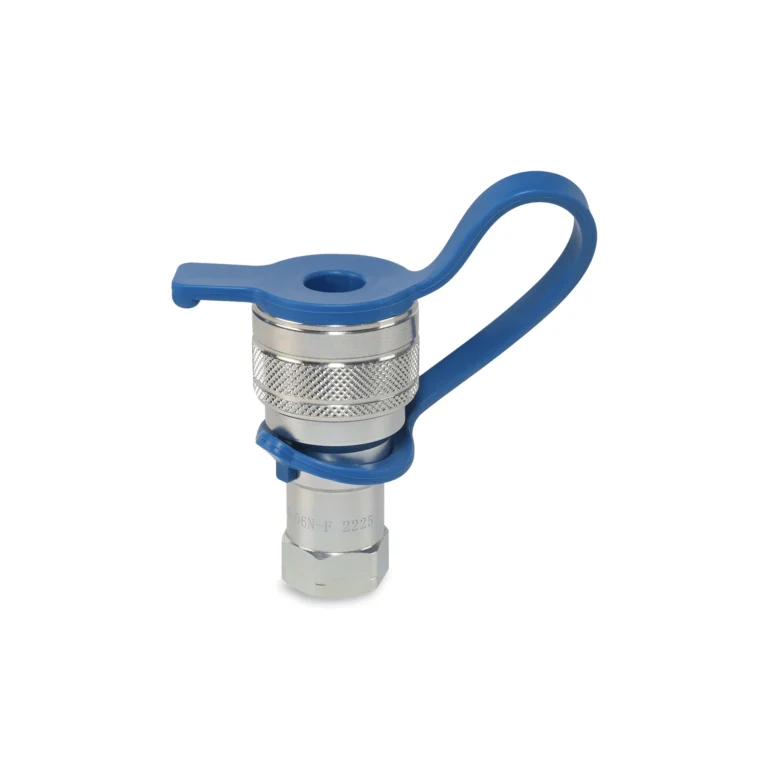

3/8″ ISO 7241-B Quick Disconnect Hydraulic Couplers Female - 3/8″ NPT Port

SKU: HQC-1B-06B-06N-F

$17.00

In Stock

Volume Discounts

2+ PRICE EA -5%
$16.15
4+ PRICE EA -10%
$15.30

273 in stock

View cart
US Customer Support
* Wholesale Discount is available for this product if you purchase 2 or more products.

Engineered for excellence, Magister Hydraulics’ 3/8″ ISO 7241-B Quick Disconnect Hydraulic Coupler Female with 3/8″ NPT Thread delivers robust performance and reliability across demanding industries. Designed to meet stringent ISO 7241-B standards, this poppet-style coupler set ensures seamless interoperability with major brands like Parker, Faster, and Eaton, making it the perfect choice for aerospace, automotive, agricultural, and industrial applications. With a hardened steel construction, leak-proof design, and high-pressure resilience, this set combines durability with precision to keep your hydraulic systems operating efficiently.

Key Features:

  • High-Pressure Performance: Rated for 3,625 PSI with a nominal flow rate of 6 GPM (max 12 GPM), ensuring reliable operation in demanding hydraulic systems.
  • Universal Interchangeability: Fully compatible with all ISO 7241-B series couplings, including Parker 6600, Faster ANV, Tomco 5600, and Aeroquip 5600 series, reducing downtime and replacement costs.
  • Durable Construction: Crafted from hardened steel with a self-sealing poppet valve and Nitrile Buna-N seals, providing excellent resistance to wear, corrosion, and fluid leaks.
  • Leak-Proof Design: Poppet valve technology minimizes fluid loss and air inclusion during connections and disconnections, maintaining system integrity.
  • Easy Operation: Simple push-to-connect and pull-to-disconnect functionality enhances workflow efficiency without requiring special tools.
  • Wide Temperature Range: Operates effectively in temperatures from -13°F to +212°F (-25°C to +100°C), suitable for diverse environments.

Highly competitive pricing. Covers Included

Compatible with many hydraulic tools and equipment

1 Year Warranty

QUICK COUPLERS SIZE CHART

Same-Day FedEx Shipping.

If you need assistance, do not hesitate to contact us:

973-344-5313

View Full Specifications

Specifications

3/8″ ISO 7241-B Quick Disconnect Hydraulic Couplers Female - 3/8″ NPT Port
SKU: HQC-1B-06B-06N-F
ConfigurationFemaleISO Body Size3/8"
DesignB SeriesPort Size3/8" NPT
ISO Standard7241-BLocking TypeSleeve
Max Pressure4530 PSIWorking Pressure3625 PSI
Max Flow12 GPMRated Flow6 GPM
Dash Size6Weight0.5 LBs
PlatingZincBrandMagister Hydraulics

Alternative part numbers

ManufacturerSKU
SummitB38F-06N
ParkerH3-62
SafewayS105-3
FasterHNV 38 NPT F
Eaton3H21
SnapTite72C6-6F
StucchiF IRB38 NPT 800601004
Dixon3HF3
DNPHNV-06-06-C-NPT
The dimensions may be different. Please review the drawings prior to ordering. Magister Hydraulics does not guarantee the identical product match.
