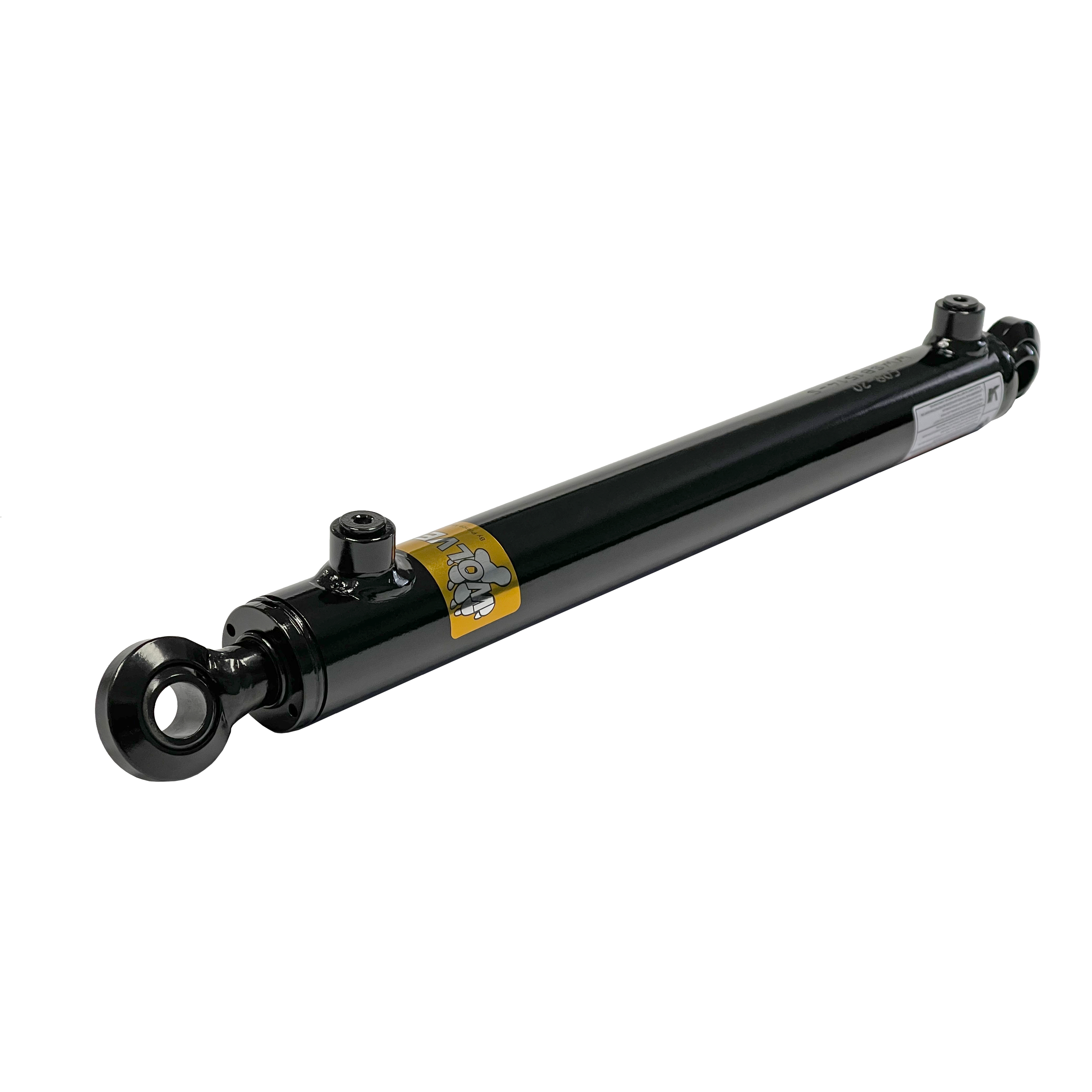

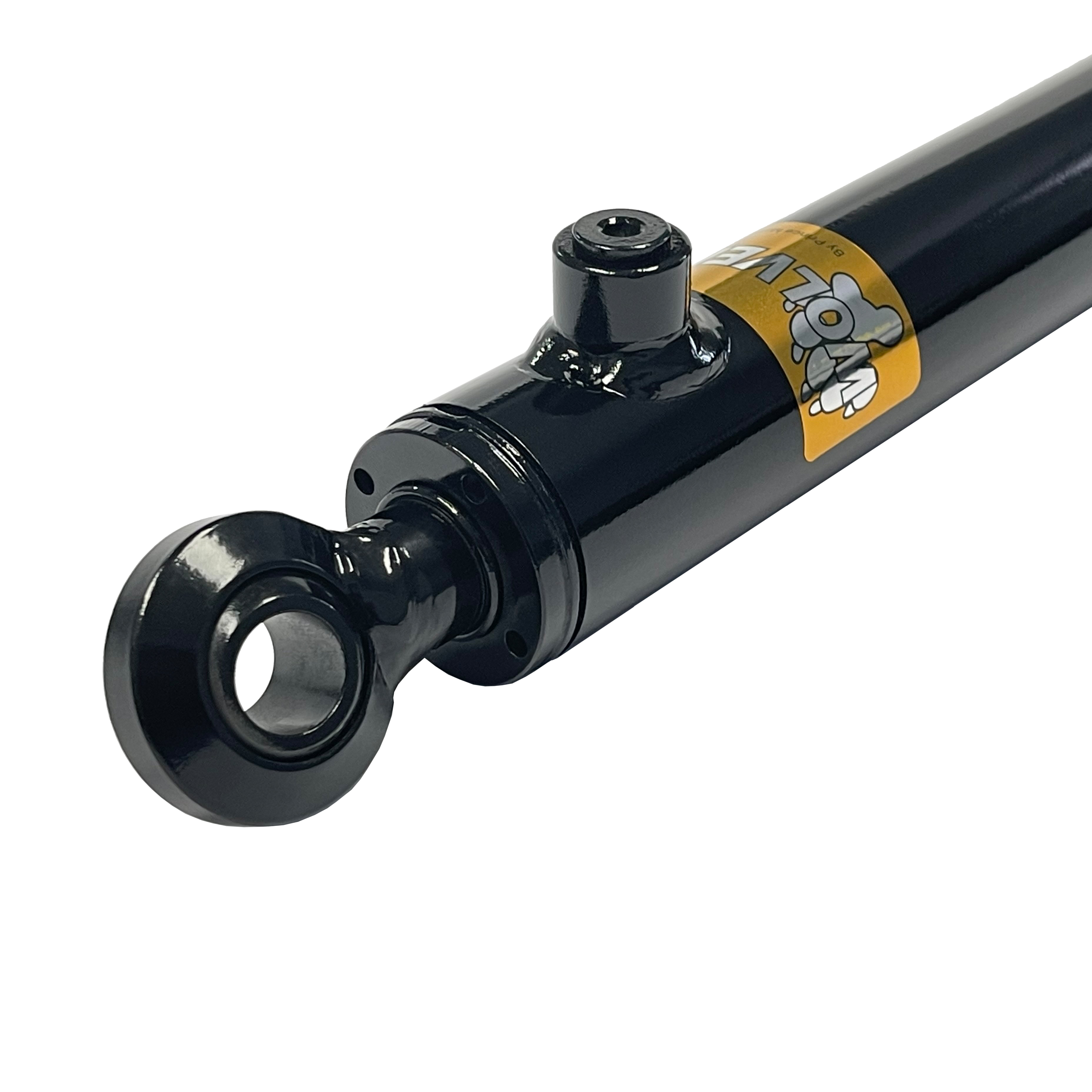

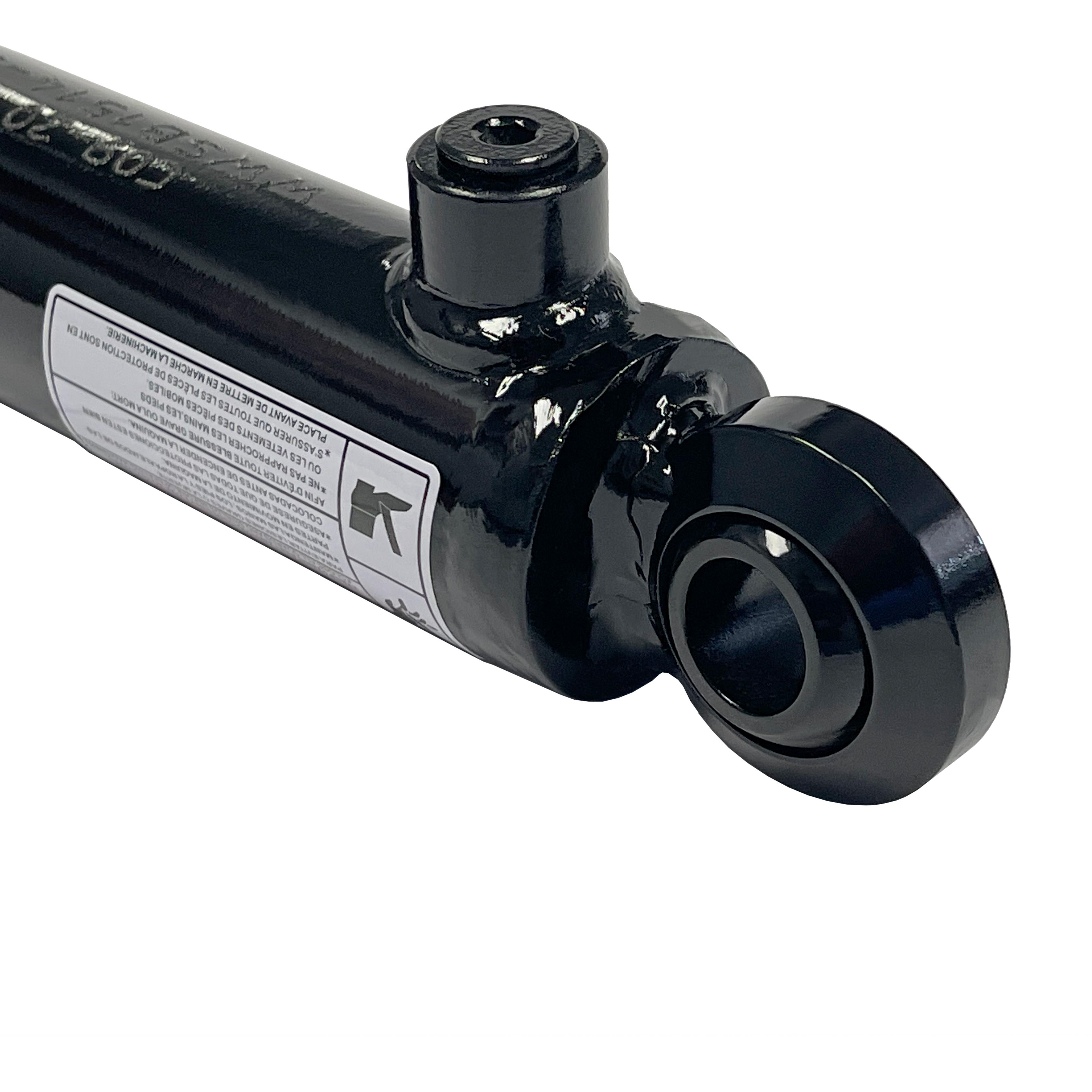

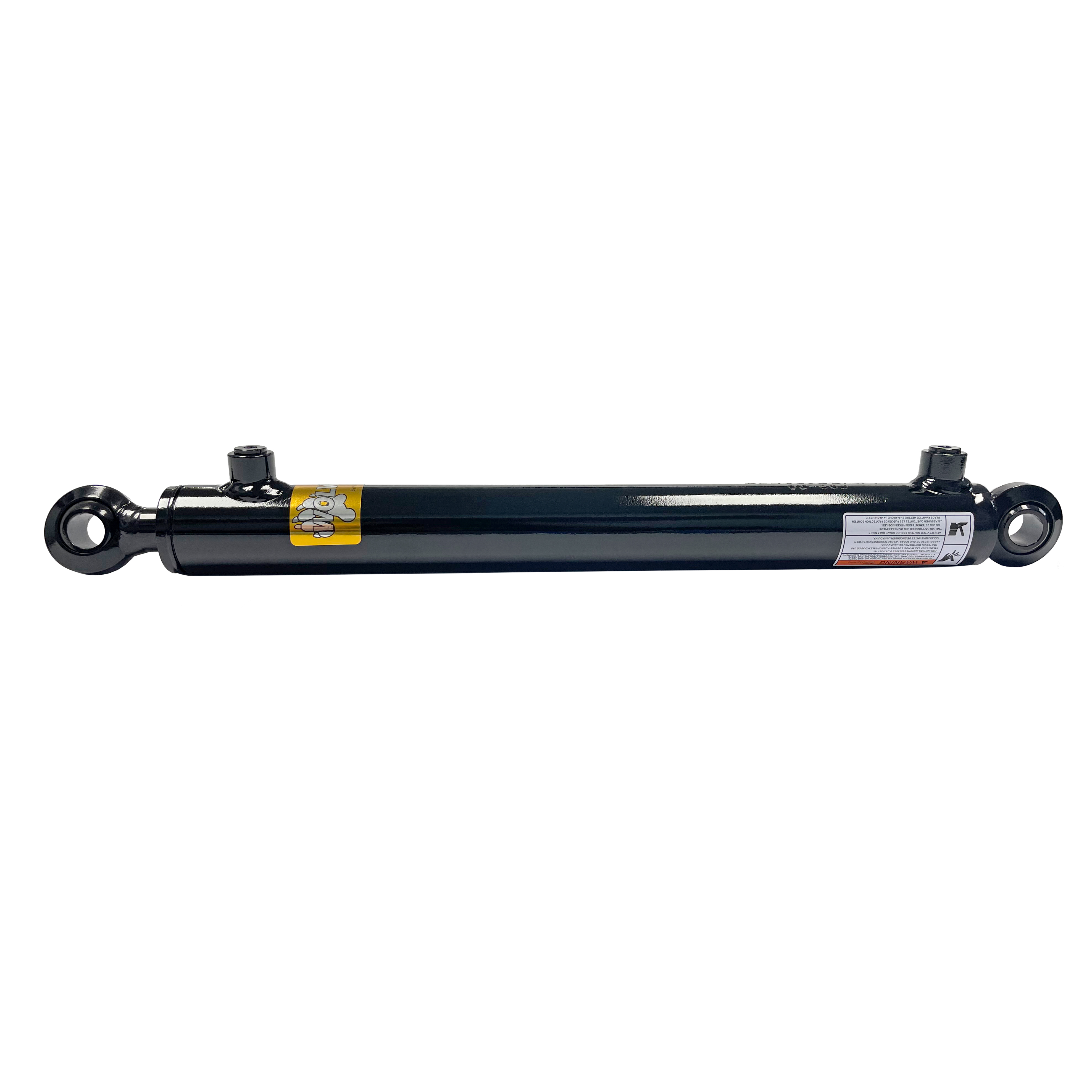

1.5" bore x 16" stroke Prince Swivel Eye hydraulic cylinder Wolverine Line

$238.05

Pay in 4 interest-free payments of $59.51
SKU: WWSB1516-S
Bore : 1.5 in
Outer Dia. (⌀) : 1.88 in
Stroke : 16 in
Rod Dia. (⌀) : 1 in
Port Size : SAE 6
Pin Dia. (⌀) : 0.77 in
Extended : 39.25 in
Retracted : 23.25 in
Pressure : 3000 PSI
Column Load : 5300 LBs
Oil Volume : 0.49 QTs
Brand : Prince
Design : Welded
Rod Type : Chrome Plated
Rod End : Spherical Bearings
Action :
  • Double Acting
  • Weight : 13 LBs
    GTIN : 854335007742
    In stock

    5 in stock

    Description

    • 1.5″ bore x 16″ stroke the Prince Hydraulics series Wolverine Swivel Eye hydraulic cylinder 3000 PSI. Heavy-duty hydraulic equipment, 1-year warranty, free ground Continental US shipping. Prince Manufacturing cylinders manufactured with high quality raw materials Precision finished ST52.3 steel cylinder barrels and polished chrome plated C1045 stell alloy rods, honed cold-drawn tubing, top quality piston seals. Excellent replacement for farming equipment and others.

    NOTE! Chrome-plated rod is NOT induction hardened (Temperature treated). Possible bent rod is a result of a misuse(wrong measurements or type of application), such cases not covered under warranty!

    Free Ground Continental US Shipping

    • If you need assistance to choose a proper hydraulic cylinder replacement, do not hesitate to contact us:973-344-5313
