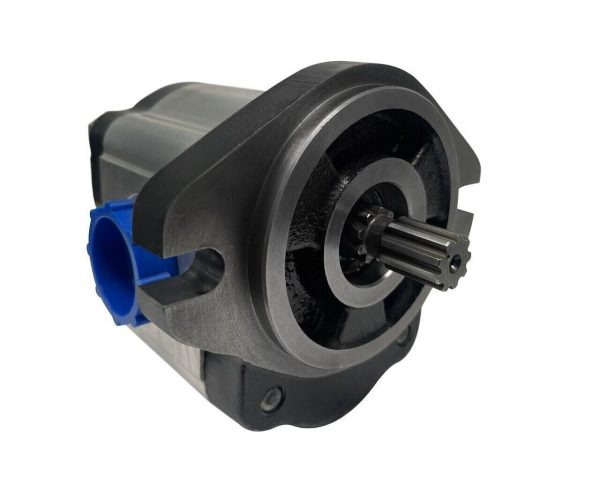

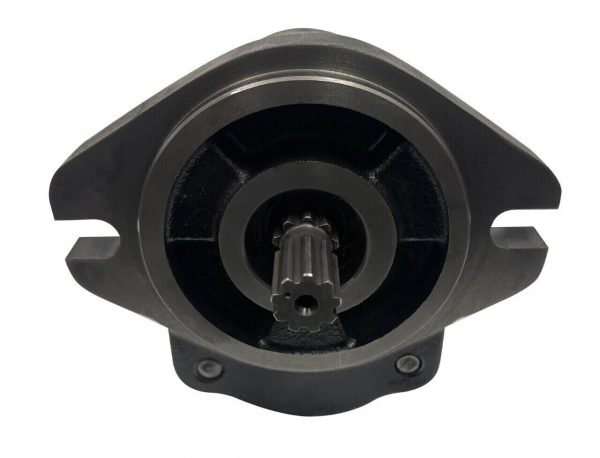

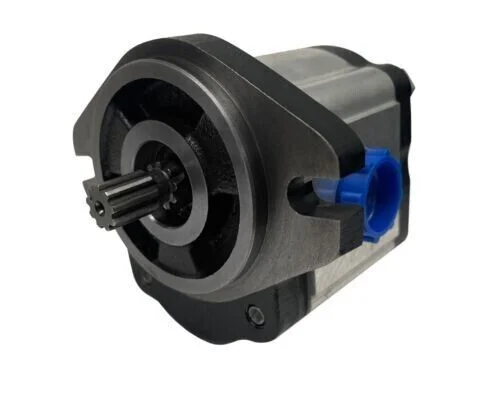

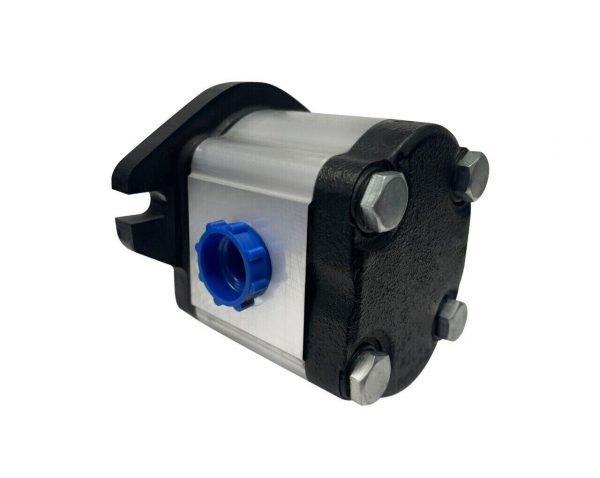

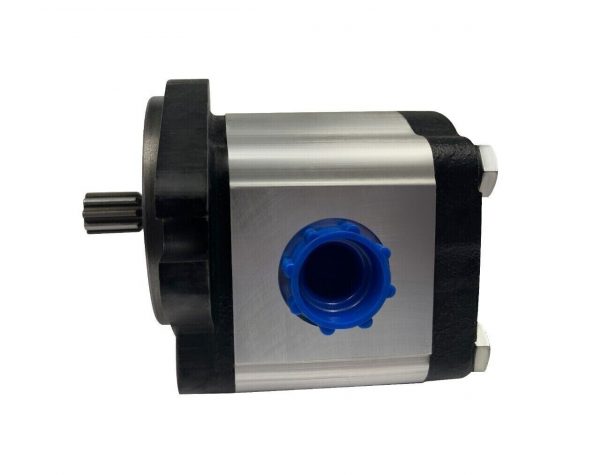

0.61 CID hydraulic gear pump 9 tooth spline shaft CW

SKU: HGP CI09S-A02-061R

$163.00

In Stock Only 3 left - order soon!
PayPalPay in 4 interest-free payments of $40.75

3 in stock

View cart
Same Day
Free Shipping
Made in Europe
US Customer Support
* Wholesale Discount is available for this product if you purchase 5 or more products.

The Magister 0.61 CID cast iron pump is engineered for reliable performance in demanding agricultural and material handling applications. Featuring a robust 9-tooth spline shaft, CW rotation, a high-pressure rating of 3600 PSI with 3500 max RPM, and a standard SAE-A mounting flange, this pump delivers the power and durability needed to keep your equipment running.

Key Features & Benefits:

  • Built to Last: Precision-machined cast iron construction ensures longevity and resistance to wear in tough environments.
  • High-Pressure Performance: Handles up to 3600 PSI for powerful, consistent hydraulic operation.
  • Easy Direct Replacement: Features a standard 9-tooth spline shaft and an SAE-A 2-bolt mounting flange for a straightforward swap with no modifications needed.
  • Precise Rotation: Designed for systems requiring Clockwise (CW / Right-Hand) rotation.
  • Optimal Flow: 0.61 cubic inch displacement (5.28 GPM @ 2000 RPM) provides the right flow for a variety of mid-duty applications.

Same Day Free Shipping.

Made in Europe.

If you need assistance to choose a proper hydraulic gear pump replacement, do not hesitate to contact us:

973-344-5313

View Full Specifications

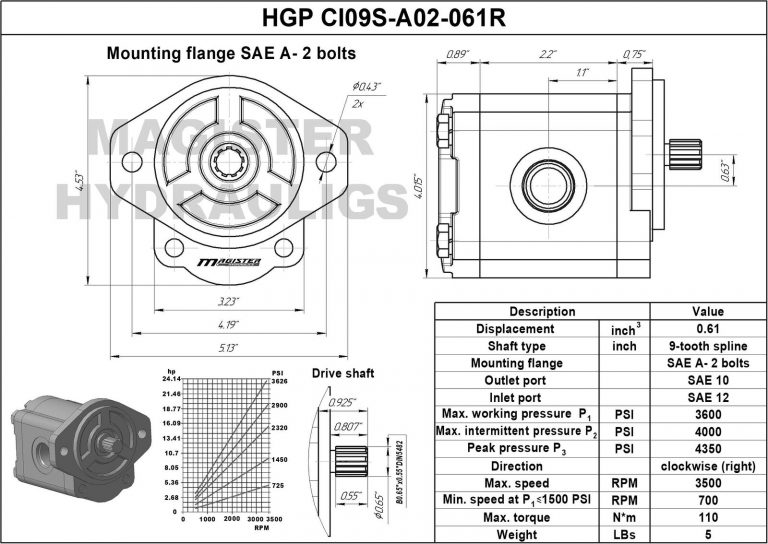

Specifications

0.61 CID hydraulic gear pump 9 tooth spline shaft CW
SKU: HGP CI09S-A02-061R
CID0.61RotationCW
Flow5.28 GPM @ 2000 RPMMAX RPM3500
Inlet PortSAE 12Pressure3600 PSI
Outlet PortSAE 10Shaft Type9-tooth spline
FlangeSAE A - 2 boltBrandMagister Hydraulics
Weight5 LBsGTIN850028143131
