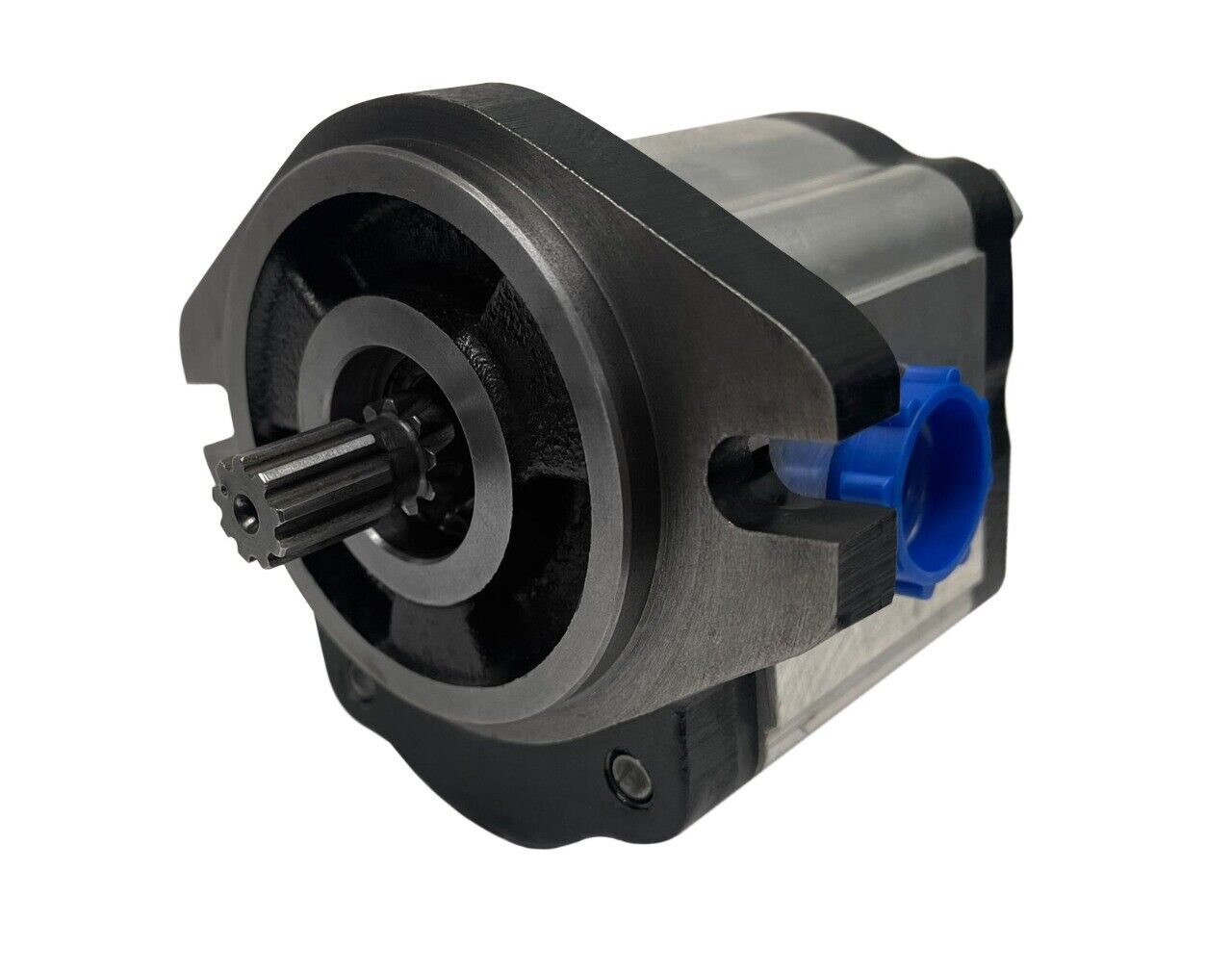

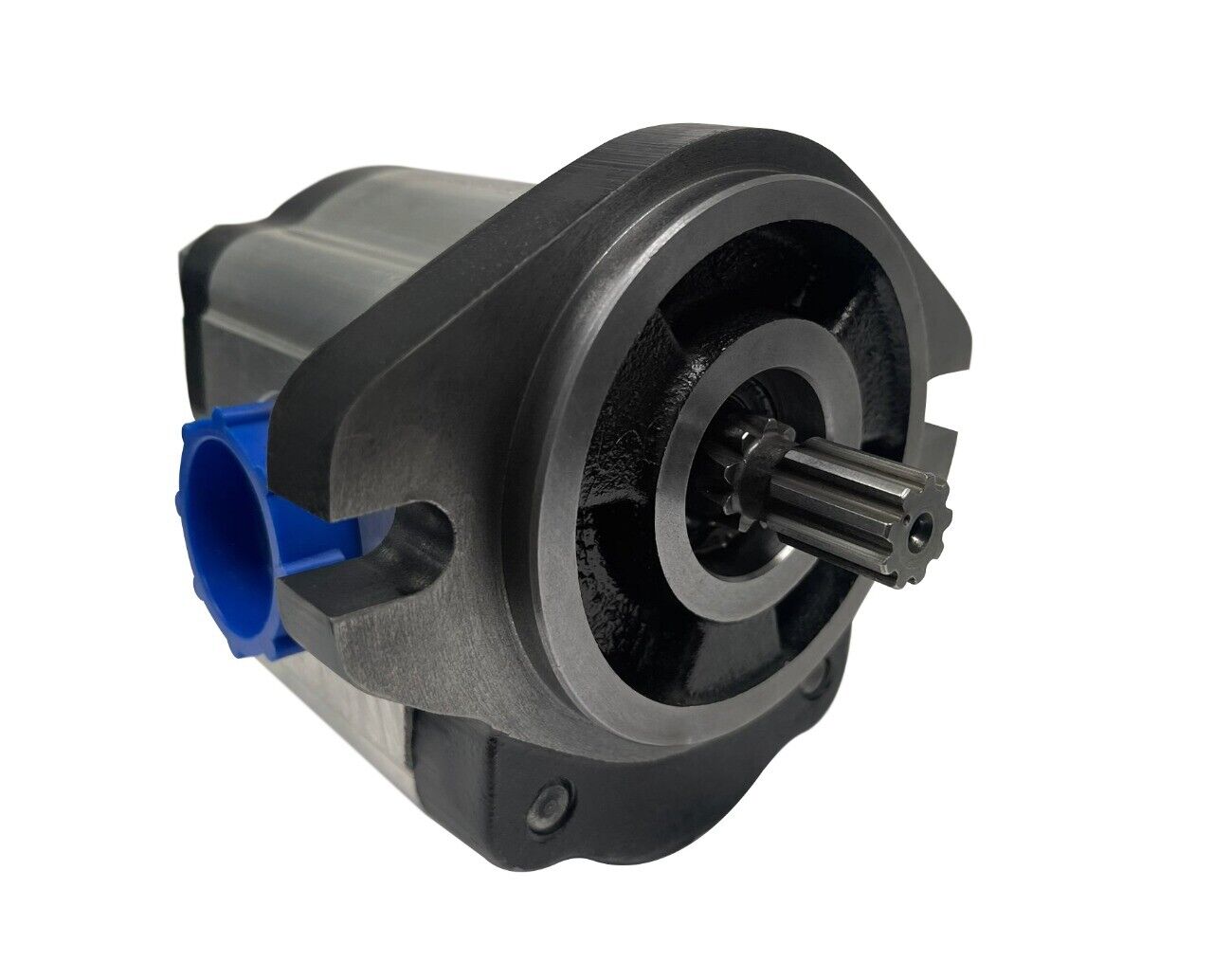

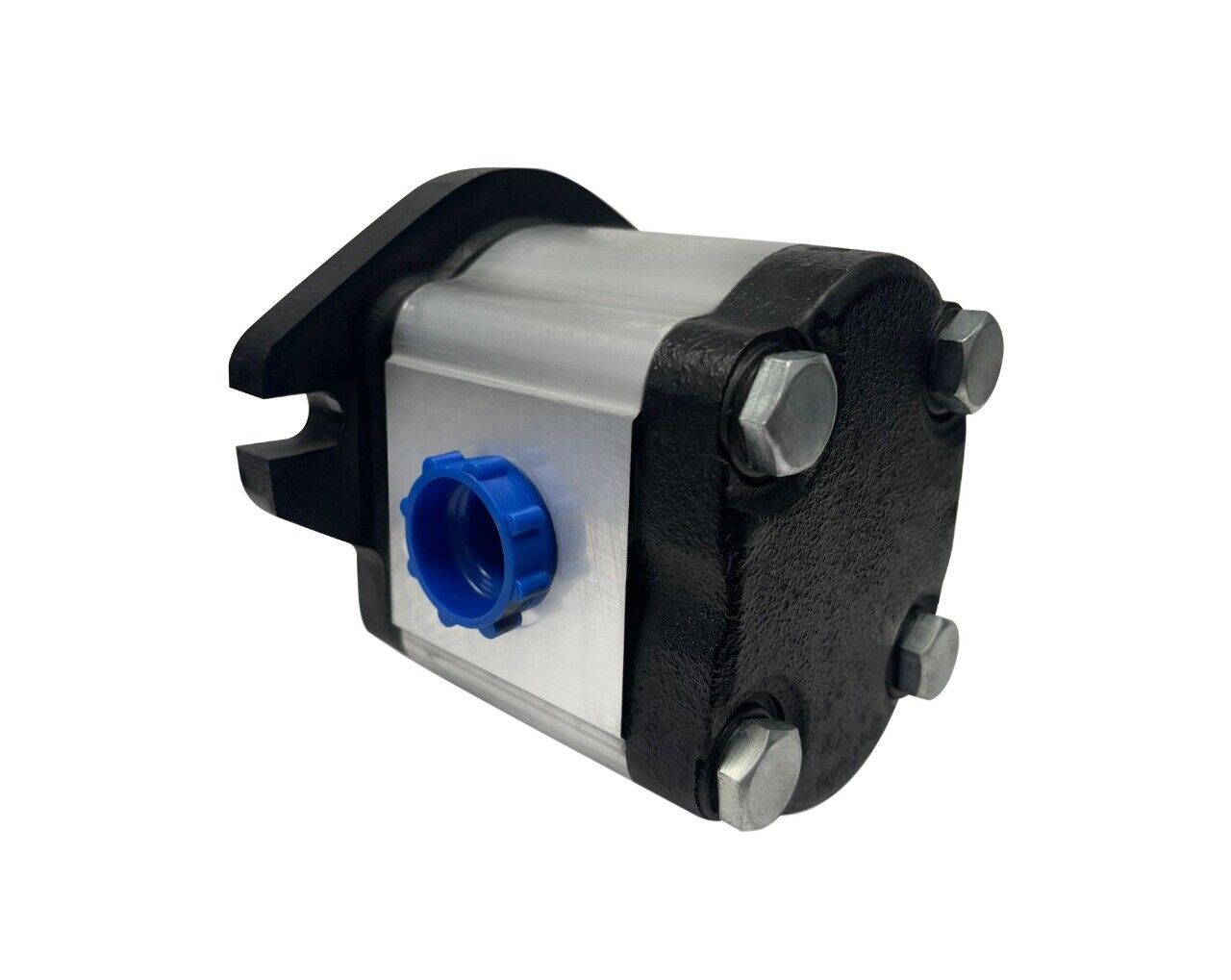

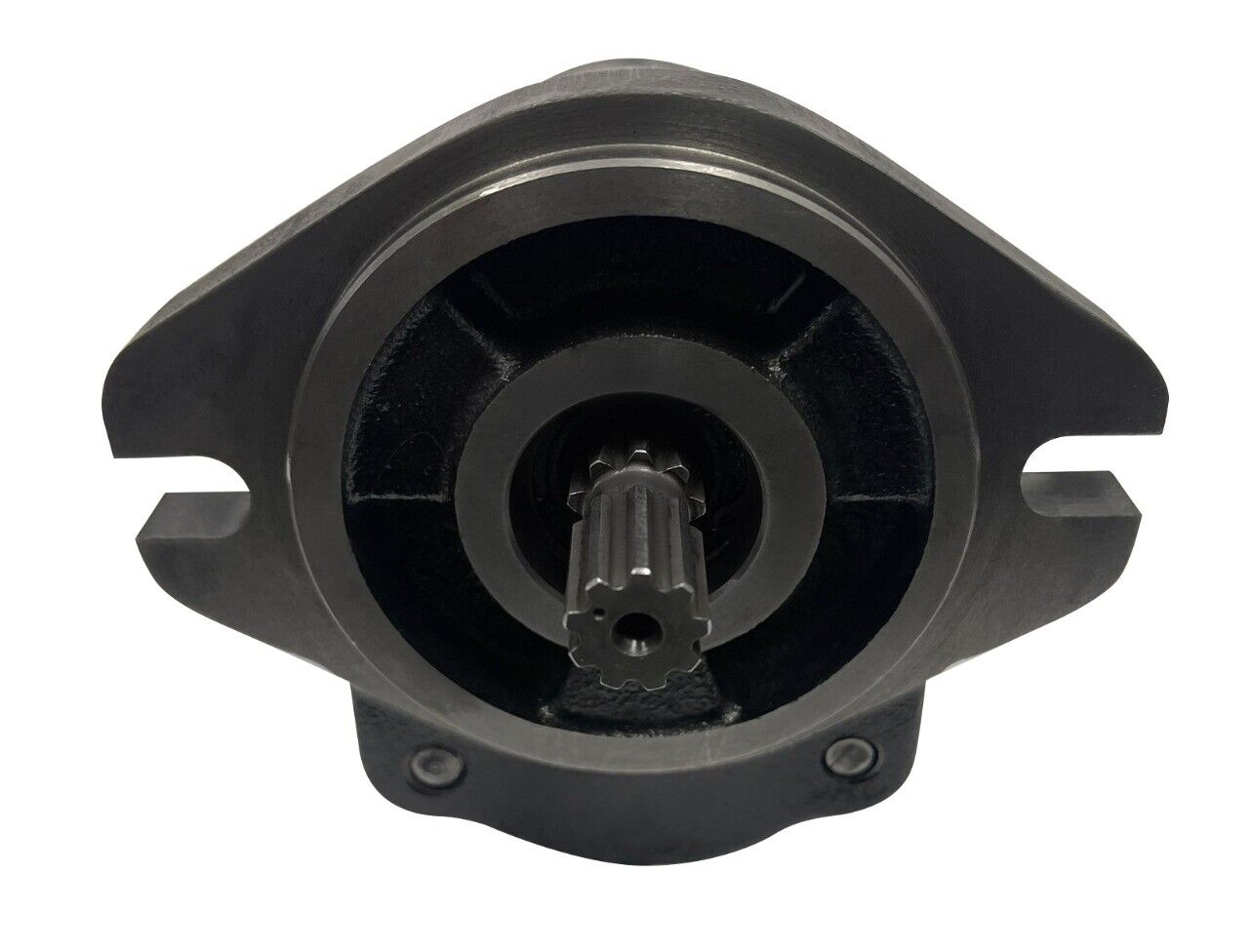

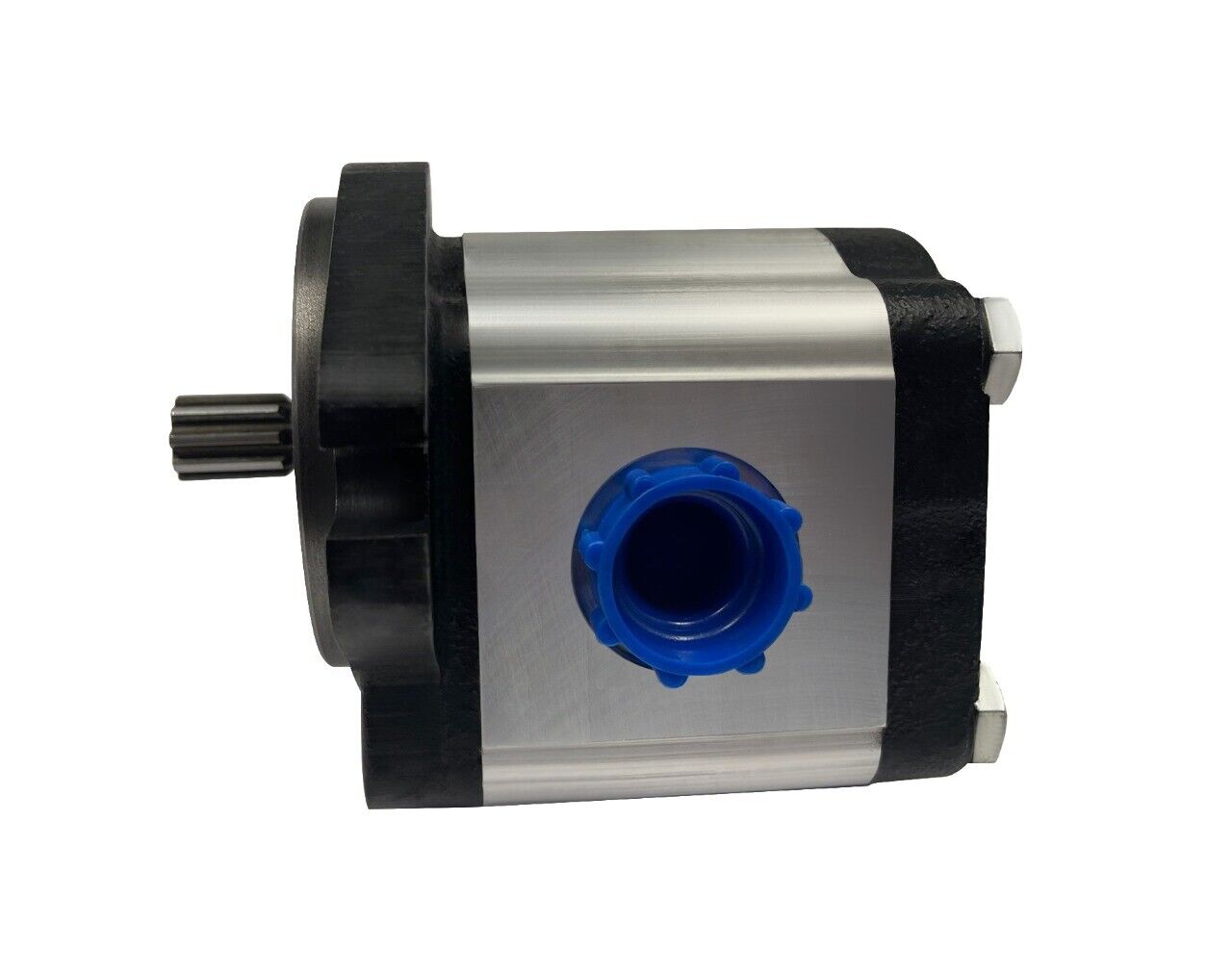

0.50 CID hydraulic gear pump 9 tooth spline shaft CW
$158.00

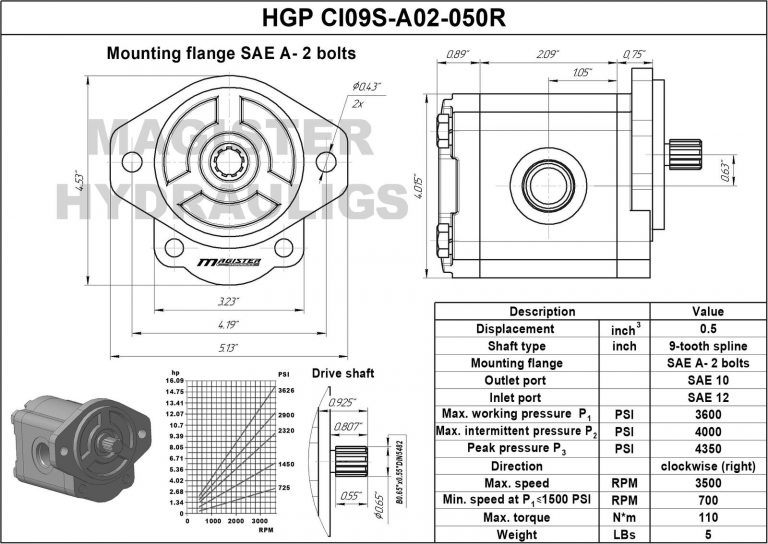

Pay in 4 interest-free payments of $39.50| CID : | 0.5 | Rotation : | CW | Flow : | 4.32 GPM @ 2000 RPM | MAX RPM : | 3500 | Inlet Port : | SAE 12 | Pressure : | 3600 PSI | Outlet Port : | SAE 10 | Shaft Type : | 9-tooth spline | Flange : | SAE A - 2 bolt | Brand : | Magister Hydraulics | Weight : | 5 LBs |
|---|---|
| GTIN : | 850028143117 |
Volume discounts
10 in stock
Description
The Magister 0.5 CID cast iron pump is engineered for reliable performance in demanding agricultural and material handling applications. Featuring a robust 9-tooth spline shaft, CW rotation, a high-pressure rating of 3600 PSI with 3500 max RPM, and a standard SAE-A mounting flange, this pump delivers the power and durability needed to keep your equipment running.
Key Features & Benefits:
- Built to Last: Precision-machined cast iron construction ensures longevity and resistance to wear in tough environments.
- High-Pressure Performance: Handles up to 3600 PSI for powerful, consistent hydraulic operation.
- Easy Direct Replacement: Features a standard 9-tooth spline shaft and an SAE-A 2-bolt mounting flange for a straightforward swap with no modifications needed.
- Precise Rotation: Designed for systems requiring Clockwise (CW / Right-Hand) rotation.
- Optimal Flow: 0.5 cubic inch displacement (4.32 GPM @ 2000 RPM) provides the right flow for a variety of mid-duty applications.
Same Day Free Shipping.
Made in Europe.
If you need assistance to choose a proper hydraulic gear pump replacement, do not hesitate to contact us:
