0.38 CID hydraulic gear pump 9 tooth spline shaft CW

SKU: HGP CI09S-A02-038R

$156.00

Out of stock
PayPalPay in 4 interest-free payments of $39.00

Notify me when the product is in stock:

Out of stock

Same Day
Free Shipping
Made in Europe
US Customer Support
* Wholesale Discount is available for this product if you purchase 5 or more products.
Free Shipping

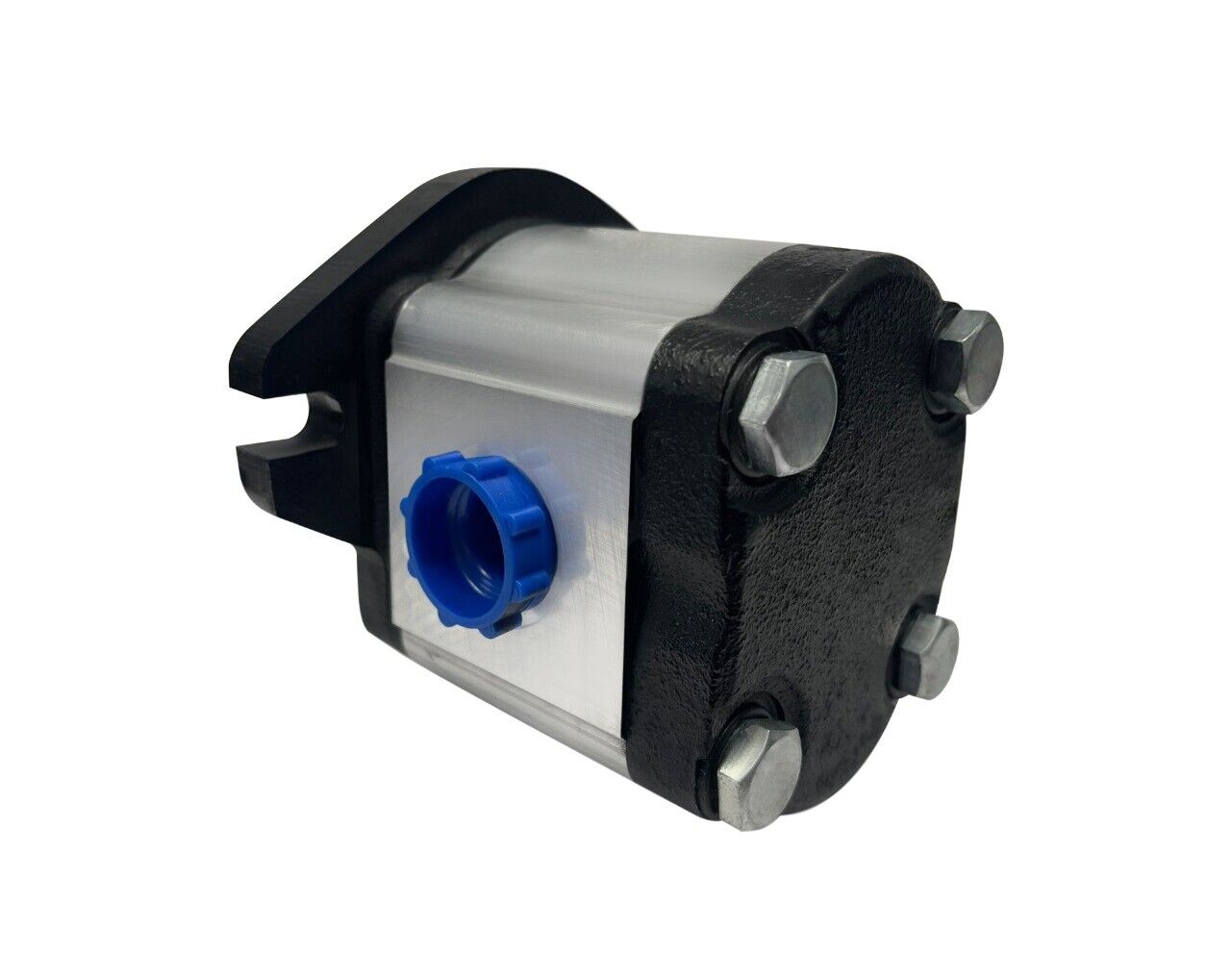

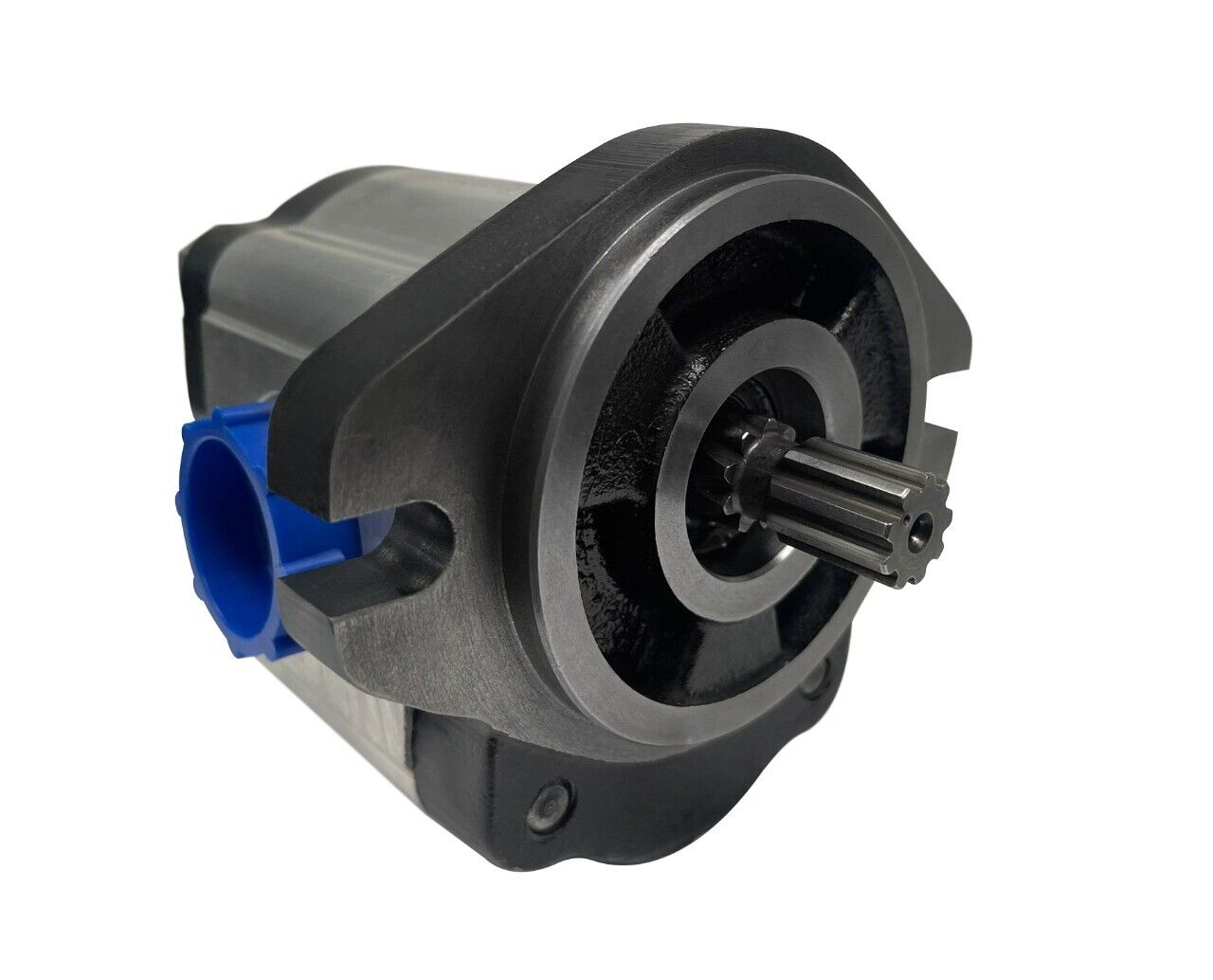

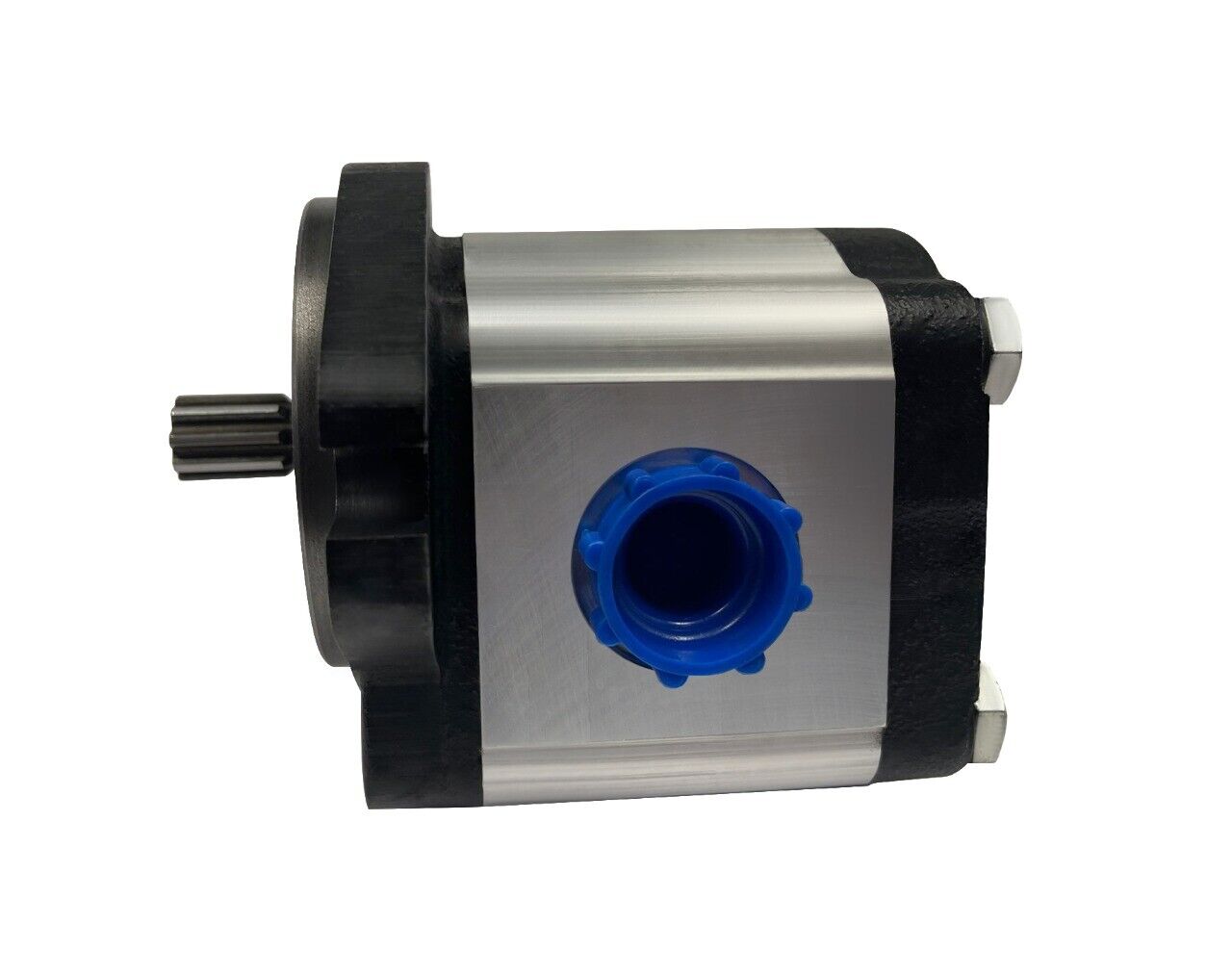

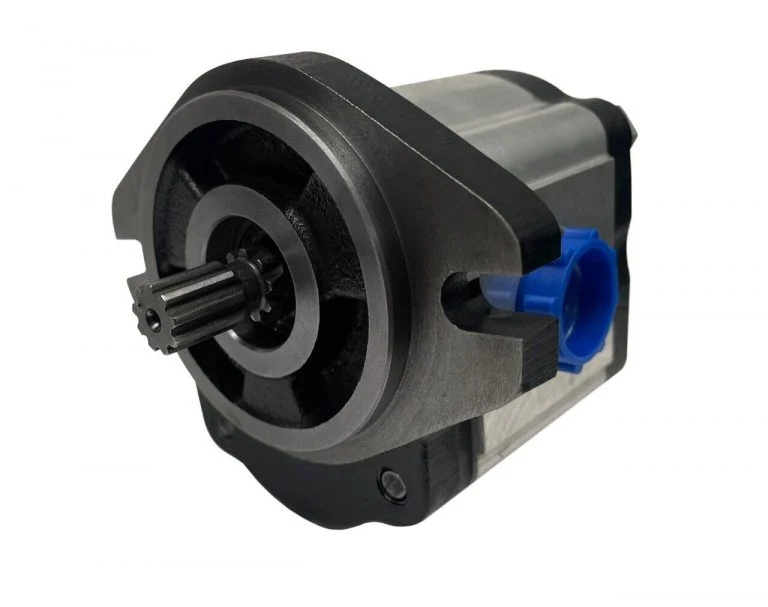

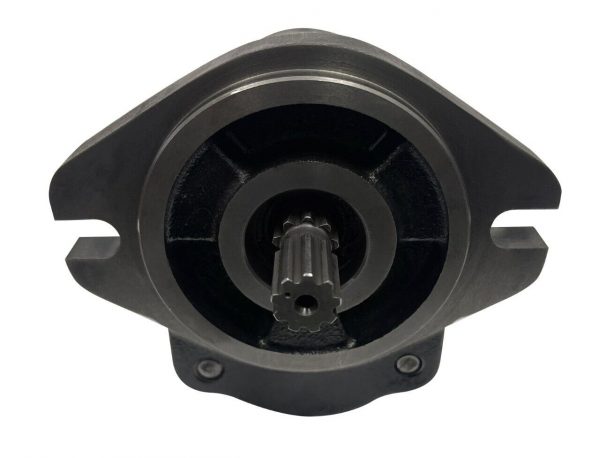

The Magister 0.38 CID cast iron pump is engineered for reliable performance in demanding agricultural and material handling applications. Featuring a robust 9-tooth spline shaft, CW rotation, a high-pressure rating of 3600 PSI with 4000 max RPM, and a standard SAE-A mounting flange, this pump delivers the power and durability needed to keep your equipment running.

Key Features & Benefits:

  • Built to Last: Precision-machined cast iron construction ensures longevity and resistance to wear in tough environments.
  • High-Pressure Performance: Handles up to 3600 PSI for powerful, consistent hydraulic operation.
  • Easy Direct Replacement: Features a standard 9-tooth spline shaft and an SAE-A 2-bolt mounting flange for a straightforward swap with no modifications needed.
  • Precise Rotation: Designed for systems requiring Clockwise (CW / Right-Hand) rotation.
  • Optimal Flow: 0.38 cubic inch displacement (3.29 GPM @ 2000 RPM) provides the right flow for a variety of mid-duty applications.

Same Day Free Shipping.

Made in Europe.

If you need assistance to choose a proper hydraulic gear pump replacement, do not hesitate to contact us:

973-344-5313

View Full Specifications

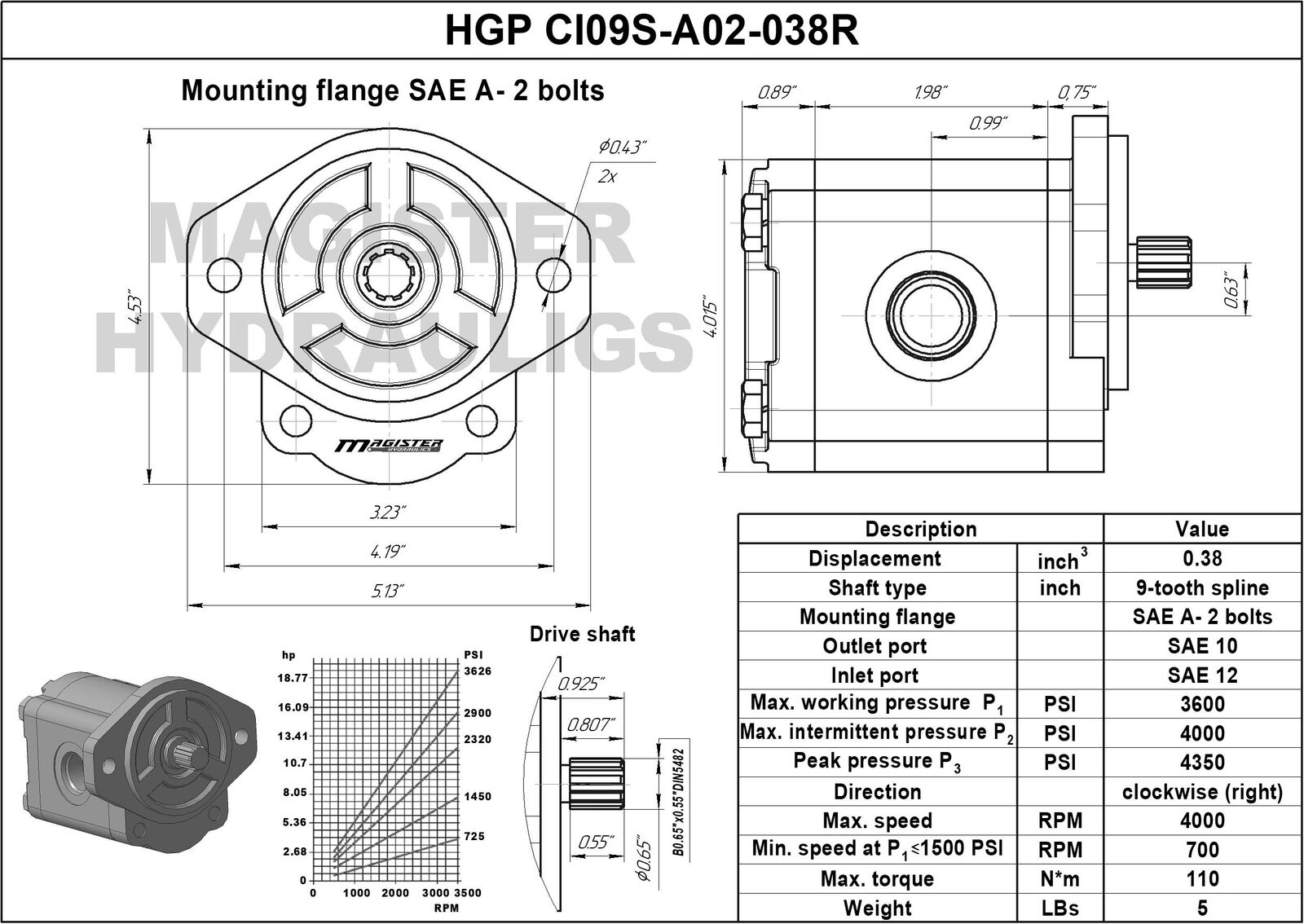

Specifications

0.38 CID hydraulic gear pump 9 tooth spline shaft CW
SKU: HGP CI09S-A02-038R
CID0.38RotationCW
Flow3.29 GPM @ 2000 RPMMAX RPM4000
Inlet PortSAE 12Pressure3600 PSI
Outlet PortSAE 10Shaft Type9-tooth spline
FlangeSAE A - 2 boltBrandMagister Hydraulics
Weight5 LBsGTIN850028143094
