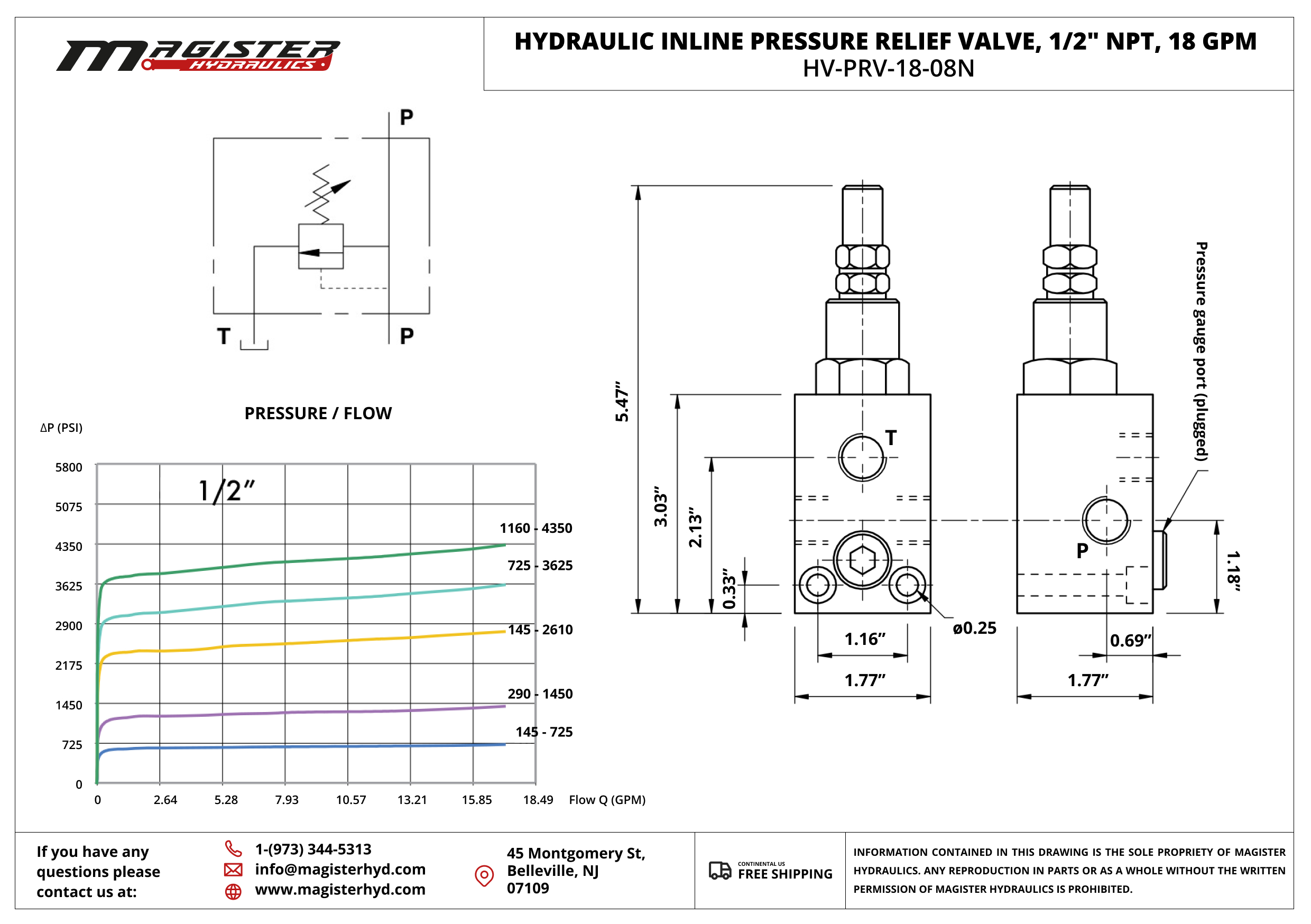

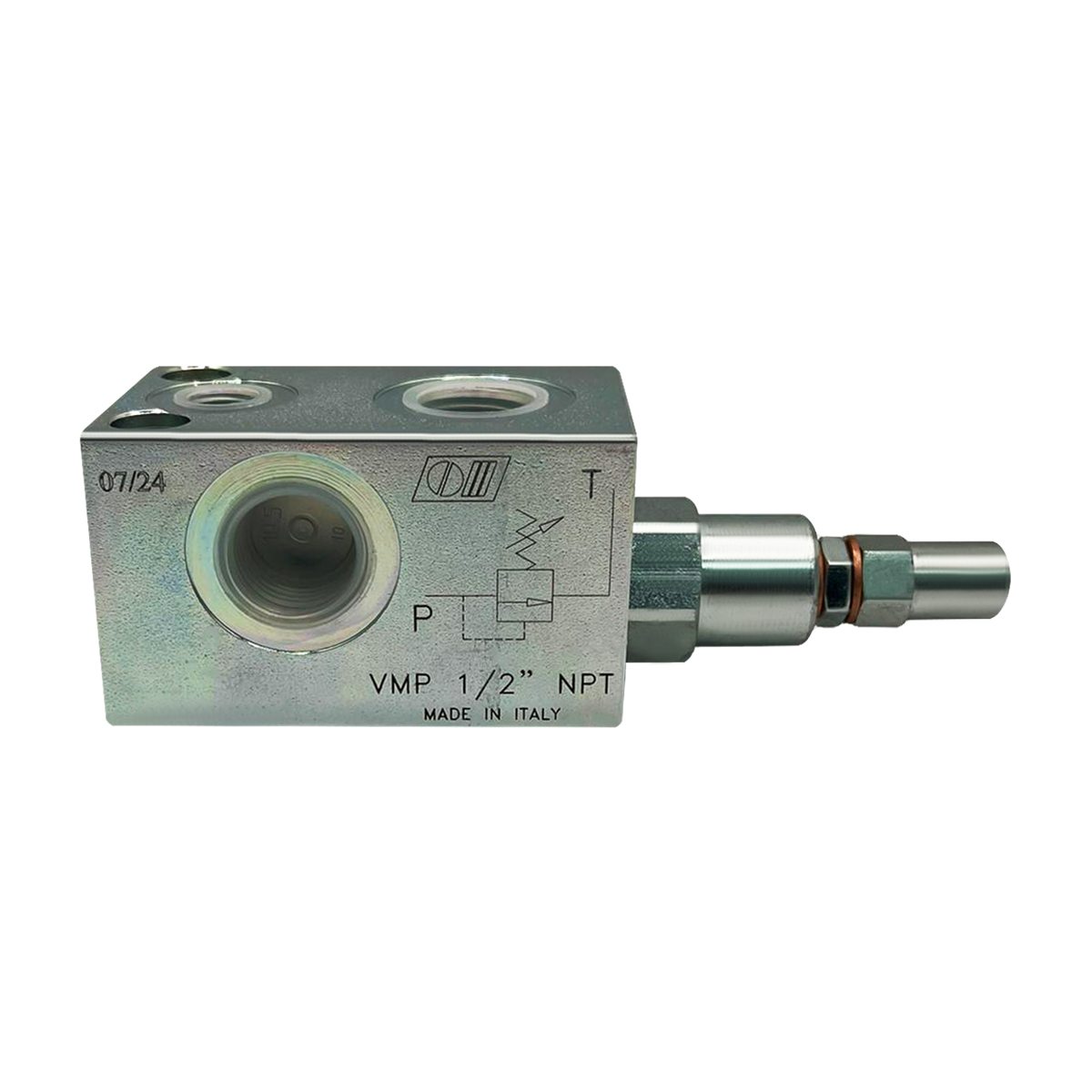

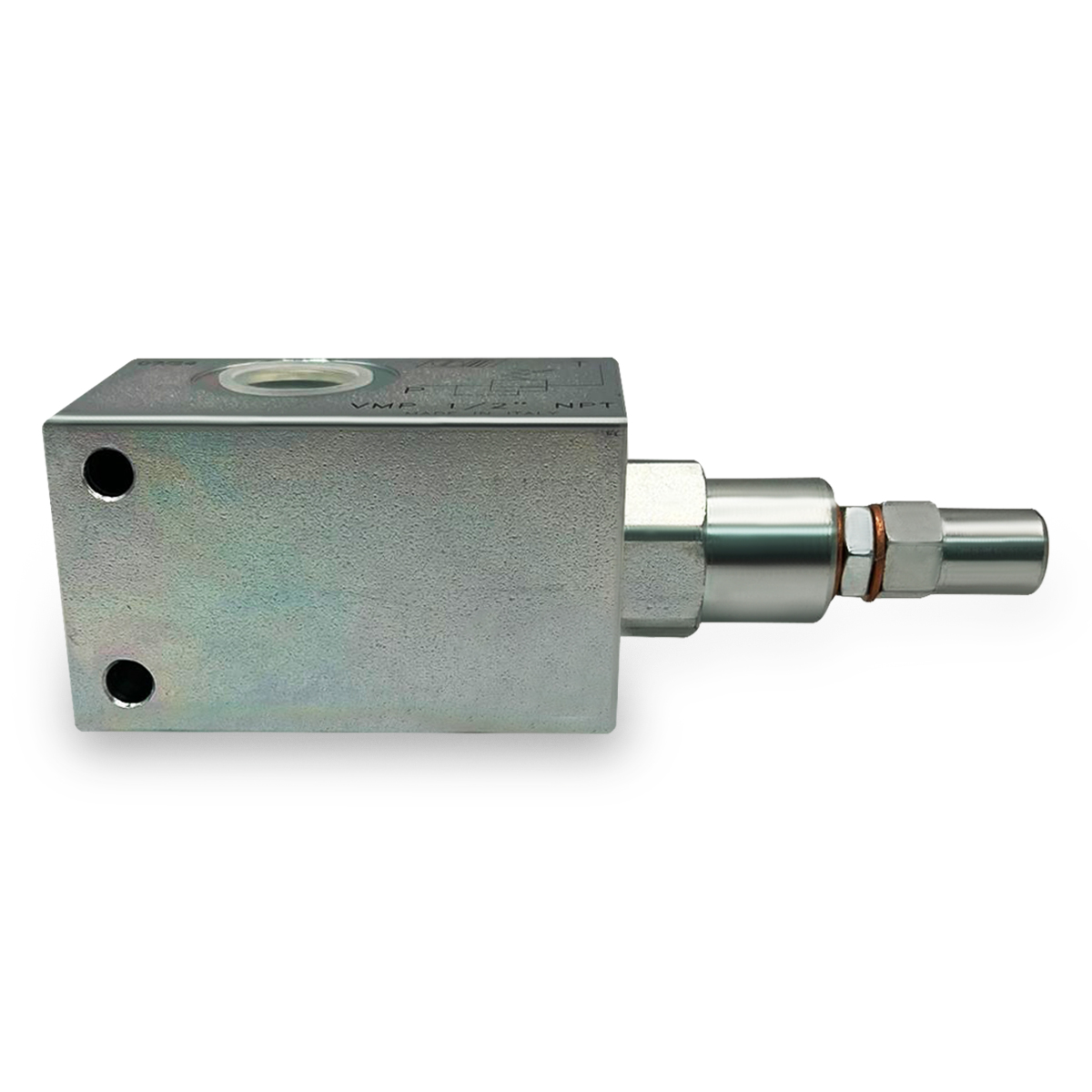

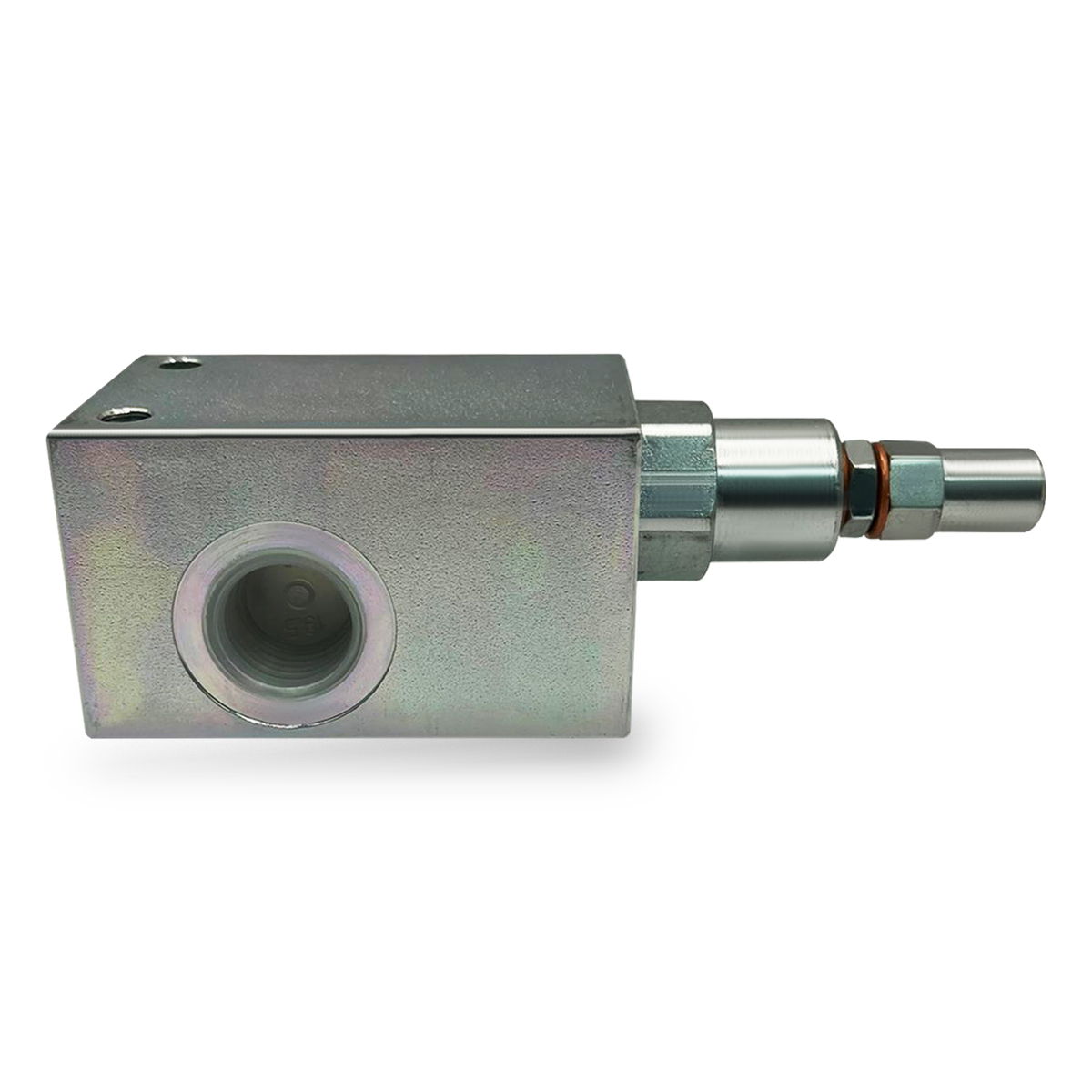

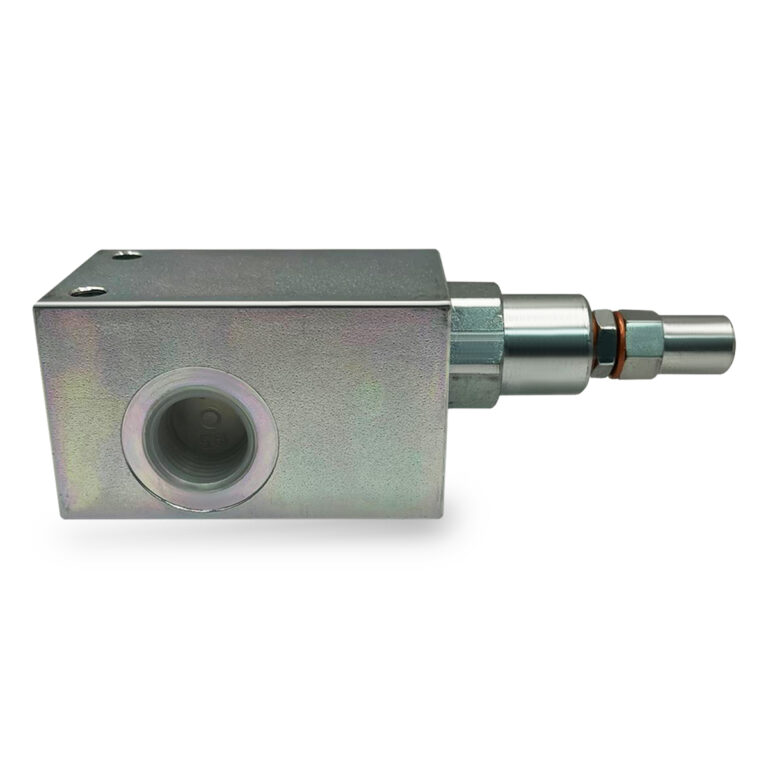

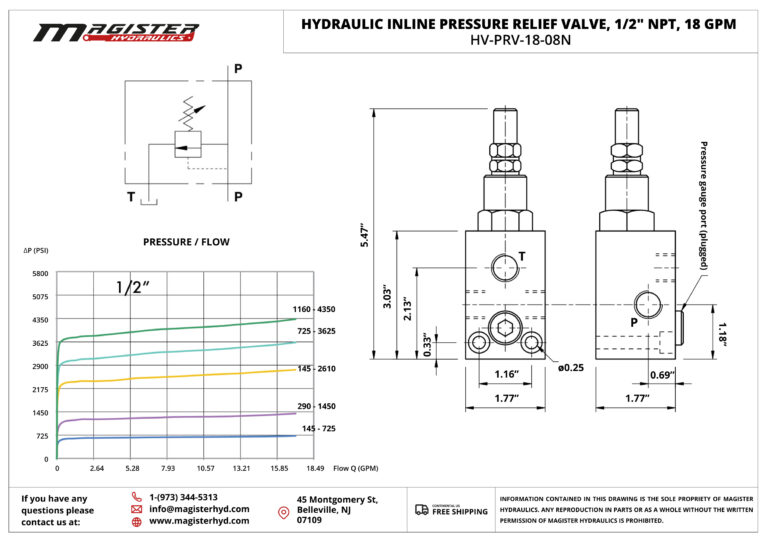

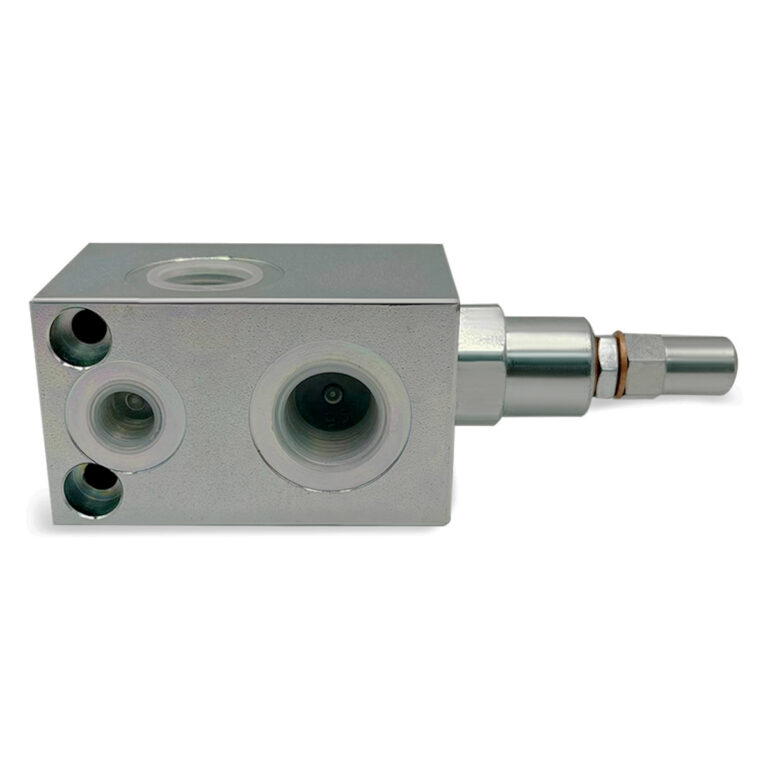

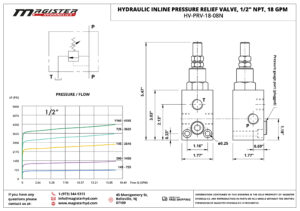

Hydraulic Inline Pressure Relief Valve, 1/2" NPT, 18 GPM
$53.00
In Stock
Volume Discounts
19 in stock
Hydraulic Inline Pressure Relief Valve, 1/2″ NPT, 18 GPM. The relief valve limits the maximum pressure in a circuit to the valve’s setting. When the circuit pressure reaches the setting, the valve opens and stops the circuit pressure going any higher.
MATERIALS AND FEATURES:
- Body: zinc-plated steel.
- Internal parts: hardened and ground steel.
- Seals: BUNA N standard.
- Leakage: Guided poppet – negligible leakage.
CONNECTIONS:
Connect circuit port with pressure to P and tank port to T. Port P is reversible.
Pressure Gauge Port (M Port) is 1/4″-18 NPT Thread size.
Oil temperature: 122° F
Oil viscosity: 30 cSt
Made in Europe utilizing American standards, can operate under temperature anywhere from – 40F and up to 140F.
Same-Day Shipping: all orders, made until 1 pm EST, will be shipped the same day (except weekends and holidays).
Made in Europe. 1 Year Warranty.
If you need assistance to choose a proper hydraulic valve, do not hesitate to contact us:
973-344-5313
Frequently bought together
Related Categories
Specifications
| Flow | 18 GPM | Max Pressure | 5000 PSI |
|---|---|---|---|
| Working Ports | 1/2" NPT | Pressure Gauge Port | 1/4"-18 NPT |
| Brand | Hydro-Pack | Weight | 2.3 LBs |
| GTIN | 850054386656 |
