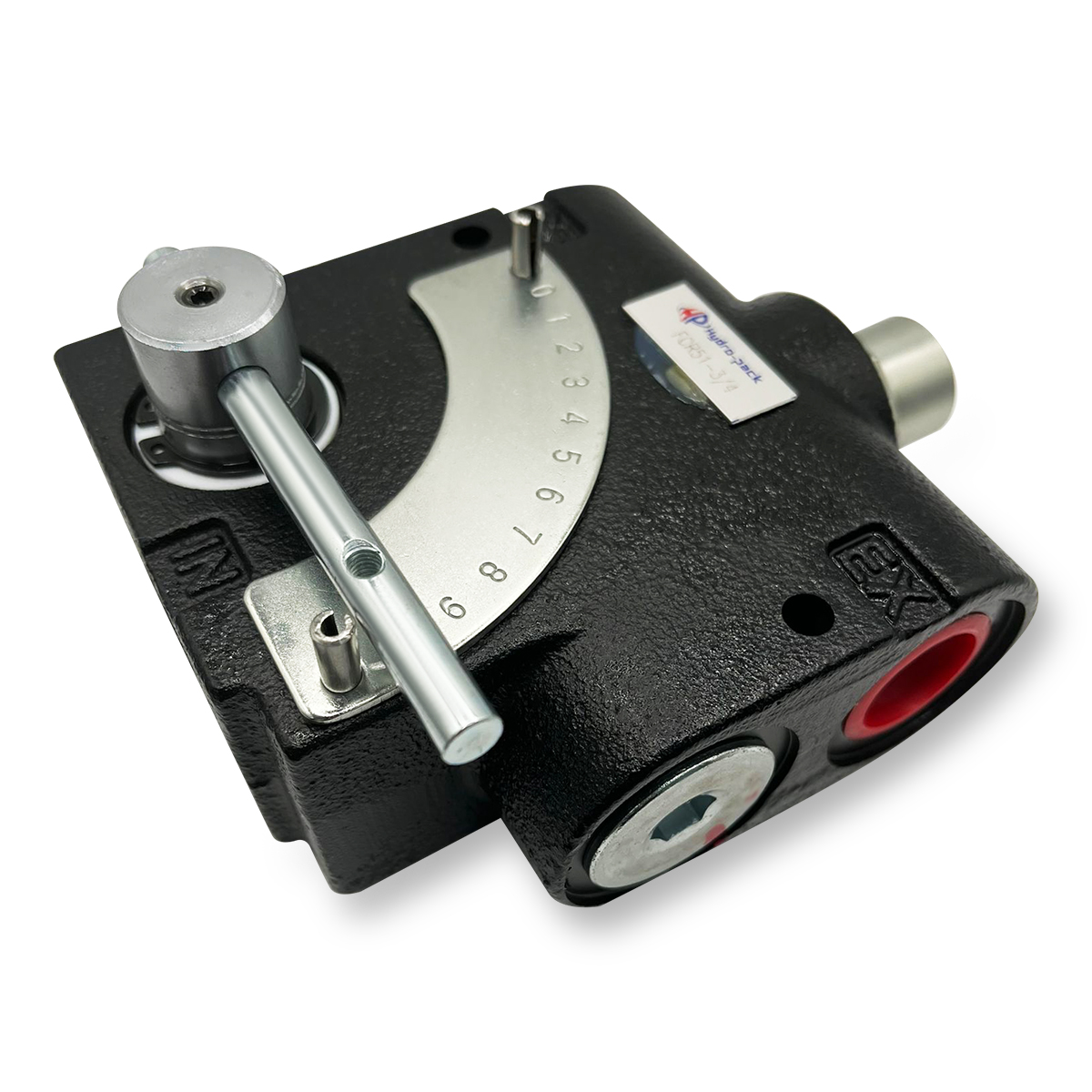

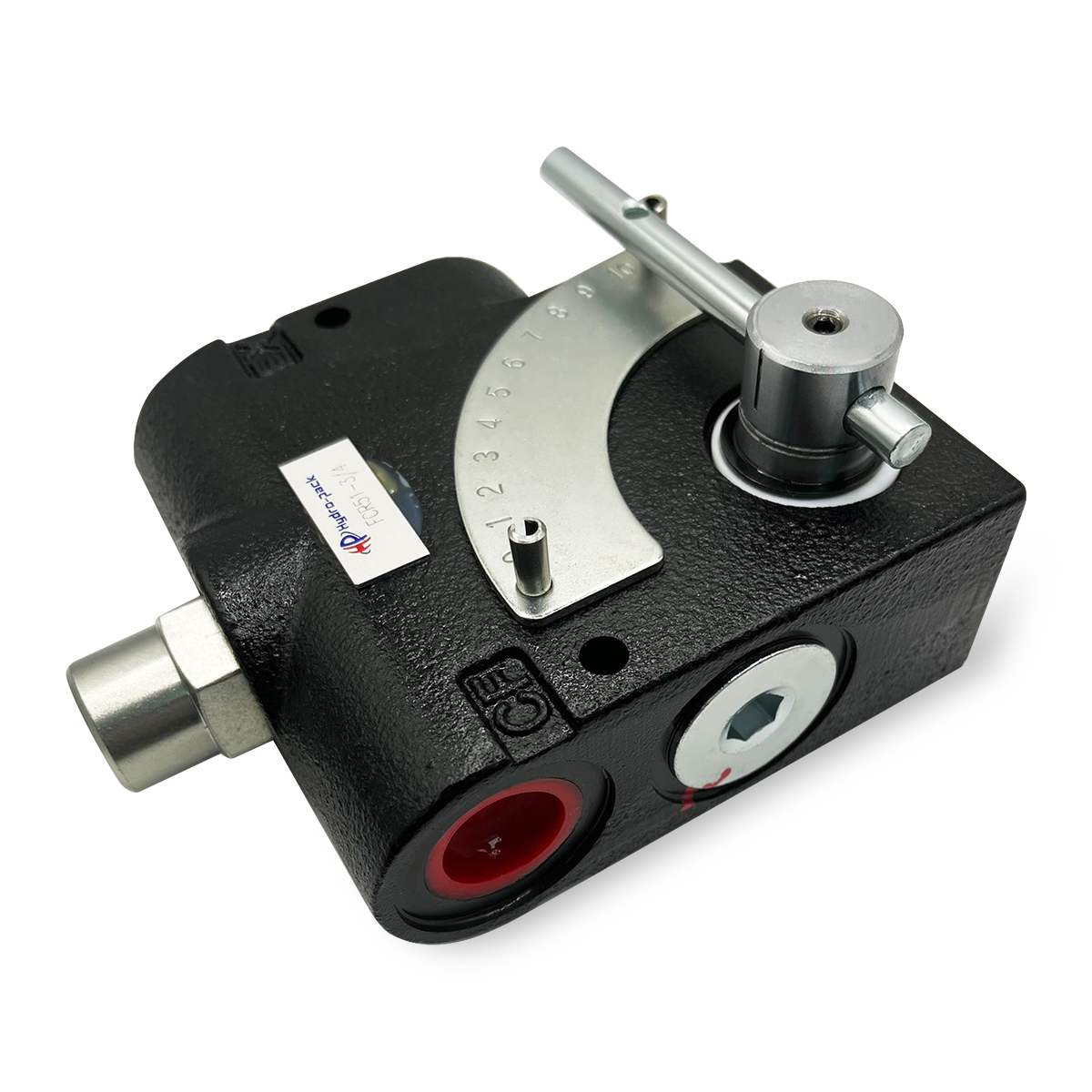

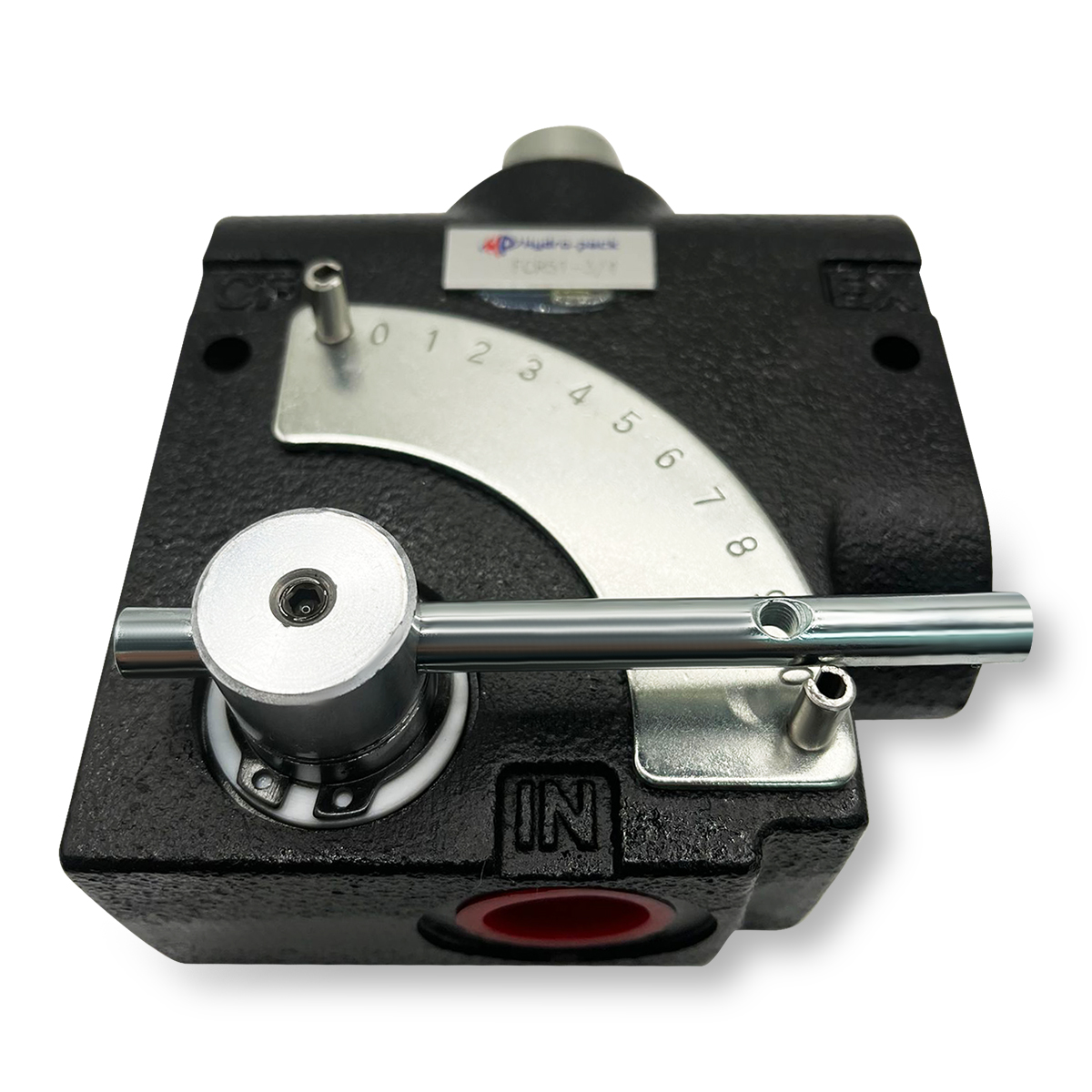

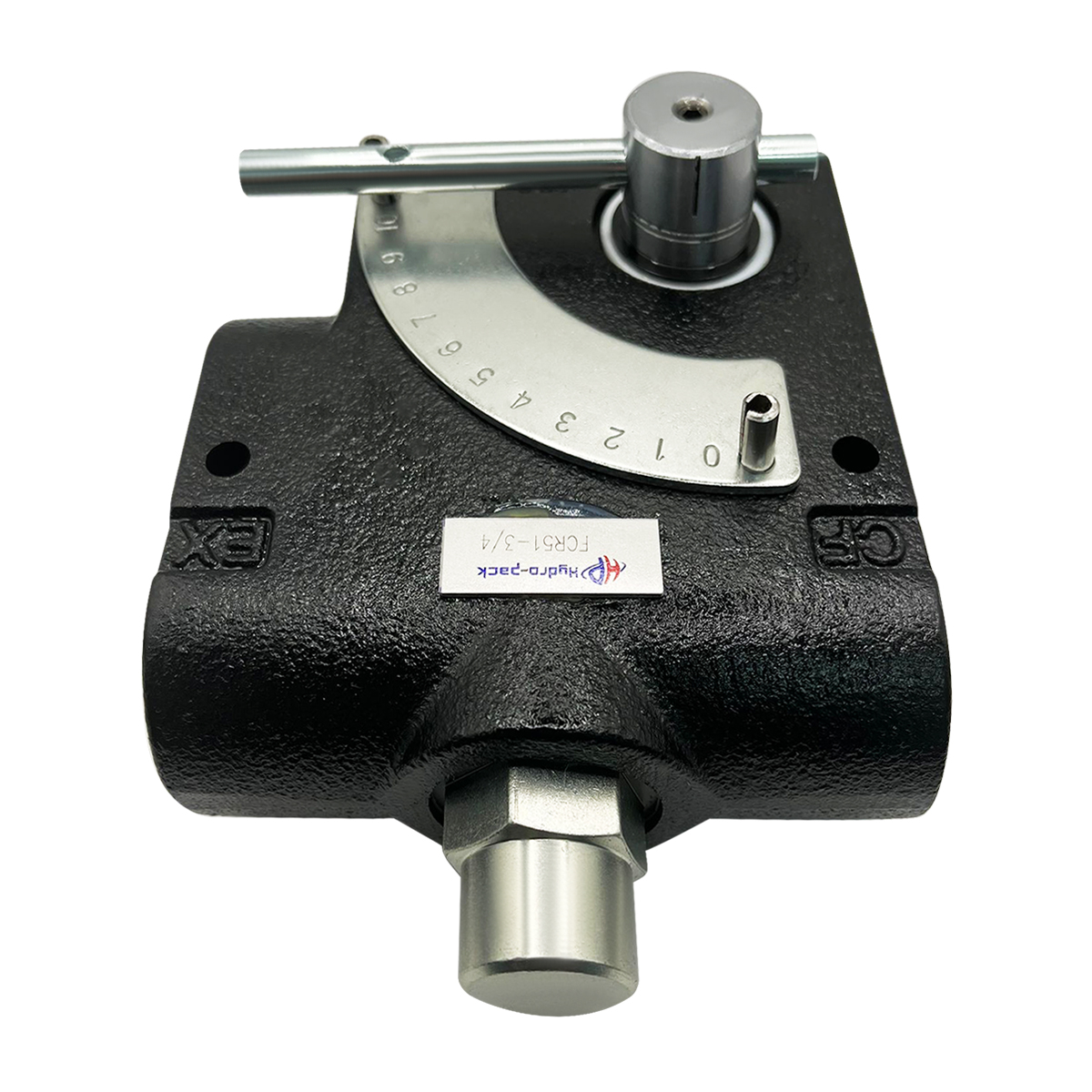

Hydraulic Adjustable Variable Flow Control Valve, 0-30 GPM, 3/4″ NPT
$148.00
Pay in 4 interest-free payments of $37.00SKU: HV-PCFC-30-12N
| Flow : | 0 - 30 GPM | Pressure : | 4000 PSI | Working Ports : | 3/4" NPT | Brand : | Hydro-Pack | Weight : | 6 LBs |
|---|
Volume discounts
5+ PRICE EA -5%
$140.60
10+ PRICE EA -10%
$133.20
In stock
39 in stock
Description

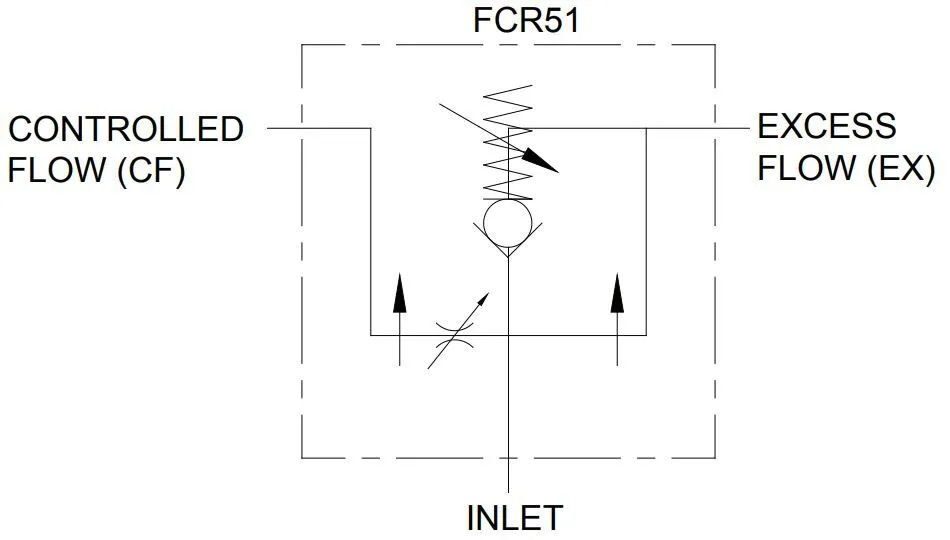

Hydraulic Adjustable Variable Flow Control Valve, 0-30 GPM, 3/4″ NPT. This valve is a full-range pressure compensating variable flow control. It is designed so that the orifice area varies as the lever is rotated. The outlet flow is smooth and constant regardless of the pressure on the control flow or excess flow ports. An adjustable ball spring relief allows for pressure compensated flow up to the pressure setting on the relief. Relief valves are preset at 1500 psi and field adjustable from 75 to 3000 psi.
-
- Cast iron body
- Heat treated compensator spool
- Stainless steel rotary spool
- Buna-n “O” rings
- 180 F
- Filtration 17/14/19
- For use with mineral based hydraulic fluid
- Side port configuration
- 100% Tested before dispatch
- External seals on rotary spool prevent contamination from locking up spool
Made in Europe utilizing American standards, can operate under temperature anywhere from – 40F and up to 180F.
Same-Day Shipping: all orders, made until 3 pm, will be shipped the same day (except weekends and holidays).
Free Ground Continental US Shipping
Made in Europe.
If you need assistance to choose a proper hydraulic valve, do not hesitate to contact us:
973-344-5313
