Hydraulic Needle Valve, 3/4″ NPT, 21 GPM
$105.00
Pay in 4 interest-free payments of $26.25SKU: HV-FRV-IL21-12N
| Flow : | 21 GPM | Pressure : | 4600 PSI | Working Ports : | 3/4" NPT | Brand : | Hydro-Pack | Weight : | 1 LBs |
|---|
Volume discounts
5+ PRICE EA -5%
$99.75
10+ PRICE EA -10%
$94.50
In stock
50 in stock
Description

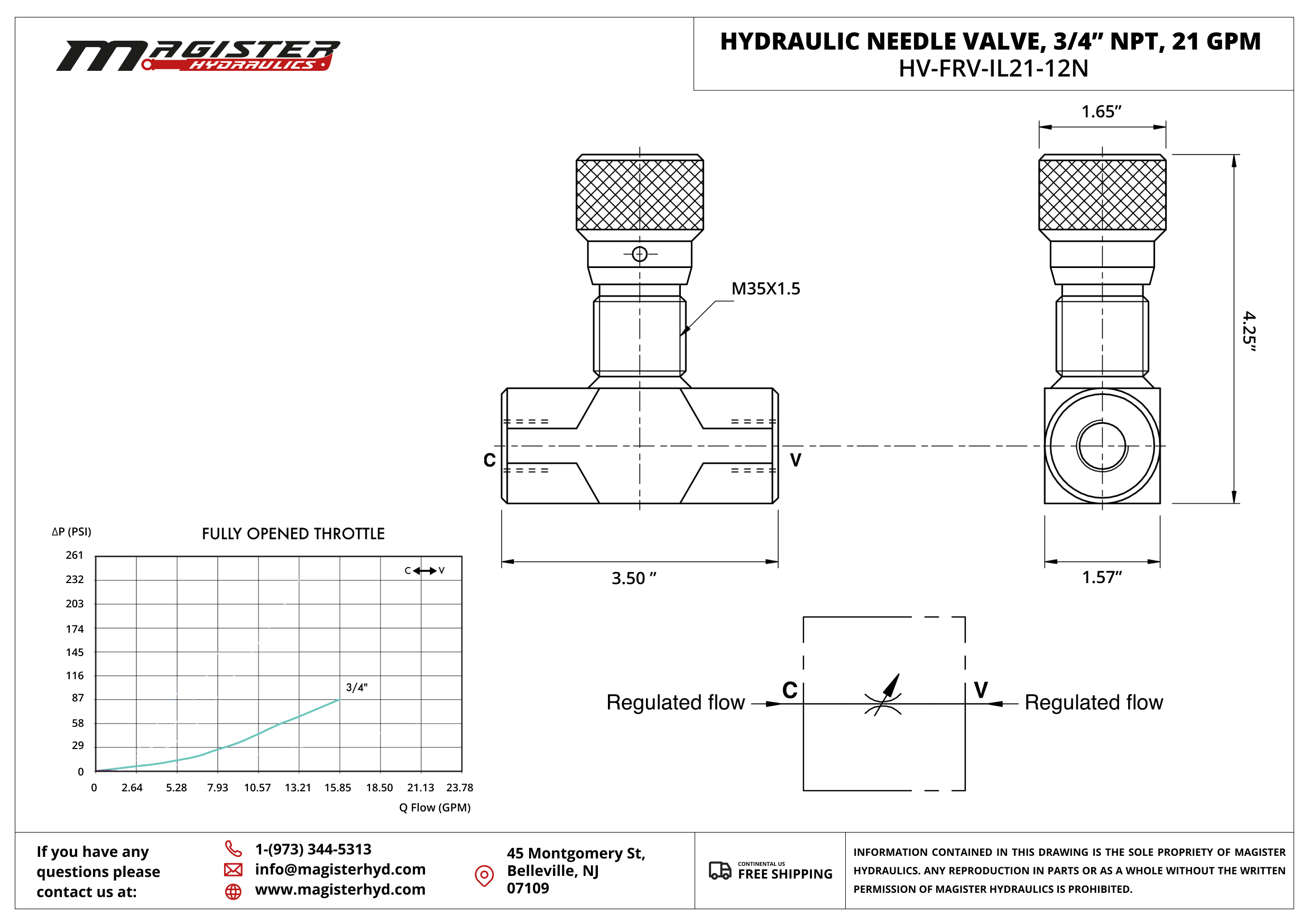

Hydraulic Needle Valve, 3/4″ NPT, 21 GPM. These valves are used to adjust speed of actuators in both directions. Pressure compensation is not provided, flow rate depends on pressure and oil viscosity. These valves are characterised by a high adjustment accuracy.
MATERIALS AND FEATURES:
Body: zinc-plated steel.
Internal parts: hardened and ground steel.
Leakage control – needle type. Minimal leakage when the valve is closed.
CONNECTIONS:
Connect either ports to the supply and the other to the actuator to control. When used on actuators with double pilot check valves, Valve has to be mounted between the actuator and the double pilot check valve. Flow adjustment is done by rotating the plastic hand knob after loosening the side locking screw. This particular configuration allows an accurate adjustment.
Oil temperature: 122° F
Oil viscosity: 30 cSt
Made in Europe utilizing American standards, can operate under temperature anywhere from – 40F and up to 140F.
Same-Day Shipping: all orders, made until 3 pm, will be shipped the same day (except weekends and holidays).
Made in Europe.
