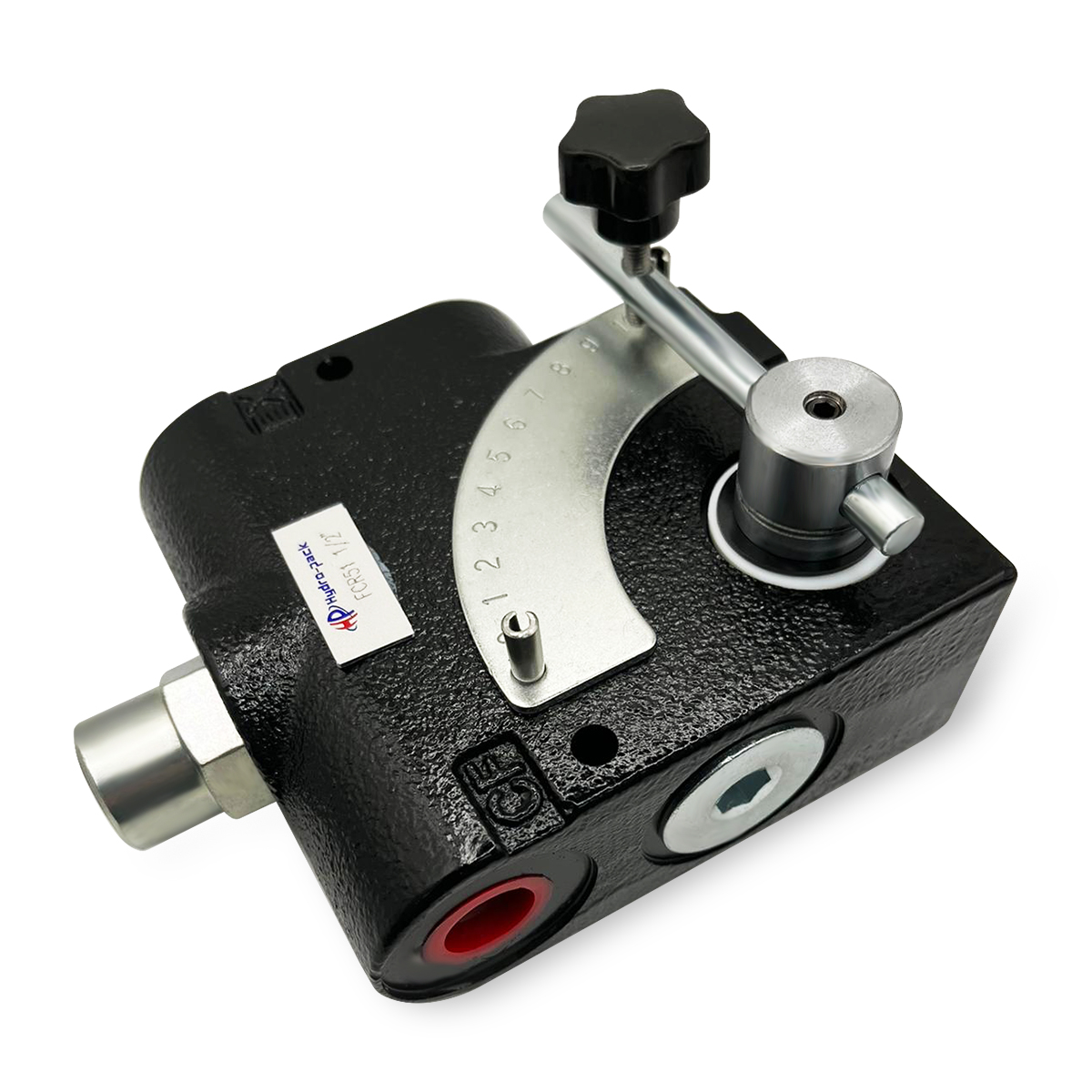

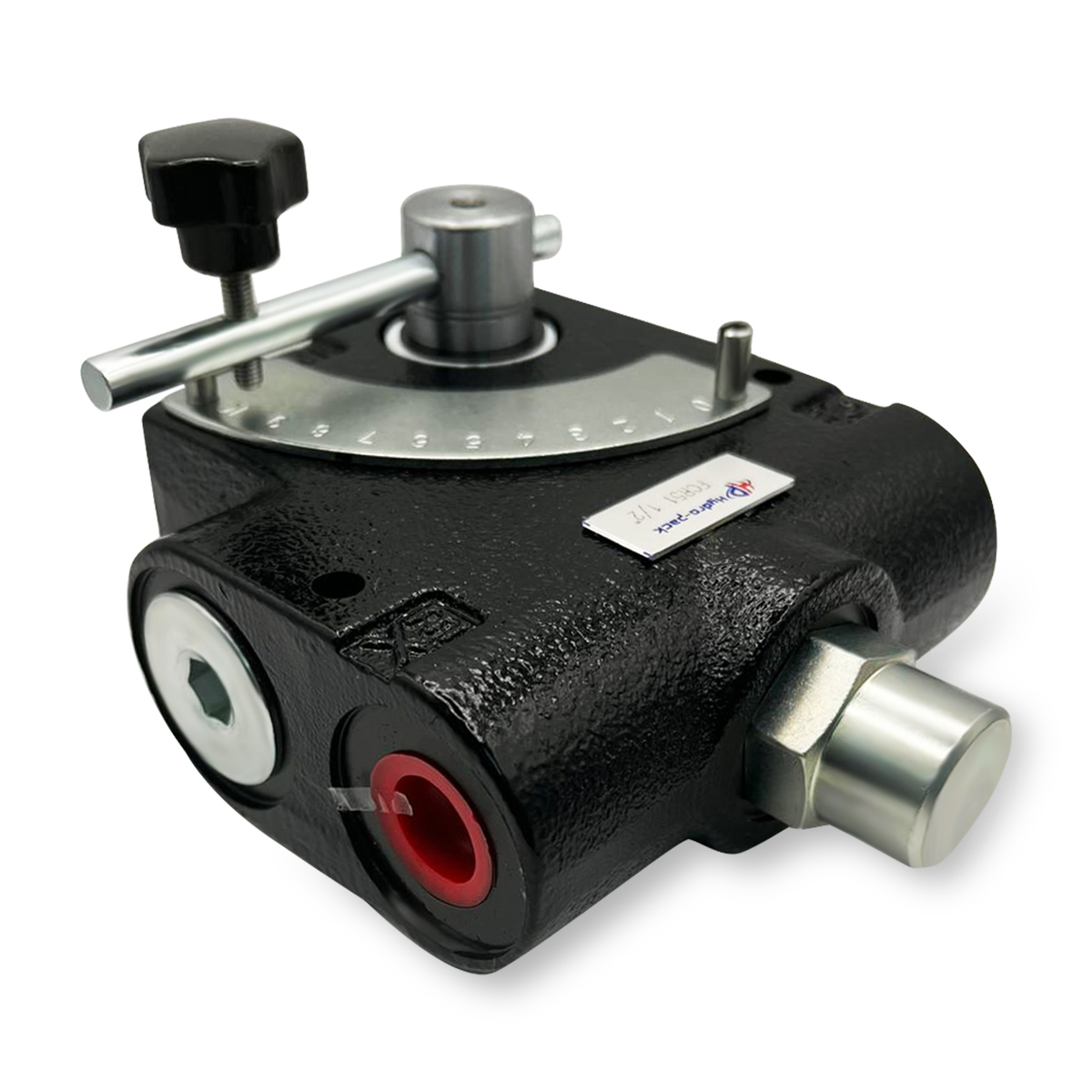

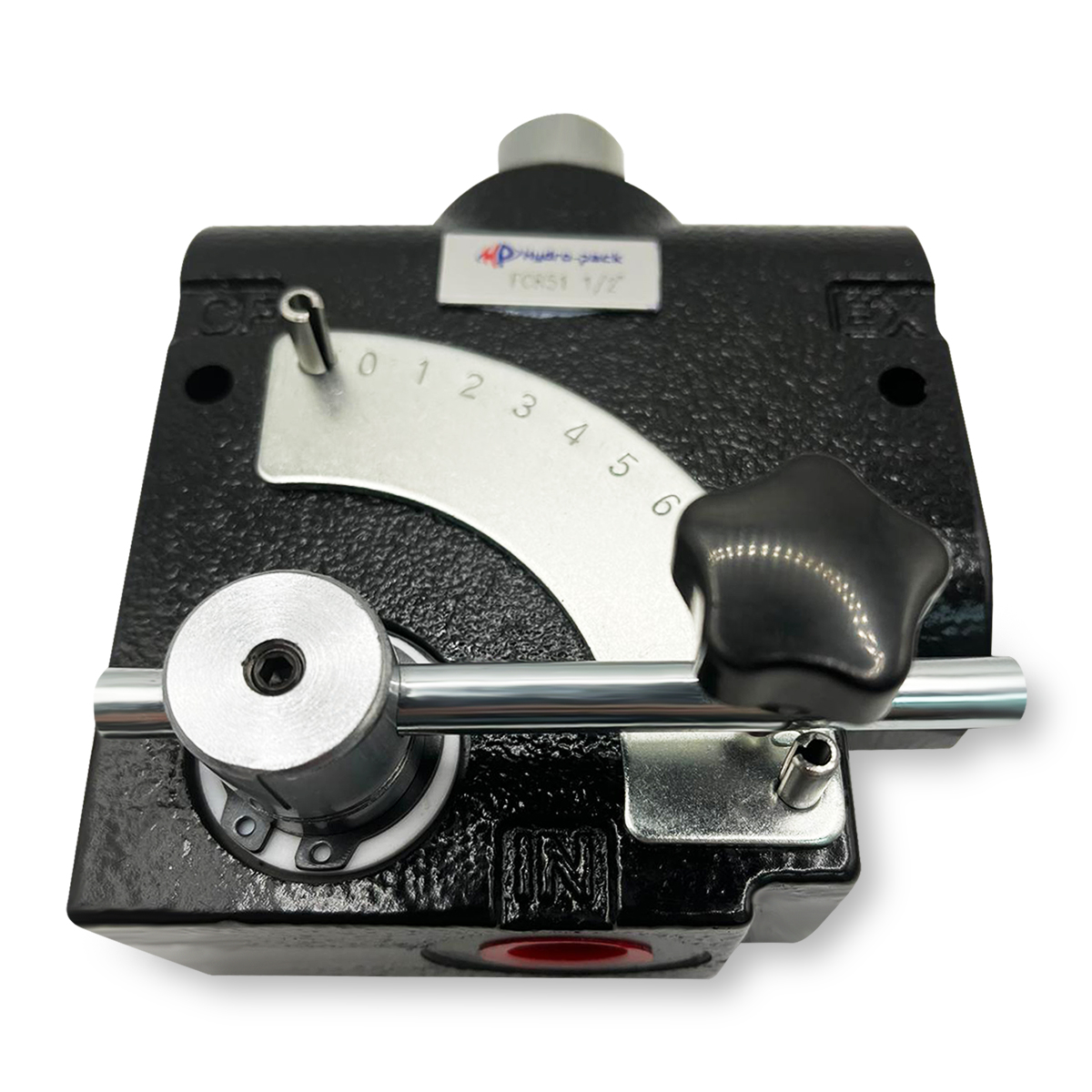

Hydraulic Adjustable Variable Flow Control Valve, 0-16 GPM, 1/2″ NPT
$148.00
Pay in 4 interest-free payments of $37.00SKU: HV-PCFC-16-08N
| Flow : | 0 - 16 GPM | Pressure : | 5000 PSI | Working Ports : | 1/2" NPT | Brand : | Hydro-Pack | Weight : | 8 LBs |
|---|
Volume discounts
5+ PRICE EA -5%
$140.60
10+ PRICE EA -10%
$133.20
In stock
38 in stock
Description
Hydraulic Adjustable Variable Flow Control Valve, 0-16 GPM, 1/2″ NPT. This valve is a full-range pressure compensating variable flow control. It is designed so that the orifice area varies as the lever is rotated. The outlet flow is smooth and constant regardless of the pressure on the control flow or excess flow ports. An adjustable ball spring relief allows for pressure compensated flow up to the pressure setting on the relief. Relief valves are preset at 1500 psi and field adjustable from 75 to 3000 psi.
- Cast iron body
- Heat treated compensator spool
- Stainless steel rotary spool
- Buna-n “O” rings
- 180 F
- Filtration 17/14/19
- For use with mineral based hydraulic fluid
- Side port configuration
- 100% Tested before dispatch
- External seals on rotary spool prevent contamination from locking up spool
Made in Europe utilizing American standards, can operate under temperature anywhere from – 40F and up to 180F.
Same-Day Shipping: all orders, made until 3 pm, will be shipped the same day (except weekends and holidays).
Free Ground Continental US Shipping
Made in Europe.
If you need assistance to choose a proper hydraulic valve, do not hesitate to contact us:
973-344-5313
Can't find what you're looking for? We are here to point you in the right direction. CONTACT US CLICK HERE or CALL US 973-344-5313 Local Shops
Torr Rodgers
This valve regulates flow just as expected. The 1/2″ NPT threads fit perfectly, and the GPM range is ideal. Would buy again!
jackball
Installed it on my log splitter, and it works flawlessly. Easy to adjust, no leaks, and feels very durable. Worth every penny!
Mkmgad2
Works perfectly for my hydraulic system. The adjustment is smooth, and the build quality is solid. Highly recommend for anyone needing precise flow control!
