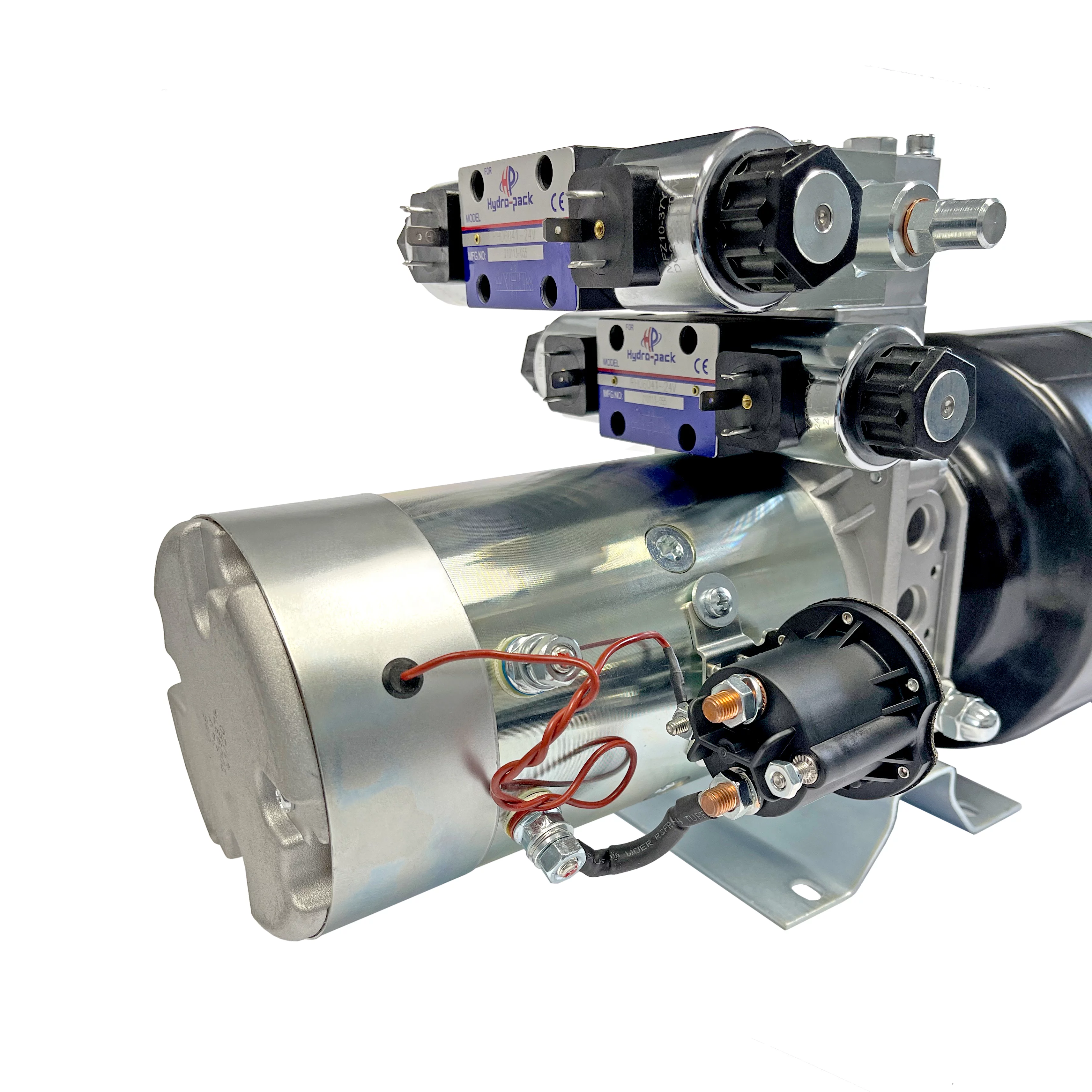

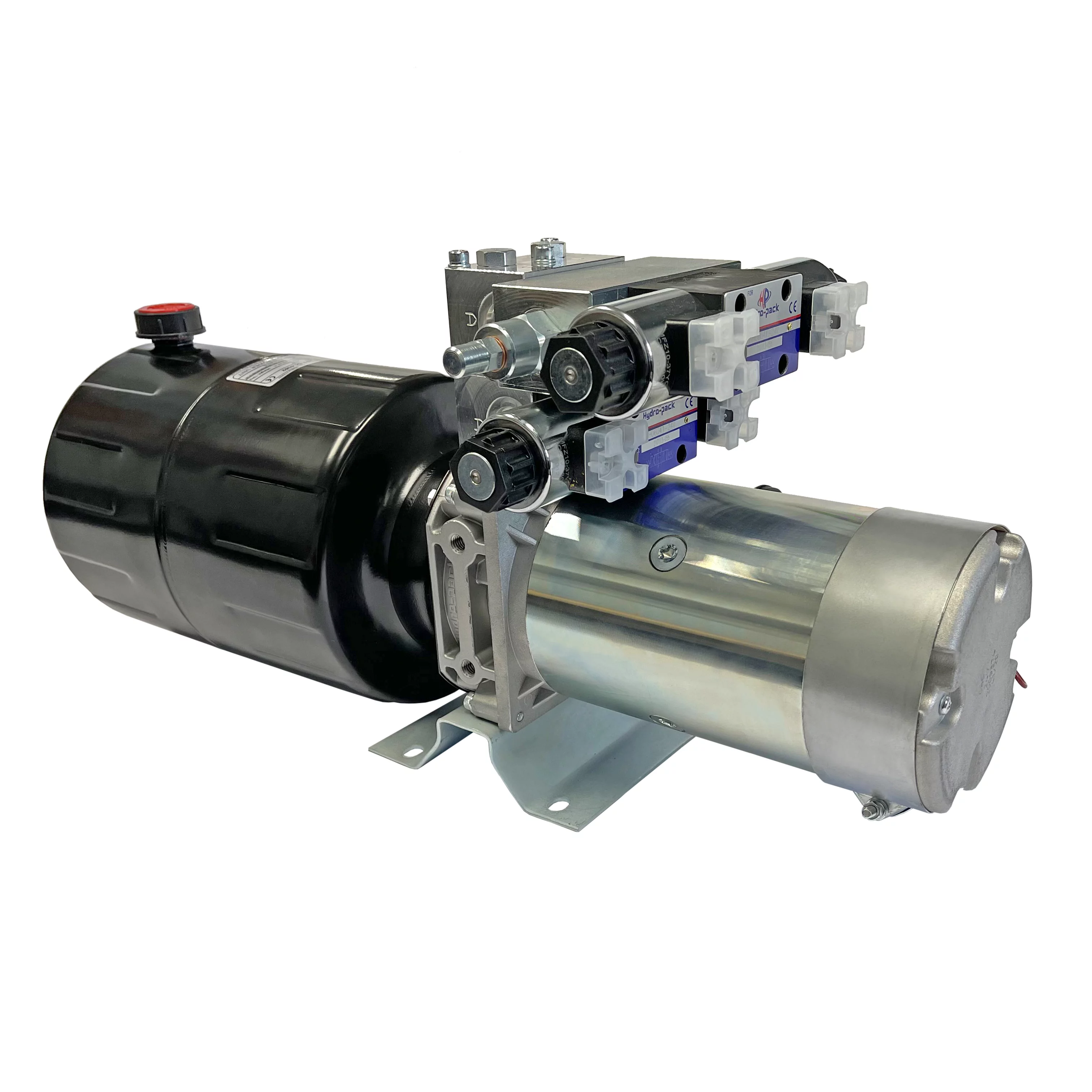

Snow Plow Hydraulic Power Unit 12V DC Double Acting 8 qts steel tank

This commercial-grade hydraulic power unit is engineered specifically for snow plow applications requiring reliable power up / power down operation. Built with a durable 8-quart steel reservoir and a high-efficiency 3 kW 12V DC motor, it delivers the performance needed for demanding winter conditions.
The system includes two solenoid valves:

• One for up/down blade motion with a floating position using a 2/2 BLPV block
• One for left/right blade movement

To protect your plow and hydraulic system from sudden impacts, the unit features a double over-center valve, which prevents damage when the blade hits obstacles.

The unit arrives pre-assembled in a horizontal configuration with a dependable gear pump delivering 1.8 GPM at 2500 PSI and 0.13 ci/rev displacement. The adjustable 2900 PSI pressure relief valve makes it easy to fine-tune system performance. Remote: Not included.

Benefits:

• All-weather performance thanks to 3 kW motor and efficient pump
• Improved safety with integrated double over-center valve
• Precise blade control with dual solenoid valve design
• Adjustable relief valve allows tuning pressure for your plow setup
• Durable steel tank prevents deformation in freezing conditions

Common Applications:

• • Pickup-mounted snow plows
  • Commercial snow removal trucks
