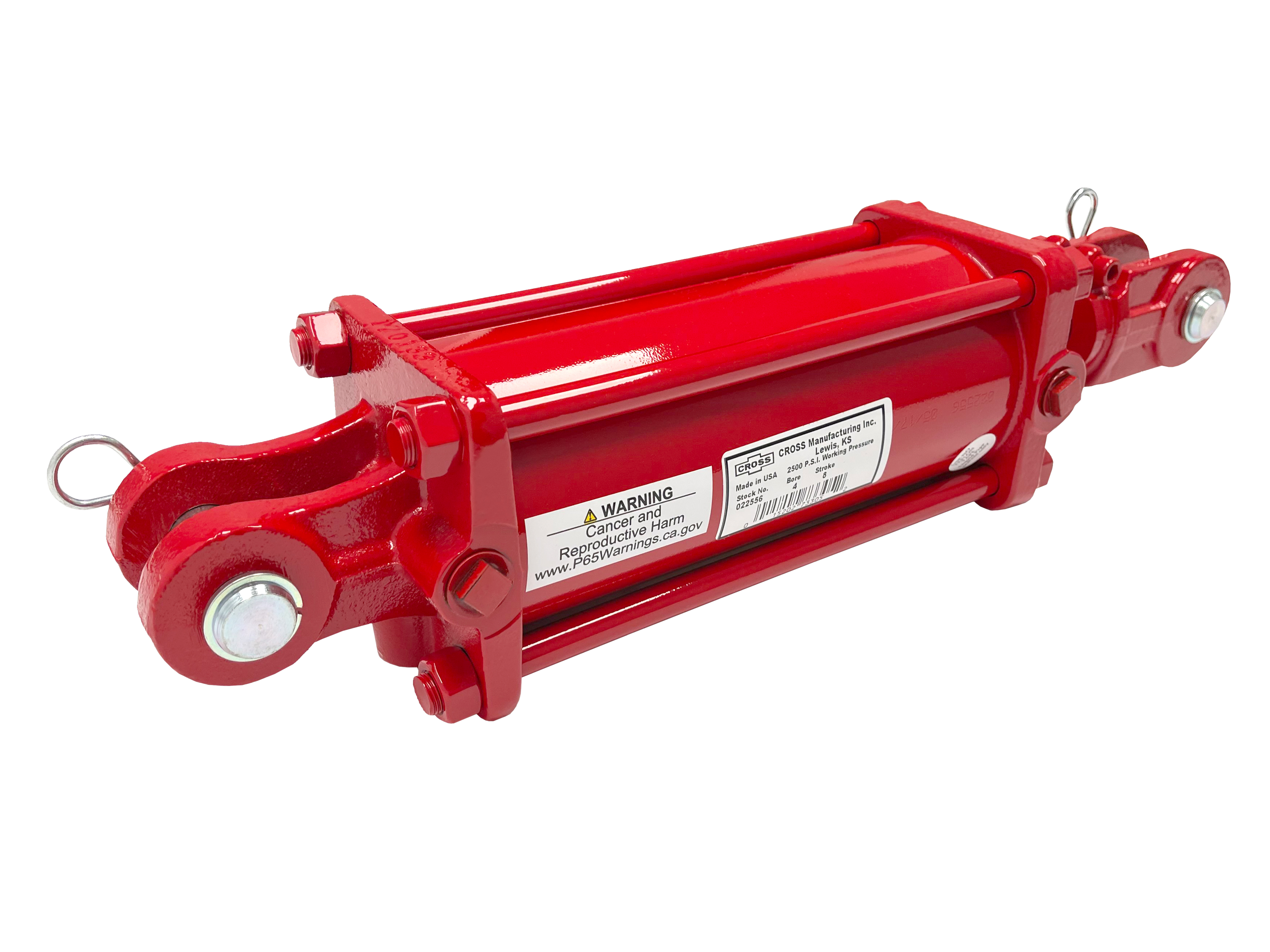

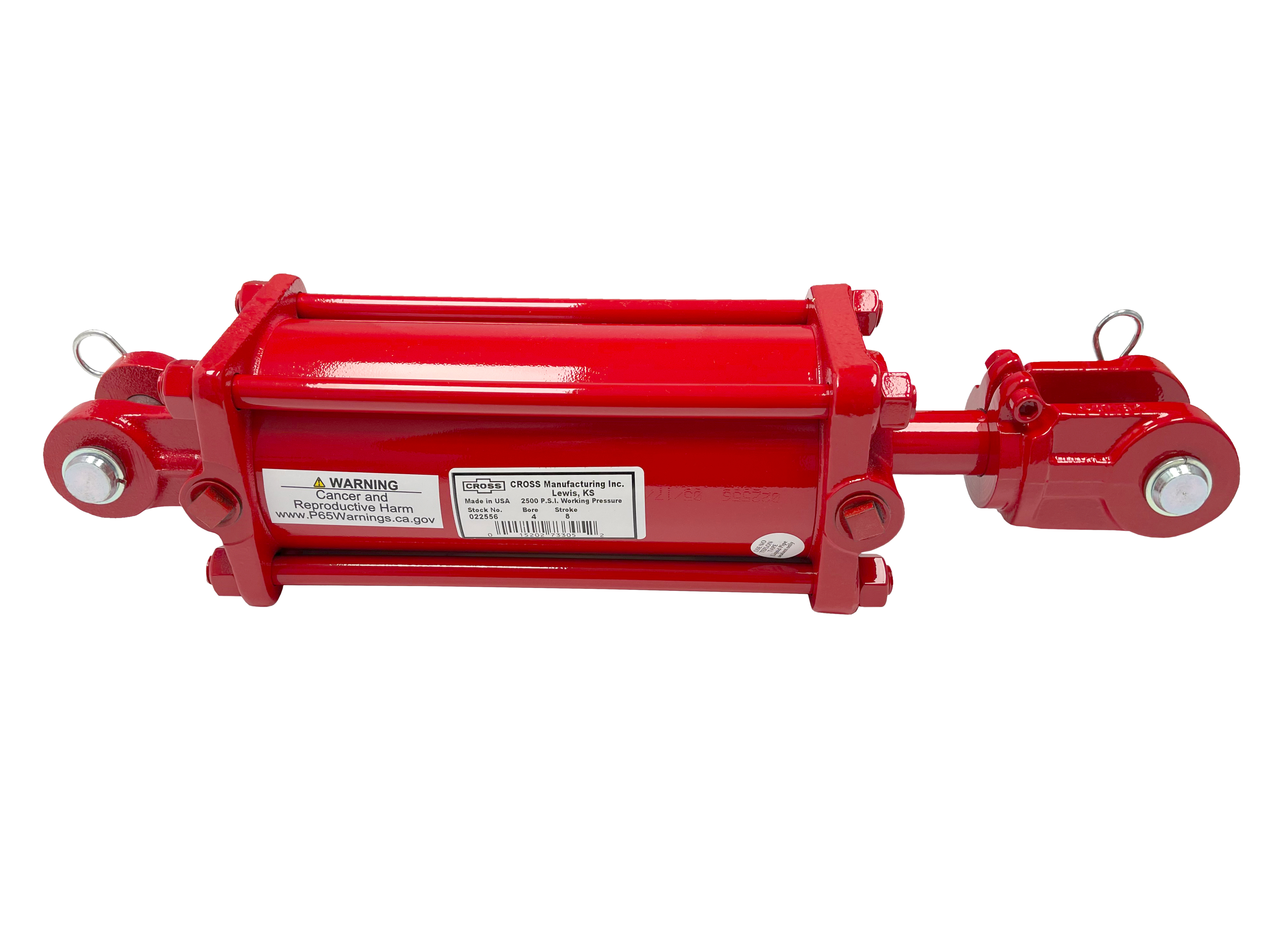

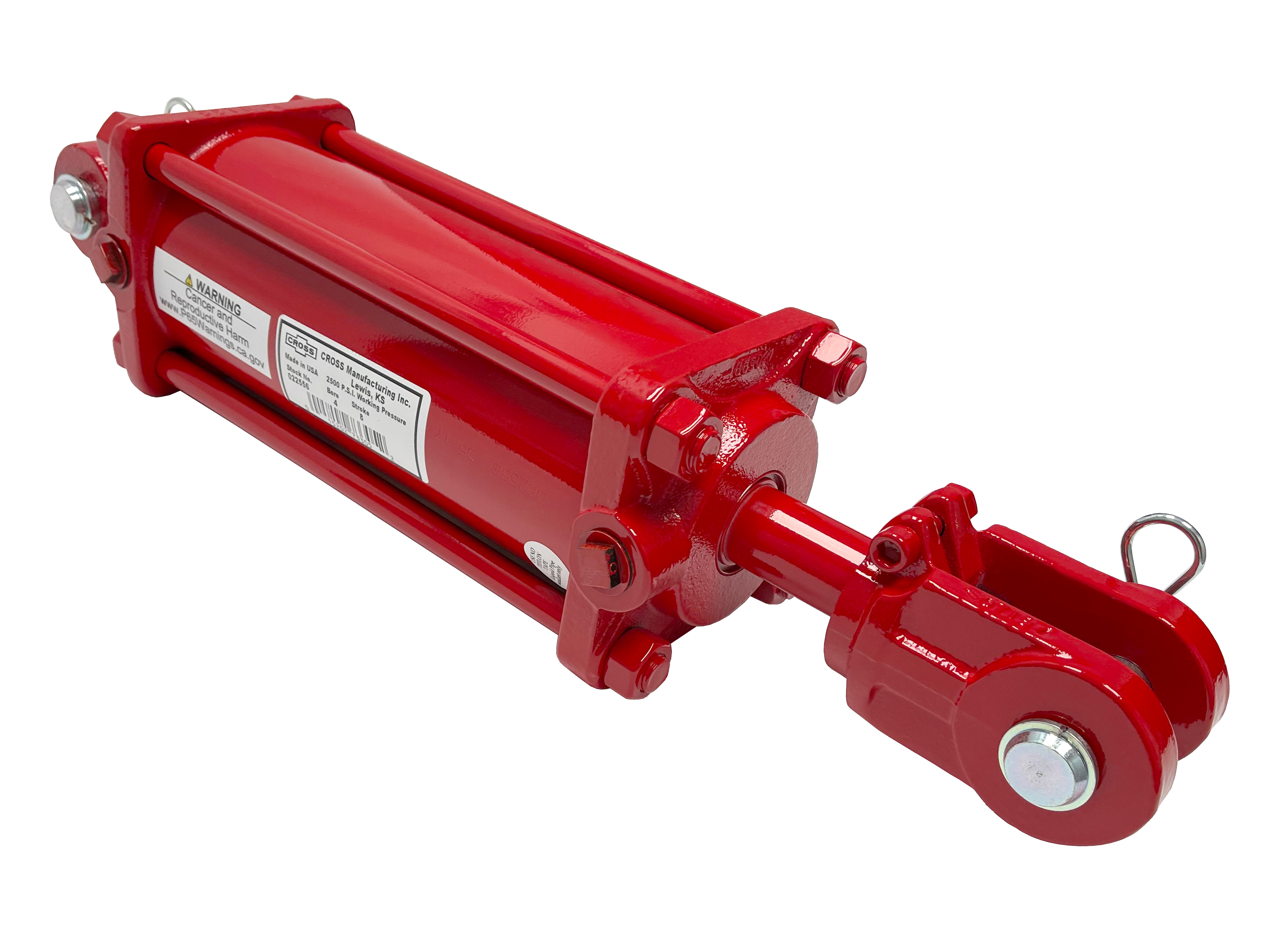

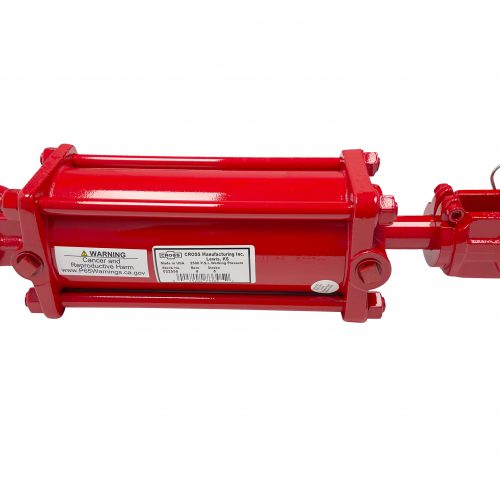

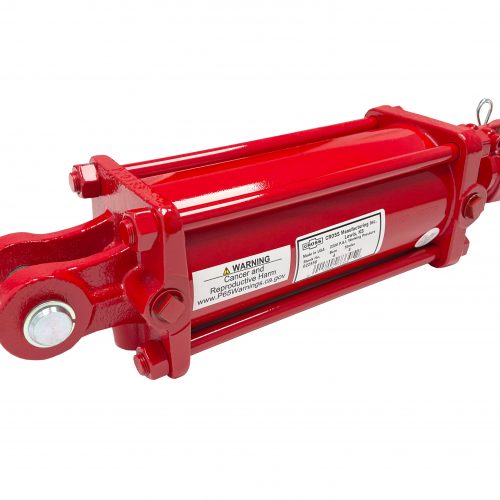

4" bore x 8" stroke CROSS rephasing tie rod hydraulic cylinder DR

$602.15

Pay in 4 interest-free payments of $150.54
SKU: 408DR

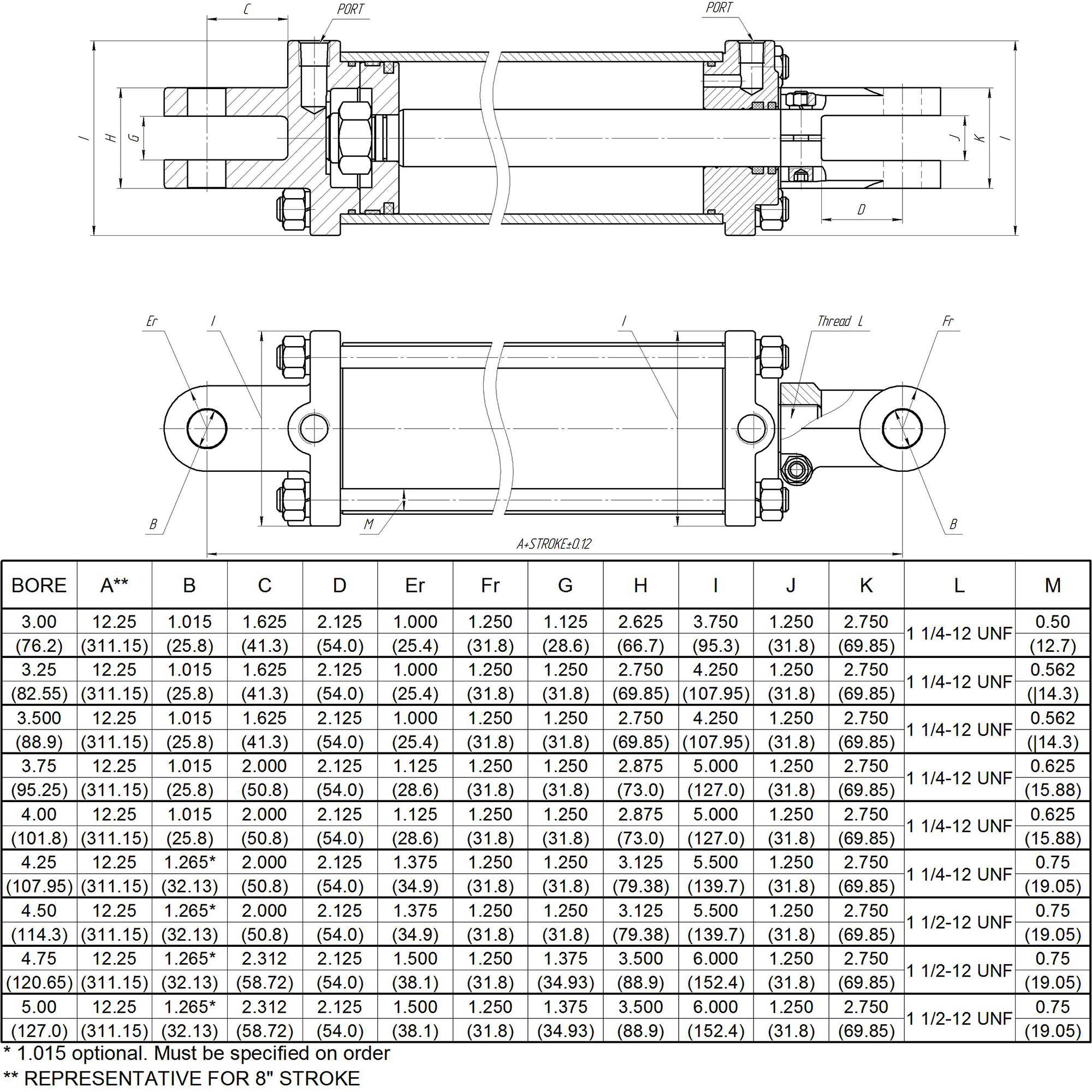

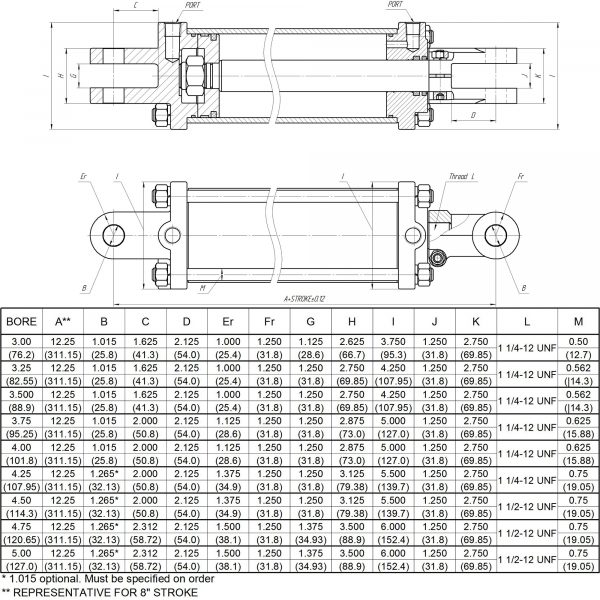

Bore : 4 in
Outer Dia. (⌀) : 5 in
Stroke : 8 in
Rod Dia. (⌀) : 1.375 in
Port Size : 1/2" NPT
Pin Dia. (⌀) : 1 in
Extended : 28.25 in
Retracted : 20.25 in
Overall length : 30.25 in
Pressure : 2500 PSI
Oil Volume : 1.74 QTs
Brand : CROSS MANUFACTURING
Design : Tie Rod
Rod Type : Hardened chrome plated
Rod End : Clevis
Action :
  • Double Acting
  • Weight : 42 LBs
    GTIN : 15202733038
    In stock

    Description

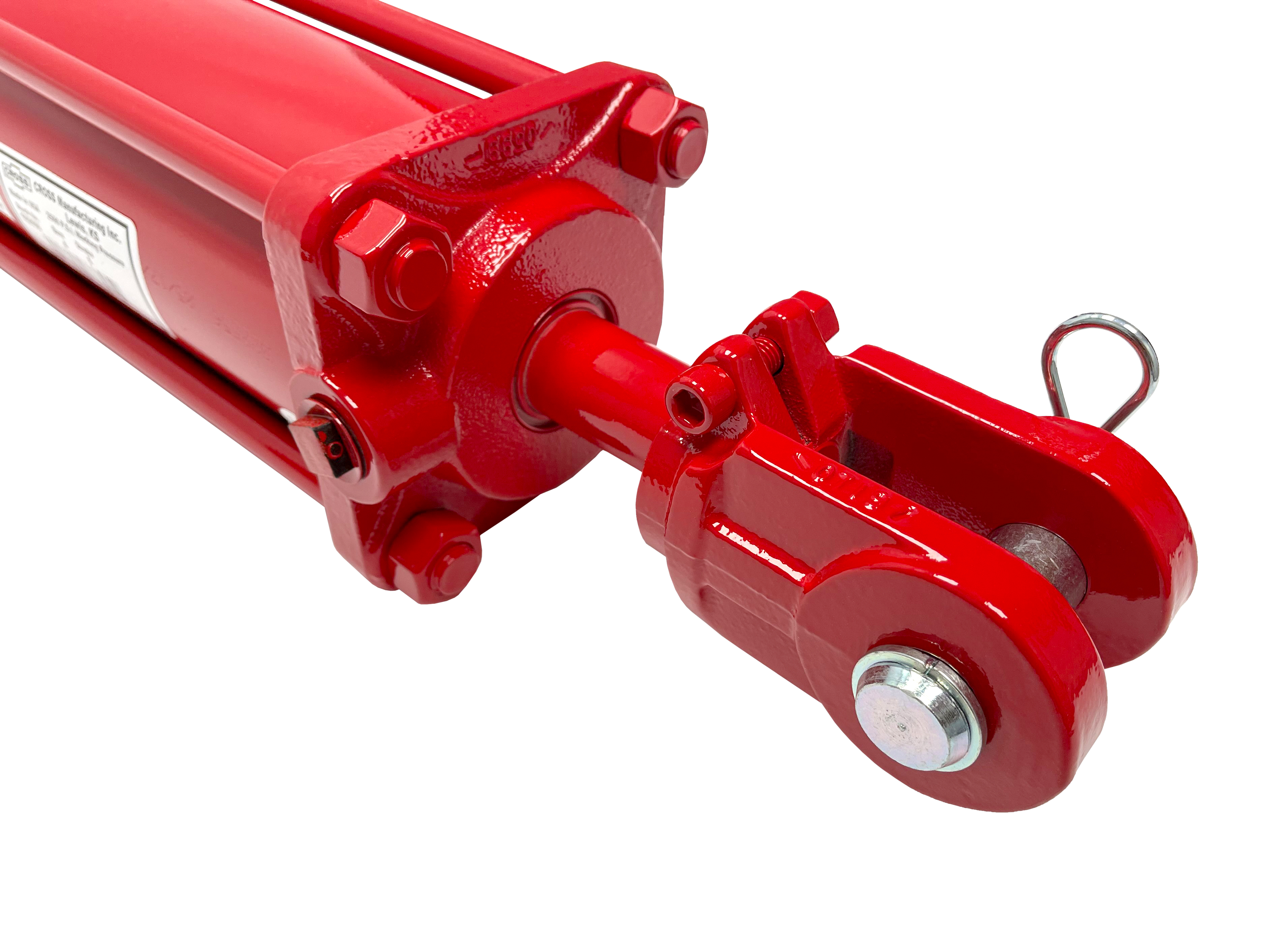

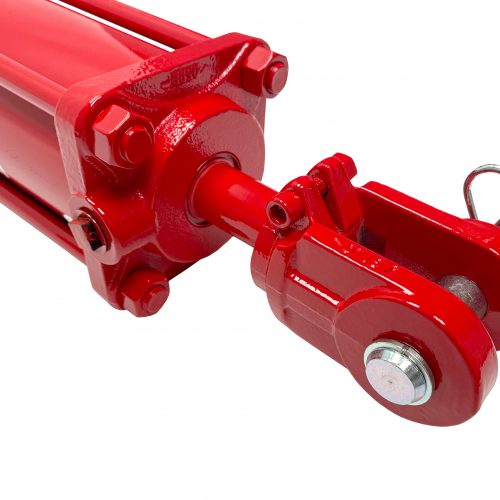

    • 4″ bore x 8″ stroke the CROSS series DR tie rod rephasing hydraulic cylinder 2500PSI made in the United States. Heavy-duty hydraulic equipment, 1-year warranty, free ground Continental US shipping. CROSS Manufacturing cylinders manufactured with high quality raw materials and american labor. These cylinder incorporate an internal mechanism for automatic raphasing in a series circuit, may be used as master or slave unit with DC cylinders. Precision finished ST52.3 steel cylinder barrels and polished induction hardened C1045 steel alloy rods, upgraded hevy-duty seals provide a long life for CROSS hydraulic cylinders. Ductile iron screw on clevis and double ported base for easy connection. High tensile strength tie rods with rolled threads for durability. Piston produced by high strength aluminum alloy with crown seal. Double lipped u-cup rod seals. 1/2″ NPT ports in line with pins. Hardened steel pins. Excellent replacement for farming equipment and others. Made in the USA.
