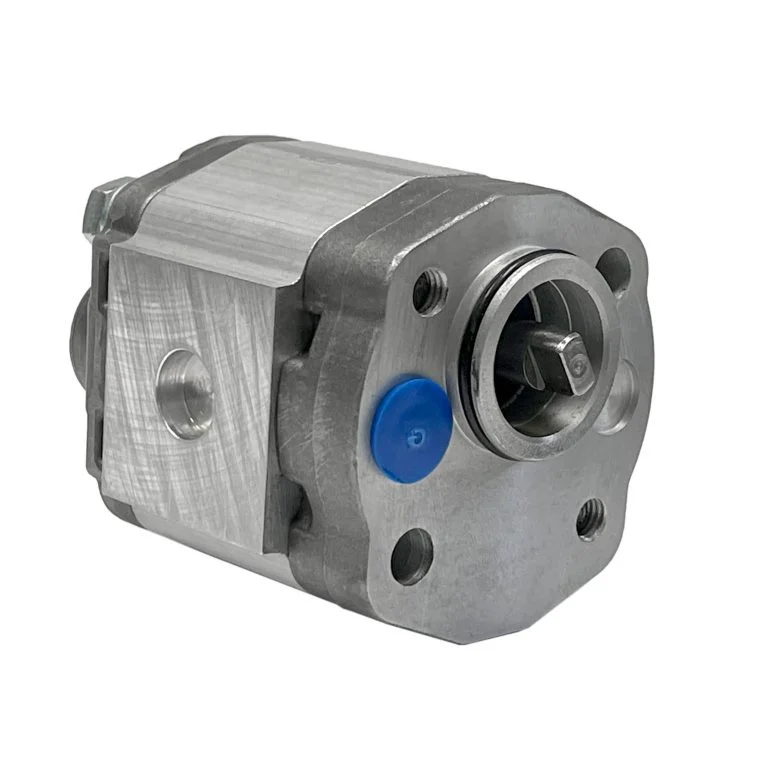

2.8 CC mini hydraulic power packs gear pump, flat tang shaft counter-clockwise gear pump | Magister Hydraulics

2.8 CC mini hydraulic gear pump flat tang shaft CCW


* Wholesale Discount is available for this product if you purchase 4 or more products.
CC/rev : 2.8
Rotation : CCW (left)
MAX RPM : 4000
Inlet Port : NPT 3/8"
Pressure : 3900 PSI
Outlet Port : 9 mm with o-ring
GPM @ 3000 RPM : 2.22

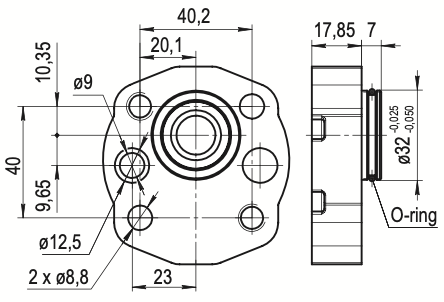

Flange : Through Bolt
Brand : Magister Hydraulics
GTIN : 850033934595
SKU: HGP AL-TDS-1K-CC28L Categories: ,

Volume discounts

4+ PRICE EA -5%
10+ PRICE EA -10%
In stock

54 in stock

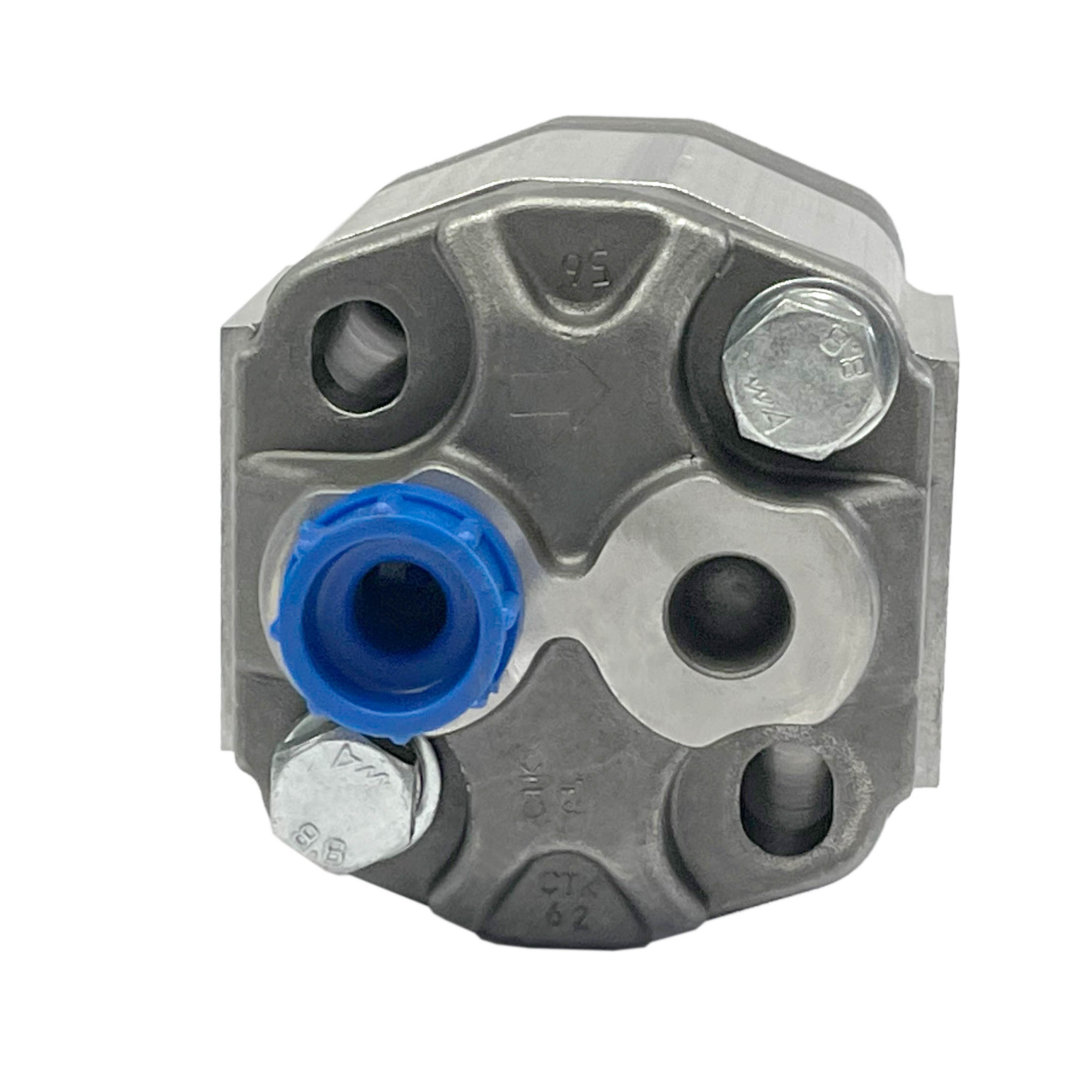

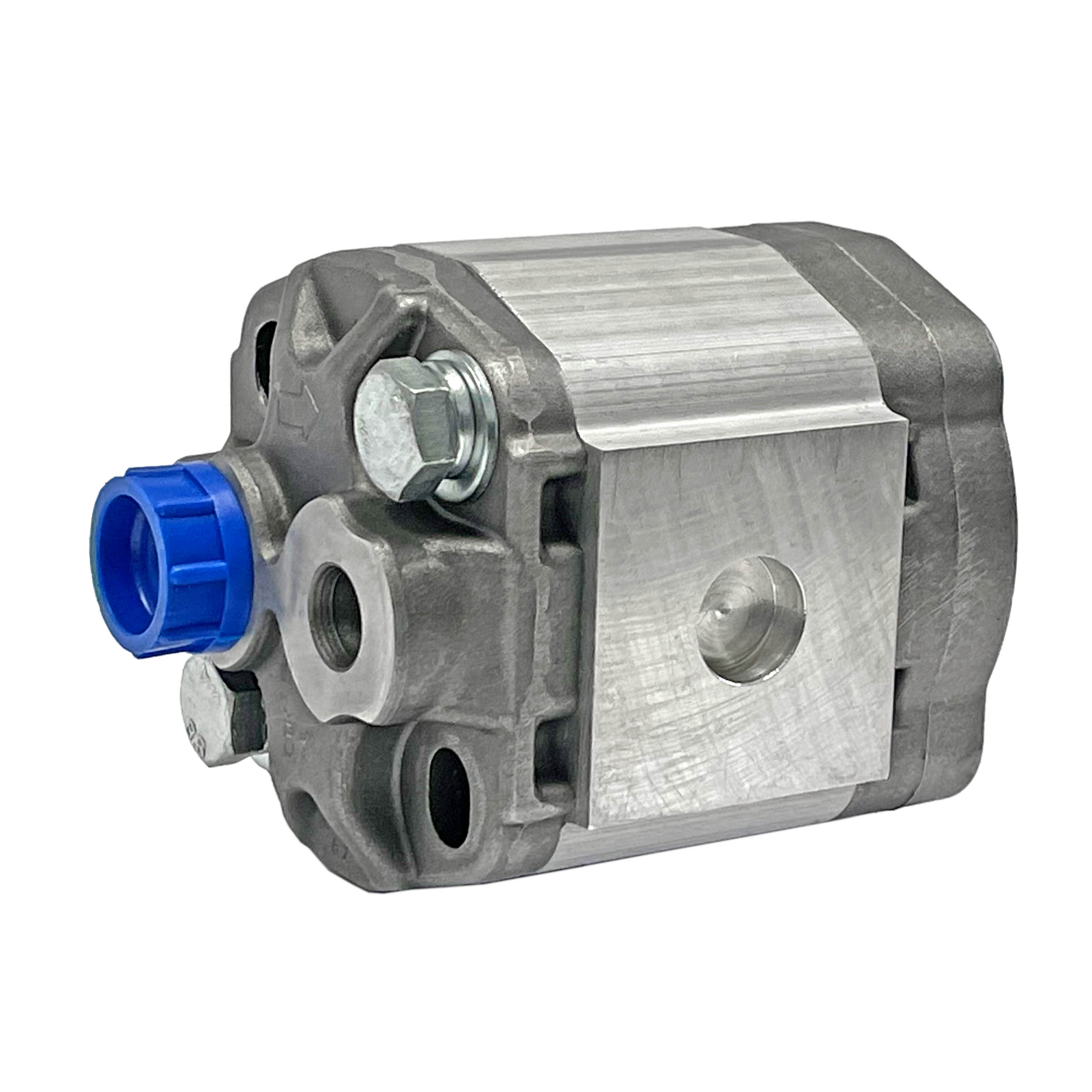

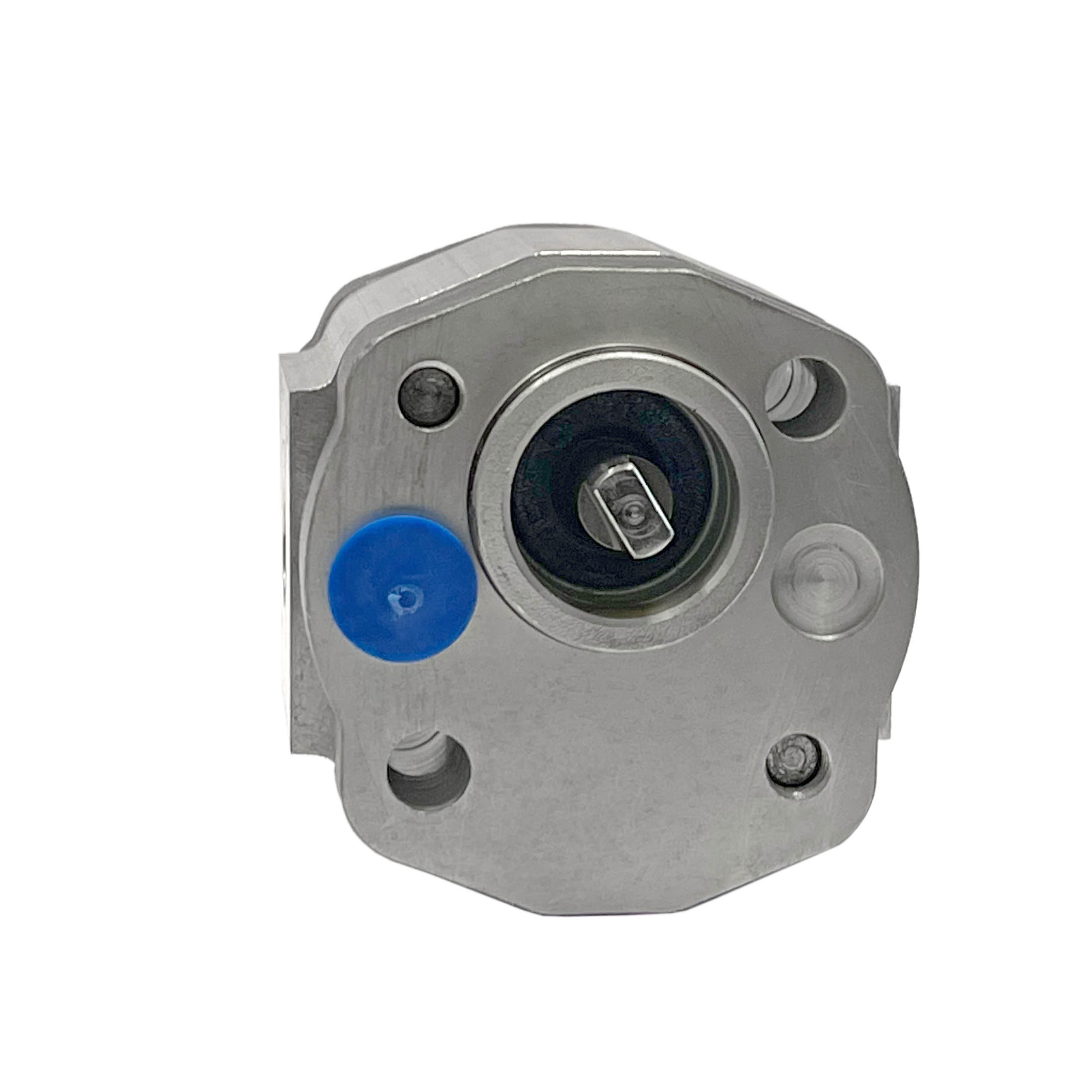

  • 2.8 CC aluminum mini hydraulic gear pump 3900 PSI max presure. Durable flat tang shaft with counter-clockwise (left) rotation. Through bolt mounting flange and 4000 max RPM. Front outlet and rear inlet ports. 1-year warranty and free same day ground Continental US shipping. Magister mini gear pumps are great for hydraulic power units and power packs. These pumps are designed to be installed inside an oil reservoir.

Free Ground Continental US Shipping

Tariff-FREE Gear pumps.

Made in Europe.

If you need assistance to choose a proper hydraulic Gear pumps replacement, do not hesitate to contact us:

Can't find what you're looking for? We are here to point you in the right direction. CONTACT US CLICK HERE or CALL US 973-344-5313 Local Shops
