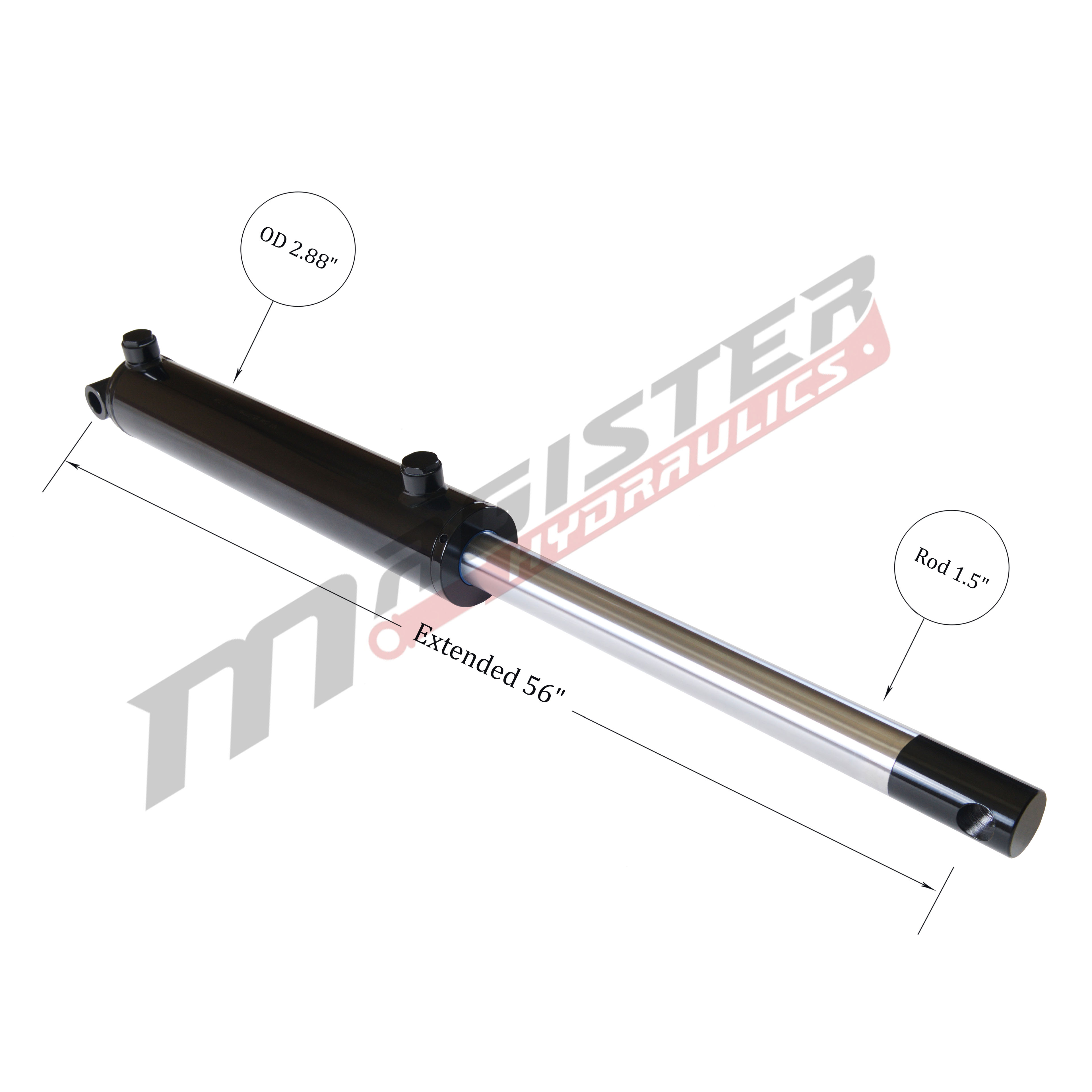

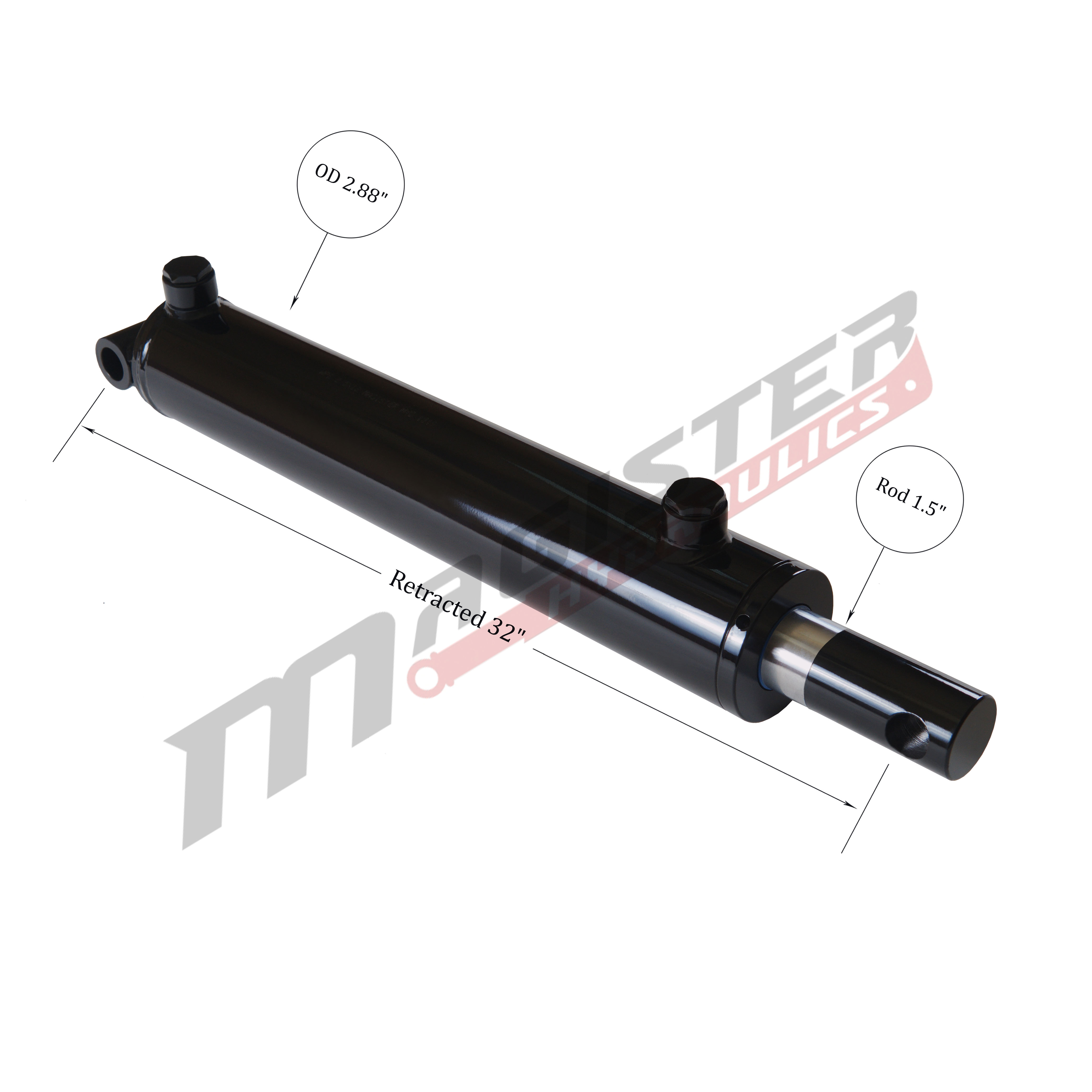

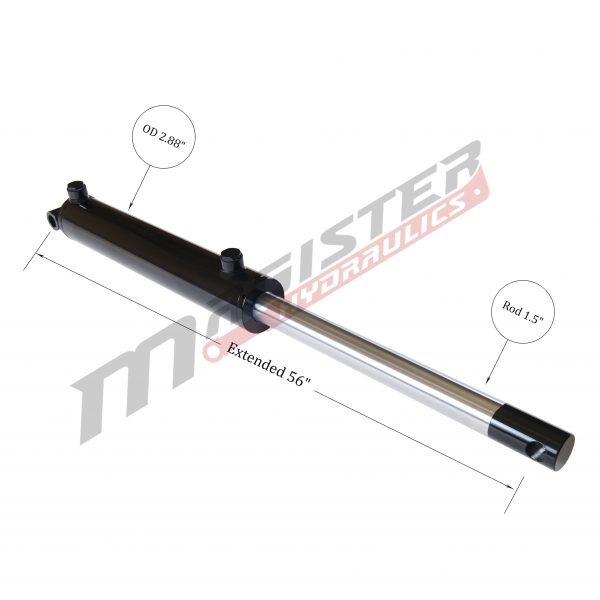

2.5" bore x 24" stroke pin eye hydraulic cylinder
Pay in 4 interest-free payments of $61.75* Wholesale Discount is available for this product if you purchase 4 or more products.
SKU: WPE 2.5x24

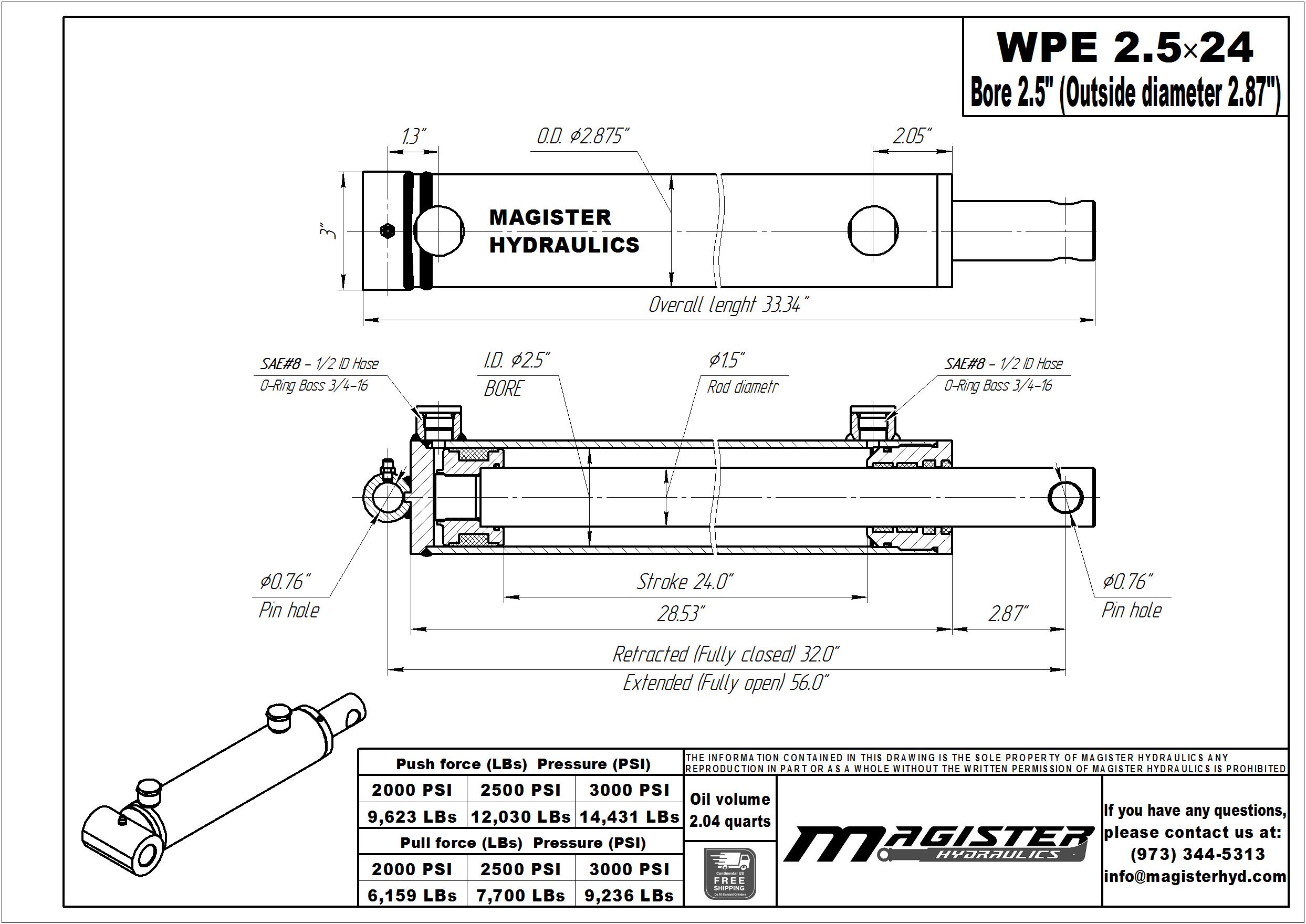

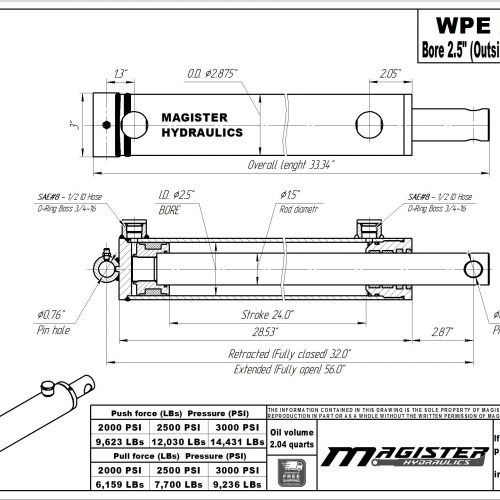

|Bore :||2.5” Bore Hydraulic Cylinders||OD :||2.87"||Stroke :||24” Stroke Hydraulic Cylinders||Rod :||1.5"||Port Size :||SAE 8||Pin :||0.75"||Extended :||56"||Retracted :||32"||Overall length :||33.37"||Pressure :||Hydraulic Cylinders 3500 PSI||Column Load (LBs) :||14,700||Oil Volume (quarts) :||2.04||Brand :||Magister Hydraulics|
1+ PRICE EA
4+ PRICE EA -3%
8+ PRICE EA -6%
21 in stock
- 2.5″ bore x 24″ stroke pin eye hydraulic cylinder 3500 PSI. Heavy-duty hydraulics, 2-year hassle-free warranty, free ground Continental US shipping. Magister cylinders manufactured using steel piston and steel threaded gland with wear rings for long life. Welded across steel tube, honed cold-drawn tubing, hard chrome plated rod with pin through hole, and top quality five component piston seals allow Magister Hydraulics cylinders to work in extreme conditions. Excellent replacement for construction, material handling and farming equipment.
- Applications: Welded Double Acting Hydraulic Cylinder.
- Color: Black.
We provide volume discounts for all our standard cylinders. When purchasing 4-9 ea, 5% discount. When purchasing 10+ ea, 10% discount.
Made in Europe.
If you need assistance to choose a proper hydraulic cylinder replacement, do not hesitate to contact us:
