3.5 bore x 16 stroke hydraulic cylinder, welded pin eye double acting cylinder | Magister Hydraulics

3.5" bore x 16" stroke pin eye hydraulic cylinder

Name: 3.5" bore x 16" stroke pin eye hydraulic cylinder
Brand: Magister Hydraulics
SKU: WPE 3.5x16
Price: 292.00 USD
Availability: InStock
Rating: 5 (10 reviews)

$292.00

Pay in 4 interest-free payments of $73.00

* Wholesale Discount is available for this product if you purchase 4 or more products.

SKU: WPE 3.5x16

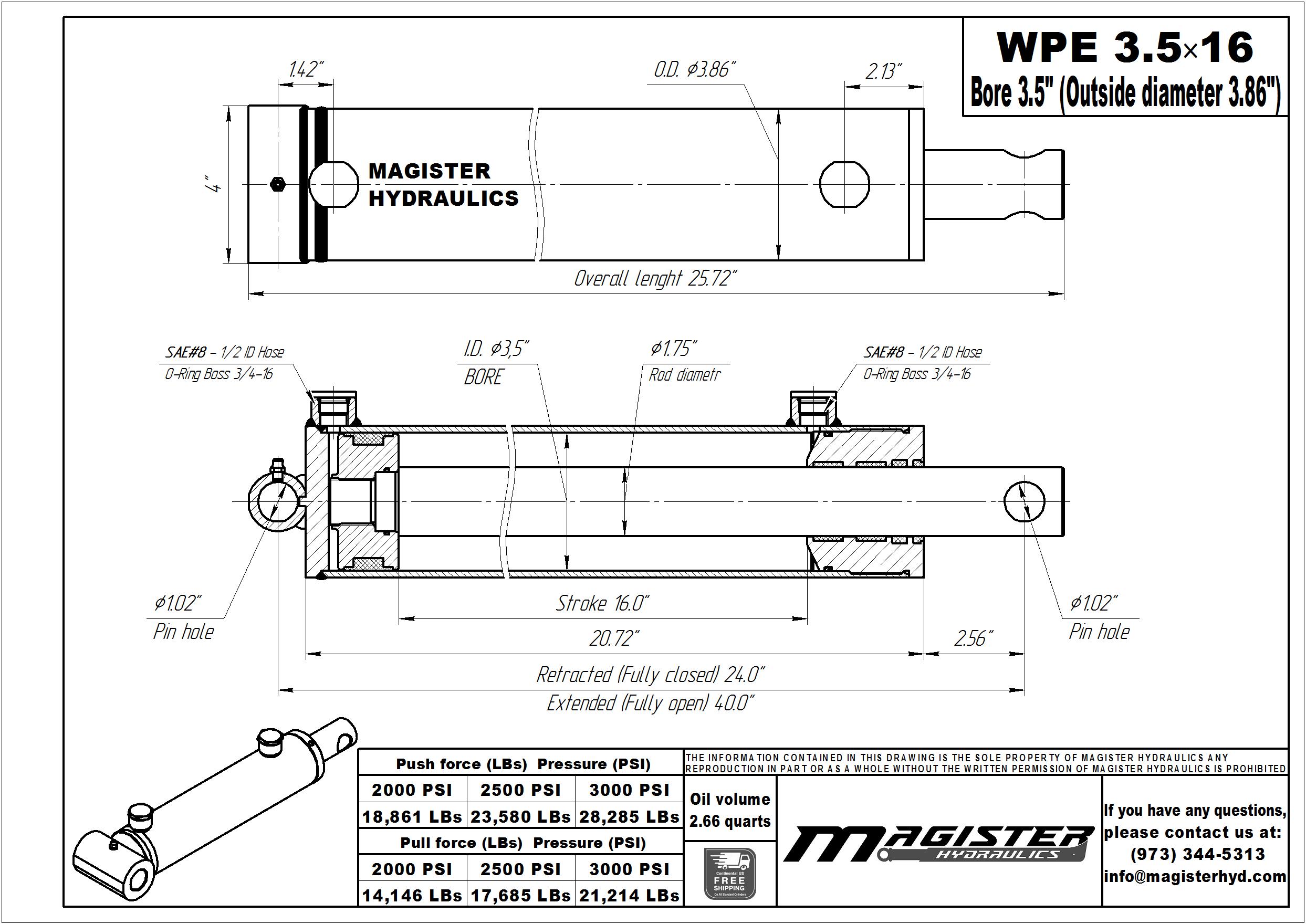

Bore :	3.5 inch
OD :	3.86"
Stroke :	16 inch
Rod :	1.75"
Port Size :	SAE 8
Pin :	1"

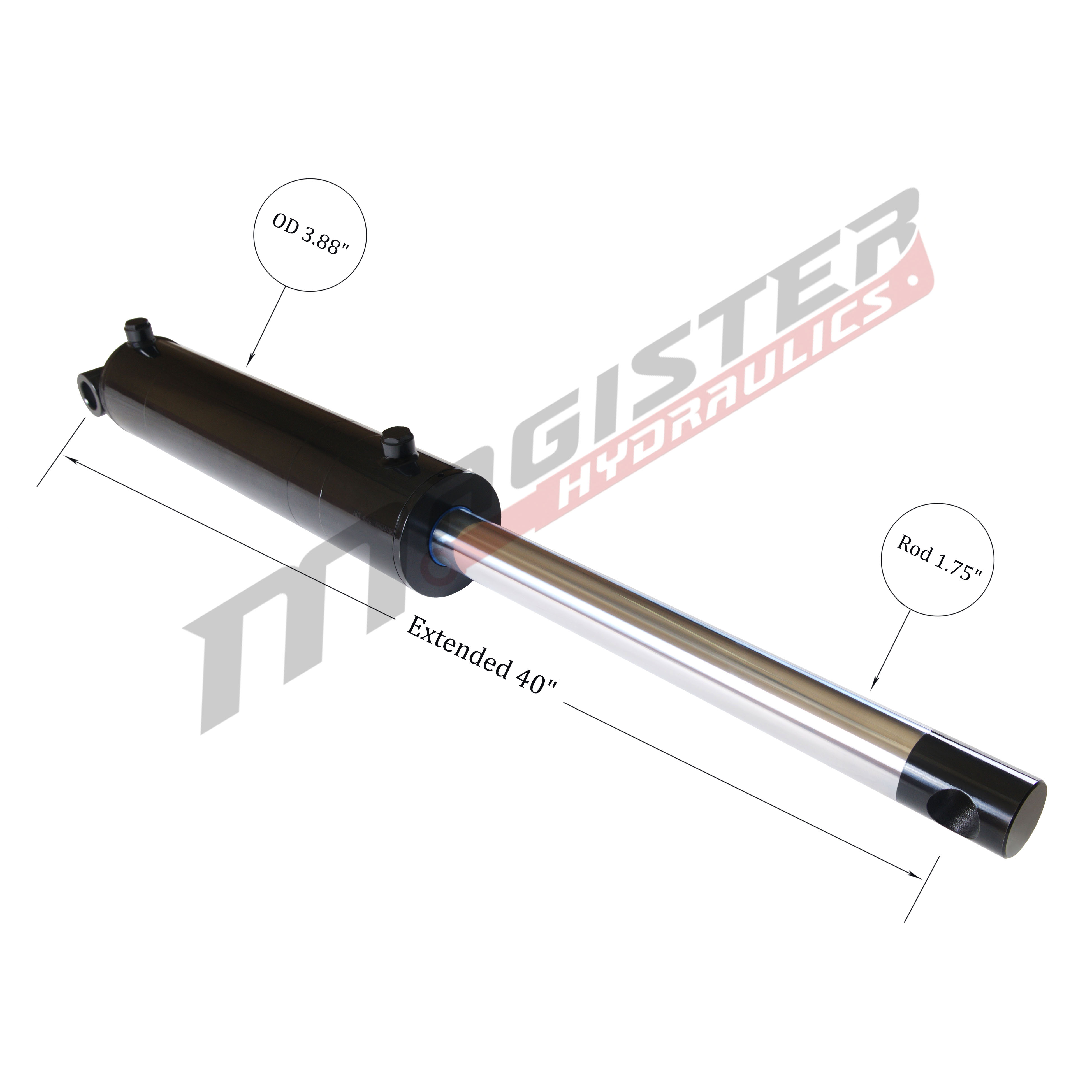

Extended :	40"

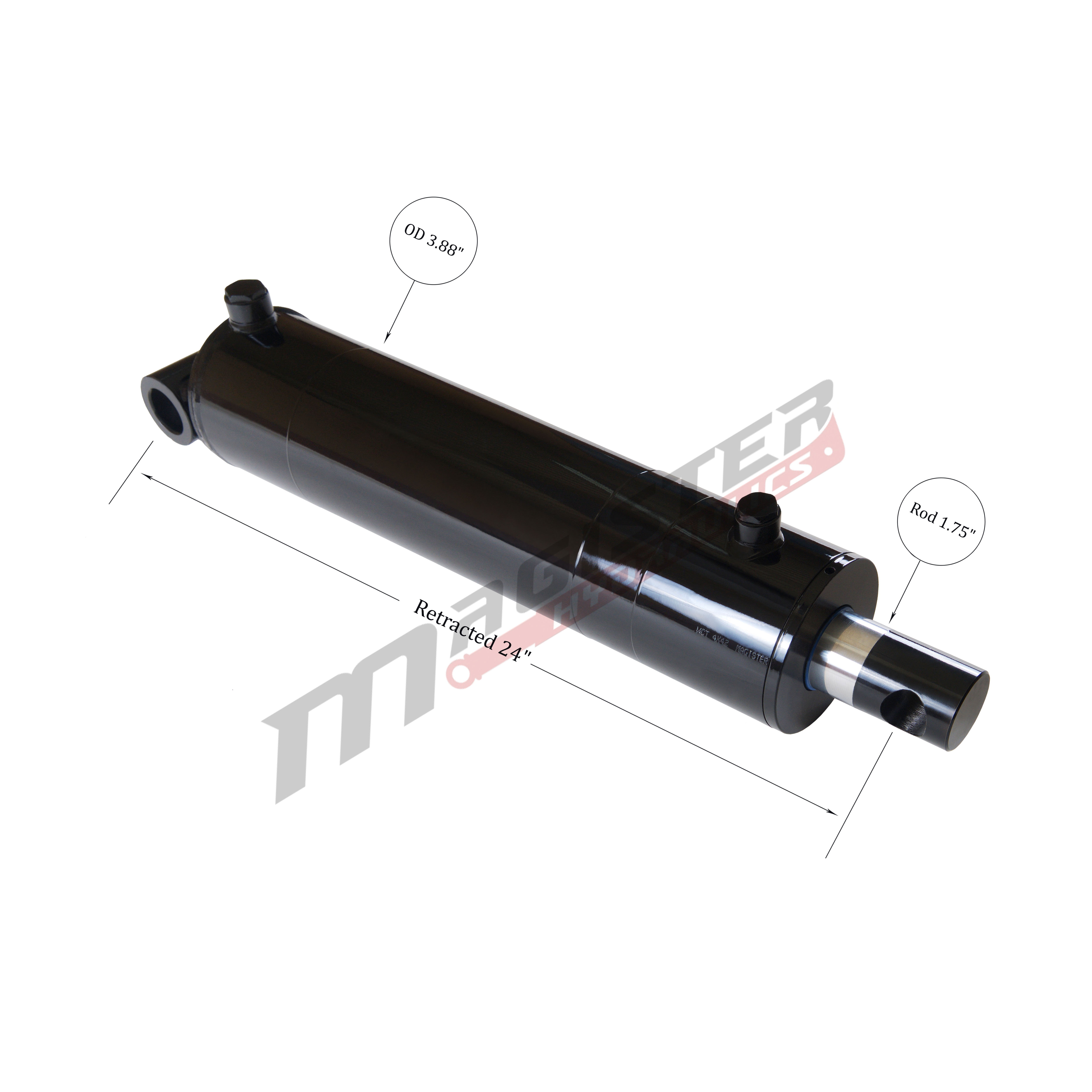

Retracted :	24"
Overall length :	25.7"
Pressure :	Hydraulic Cylinders 3500 PSI
Column Load (LBs) :	28,800
Oil Volume (quarts) :	2.66
Brand :	Magister Hydraulics
GTIN :	857743006642

SKU: WPE 3.5x16 Categories: 3.5" Bore Pin Eye, Hydraulic Cylinders

1+ PRICE EA

$292.00

4+ PRICE EA -3%

$283.24

8+ PRICE EA -6%

$274.48

In stock

29 in stock

DESCRIPTION

3.5″ bore x 16″ stroke pin eye hydraulic cylinder 3500 PSI. Heavy-duty hydraulics, 2-year hassle-free warranty, free ground Continental US shipping. Magister cylinders manufactured using steel piston and steel threaded gland with wear rings for long life. Welded across steel tube, honed cold-drawn tubing, hard chrome plated rod with pin through hole, and top quality five component piston seals allow Magister Hydraulics cylinders to work in extreme conditions. Excellent replacement for construction, material handling and farming equipment.
Applications: Welded Double Acting Hydraulic Cylinder.
Color: Black.
FREE SHIPPING

We provide volume discounts for all our standard cylinders. When purchasing 4-9 ea, 5% discount. When purchasing 10+ ea, 10% discount.

Tariff-FREE cylinders.
Made in Europe.
If you need assistance to choose a proper hydraulic cylinder replacement, do not hesitate to contact us:
973-344-5313
