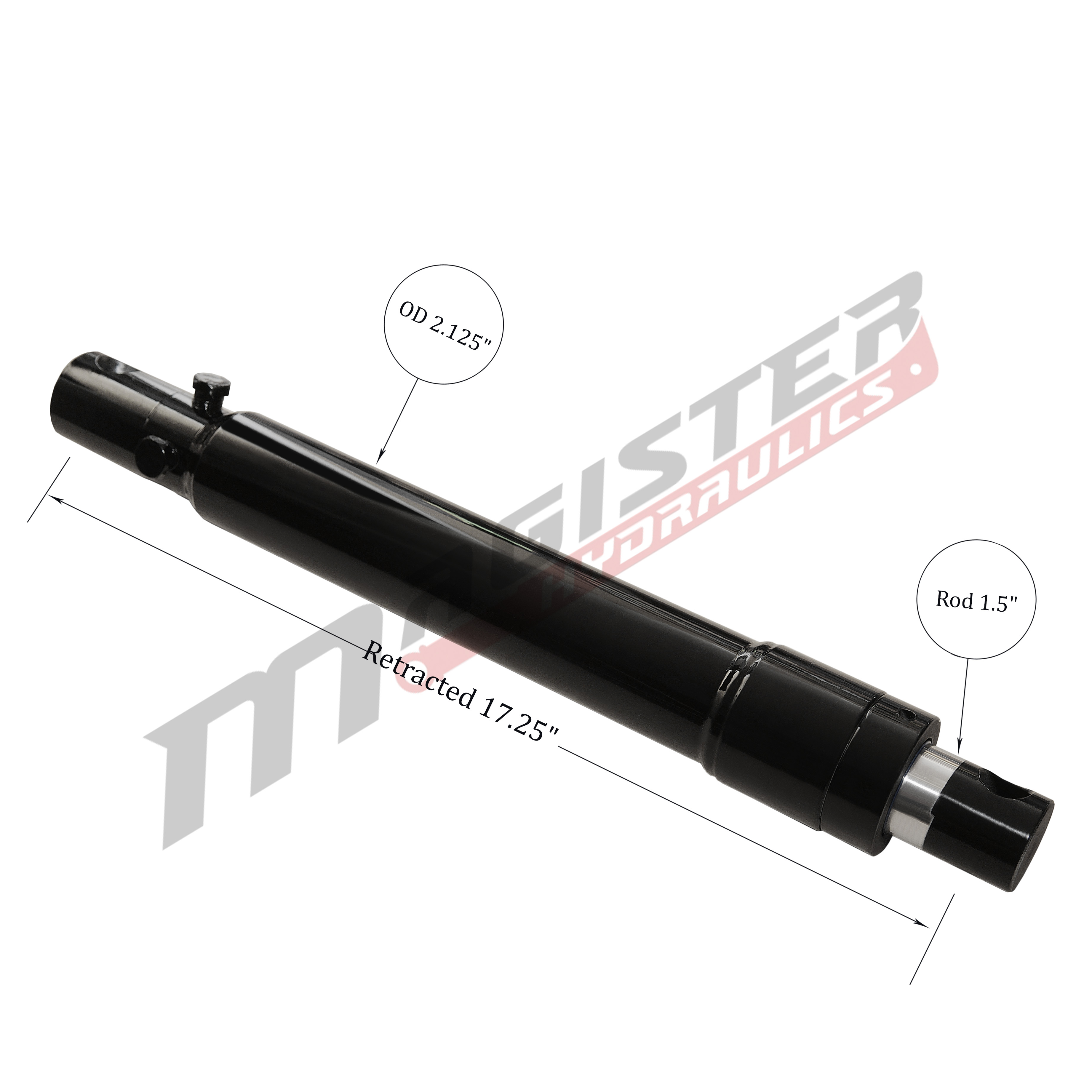

1.5" bore x 10" stroke snow plow Western hydraulic cylinder .75" pin
$139.00
Pay in 4 interest-free payments of $34.75SKU: WSP 1.5x10W75

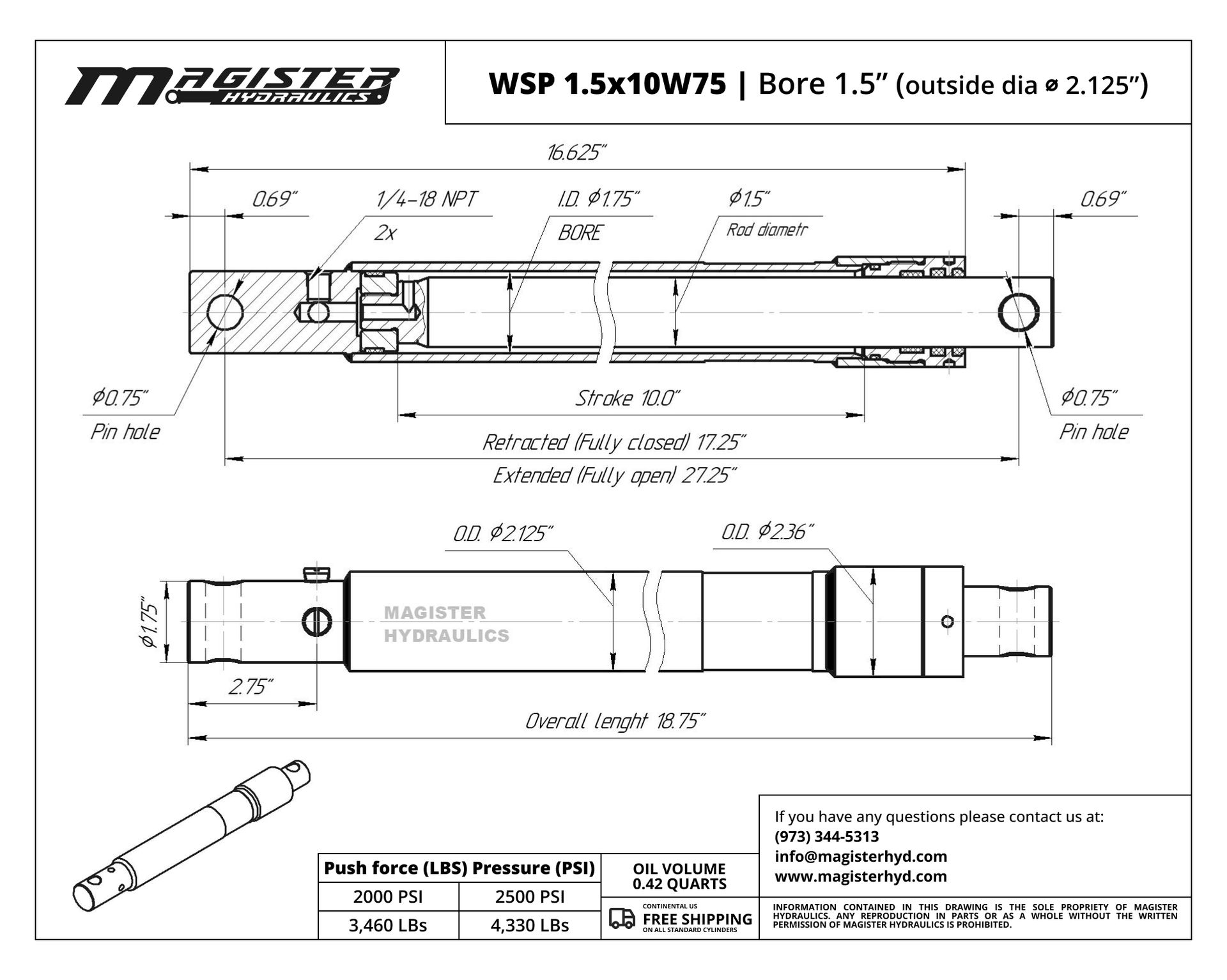

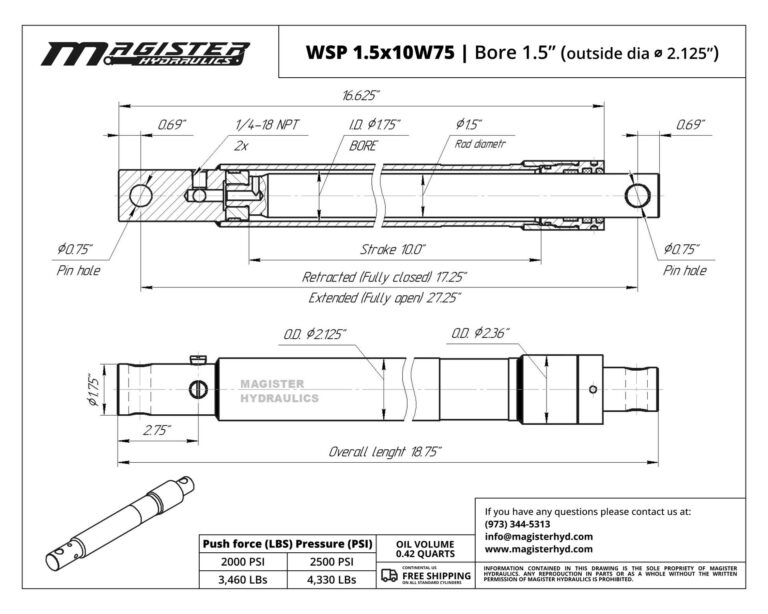

| Bore : | 1.5 in | Outer Dia. (⌀) : | 2.125 in | Stroke : | 10 in | Rod Dia. (⌀) : | 1.5 in | Port Size : | 1/4 - 18" NPT | Pin Dia. (⌀) : | 3/4 in | Extended : | 27.25 in | Retracted : | 17.25 in | Overall length : | 18.75 in | Pressure : | 2500 PSI | Push Force : | 4,330 LBs | Oil Volume : | 0.42 QTs | Brand : | Magister Hydraulics | Design : | Welded | Rod Type : | Chrome Plated | Rod End : | Pin Hole | Action : | Single Acting | Weight : | 15 LBs |
|---|---|
| GTIN : | 854335007070 |
In stock
35 in stock
Description
1.5″ bore x 10″ stroke snow plow hydraulic cylinder 2500 PSI. Replacement for Western snow plow with .75″ pin holes. Heavy-duty hydraulics, 2-year warranty, free ground Continental US shipping. Magister cylinders manufactured using rigid heavy duty design for excellent performance in severe winter. Honed tubing, hard chrome plated rod and top quality seals allow Magister Hydraulics snow plow cylinders to work in extreme conditions.
- Applications:Â Welded Single Acting Hydraulic Cylinder
- Color:Â Black.
NOTE! Chrome-plated rod is NOT induction hardened (Temperature treated). Possible bent rod is a result of a misuse(wrong measurements or type of application), such cases not covered under warranty!
Same-Day Shipping: all orders, made until 3 pm, will be shipped the same day (except weekends and holidays).
Free Ground Continental US Shipping
Tariff-FREE cylinders.
Made in Europe.
If you need assistance to choose a proper hydraulic cylinder replacement, do not hesitate to contact us:
