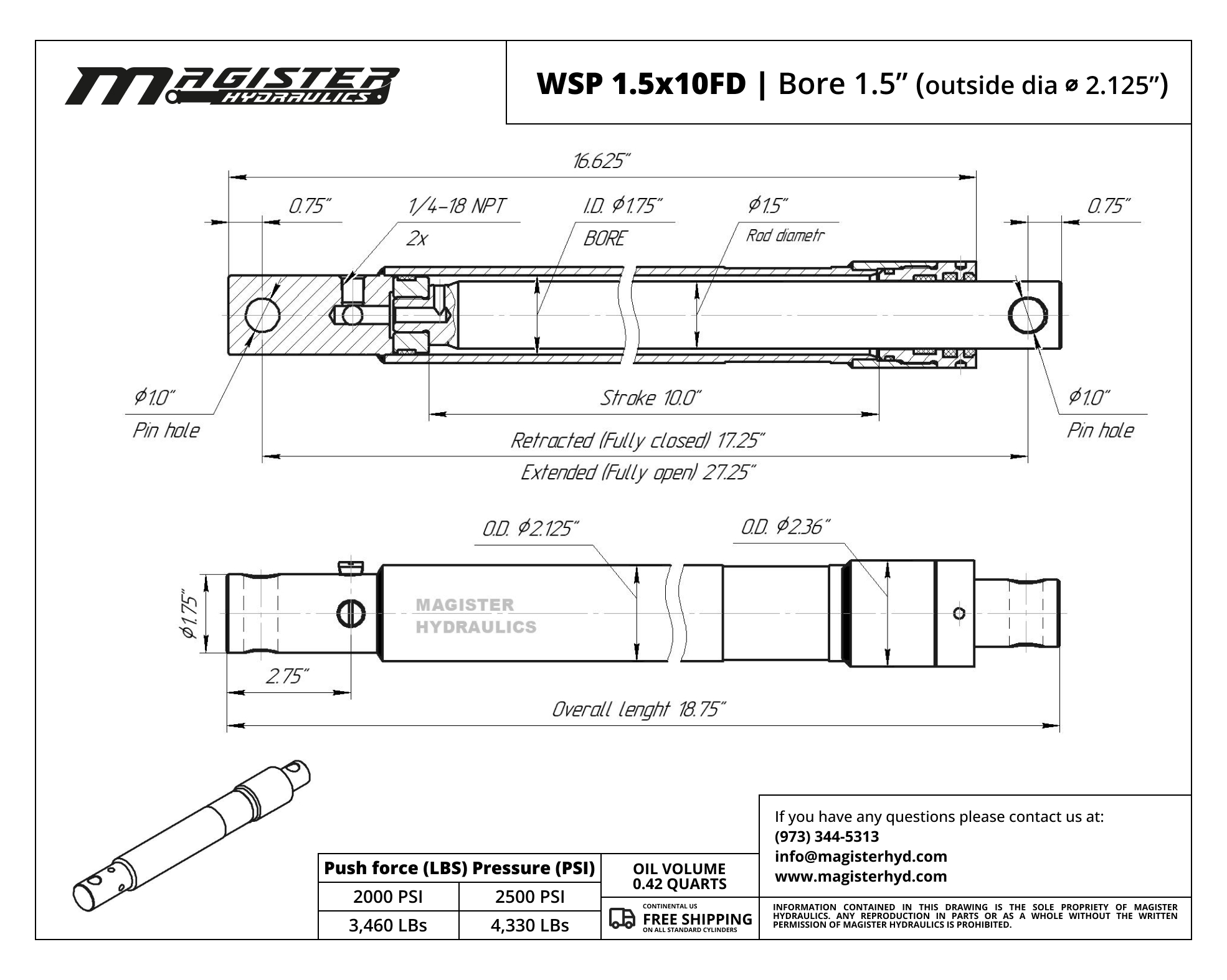

1.5" bore x 10" stroke snow plow Fisher Diamond hydraulic cylinder

Built for maximum winter performance and durability, the heavy-duty Snow Plow Hydraulic Cylinder is designed to handle the toughest snow removal tasks. Featuring a 1.5-inch bore and 10-inch stroke, this welded, single-acting cylinder for Fisher Diamond snowplows ensures powerful lifting and angling in harsh, icy environments. The rod end features a drilled pinhole for secure pin mounting, while the base end is designed with a through-hole to accommodate direct pin attachment. This cylinder offers a dependable and cost-effective replacement for OEM snowplow rams. Engineered to perform reliably in extreme cold, it is ideal for both professional and residential snowplow systems.

Key Features:

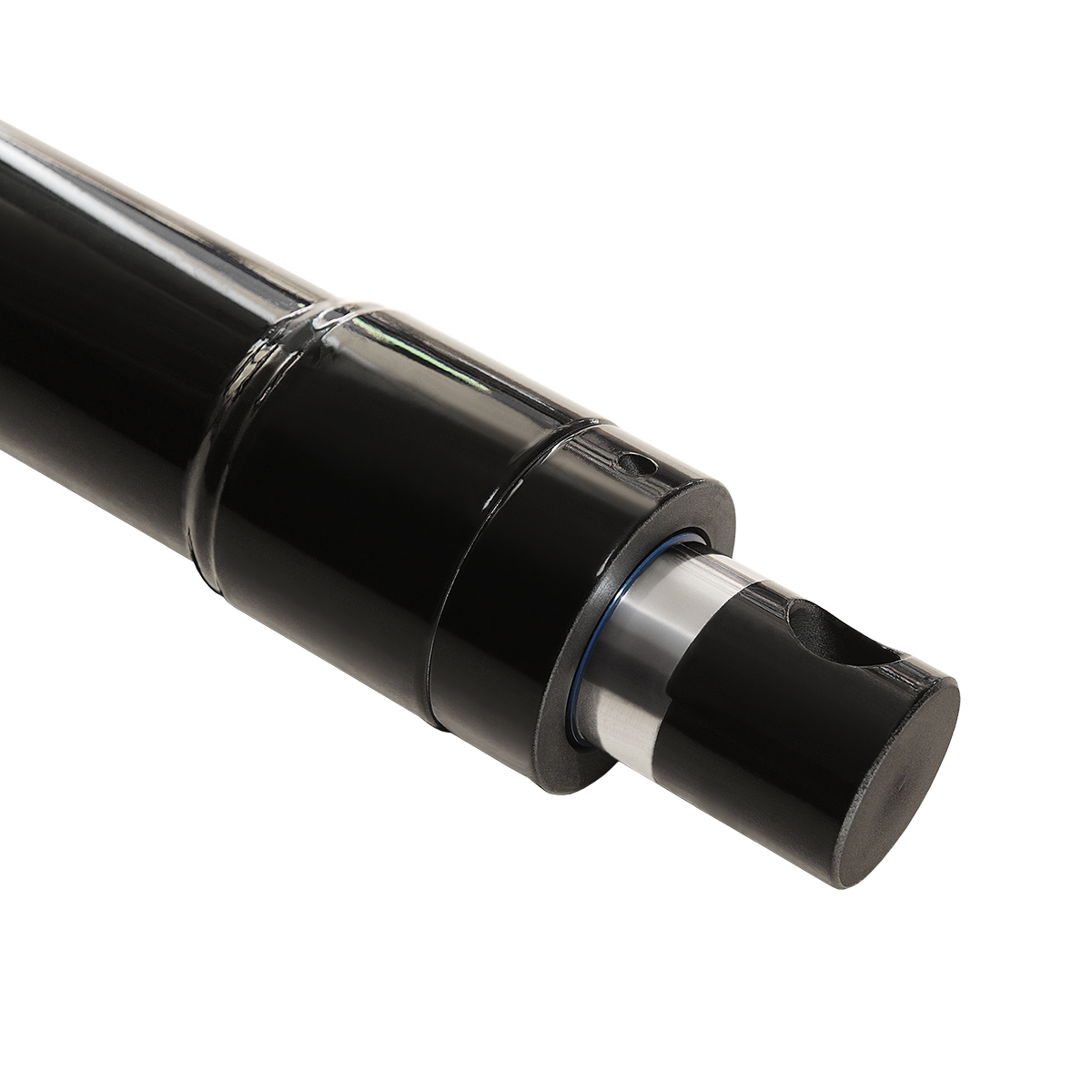

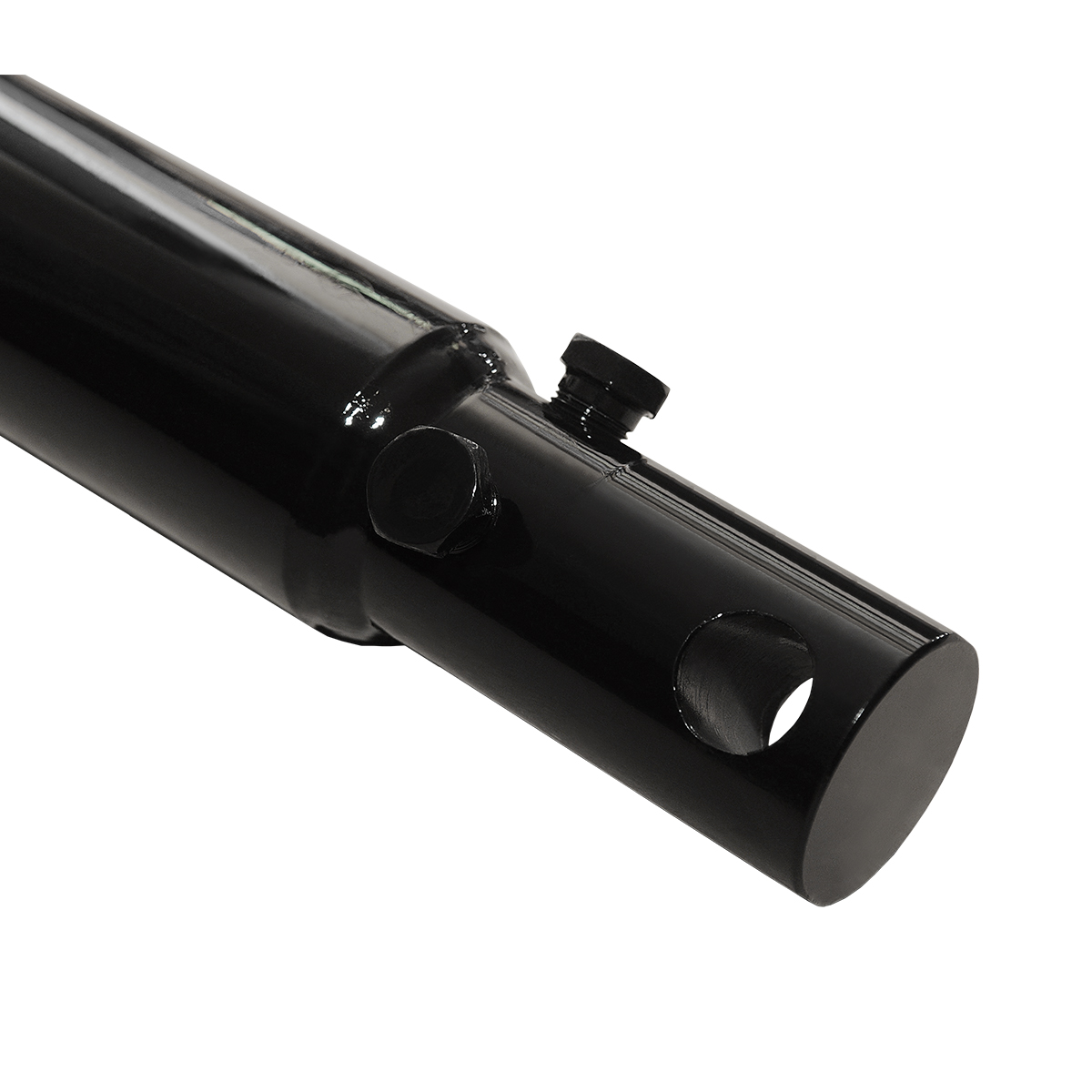

• • – High Load Capacity: Through-hole for pin attachment base end, ⌀ 2.125″ honed cold-drawn tubing, ⌀ 1.5″ chrome-plated rod (steel 1045) with drilled pinhole end.
  • – Wide Range Hydraulic Applications: Designed for snow plow lift and angling operations, these hydraulic cylinders deliver reliable performance in extreme winter conditions. Ideal for trucks, plows, skid steers, and compact utility vehicles used in snow clearing.
  • – Single Acting Simplicity: Delivers reliable power in one direction with a spring or gravity return, making it ideal for lifting, clamping, or positioning tasks where simplicity and durability are essential.
  • – High-Quality Construction: Steel piston and steel gland with wear rings, crafted from premium-grade materials, offering exceptional durability, corrosion resistance, and long-lasting service life.
  • – Precision Engineering: Designed with tight tolerances and advanced sealing technology to minimize leakage and maintain optimal performance.
  • – Smooth Operation: Features finely honed cylinder barrels and high-quality seals for smooth and consistent operation.
  • – Easy Maintenance: Simple to service and maintain, reducing downtime and ensuring continuous operation.
  • – 2-year warranty
  • – Same Day Shipping: all orders, made until 3 pm, will be shipped the same day (except weekends and holidays). Free Ground Continental US Shipping.
  • – Made in Europe.

Before purchase, please take the proper measurements:

• – The diameter of the bore (please specify inside or outside measurement).
• – The diameter of the rod and pin holes.
• – The fully extended and retracted lengths, measured from the center pinhole to the center pinhole.
• – The width on each mounting end of the cylinder where the pins slide through.

How to Measure a Hydraulic Cylinder
