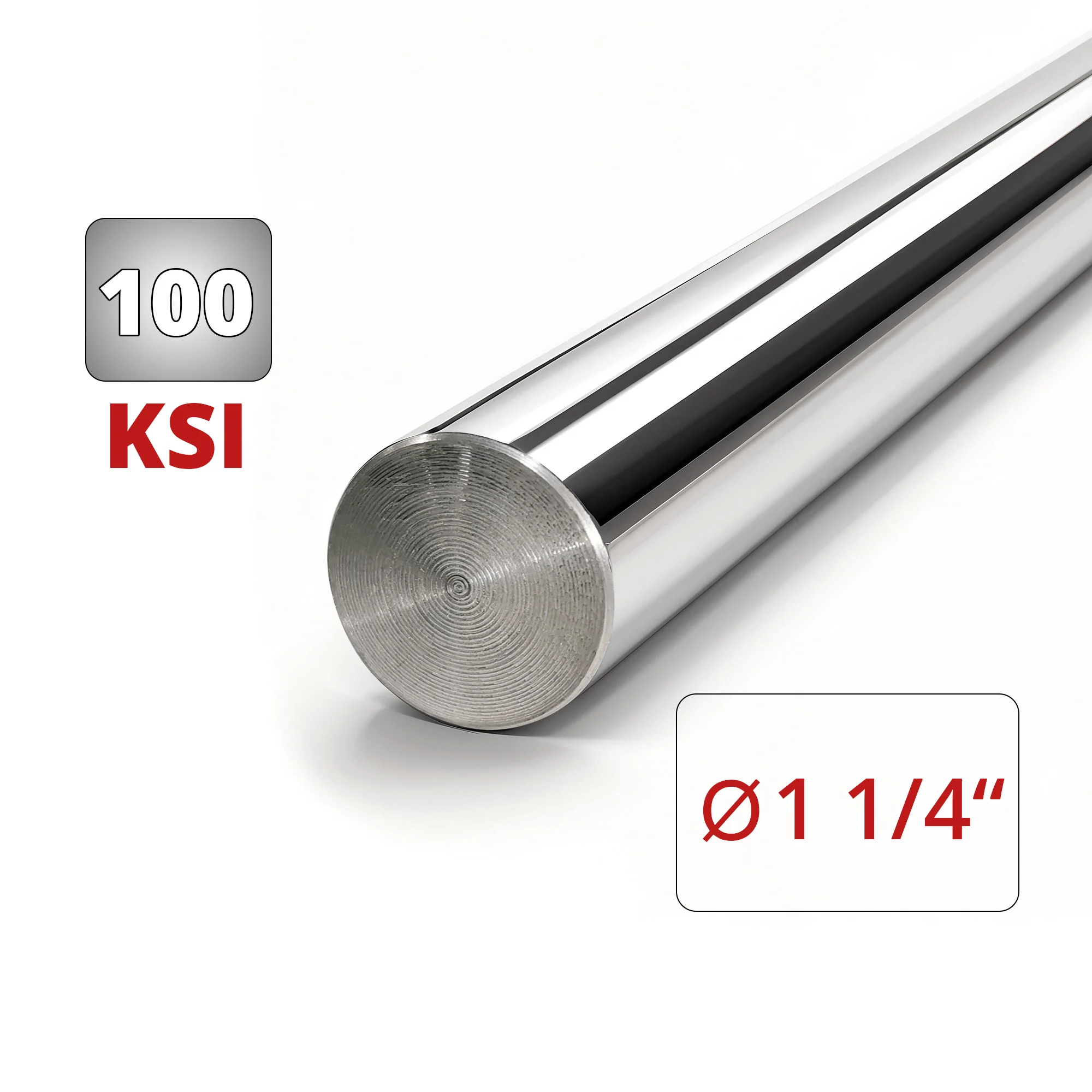

Chrome Plated Steel Rod 100 KSI 1 1/4 in Dia.

SKU: CB-1250-K100-H200

$1.96 / in

In Stock
Order Custom Cut

For cuts >60 in long, please Request a Quote

In stock
Made in Europe
US Customer Support

Wholesale Price: $1.09 / in
(>108 linear in)

1 1/4-inch diameter chrome plated steel bar 100 KSI, made of 1045 steel with min. 0.001″ chrome plating.  Yield Strength 100 000 PSI and increased corrosion resistance. Ultimate tensile strength 116 000 PSI; -0.0008″ tolerances.

Maximum Hardness and Strength: Made from high quality induction hardened steel, our chrome plated rods have exceptional hardness and strength, ensuring they can withstand maximum loads and high stress conditions.

Excellent Corrosion Resistance: outstanding resistance to rust and corrosion, significantly extending the lifespan of the rods even in harsh conditions.

Smooth Surface Finish: The advanced plating process ensures a smooth and polished surface finish, reducing friction and wear on seals and other components, enhancing your machinery’s overall performance.

High-Tech Manufacturing: Each bar is precision-engineered to exact tolerances, guaranteeing perfect alignment and fit in all applications. This precision ensures optimal functionality and reduces the risk of mechanical failures.

Exceptional quality control: Magister Hydraulics bars are made of top-quality certified European steel, our manufacturing is operated under ISO Quality standards, guaranteeing the quality and accordance of every rod.

Made in Europe.

Limited 1-year Warranty for material defects.

NO RETURNS!

View Full Specifications

Specifications

Chrome Plated Steel Rod 100 KSI 1 1/4 in Dia.
SKU: CB-1250-K100-H200
Dia (⌀) 1 1/4 in Steel Grade 1045
Plating Standard Chrome Yield Strength 100 KSI
Ult. Tensile Strength 116 KSI Heat Treated Yes
Chrome Thickness min. 0.001 in Elongation As % min. 7
Straightness max. 0.0024 inch/ft Roughness Ra 8 μinch max.
Tolerances -39 μm Corrosion NSS R 10 aft 200 hours
Weight per in 0.348 lb
