Chrome Plated Steel Rod 1 3/8 in Dia.

SKU: CB-1375-K075-H200

$2.22 / in

In Stock
Order Custom Cut

For cuts >60 in long, please Request a Quote

In stock
Made in Europe
US Customer Support

Wholesale Price: $1.20 / in
(>108 linear in)

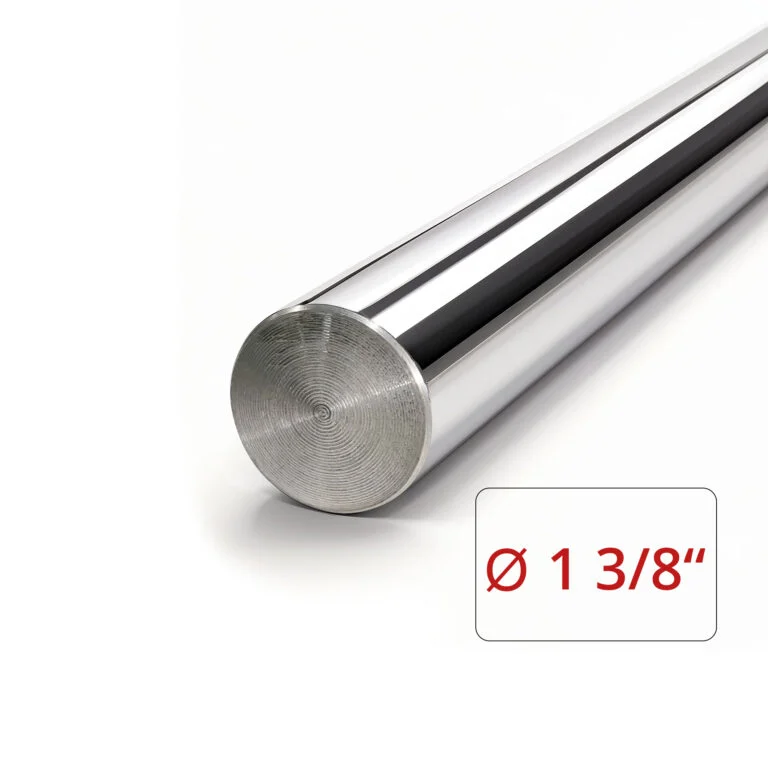

1 3/8-inch diameter chrome plated steel bar, made of 1045 steel with min. 0.001″ chrome plating.  Yield Strength 75 000 PSI and increased corrosion resistance. Ultimate tensile strength 100 000 PSI; -0.0008″ tolerances.

Superior Hardness and Strength: Made from high-quality steel, our chrome-plated rods have high hardness and strength, ensuring they can withstand heavy loads and stressful conditions.

Excellent Corrosion Resistance: outstanding resistance to rust and corrosion, significantly extending the lifespan of the rods even in harsh conditions.

Smooth Surface Finish: The advanced plating process ensures a smooth and polished surface finish, reducing friction and wear on seals and other components, enhancing your machinery’s overall performance.

High-Tech Manufacturing: Each bar is precision-engineered to exact tolerances, guaranteeing perfect alignment and fit in all applications. This precision ensures optimal functionality and reduces the risk of mechanical failures.

Exceptional quality control: Magister Hydraulics bars are made of top-quality certified European steel, our manufacturing is operated under ISO Quality standards, guaranteeing the quality and accordance of every manufactured bar.

Made in Europe.

Limited 1-year Warranty for material defects.

NO RETURNS!

View Full Specifications

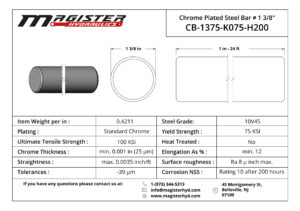

Specifications

Chrome Plated Steel Rod 1 3/8 in Dia.
SKU: CB-1375-K075-H200
Dia (⌀) 1 3/8 in Steel Grade 10V45
Plating Standard Chrome Yield Strength 75 KSI
Ult. Tensile Strength 100 KSI Heat Treated No
Chrome Thickness min. 0.001 in Elongation As % min. 12
Straightness max. 0.0035 inch/ft Roughness Ra 8 μinch max.
Tolerances -39 μm Corrosion NSS R 10 aft 200 hours
Weight per in 0.4211 lb
