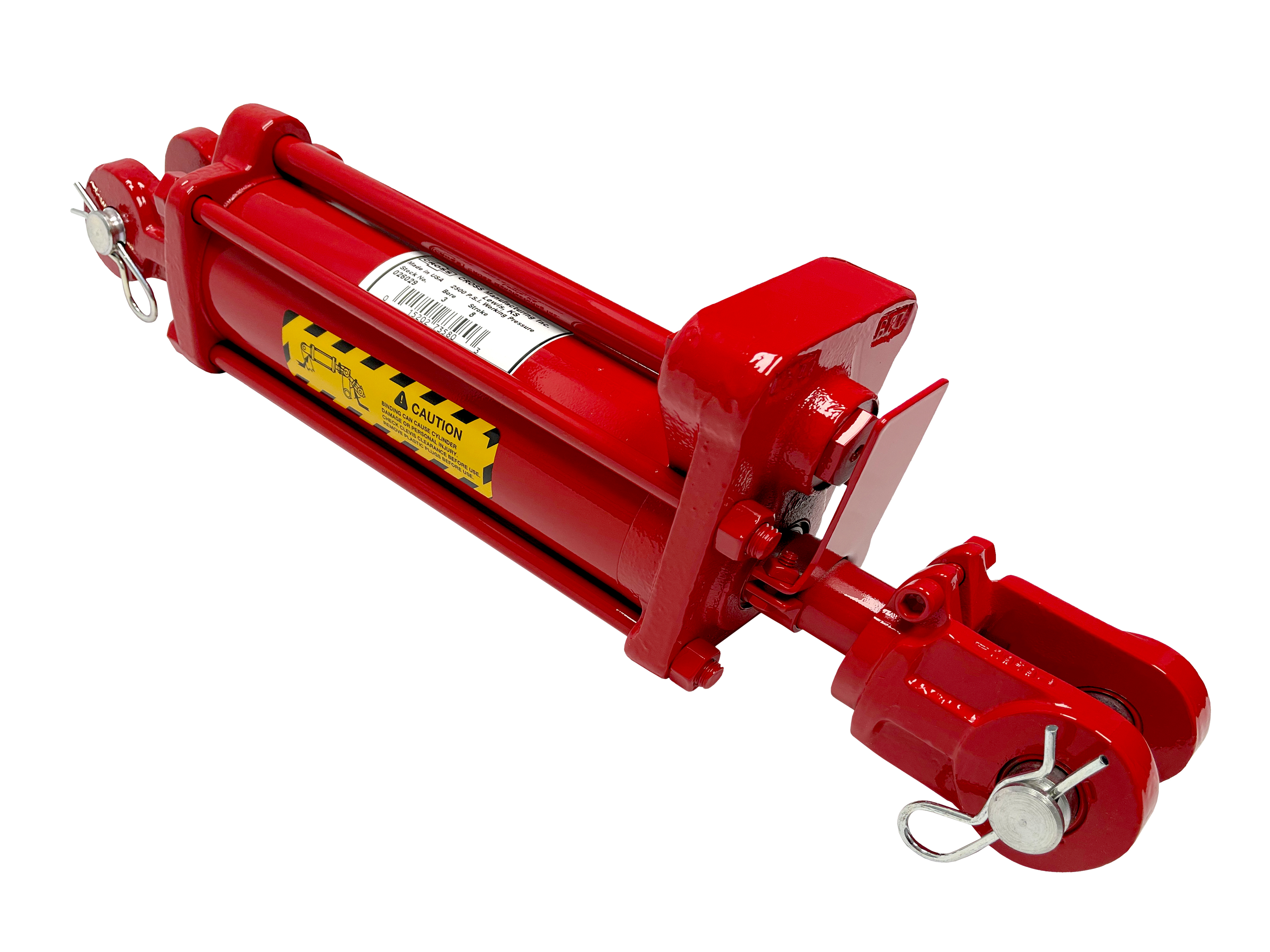

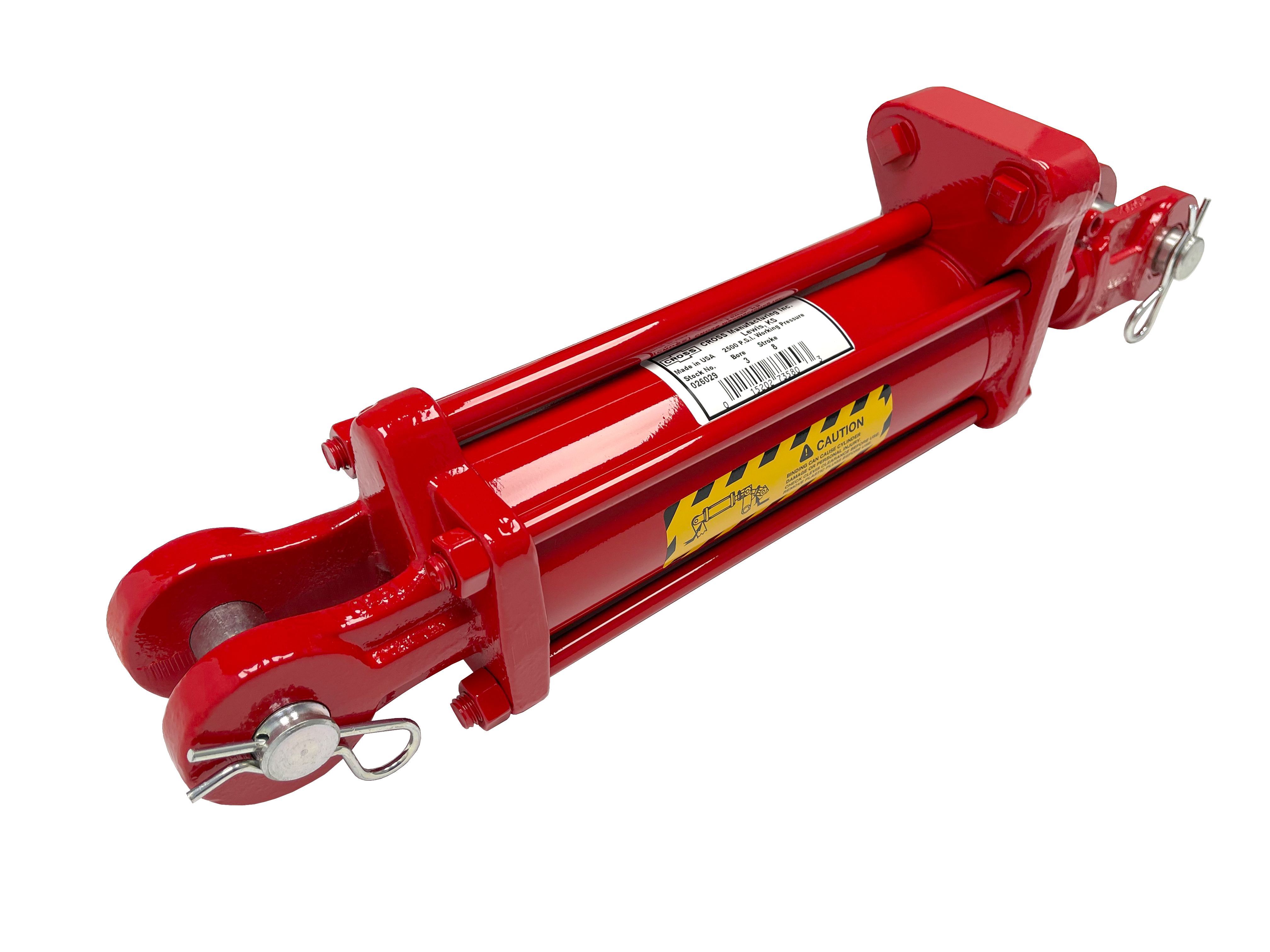

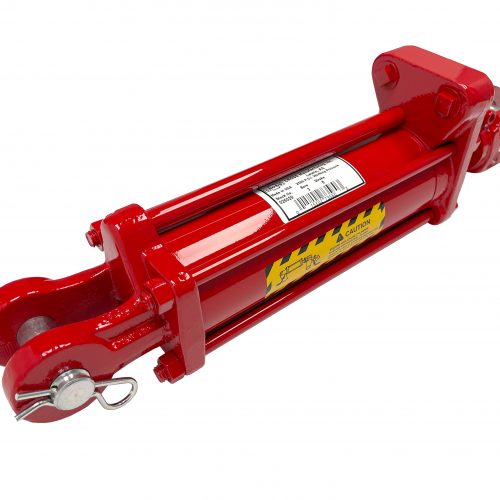

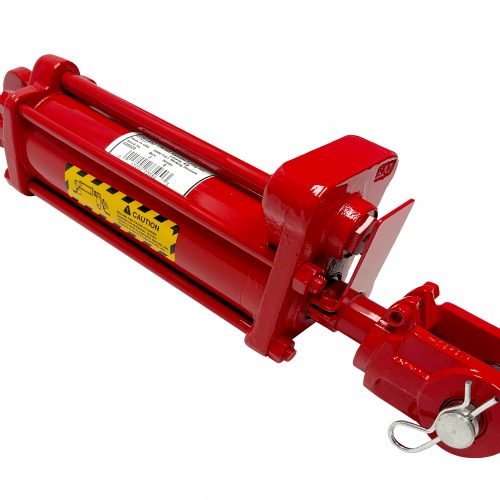

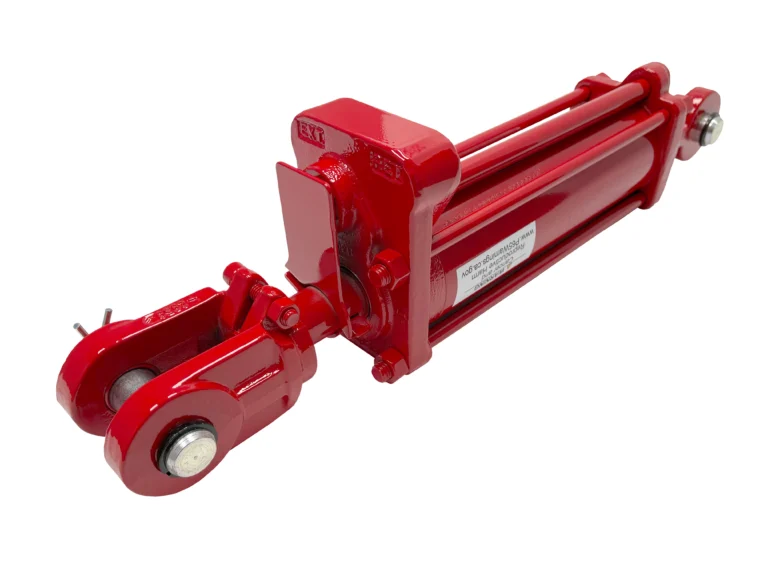

3.5" bore x 8" stroke CROSS tie rod hydraulic cylinder with depth control DC

$488.00

3508DC
Bore :
3.5 inch
OD :
4.25"
Stroke :
8 inch
Rod :
1.25"
Port Size :
1/2" NPT
Pin :
1"
Extended :
28.25"
Retracted :
20.25"
Overall length :
30.25"
Pressure :
2500 PSI
Oil Volume (quarts) :
1.33
Brand :
CROSS MANUFACTURING
GTIN :
00015202733038
In stock

DESCRIPTION

  • 3.5″ bore x 8″ stroke the CROSS series DC tie rod hydraulic cylinder feature hydraulic depth control with an variable adjustment from zero to maximum stroke, 2500 PSI made in the United States. Heavy-duty hydraulic equipment, 1-year warranty, free ground Continental US shipping. CROSS Manufacturing cylinders manufactured with high quality raw materials and american labor. Precision finished ST52.3 steel cylinder barrels and polished induction hardened C1045 stell alloy rods, quality seals provide a long life for CROSS hydraulic cylinders. Ductile iron screw on clevis and hardened steel pins. High tensile strength tie rods with rolled threads for durability. Piston produced by gray iron or aluminum alloy with 70 durometer Buna N piston o-rings with polyurethane back-ups, double lipped u-cup rod seals. NPTF dryseal pipe thread ports. Excellent replacement for farming equipment and others. Made in the USA.
  • FREE SHIPPING

If you need assistance to choose a proper hydraulic cylinder replacement, do not hesitate to contact us:
973-344-5313
