2 bore x 16 stroke Western Snow Plow single acting hydraulic cylinder | Magister Hydraulics

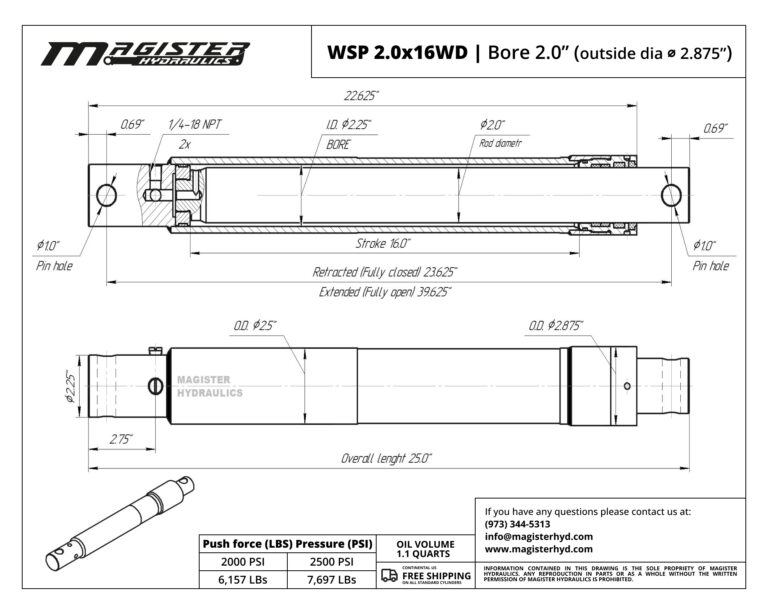

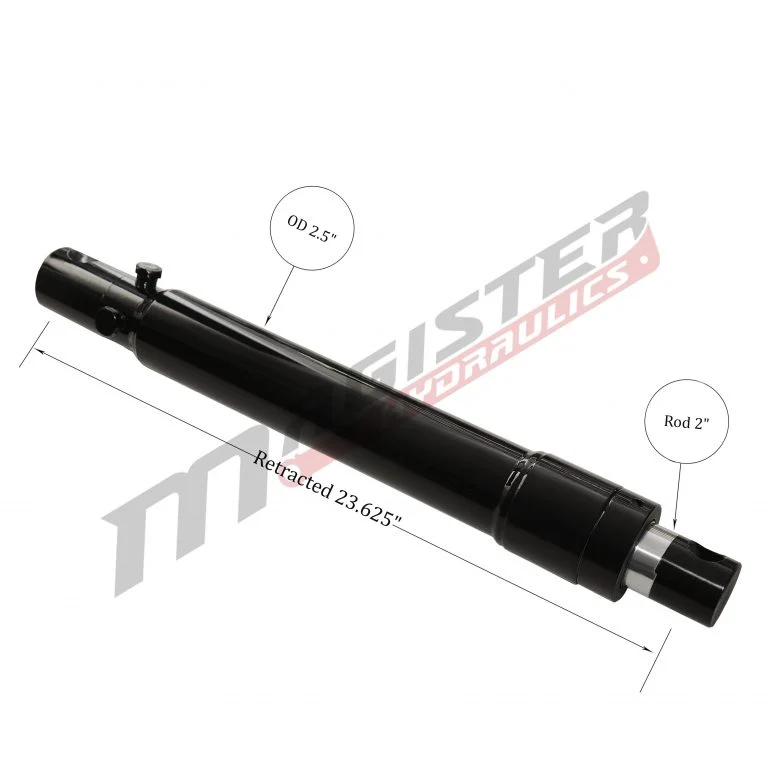

2" bore x 16" stroke snow plow Western Diamond hydraulic cylinder


Pay in 4 interest-free payments of $47.50
* Wholesale Discount is available for this product if you purchase 4 or more products.
SKU: WSP 2x16W&D
Bore :2 inch
OD :2.5"
Stroke :16 inch
Rod :2"
Port Size :1/4" NPT
Pin :1"
Extended :39.63"
Retracted :23.63"
Overall length :25"
Pressure :2500 PSI
Column Load (LBs) :31,400
Oil Volume (quarts) :1.1
Brand :Magister Hydraulics
GTIN :854335007155
SKU: WSP 2x16W&D Categories: ,
4+ PRICE EA -5%
8+ PRICE EA -10%
In stock

41 in stock


2″ bore x 16″ stroke snow plow hydraulic cylinder 2500 PSI. Replacement for Fisher snow plow. Heavy-duty hydraulics, 2-year warranty, free ground Continental US shipping. Magister cylinders manufactured using rigid heavy duty design for excellent performance in severe winter. Honed tubing, hard chrome plated rod and top quality seals allow Magister Hydraulics snow plow cylinders to work in extreme conditions.

  • Applications: Welded Single Acting Hydraulic Cylinder
  • Color: Black.

We provide volume discounts for all our standard cylinders. When purchasing 4-9 ea, 5% discount. When purchasing 10+ ea, 10% discount.

Tariff-FREE cylinders.
Made in Europe.
