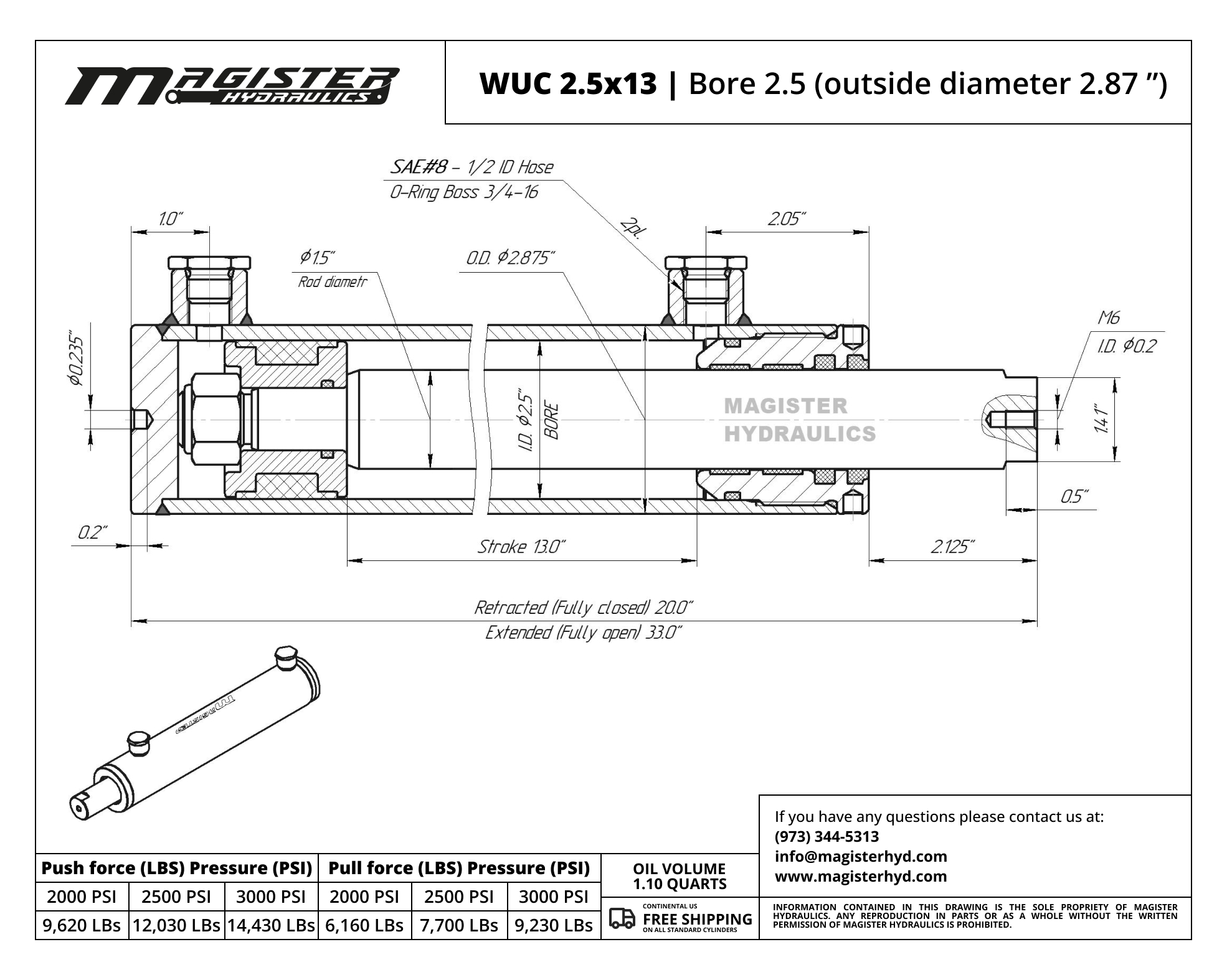

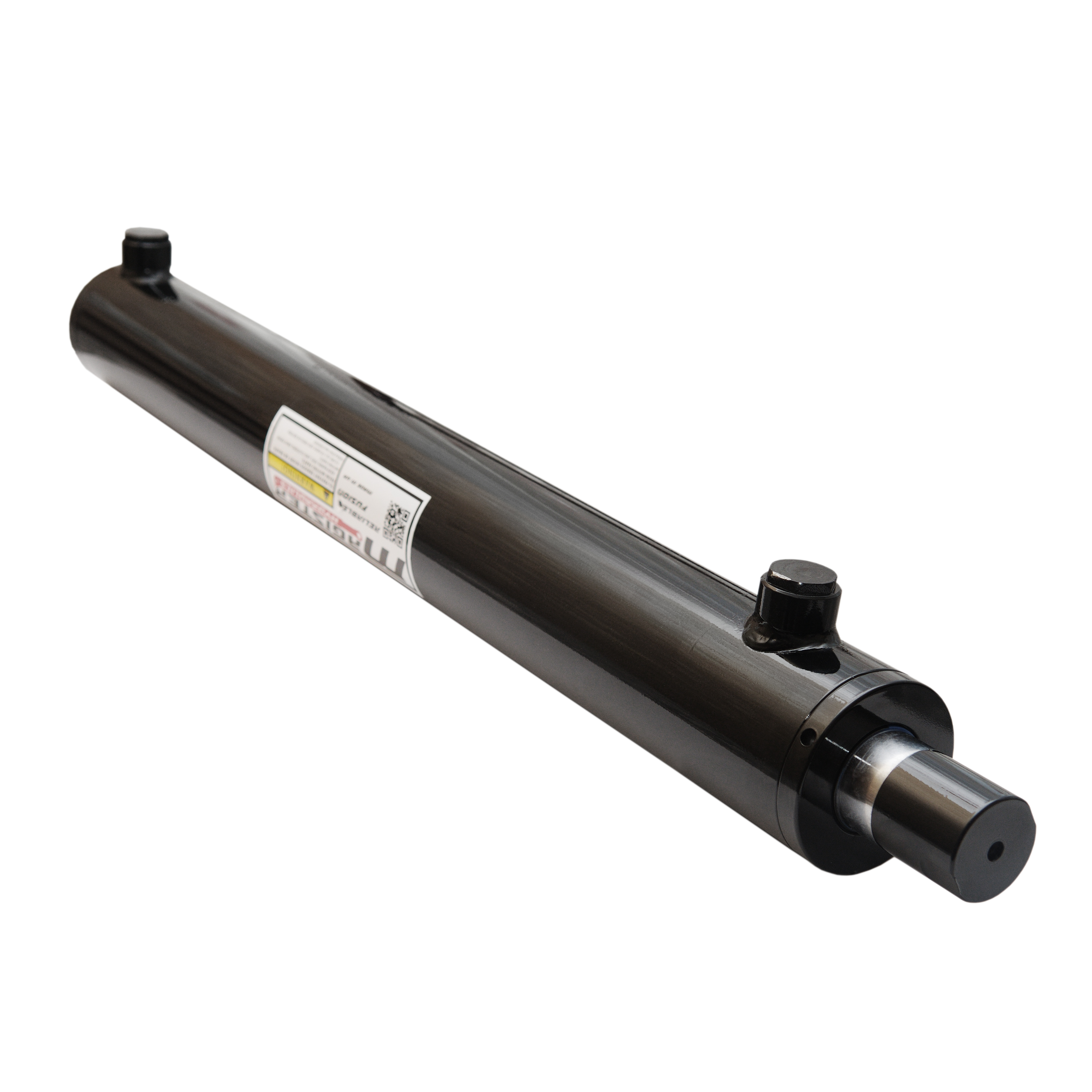

2.5" bore x 13" stroke universal hydraulic cylinder

$176.00

* Wholesale Discount is available for this product if you purchase 4 or more products.
WUC 2.5x13
Bore :
2.5 inch
OD :
2.38"
Stroke :
13 inch
Rod :
1.5"
Port Size :
SAE 8
Pin :
n/a
Extended :
33"
Retracted :
20"
Overall length :
20"
Pressure :
3500 PSI
Column Load (LBs) :
14,700
Oil Volume (quarts) :
1.02
Brand :
Magister Hydraulics
GTIN :
850033934182
1+ PRICE EA
$176.00
4+ PRICE EA -5%
$167.20
10+ PRICE EA -10%
$158.40
In stock

18 in stock

DESCRIPTION

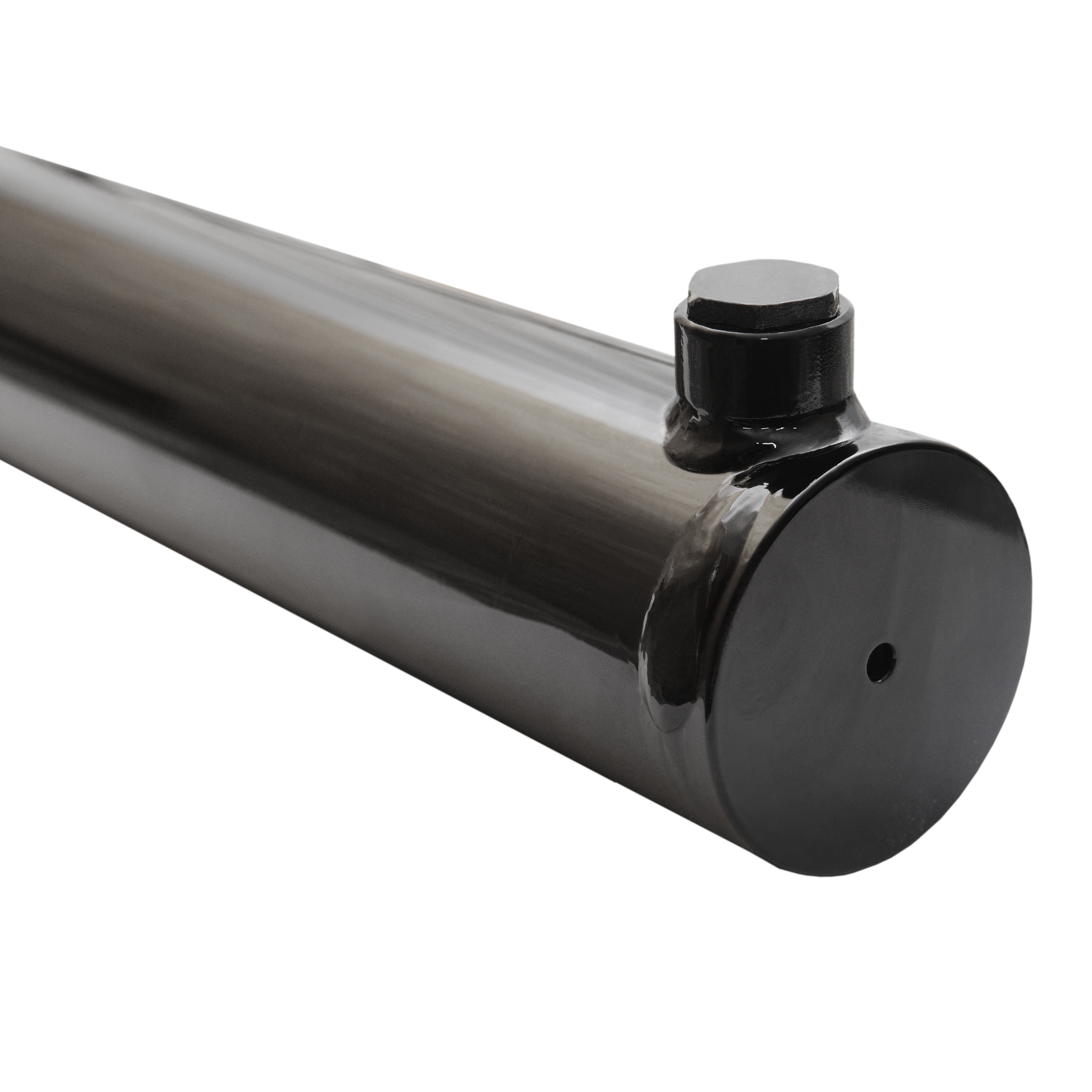

  • 2.5″ bore x 13″ stroke universal hydraulic cylinder 3500 PSI.These universal cylinders are a perfect replacement for discontinued hydraulic cylinders and cylinders with rare or hard to find strokes. It’s flexible design allows to mount any mouting ends such as cross tubes, clevis, flange mounts, foot mounts, trunnion mounts, pin eye, tangs, Lug mounts, speherical rod eye/ swivel eye and other types of mounts on either the welded or rod end of the Hydraulic Cylinder. May be compatible with industrial leading brands like John Deere, Kubota, Massey Ferguson, Bonatti, New Holland and many more. Heavy-duty hydraulics, 2-year warranty, free ground Continental US shipping. Magister cylinders manufactured using steel piston and steel threaded gland with wear rings for excellent performance. Honed cold-drawn tubing, hard chrome plated rod and top quality five component piston seals allow Magister Hydraulics cylinders to work in extreme conditions.
  • Color: Black.
  • FREE SHIPPING

We provide volume discounts for all our standard cylinders. When purchasing 4-9 ea, 5% discount. When purchasing 10+ ea, 10% discount.

Tariff-FREE cylinders.
Made in Europe.
If you need assistance to choose a proper hydraulic cylinder replacement, do not hesitate to contact us:
