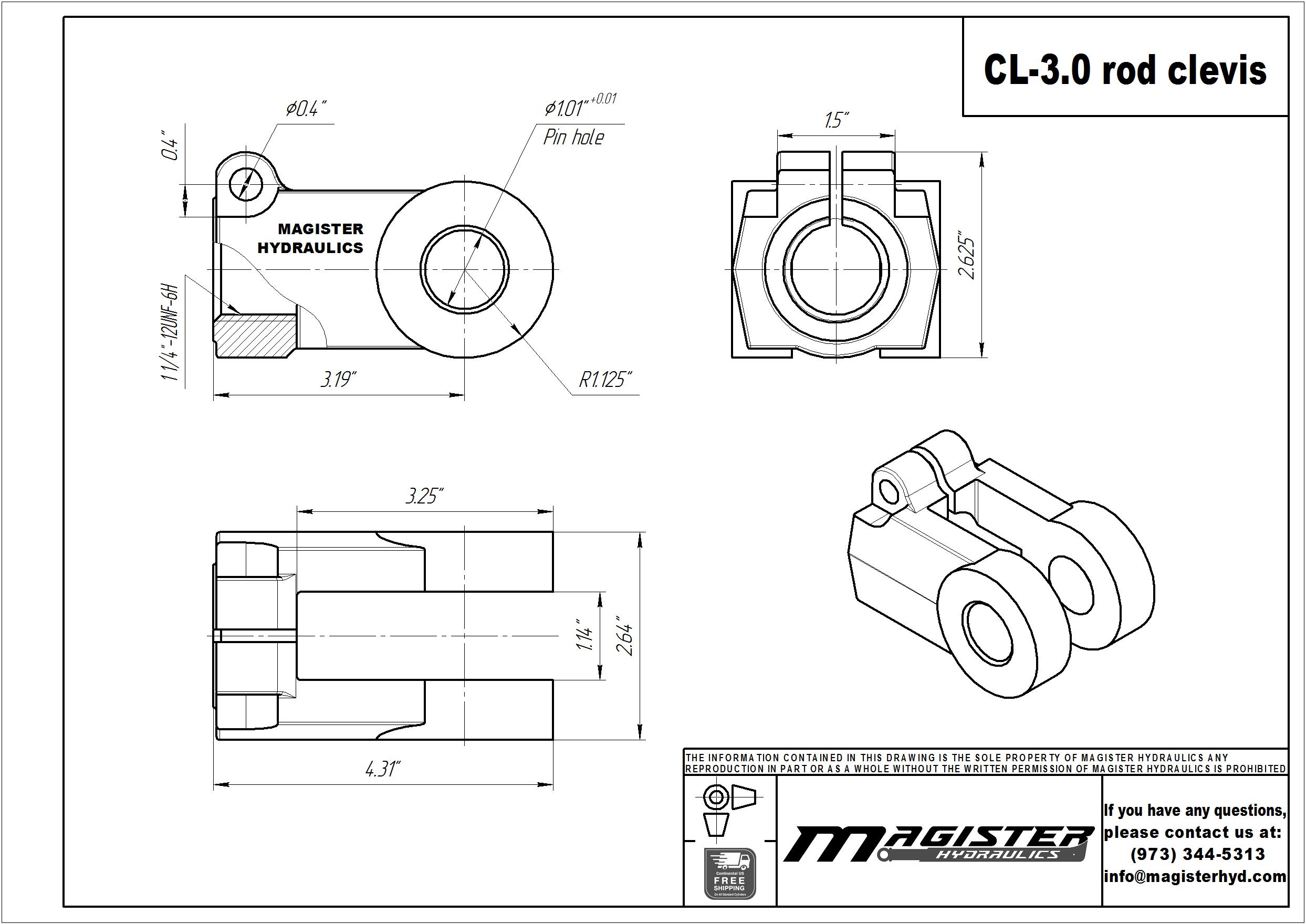

1" pin hole diameter ductile iron clevis 1.25"-12 UNF


SKU: CL-30
Pin hole : 1"
Width : 2.72"
Mounting thread : 1.25" -12 UNF
Material : Ductile iron GGG-40
Brand : Magister Hydraulics
GTIN : 854335007704
SKU: CL-30 Categories: ,
Out of stock

Out of stock

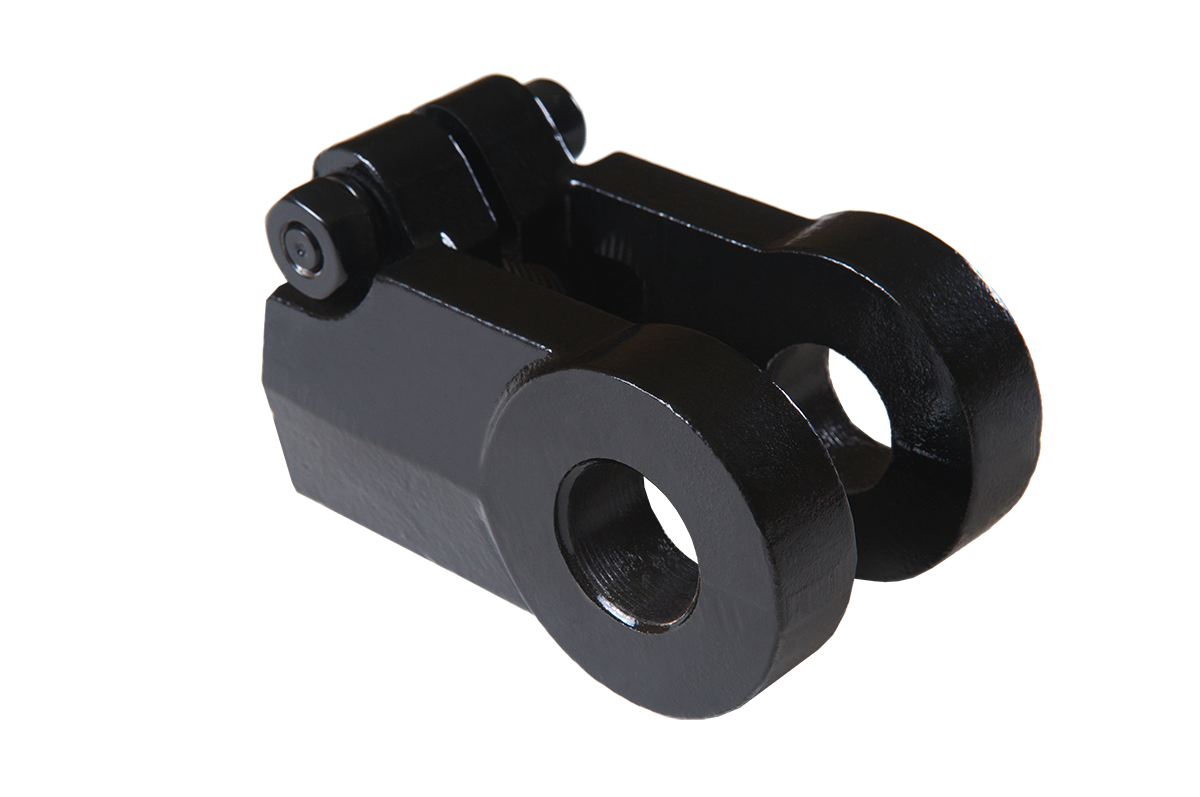

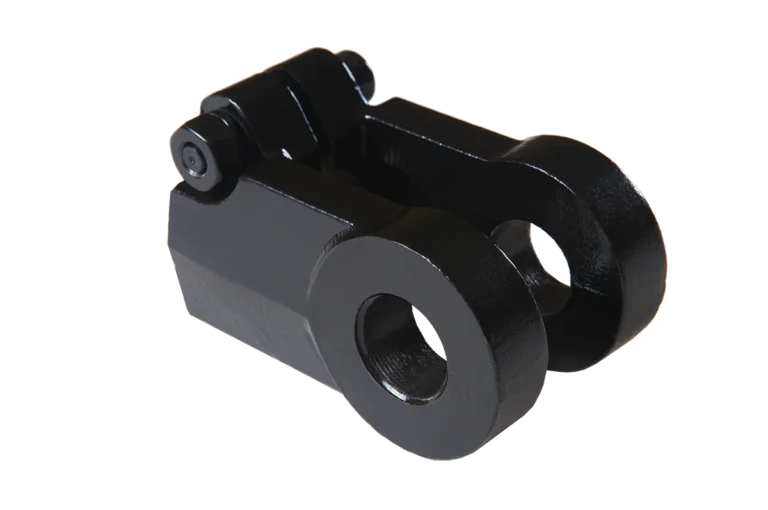

1″ pin hole diameter ductile iron clevis for hydraulic cylinders rod. Easily mounts on threaded cylinders rods with 1.25″-12 UNF thread and clamp with a bolt. This hevy-duty item plays a significant role in connecting hydraulic cylinder to a power machine. Replaceable with Magister Hydraulics clevis and tie rods cylinders, and other manufacturer of hydraulic cylinders with same type of thread. Painted black.

Tariff-FREE items.
Made in Europe.
