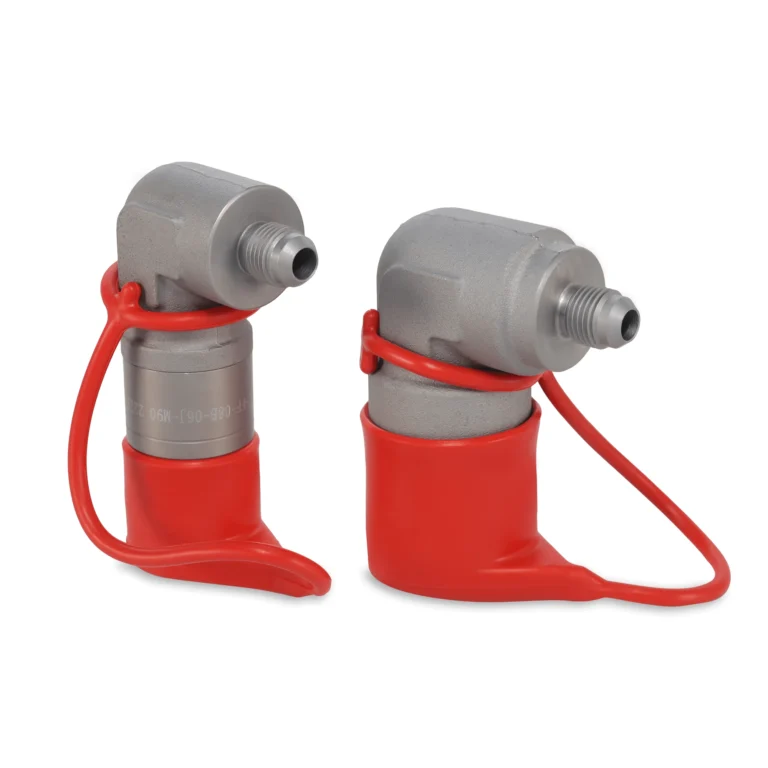

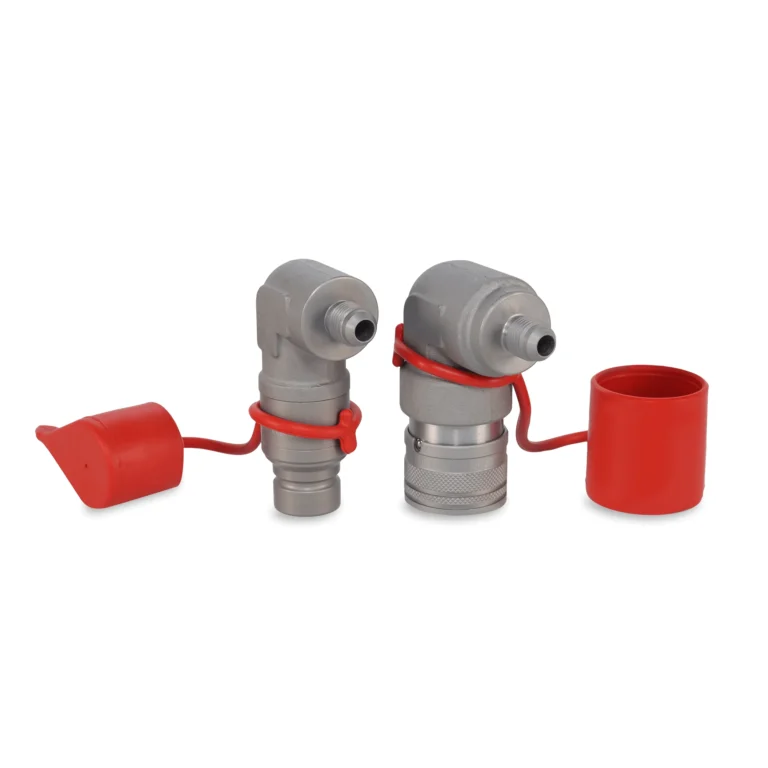

1/2″ 90 Degree Flat Face Hydraulic Quick Couplers Set - 3/8″ JIC Port
Original price was: $65.00.$61.75Current price is: $61.75.
* Wholesale Discount is available for this product if you purchase 2 or more products.| Type : | SET | ISO Body Size : | 1/2" | Design : | 90° Flat Face | Port Size : | 3/8" JIC | ISO Standard : | 16028 | Locking Type : | Ball | Max Pressure : | 6300 PSI | Working Pressure : | 5075 PSI | Max Flow : | 6.3 GPM | Rated Flow : | 3.2 GPM | Dash Size : | 8 | Weight : | 2.6 LBs | Plating : | Zinc-Nickel | Brand : | Magister Hydraulics |
|---|---|
| GTIN : | 850081310143 |
Volume discounts
77 in stock
Description
Upgrade your hydraulic system with this 1/2″ 90 Degree Flat Face Hydraulic Quick Disconnect Set Fitting with 3/8″ JIC #6 (37° Flare) (9/16″-18 UNF Thread). Designed for leak-free performance, these couplers deliver reliable connections in high-pressure applications without fluid loss or contamination.
Built from hardened steel with anti-corrosion plating, this set is engineered to withstand daily use in demanding environments. Max pressure up to 6,300 PSI and 6.3 GPM flow, it provides the strength and efficiency professionals depend on.
The flat-face design makes it easy to connect and disconnect under pressure while reducing spillage, ensuring a cleaner, safer hydraulic system. Perfect for use with skid steers, tractors, loaders, and other heavy equipment.
Key Features:
- Leak-Free Performance: Flat face design significantly reduces fluid loss and air entry, maintaining system integrity and cleanliness.
- High-Pressure Capability: Rated up to 5,075 PSI with a maximum flow rate of 3.2 GPM for efficient hydraulic operations.
- Durable Construction: Made from hardened carbon steel with zinc-nickel plating for superior corrosion resistance and long-lasting durability.
- Easy Operation: Single-handed push-connect design allows for quick, effortless connections without special tools.
- Enhanced Safety: Nipple seal resists blow-outs and locking sleeve prevents accidental disconnections.
- Universal Compatibility: Fully interchangeable with other ISO 16028 standard couplings, ensuring seamless integration across various hydraulic systems
Highly competitive pricing. Covers Included
Compatible with many hydraulic tools and equipment
1 Year Warranty
Same-Day FedEx Shipping.
