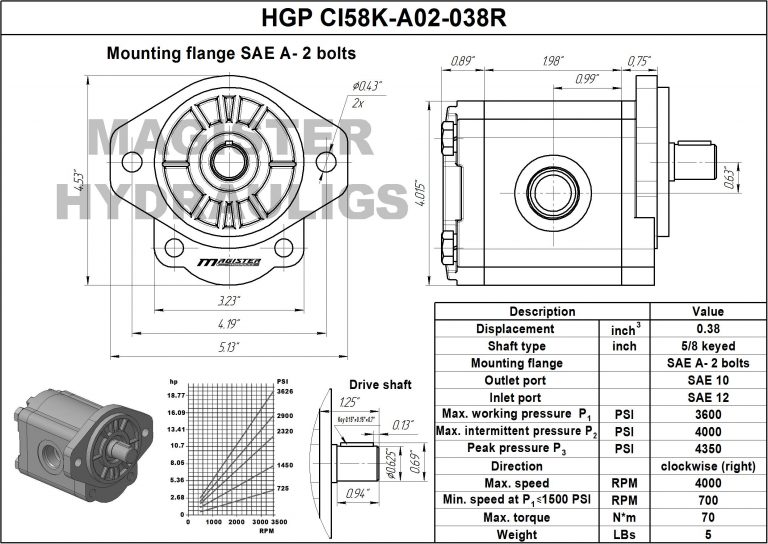

0.38 CID hydraulic gear pump 5/8" keyed shaft CW

The Magister Hydraulics 0.38 CID cast iron 5/8″ keyed gear pump is engineered for reliable performance in demanding agricultural and material handling applications. Featuring a robust 5/8″ keyed shaft, CW rotation, a high-pressure rating of 3600 PSI with 4000 max RPM, and a standard SAE-A mounting flange, this pump delivers the power and durability needed to keep your equipment running.

Key Features & Benefits:

• Built to Last: Precision-machined cast iron construction ensures longevity and resistance to wear in tough environments.
• High-Pressure Performance: Handles up to 3600 PSI for powerful, consistent hydraulic operation.
• Easy Direct Replacement: Features a standard 5/8″ keyed shaft and an SAE-A 2-bolt mounting flange for a straightforward swap with no modifications needed.
• Precise Rotation: Designed for systems requiring Clockwise (CW / Right-Hand) rotation.
• Optimal Flow: 0.38 cubic inch displacement (3.29 GPM @ 2000 RPM) provides the right flow for a variety of mid-duty applications.

Same Day Free Shipping.

Made in Europe.

If you need assistance to choose a proper hydraulic gear pump replacement, do not hesitate to contact us:

973-344-5313
