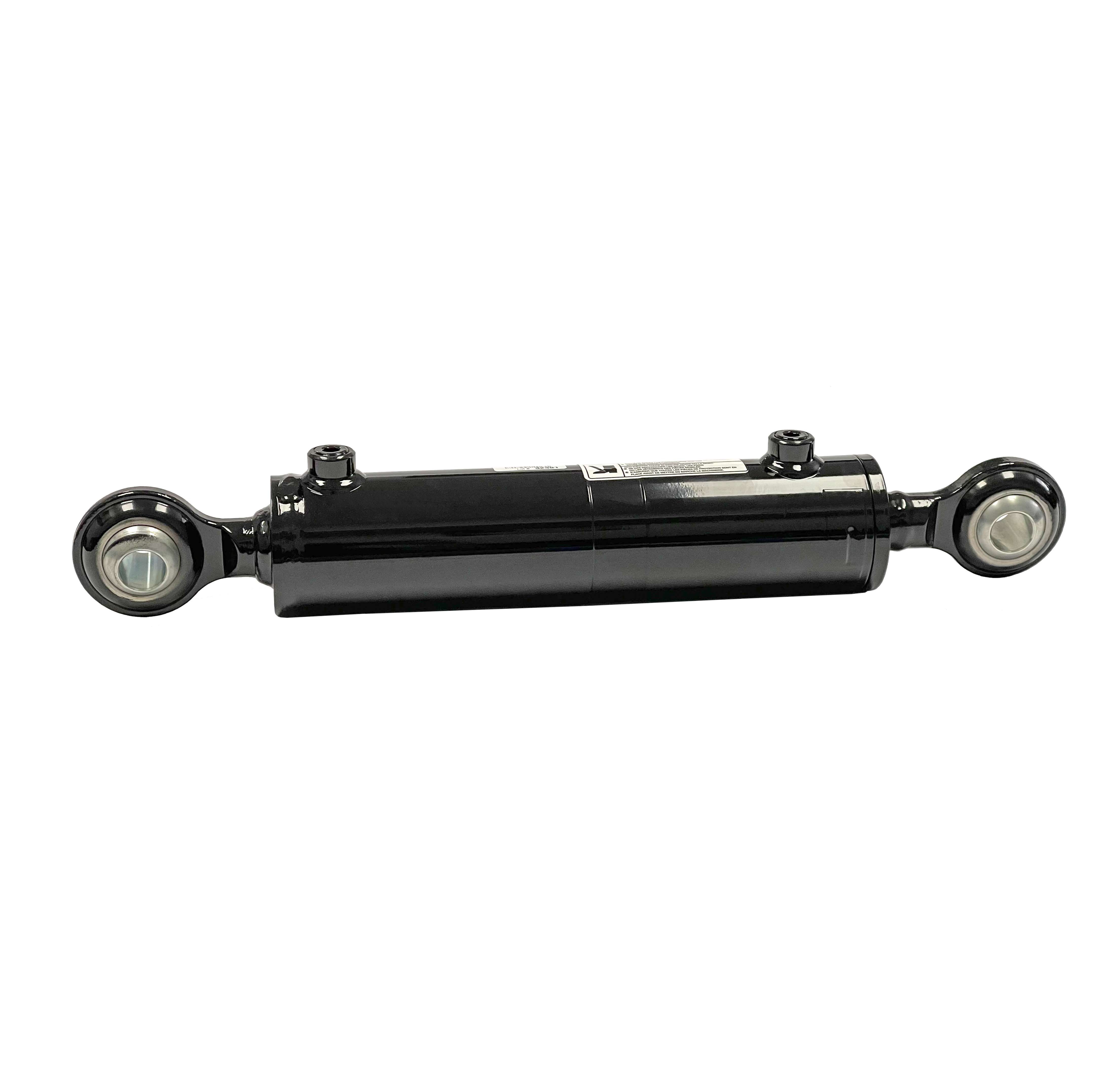

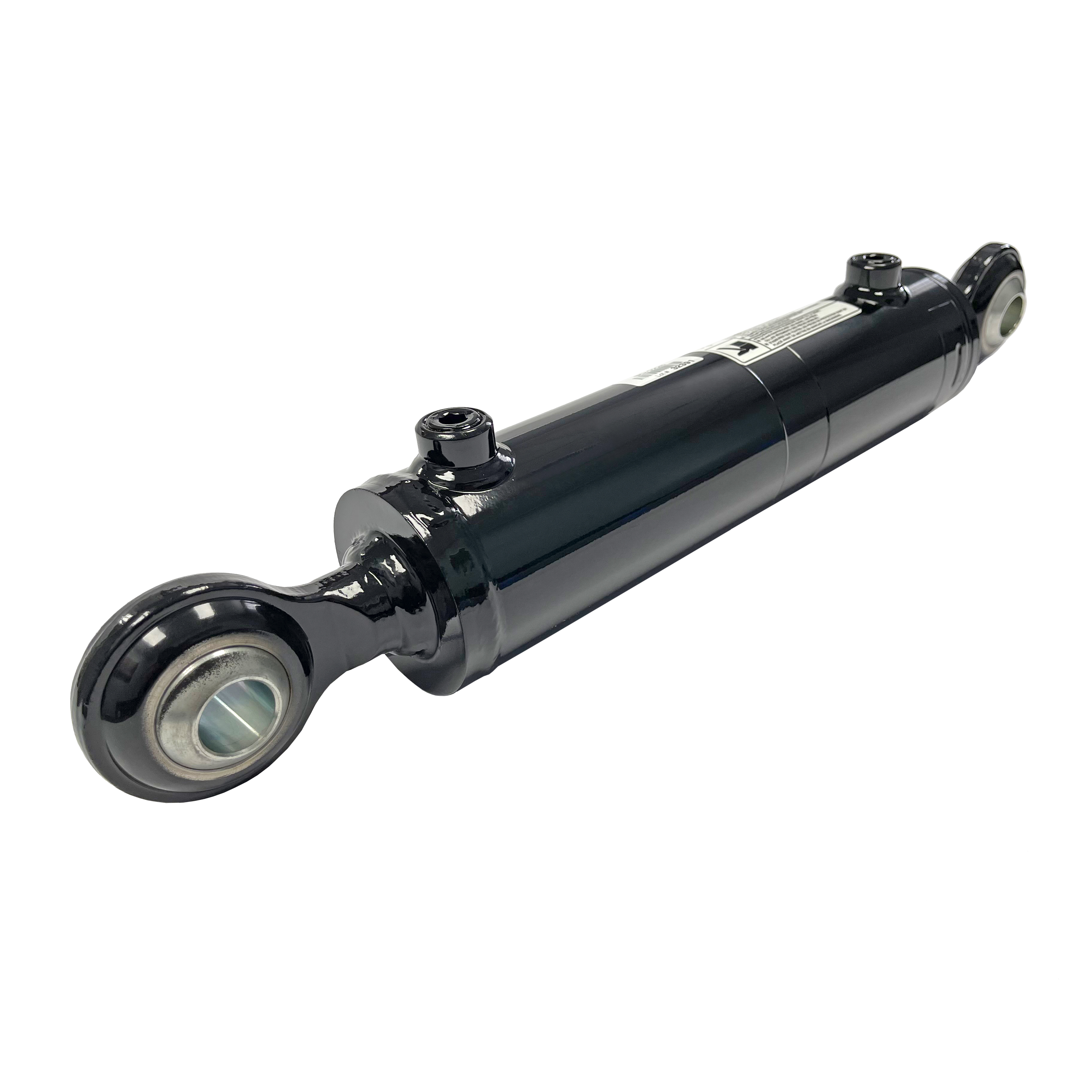

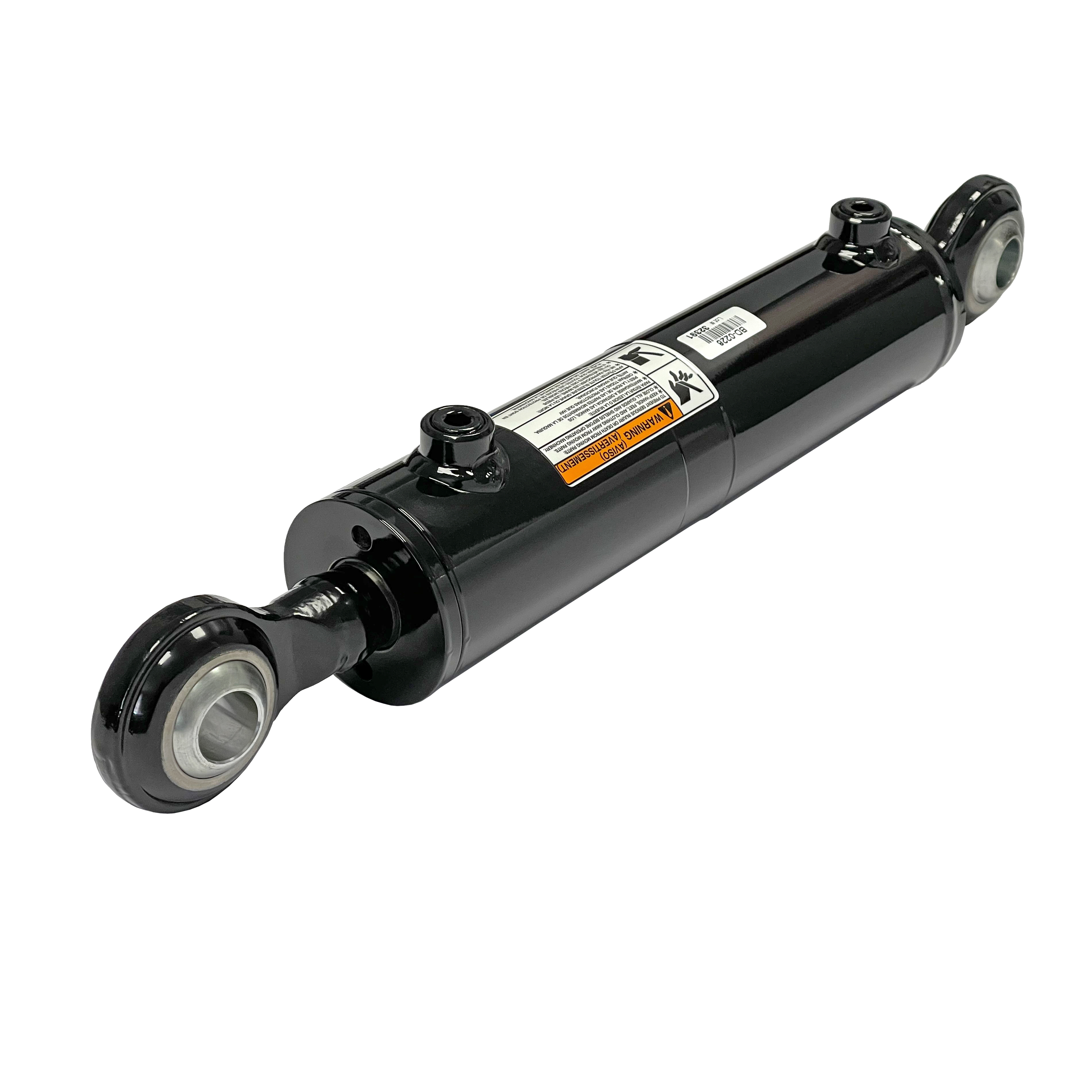

3" bore x 10" stroke Prince Top Link hydraulic cylinder Wolverine Line

SKU: 210-3010-TL

$411.70

In Stock
PayPalPay in 4 interest-free payments of $102.93

6 in stock

View cart
US Customer Support
  • 3″ bore x 10″ stroke the Prince Hydraulics series Wolverine top link hydraulic cylinder 3000 PSI. Heavy-duty hydraulic equipment, 1-year warranty, free ground Continental US shipping. Prince Manufacturing cylinders manufactured with high quality raw materials Precision finished ST52.3 steel cylinder barrels and polished chrome plated C1045 stell alloy rods, honed cold-drawn tubing, top quality piston seals. Excellent replacement for farming equipment and others.

NOTE! Chrome-plated rod is NOT induction hardened (Temperature treated). Possible bent rod is a result of a misuse(wrong measurements or type of application), such cases not covered under warranty!

Free Ground Continental US Shipping

  • If you need assistance to choose a proper hydraulic cylinder replacement, do not hesitate to contact us:973-344-5313
View Full Specifications

Specifications

3" bore x 10" stroke Prince Top Link hydraulic cylinder Wolverine Line
SKU: 210-3010-TL
Bore3 inOuter Dia. (⌀)3.38 in
Stroke10 inRod Dia. (⌀)1.375 in
Port Size1/2" NPTPin Dia. (⌀)1 in
Extended30.875 inRetracted20.875 in
Pressure3000 PSIColumn Load21,200 LBs
Oil Volume1.22 QTsBrandPrince
DesignWeldedRod TypeChrome Plated
Rod EndSpherical BearingsActionDouble Acting
Weight28 LBsGTIN854335007742
