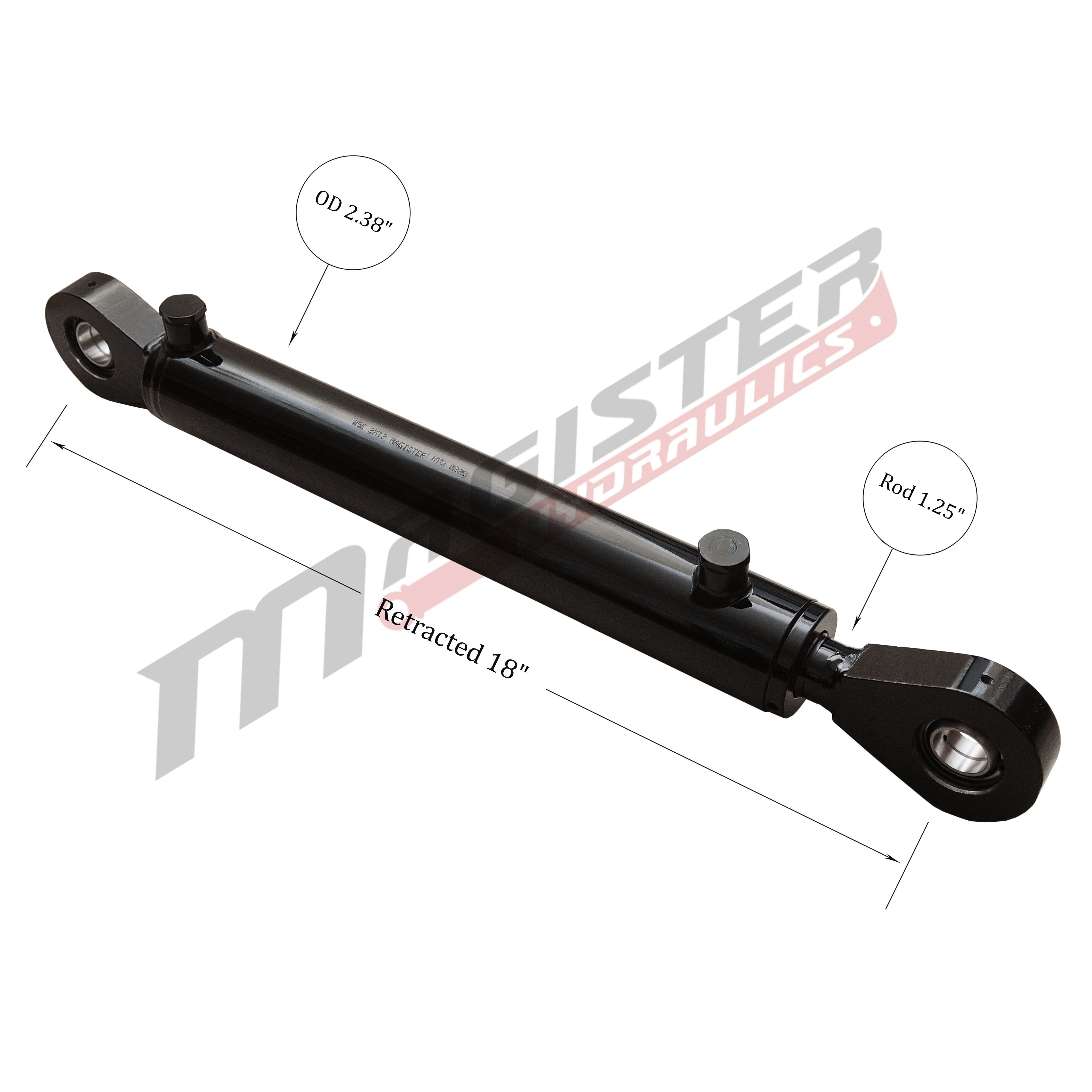

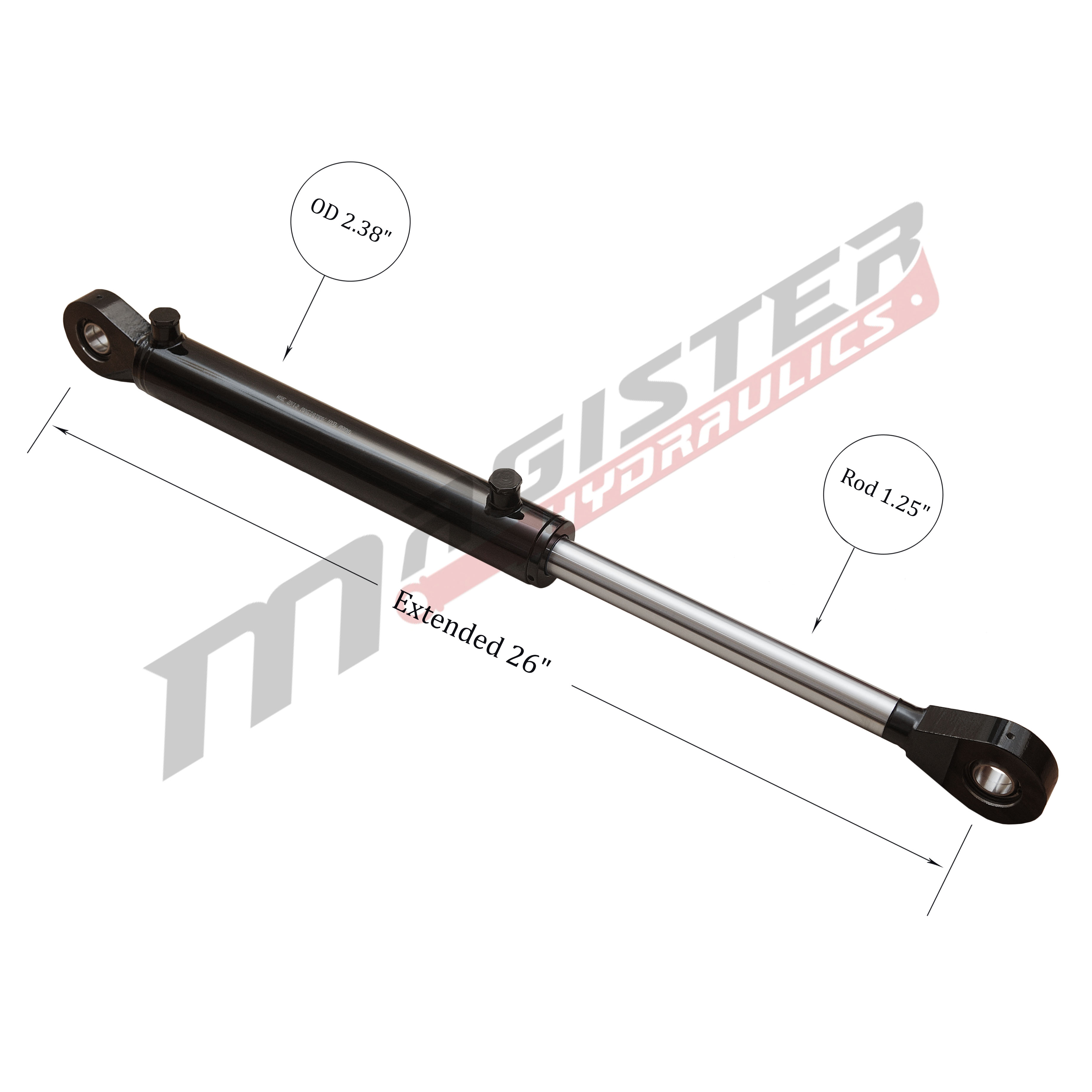

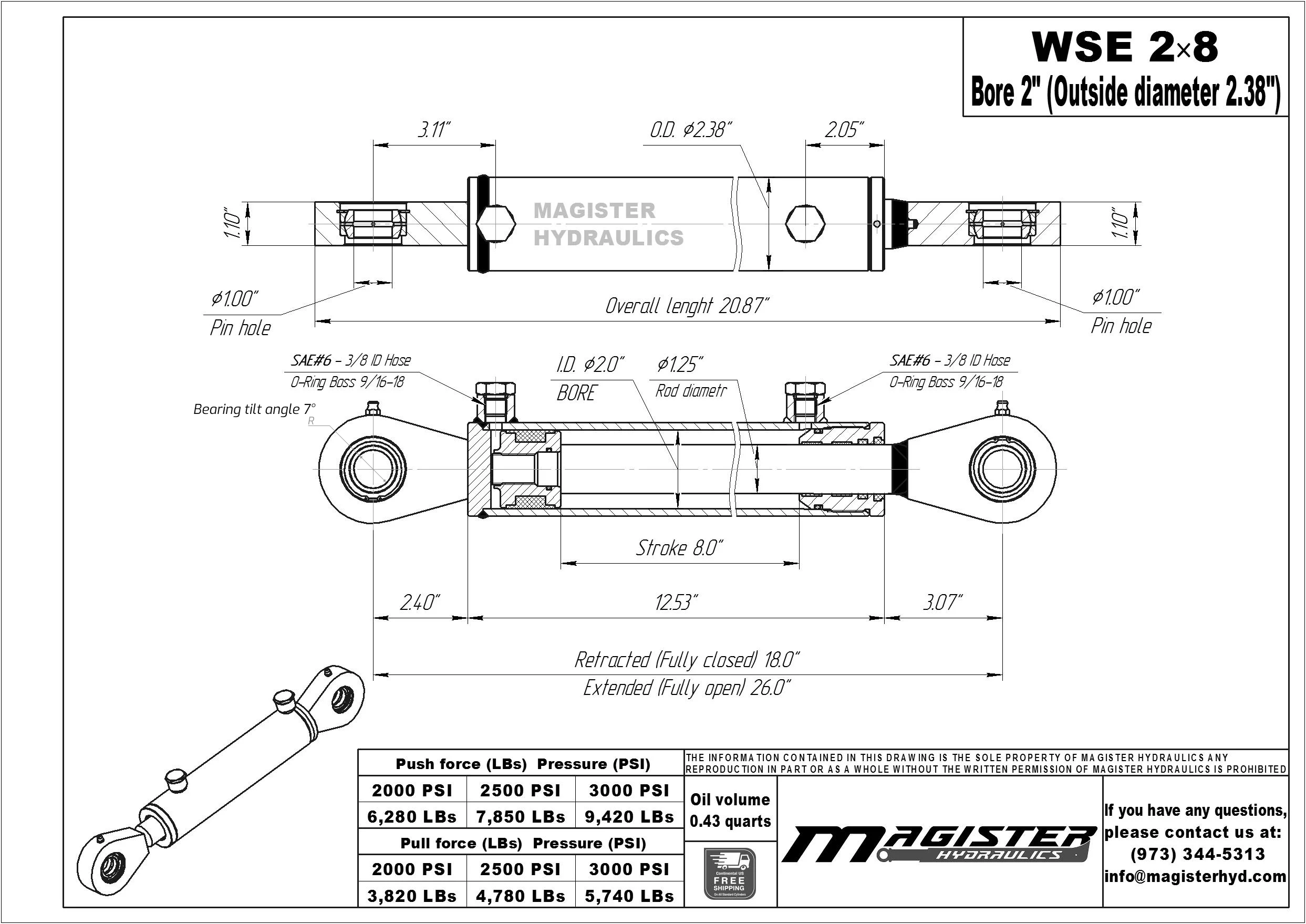

2" bore x 8" stroke swivel eye hydraulic cylinder

Engineered for maximum performance and durability, the heavy-duty Welded Swivel Eye Hydraulic Cylinder is designed to handle demanding jobs in agriculture, construction, and industrial equipment. The Magister Hydraulics Welded Double Acting Hydraulic Cylinder, with a 2-inch bore and 8-inch stroke, features swivel eye mounts on both ends, allowing angular movement and improved load alignment. Built to operate in the harshest environments, this ram offers a cost-effective and reliable alternative to OEM hydraulic components.

Key Features:

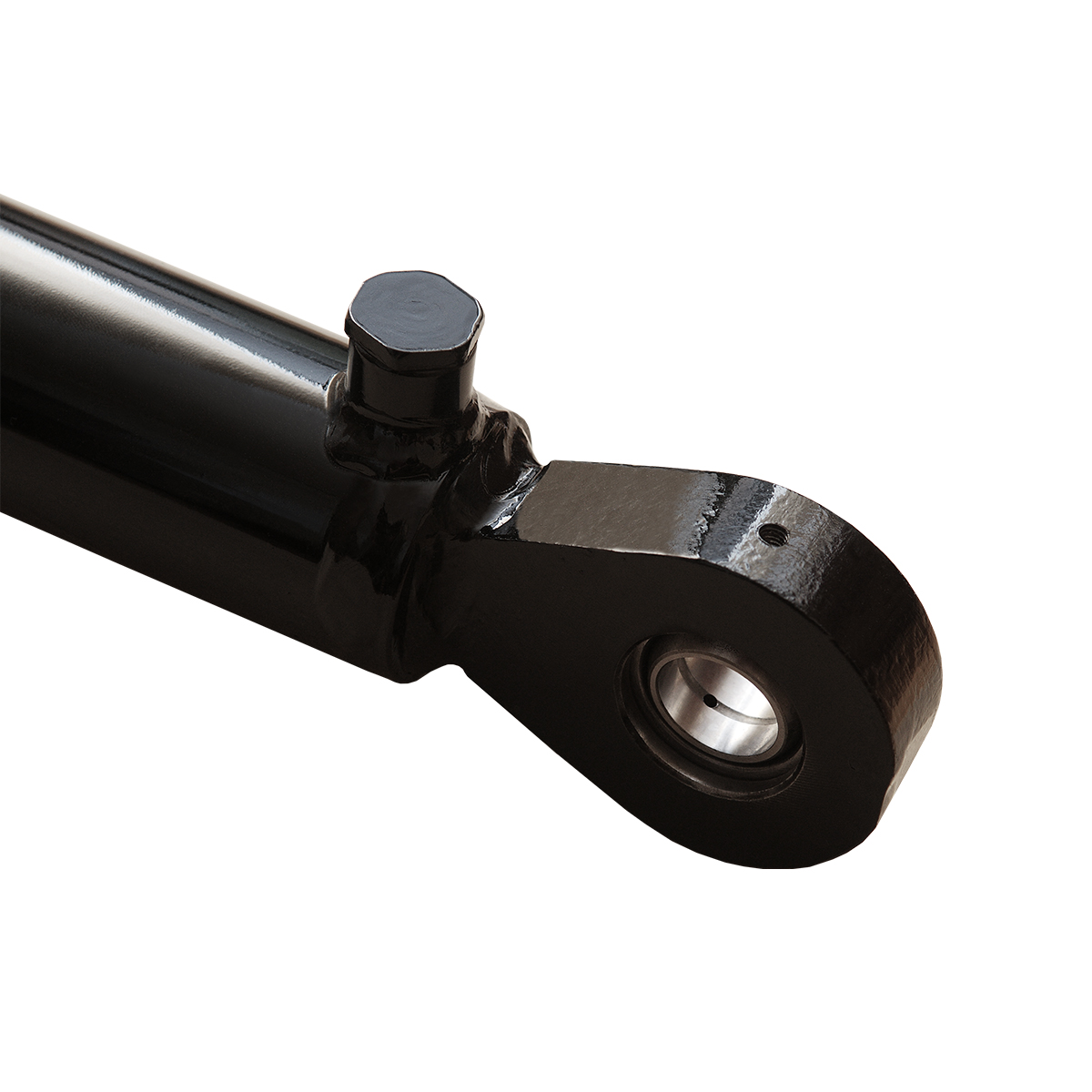

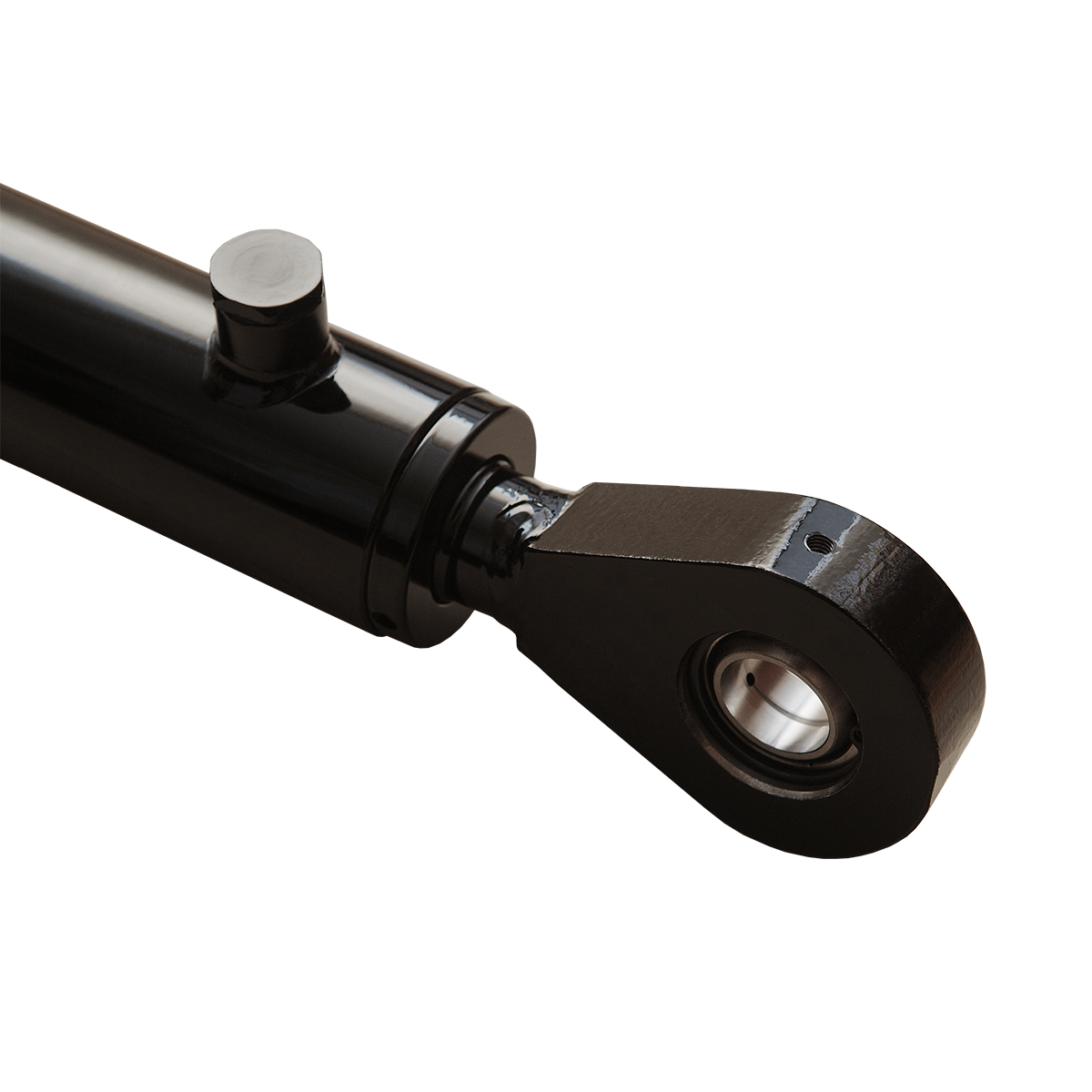

• • – Extreme load capacity: Welded steel mounts with bearings base end, ⌀ 2.38″ honed cold-drawn tubing, ⌀ 1.25″ chrome-plated rod (steel 1045). Equipped with swivel eye mounts on both base and rod ends for enhanced flexibility and alignment under load.
  • – Wide Range Hydraulic Applications: Perfect for installations that require slight angular compensation — commonly used in agriculture, recycling, trailers, loaders, compact machinery such as skid steers and mini-excavators, and utility vehicles.
  • – Double-Acting Functionality: Provides controlled power in both directions, ensuring efficient and versatile performance for a variety of applications.
  • – High-Quality Construction: Steel piston and steel gland with wear rings, crafted from premium-grade materials, offering exceptional durability, corrosion resistance, and long-lasting service life.
  • – Precision Engineering: Designed with tight tolerances and advanced sealing technology to minimize leakage and maintain optimal performance.
  • – Smooth Operation: Features finely honed cylinder barrels and high-quality seals for smooth and consistent operation.
  • – Easy Maintenance: Simple to service and maintain, reducing downtime and ensuring continuous operation.
  • – 2-year warranty
  • – Same Day Shipping: all orders, made until 3 pm, will be shipped the same day (except weekends and holidays). Free Ground Continental US Shipping.
  • – Made in Europe.

Before purchase, please take the proper measurements:

• – The diameter of the bore (please specify inside or outside measurement).
• – The diameter of the rod and pin holes.
• – The fully extended and retracted lengths, measured from the center pinhole to the center pinhole.
• – The width on each mounting end of the cylinder where the pins slide through.

How to Measure a Hydraulic Cylinder
