3 Way Hydraulic Rotary Diverter Valve, 3/4" NPT
$62.00
* Wholesale Discount is available for this product if you purchase 5 or more products.SKU: HV-DV-3W-2P-12N
| Flow : | 32 GPM | Pressure : | 3190 PSI | Working Ports : | 3/4" NPT | Brand : | Hydro-Pack | Weight : | 3 LBs |
|---|
Volume discounts
5+ PRICE EA -5%
$58.90
10+ PRICE EA -10%
$55.80
Out of stock
Out of stock
Description
3 Way Hydraulic Rotary Diverter Valve, 3/4″ NPT. It is used to divert the flow towards two different outlets.
Body: cast iron.
Internal parts: hardened and ground steel.
Seals: BUNA N standard.
Leakage: Minimal leakage.

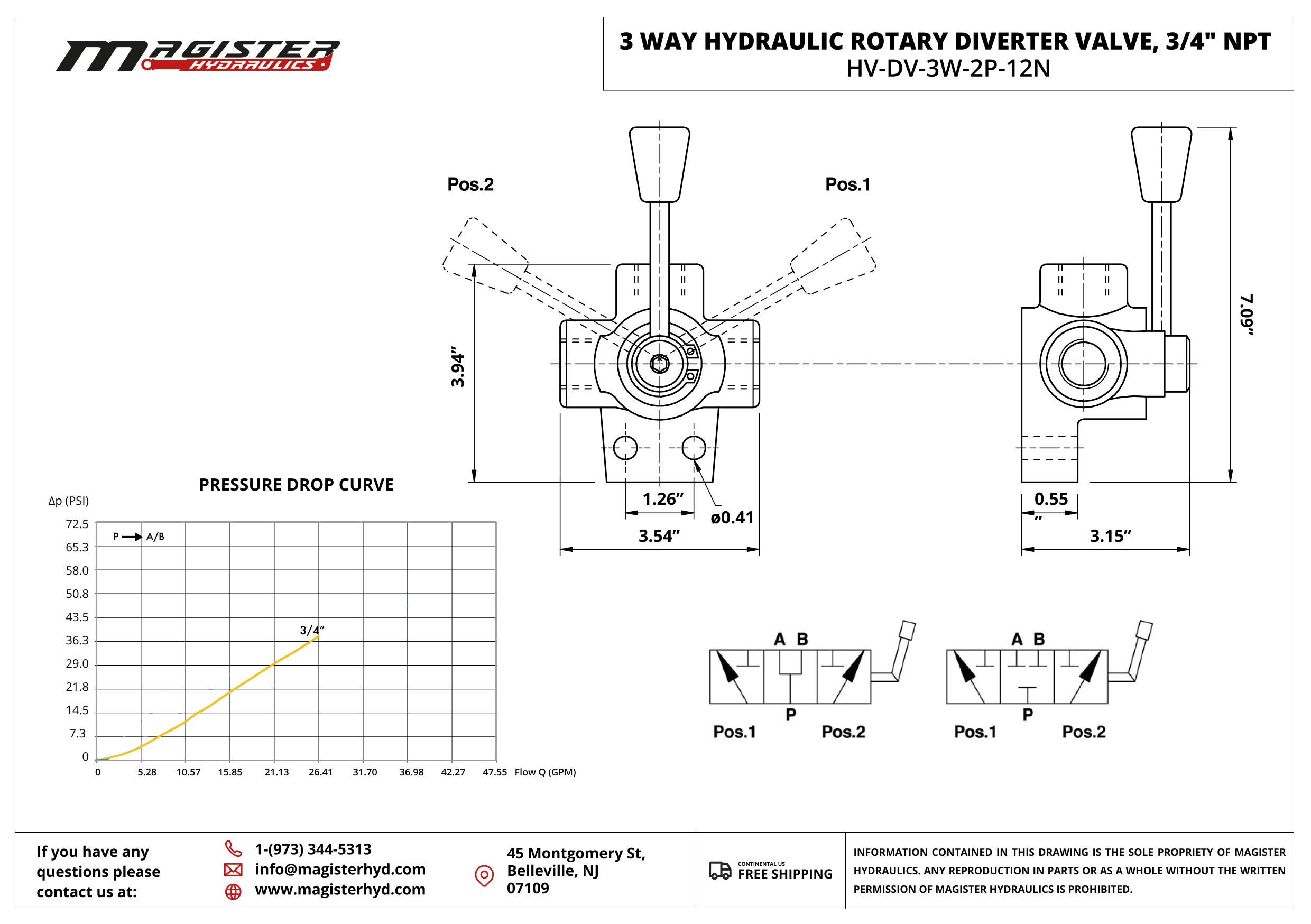

CONNECTIONS:
Connect P to the supply, A and B to the ports of
the hydraulic circuit where flow has to be diverted to. With lever in position 1 the flow is connected towards port A; with lever in position 2, the flow is connected towards port B. With lever in central position ports P, A and B are all connected (open centre).
Oil temperature: 122° F – Oil viscosity: 30 cSt
Made in Europe utilizing American standards, can operate under temperature anywhere from – 40F and up to 140F.
Same-Day Shipping: all orders, made until 3 pm, will be shipped the same day (except weekends and holidays).
Made in Europe.
If you need assistance to choose a proper hydraulic valve, do not hesitate to contact us:
973-344-5313
